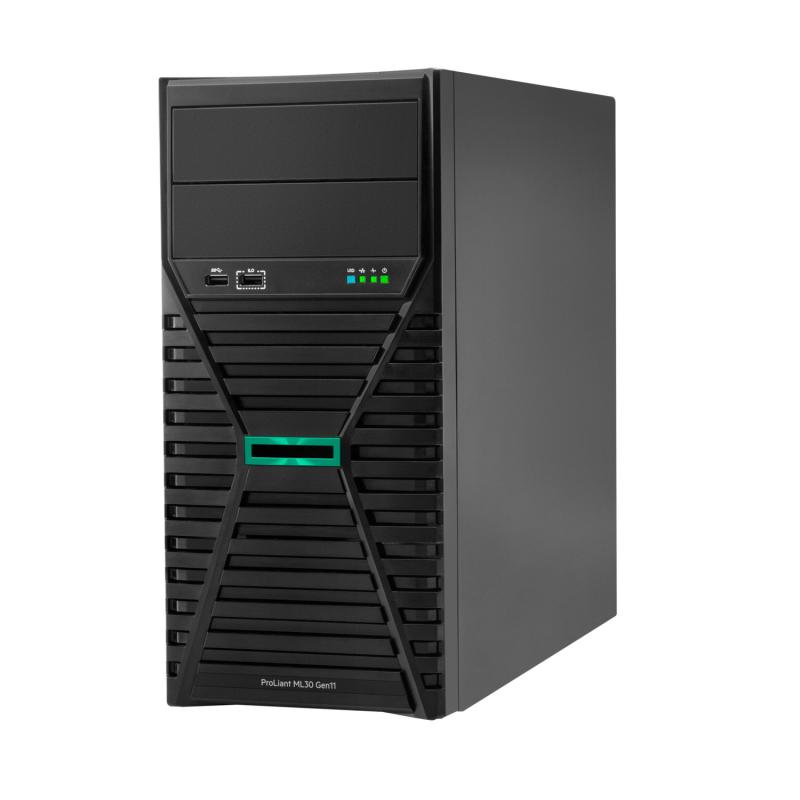

HPE ProLiant ML30 Gen11 E-2436 2.9GHz 6c 1P 1x32GB-U 8SFF MR216i-p 2x480GB SSD 2x800W PS EU Server (P81773-425)

Lifecycle

• Obsolete Date 30-04-2026

Specifications

• Processor cache 18 MB Intel® Smart Cache
• Processor core available 6 core
• Network controller Embedded 1Gb 4-Port Ethernet Adapter
• Form factor 4U Tower
• Warranty Server warranty includes 3-year parts, 1-year labor, and 1-year on-site support with next business day response. Additional information regarding worldwide limited warranty and technical support is available at: https://support.hpe.com/hpesc/public/docDisplay?docId=sd00004309en_us. Additional HPE support and service coverage for your product can be purchased locally. For information on availability of service upgrades and the cost for these service upgrades, visit www.hpe.com/services/support.
• Security Embedded Trusted Platform Module (TPM) 2.0 enabled by default. For servers shipping to China, the TPM is disabled.
• Infrastructure management HPE iLO Standard with intelligent provisioning (embedded), HPE OneView Standard (requires download) (standard) HPE iLO Advanced, HPE OneView Advanced (optional, requires licenses), and HPE Compute Ops Management.
• Processor number 1 processor included
• Processor speed 2.90 GHz
• Processor name Intel® Xeon® E-2436 (6 core, 2.90 GHz, 18 MB Intel® Smart Cache, 65W)
• Included memory 32 GB (1×32 GB UDIMM, 4800 MT/s)
• Included drives 2x HPE 480GB SATA 6G Read Intensive SFF BC Multi Vendor SSD
• System fan features 1x Non-hot plug non-redundant system fan
• Power supply type 2x HPE 800W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit
• Weight 27.558 lb
• Product dimensions (metric) 49.87 x 59.87 x 33.61 cm
• Product dimensions (imperial) 19.63 x 23.57 x 13.23 in
• Weight 12.5 kg
• Memory type HPE DDR5 Standard Memory
• Storage controller HPE MR216i-p Gen11 x16 Lanes without Cache PCI SPDM Plug-in Storage Controller
• Optical drive type None ship standard. Optional: SATA 9.5mm DVD-RW/DVD-ROM Optical Drive
• Expansion slots 4, for detailed descriptions refer to the QuickSpecs

Quickspecs

• QuickSpecs (HTML)
• QuickSpecs
• QuickSpecs (PDF)
• QuickSpecs

Overview

Do you need a reliable enterprise-class tower server that can easily meet your budget? The HPE ProLiant ML30 Gen11 Plus server is a powerful yet affordable tower server designed for small offices, remote and branch offices to run on-premises and hybrid cloud solutions, delivering enterprise-class performance, security, reliability, and expandability at a low cost. Hewlett Packard Enterprise builds security right into the server with HPE iLO silicon root of trust. A redundant power supply option and up to 4 LFF or 8 SFF hot-plug HDDs provide availability and flexibility. The enhanced expansion capability, now including PCIe Gen5, allows you to upgrade with serial attached SCSI (SAS) controllers or networking cards as your business grows, which can give you an extra edge. Power your business now with an HPE ProLiant ML30 Gen11 server.

What’s new

• Supports Intel® Xeon® E Processors up to 8 cores 95W.
• 4800 MT/s HPE DDR5 Standard Memory UDIMM offering: 16 GB and 32 GB, maximum 128 GB memory capacity.
• Four expansion slots for more flexible usage, including one PCIe Gen5 x16.
• Onboard M.2 NVMe SSD support.
• Dedicated HPE iLO port and serial port kit option.

Features

A Variety of Enterprise-Class Features to Achieve Business Growth with Low TCO

The HPE ProLiant ML30 Gen11 server offers flexibility in different storage needs. With a choice of 4 Large Form Factor (LFF) non-hot-plug, hot-plug, or 8 Small Form Factor (SFF) hot-plug drive options, you can find a right fit for your growing business.

The selective HPE 500W, 800W and 1000W Flex Slot redundant power supplies enhance the reliability, and lets you share spares across multiple server platforms.

The HPE ProLiant ML30 Gen11 server offers a complete set of embedded HPE Integrated Lights Out (iLO 6) management features.

With up to 80 TB storage capacity, the HPE ProLiant ML30 Gen11 is an ideal data storage platform allowing your business to accommodate an increasing amount of data as you grow. An onboard M.2 slot with NVMe SSD support delivers outstanding speed for a boot drive. 1

An optional dedicated HPE iLO port allows you to dedicate more bandwidth to network functions and achieve higher network speeds.

The embedded Intel VROC SATA Hybrid RAID ships standard, and the HPE Smart Array essentials and performance controllers allow you the flexibility to choose the 12Gbps controller best suited to your environment.

Four expansion slots for more flexible usage, including one PCIe Gen5 x16 for increased bandwidth. 2

Intelligent Management Automation

The HPE ProLiant ML30 Gen11 server simplifies and automates management tasks, establishing a solid foundation for a hybrid cloud platform enabled by automation.

Embedded in Hewlett Packard Enterprise servers, HPE Integrated Lights-Out (iLO) is an exclusive core intelligence that monitors server status, providing the means for reporting, ongoing management, service alerting, and local or remote management to quickly identify and resolve issues.

Powerful Yet Affordable Server for Your Daily Office Workloads

The HPE ProLiant ML30 Gen11 server is powered by up to 8 cores Intel® Xeon® E Processors and up to 128 GB 4400 MT/s DDR5 ECC UDIMM, delivering abundant performance for small- to mid-sized business applications.

Security Innovations

The HPE ProLiant ML30 Gen11 protects your business with innovations in firmware protection, malware detection, and firmware recovery — right down to the silicon.

Millions of lines of firmware code run before the server operating system boots. Runtime firmware validation, enabled by HPE iLO Advanced Premium Security Edition, checks the server firmware every 24 hours verifying the validity and credibility of essential system firmware.

Secure recovery allows server firmware to roll back to the last known-good state or to factory settings after the detection of compromised code.

The HPE Trusted Platform Module (TPM) works to increase data security by storing the encryption startup key in hardware on the server, providing a more secure environment

Automation and software-defined control reduce time spent on provisioning and maintenance, as well as reduce deployment times.

Compatible products

• HPE 2.4TB SAS 12G Mission Critical 10K SFF BC 3-year Warranty 512e Multi Vendor HDD
• HPE 300GB SAS 12G Mission Critical 10K SFF BC 3-year Warranty Multi Vendor HDD
• HPE 3 Year Tech Care Essential Low-end Servers Smart Choice Service
• HPE 500W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit
• HPE 1TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Multi Vendor HDD
• HPE 2TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Multi Vendor HDD
• HPE MR416I-P GEN11 SPDM STORAGE CNTLR
• HPE StoreEver LTO-7 Ultrium 15000 External Tape Drive
• HPE 4TB SATA 6G Business Critical 7.2K LFF RW 1-year Warranty Multi Vendor HDD
• HPE 6TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty 512e Multi Vendor HDD
• HPE 16GB (1x16GB) Single Rank x8 DDR5-4800 CAS-40-39-39 Unbuffered Standard Memory Kit
• HPE 8TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty 512e Multi Vendor HDD
• HPE 16TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e ISE Multi Vendor HDD
• HPE StoreEver LTO-8 Ultrium 30750 Internal Tape Drive
• HPE StoreEver LTO-8 Ultrium 30750 External Tape Drive
• Broadcom BCM57504 Ethernet 10/25Gb 4-port SFP28 Adapter for HPE
• HPE StoreEver MSL LTO-7 Ultrium 15000 SAS Drive Upgrade Kit
• HPE 5YTCBas DL20/ML30 Smart Choice SVC
• HPE 7.68TB SATA RI SFF BC MV SSD
• HPE 8TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty 512e Multi Vendor HDD
• HPE 480GB SATA 6G Read Intensive SFF BC Multi Vendor SSD
• HPE 5 Year Tech Care Essential Low-end Servers Smart Choice Service
• HPE 480GB SATA 6G Mixed Use SFF BC Multi Vendor SSD
• HPE ML30 Gen9 Tape Drive Cable Kit
• HPE 2TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty Multi Vendor HDD
• BCM 57414 10/25GbE 2p SFP28 Adptr
• HPE 1 Mini SAS HD – 4 Mini SAS FO 4
• HPE 3.84TB SATA 6G Read Intensive SFF BC Multi Vendor SSD
• HPE 1.92TB SATA 6G Mixed Use SFF BC Multi Vendor SSD
• Broadcom BCM5719 Ethernet 1Gb 4-port BASE-T Adapter for HPE
• HPE 1.92TB SATA 6G Read Intensive SFF BC Multi Vendor SSD
• HPE 960GB SATA 6G Mixed Use SFF BC Multi Vendor SSD
• HPE 600GB SAS 10K SFF BC MV HDD
• HPE iLO Advanced Electronic License with 3yr Support on iLO Licensed Features
• HPE Gen9 LFF HDD Spade Blank Kit
• HPE 12TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e Multi Vendor HDD
• HPE 1.8TB SAS 10K SFF BC 512E MV HDD
• HPE 6TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty 512e Multi Vendor HDD
• HPE 20TB SATA 7.2K LFF LP ISE MV HDD
• HPE 32GB 2RX8 PC5-4800B-E STND KIT
• HPE 4TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Multi Vendor HDD
• HPE 9.5mm SATA DVD-RW Optical Drive
• HPE 1000W Flex Slot Titanium Hot Plug Power Supply Kit
• HPE Smart Array E208e-p SR Gen10 (8 External Lanes/No Cache) 12G SAS PCIe Plug-in Controller
• HPE ML30 G11 Serial Port iLO/M.2 Enable
• MLX MCX631102 10/25GBE 2P SFP28 ADPTR
• HPE 1TB SATA 6G Business Critical 7.2K LFF RW 1-year Warranty Multi Vendor HDD
• HPE Smart Array Secure Encryption E-LTU
• HPE 800W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit
• HPE StoreEver MSL2024 0-drive Tape Library
• HPE 4TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty Multi Vendor HDD
• HPE 960GB SATA 6G Read Intensive SFF BC Multi Vendor SSD
• HPE 96W Smart Storage Lithium-ion Battery with 260mm Cable Kit
• HPE 960GB SAS 12G Mixed Use SFF BC Value SAS Multi Vendor SSD
• HPE LTO-7 Ultrium 15000 Internal Tape Drive
• HPE Small Form Factor Hard Drive Blank Kit
• HPE iLO Advanced 1-server License with 3yr Support on iLO Licensed Features
• HPE ML150 Gen9 Smart Storage Battery Holder Kit
• HPE MR216i-p Gen11 SPDM Storage Cntlr
• HPE 3YTCBAS DL20/ML30 SMART CHOICE SVC
• HPE Mobile USB DVD-RW Optical Drive
• HPE iLO Advanced 1-server License with 1yr Support on iLO Licensed Features
• Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T Adapter for HPE
• HPE 16TB SATA 6G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e ISE Multi Vendor HDD
• Broadcom BCM57412 Ethernet 10Gb 2-port SFP+ Adapter for HPE
• HPE ML Gen10 Tower to Rack Conversion Kit with Sliding Rail Rack Shelf and Cable Management Arm
• HPE 1 Mini SAS HD – 4 Mini SAS FO 2M Cbl
• HPE 240GB SATA 6G Read Intensive SFF BC Multi Vendor SSD
• HPE ML30 Gen10 Mini SAS Cable Kit
• HPE 960GB SATA 6G Read Intensive LFF LPC Multi Vendor SSD
• HPE iLO Advanced Electronic License with 1yr Support on iLO Licensed Features
• HPE Smart Storage Hybrid Capacitor with 260mm Cable Kit
• HPE 12TB SAS 12G Business Critical 7.2K LFF LP 1-year Warranty Helium 512e Multi Vendor HDD
• HPE 1.2TB SAS 12G Mission Critical 10K SFF BC 3-year Warranty Multi Vendor HDD
• HPE NS204i-u Gen11 NVMe Hot Plug Boot Optimized Storage Device
• HPE 9.5mm SATA DVD-ROM Jb Gen9 Kit

Documents

• HPE ProLiant ML30 Gen11 server beats competition on all four base metrics of SPEC CPU® 2017 benchmark
• A tower server built with enterprise-class features, priced for small and remote offices
• HPE ProLiant ML30 Gen11 QuickSpecs

1 HPE ProLiant ML30 Gen11 server supports one onboard M.2 SSD with PCIe 5.0 x2 bandwidth or SATA.

2 Compared with PCIe Gen4 x16.
