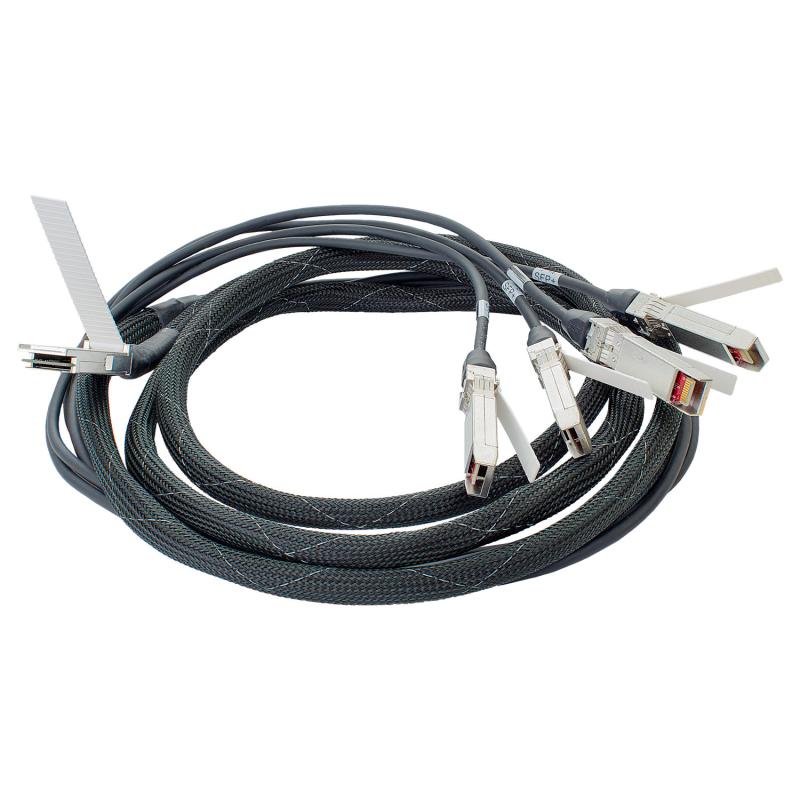

HPE BladeSystem c-Class 40G QSFP+ to 4x10G SFP+ 3m Direct Attach Copper Splitter Cable (721064-B21)

Lifecycle

• Obsolete Date 31-12-2030
• End of support date 31-01-2028

Specifications

• Product dimensions (imperial) 11.22 x 19.09 x 9.05 in
• Weight 1 lb
• Type QSFP+ transceiver at one end and 4 SFP+ transceivers at the other end of the cable
• Cable type Direct Attach Splitter Cable
• Crosstalk 26dB max
• Time delay 1.32 nsec/ft
• Minimum cable bend radius SFP+ end: 0.7" QSFP+ end: 1.78"
• Cable diameter 0.175" for each SFP+ fan out cable
• Cable length 3m
• Product dimensions (metric) 28.5 x 48.49 x 22.99 cm
• Weight 0.45 kg

Quickspecs

• QuickSpecs
• QuickSpecs

Overview

The HPE Direct Attach Cables provide connections to meet the exponential data growth in data centers and cloud-based services.

Features

HPE Direct Attach Cables offers a cost-effective alternative to fiber optics.

SFF-8665 compliant.

RoHS compliant.

Affordable and Reliable

Compatible products

• HPE SN2410M 25GbE 24SFP28 4QSFP28 Power to Connector Airflow Switch
• HPE ProLiant DL385 Gen10 Plus v2 7313 3.0GHz 16-core 1P 32GB-R MR416i-a 8SFF 800W PS Server
• HPE ProLiant DL385 Gen10 7401 1P 32GB-R P408i-a 24SFF SAS 800W PS Base Server
• HPE ProLiant DL325 Gen10 7262 1P 16GB-R P408i-a 8SFF 500W RPS Server
• ARUBA 8325-48Y8C FB 6 F 2 PS BDL
• HPE DL20 GEN10+ E-2314 1P 16G 4SFF SVR
• HPE ProLiant DL385 Gen10 7302 2.8GHz 16-core 1P 16GB-R 8SFF 800W RPS Server
• HPE ProLiant DL325 Gen10 7401P 1P 32GB-R P408i-a 8SFF 1x800W PS Performance Server
• HPE ProLiant DL385 Gen10 7262 1P 16GB-R 12LFF 800W RPS Server
• HPE ProLiant DL385 Gen10 Plus 7262 3.2GHz 8-core 1P 16GB-R 8SFF 500W PS Server
• HPE ProLiant DL325 Gen10 7232P 3.1GHz 8-core 1P 16GB-R P408i-a 8SFF 1x500W RPS Server
• HPE ProLiant DL345 Gen10 Plus 7232P 3.1GHz 8-core 1P 32GB-R 8LFF 500W PS Server
• HPE DL385 G10+ V2 7313 MR416I-A EU SVR
• HPE ProLiant DL385 Gen10 7251 1P 16GB-R E208i-a 8LFF SATA 500W PS Entry Server
• HPE ProLiant DL20 Gen10 G5420 3.80 GHz 2C 1P 8GB-U S100i 2LFF-NHP 290W PS Server
• HPE ProLiant DL385 Gen11 9124 3.0GHz 16-core 1P 32GB-R 8SFF 1000W PS EU Server
• HPE ProLiant DL385 Gen10 7351 1P 32GB-R P408i-a 8SFF 800W PS Solution Server
• HPE ANW 8100-24XF4C FB3F2AC Bdl
• HPE SN2100M 100GbE 8QSFP28 Power to Connector Airflow Half Width Switch
• HPE ProLiant DL385 Gen10 7451 2P 64GB-R P408i-a 8SFF SAS 2x800W PS Perf Server
• HPE ProLiant DL20 Gen10 Plus E-2336 2.9GHz 6-core 1P 16GB-U 4SFF 500W RPS Server
• HPE ProLiant DL345 Gen10 Plus 7313P 3.0GHz 16-core 1P 32GB-R 8SFF 500W PS Server
• HPE ProLiant DL20 Gen10 E-2224 1P 16GB-U S100i 4SFF 500W RPS Server
• HPE ProLiant DL385 Gen11 9224 2.5GHz 24-core 1P 32GB-R 8SFF 1000W PS EU Server
• HPE ProLiant DL325 Gen10 7402P 1P 64GB-R P408i-a 8SFF 800W RPS Server
• HPE ProLiant DL385 Gen10 Plus 7262 3.2GHz 8-core 1P 16GB-R 8LFF 500W PS Server
• HPE SN2100M 100GbE 16QSFP28 Power to Connector Airflow Half Width Switch
• HPE ProLiant DL385 Gen10 7551 1P 32GB-R P408i-a 8SFF 800W PS Base Server
• HPE ProLiant DL385 Gen10 7282 1P 32GB-R 8SFF 800W PS Server
• HPE ProLiant DL20 Gen10 Plus E-2314 2.8GHz 4-core 1P 8GB-U 2LFF-NHP 290W PS Server
• HPE ProLiant DL385 Gen10 7251 1P 32GB-R P816i-a 12LFF SATA 800W PS Base Server
• HPE ProLiant DL385 Gen10 Plus 7302 3.0GHz 16-core 1P 32GB-R 8SFF 500W PS Server
• HPE ProLiant DL325 Gen10 7302P 2.8GHz 16-core 1P 16GB-R P408i-a 8SFF 800W RPS Server
• HPE SN2410bM 10GbE 48SFP+ 8QSFP28 Power to Connector Airflow Switch
• HPE ProLiant DL385 Gen10 7452 1P 16GB-R 24SFF 800W RPS Server
• HPE ProLiant DL325 Gen10 7351P 1P 16GB-R E208i-a 8SFF 1x500W PS Performance Server
• HPE ProLiant DL385 Gen10 Plus 7402 2.8GHz 24-core 2P 32GB-R 16SFF NVMe 800W PS Server
• HPE ProLiant DL325 Gen10 7251 1P 8GB-R E208i-a 4LFF 500W PS Entry Server
• HPE ProLiant DL20 Gen10 E-2236 1P 16GB-U S100i 4SFF 500W RPS Server
• HPE ProLiant DL385 Gen10 7301 1P 32GB-R P408i-a 8SFF 800W PS Server
• HPE ProLiant DL385 Gen10 7262 1P 16GB-R 8SFF 800W RPS Server
• HPE ProLiant DL20 Gen10 E-2224 1P 16GB-U S100i 2LFF 290W PS Server
• HPE ProLiant DL325 Gen10 7282 1P 16GB-R P408i-a 8SFF 1x500W RPS Server
• HPE ProLiant DL385 Gen10 Plus v2 7313 3.0GHz 16-core 1P 32GB-R 8SFF 800W PS Server
• HPE DL325 G11 9354P MR408I-O 8SFF EU SVR
• HPE SN2700M 100GbE 32QSFP28 Switch
• HPE ProLiant DL385 Gen10 7251 2.1GHz 8-core 1P 16GB-R P408i-a 8SFF 500W PS Server
• HPE SN2410M 25GbE 48SFP28 8QSFP28 Swch
• HPE ProLiant DL20 Gen10 E-2224 1P 8GB-U S100i 2LFF-NHP 290W PS Server
• HPE DL20 GEN10+ E-2336 1P 16G 4SFF SVR
• HPE Aruba Networking CX 8100 24x10G Base-T 4x10G SFP+ 4×40/100G QSFP28 FB 3Fan 2AC PSU Sw Bdl
• HPE SN2410bM 10GbE 24SFP+ 4QSFP28 Power to Connector Airflow Switch
• HPE ProLiant DL385 Gen10 Plus 7702 2.0GHz 64-core 1P 32GB-R 24SFF 800W PS Server
• HPE SN2700M 100GbE 16QSFP28 Power to Connector Airflow Switch
• HPE ProLiant DL325 Gen10 7262 1P 16GB-R S100i 4LFF 800W RPS Server
• HPE ProLiant DL325 Gen10 7351P 1P 16GB-R P408i-a 8SFF 500W RPS Performance Server
• HPE ProLiant DL385 Gen10 7252 3.1GHz 8-core 1P 16GB-R 8SFF 500W PS Server
