Supermicro GPU A+ Server AS-5126GS-TNRT

DP AMD 5U System with 8 PCIe GPUs

Key Applications

  • AI / Deep Learning
  • 3D Rendering Farm
  • Visualization / Simulation
  • High Performance Computing
  • Multimedia/Digital Content creation

Key Features

  1. Dual Socket SP5 AMD EPYC™ 9005 Series Processors up to 500W with air cooling
  2. Supports up to 8 double-width PCIe GPU accelerator cards
  3. Supports up to 24 DIMMs slots, 6400 MT/s 6TB DDR5 in 1DPC
    (Please check System Memory Section for detail)
  4. Total of 9 PCIe 5.0 x16 FHFL slots
  5. Dual front hot-swap 2.5″ SATA + 4 front hot-swap 2.5″ NVMe drive bays
  6. Total of 6x 2700W Redundant (3 + 3) Titanium Level power supplies
    (Power supply full redundancy based on configuration and application load)



Configuration:

Item Description Qty
AS -5126GS-TNRT H14DSG-O-CPU, CSE-528G, 5U GPU direct attached server 1
3 YRS LABOR, 3 YRS PARTS, 1 YR CRS UNDER LIMITED WRNTY 1
Turin 9115 DP/UP 16C/32T 2.6G 64MB 125W SP5 HF,RoHS- 2
16GB DDR5 RDIMM 6400 ECC REG—MEM-DR516MB-ER64 24
PM893 1.92TB SATA 6Gb/s V6 2.5″ 7mm 1DWPD 5YR SED 2
NVIDIA H200 NVL 141GB PCIe 5.0 x16, Air Cool—GPU-NVH200NVL 2
SPI Capable Vertical TPM 2.0 — AOM-TPM-9670V-O 1
NVLINK Bridge Board for Hopper GPU, 2-way Passive 1
SKU: AS-2124US-TNRP-1 Categorii: , , , , , , , , , , ,
Product SKUs
A+ Server AS -5126GS-TNRT
Motherboard
Super H14DSG-O-CPU
Processor
CPU
Core Count
  • Up to 192C/384T
Note
  • Supports up to 500W TDP CPUs
GPU
Max GPU Count
  • Up to 8 double-width GPUs
Supported GPU
CPU-GPU Interconnect
  • Direct Attached
GPU-GPU Interconnect
  • NVIDIA® NVLink® Bridge (optional), AMD Infinity Fabric™ Link (optional)
Certification
  • Nvidia Certified

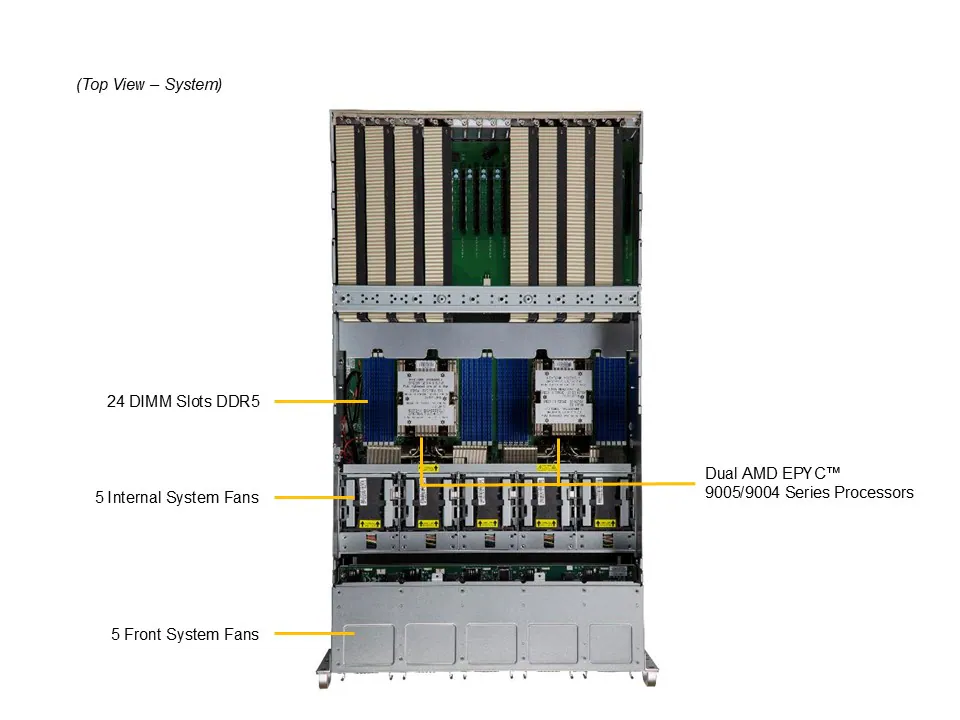

System Memory
Memory
  • Slot Count: 24 DIMM slots
  • Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor)
  • Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor)
  • View Memory Options
Memory Voltage
  • 1.1V
On-Board Devices
SATA
  • SATA (6Gbps)
Chipset
  • System on Chip
Network Connectivity
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
  • 2 RJ45 10 GBASE-T LAN ports
USB
  • 2 ports(rear)
Video
  • 1 VGA port
System BIOS
BIOS Type
  • AMI 64MB SPI Flash EEPROM
Management
Software
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
  • 7 +1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 5U Rackmount
Model
  • CSE-528G2TS-R000NDP
Dimensions and Weight
Height
  • 8.75″ (222.5 mm)
Width
  • 17.2″ (438 mm)
Depth
  • 31″ (786.1 mm)
Package
  • 17.32″ (H) x 28.34″ (W) x 42.51″ (D)
Weight
  • Gross Weight: 100 lbs (45.3 kg)
  • Net Weight: 65.5 lbs (29.7 kg)
Available Color
  • Black Front & Silver Body

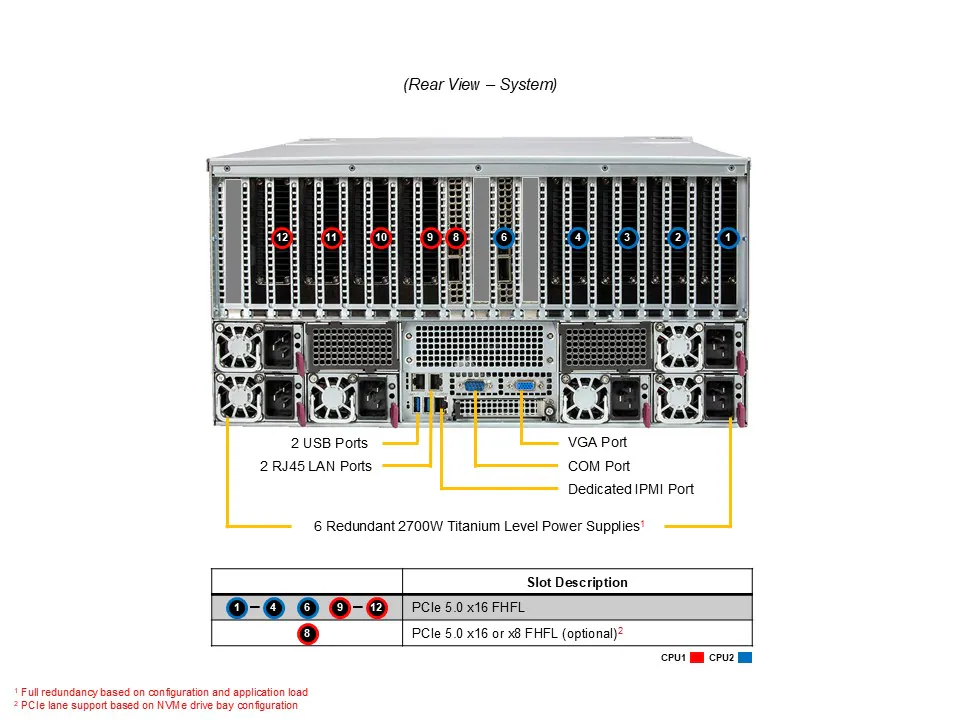

Expansion Slots
PCI-Express (PCIe) Configuration
  • Default
    • 9 PCIe 5.0 x16 FHFL double-width slots
  • Option A
    • 10 PCIe 5.0 x16 FHFL double-width slots
  • View AOC Options

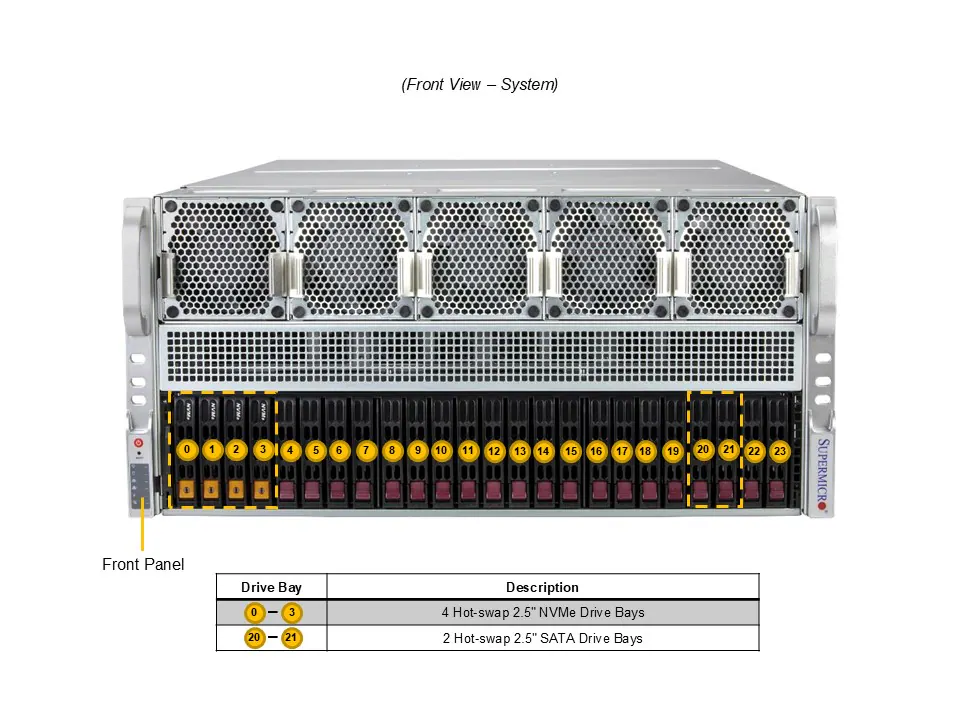

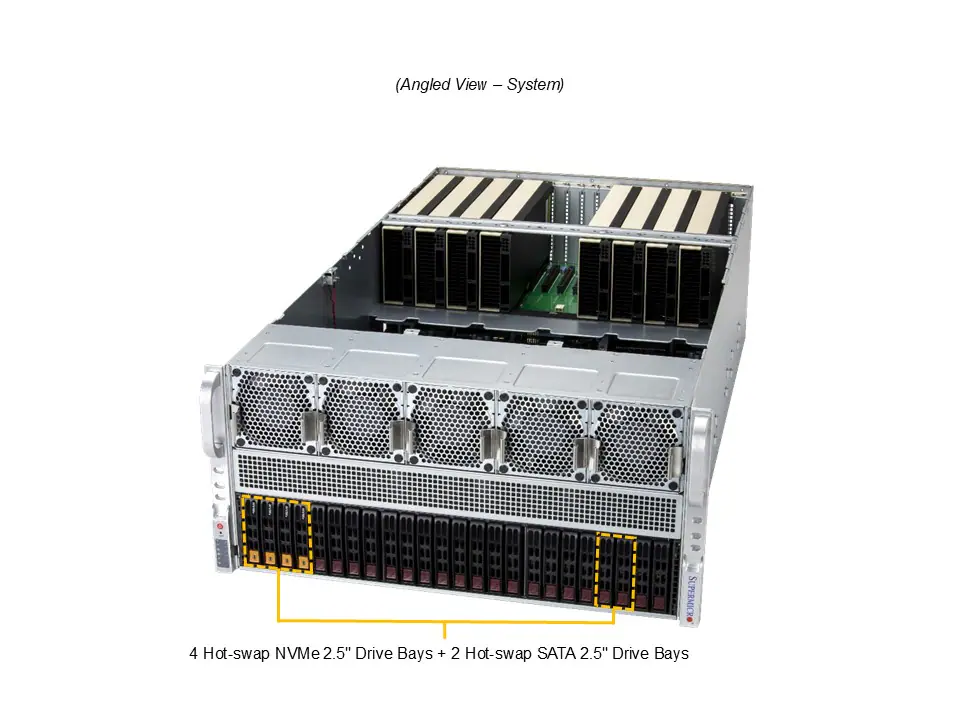

Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 6 bays
    • 2 front hot-swap 2.5″ SATA drive bays
    • 4 front hot-swap 2.5″ NVMe drive bays
  • Option A: Total 2 bays
    • 2 front hot-swap 2.5″ SATA drive bays
  • View NVMe Options
  • View Drive Options
M.2
System Cooling
Fans
  • 10 heavy duty fans with optimal fan speed control
Power Supply
6x 2700W Redundant (3 + 3) Titanium Level (96%) power supplies
Dimension (WxHxL) 73.5 x 40 x 203 mm
Input 2700W: 200-240Vac
2700W: 200-240Vac / 50-60Hz
2700W: 240-240Vdc / 50-60Hz (for CQC only)
+12V Max: 225A / Min: 0A (200Vac-240Vac)
Max: 225A / Min: 0A (240Vdc-240Vdc)
12V SB Max: 3.5A / Min: 0A
Max: 4A / Min: 0A
Output Type Backplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
