Supermicro AS-1014S-WTRT-EU 1U Rackmount UP WIO SuperServer (AS-1014S-WTRT-EU)
Supermicro AS-1014S-WTRT-EU 1U Rackmount UP WIO SuperServer (AS-1014S-WTRT-EU) - imagine 2
Supermicro AS-1014S-WTRT-EU 1U Rackmount UP WIO SuperServer (AS-1014S-WTRT-EU) - imagine 3
Supermicro AS-1014S-WTRT-EU 1U Rackmount UP WIO SuperServer (AS-1014S-WTRT-EU) - imagine 4
Supermicro AS-1014S-WTRT-EU 1U Rackmount UP WIO SuperServer (AS-1014S-WTRT-EU) - imagine 5
Supermicro AS-1014S-WTRT-EU 1U Rackmount UP WIO SuperServer (AS-1014S-WTRT-EU) - imagine 6
, , , , , , , , , , , ,

Supermicro AS-1014S-WTRT-EU 1U Rackmount UP WIO SuperServer (AS-1014S-WTRT-EU)

Favorite
Compara
Pretul afisat contine TVA (19%).

13.123,20 lei

Supermicro AS -1014S-WTRT-EU 1U Rackmount UP WIO SuperServer (AS-1014S-WTRT-EU)





Supermicro WIO SuperServer® systems allow users to select from a wide range of I/O options to optimize the storage and networking solutions to best fit their applications. In addition to enabling customizable configurations and optimization for a wide range of application requirements, Supermicro WIO SuperServers also provide attractive cost advantages and investment protection.

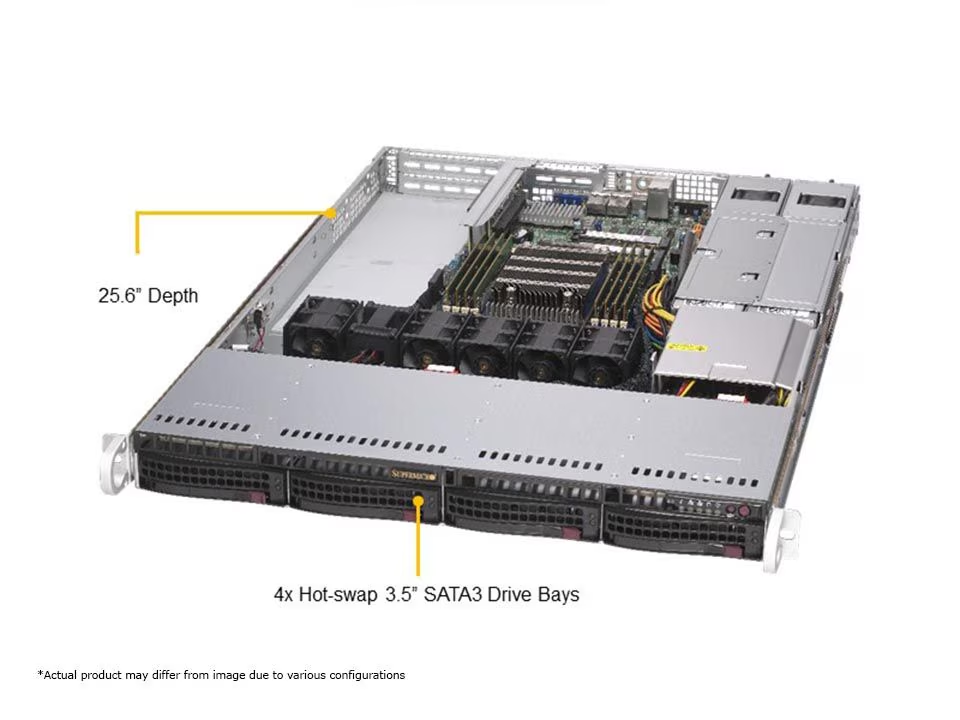

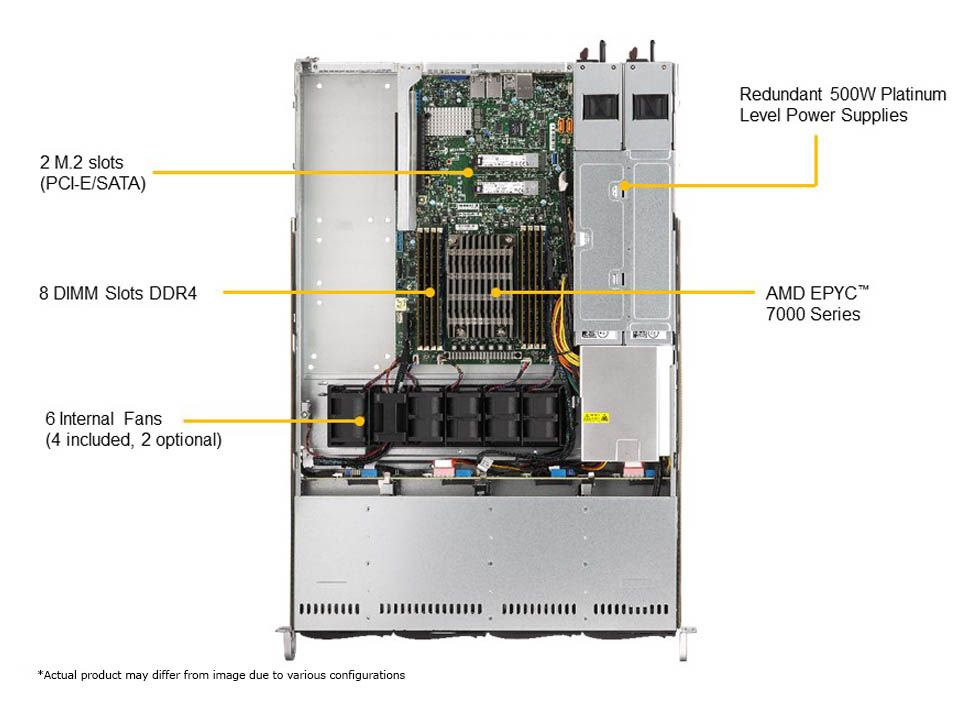

The Supermicro AS -1014S-WTRT-EU WIO SuperServer® supports a Single AMD EPYC™ 7002/7003 Series Processor and up to 2TB DDR4-3200MHz memory in 8 DIMM slots. The AS -1014S-WTRT-EU includes 4 hot-swappable 3.5″ SATA drive bays (2.5″ with converter drive tray) which makes changing hard drives easy without needing to open up the server. In addition, this WIO supports up to 2 SuperDOM with built-in power which is designed for use as a boot drive, backup recovery device, license drive, or OS installation device (replacing CD/DVD-ROMs). This system has 2 x 10GBase-T LAN onboard ports via Broadcom BCM57416 controller for super fast networking speeds.

The 1U UP WIO server supports up to 3 PCI-E 4.0 add-on cards (via included riser card), 2 of which support full height full length (FHFL) and 1 which is a low profile (LP) slot. To power the entire system, there is a 500W redundant titanium power supply with an over 96% efficiency rating.

Supermicro WIO SuperServers are optimized for DB processing & storage, data center application, and firewall applications.



  • Key Features/Applications: Database Processing and Storage, Data Center Applications, Firewall Applications
  • CPU: Single AMD EPYC™ 7003/7002 Series Processor, up to 64 Cores
  • Chassis: 1U
  • Drive: Up to 4x 3.5″ Hot-Swap SATA Drive Bays. Supports up to 4x U.2 NVMe Drive Bays (Optional)
  • RAM: Up to 2TB of DDR4 ECC RDIMM/LRDIMM in 8 DIMM Slots
  • Network Ports: 2x 10GbE RJ45 LAN Ports
SKU: AS-1014S-WTRT-EU Categorii: , , , , , , , , , , , ,
Product SKUs
A+ Server AS -1014S-WTRT Standard version with PWS-504P-1R (Platinum Level)
A+ Server AS -1014S-WTRT-EU European version with PWS-601A-1R (Titanium Level)
Processor
CPU
  • Single SP3
  • AMD EPYC™ 7002/7003 Series Processors
Note
  • Supports up to 280W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 2 double-width or 2 single-width GPUs
Supported GPU
  • NVIDIA PCIe: T4, A2
System Memory
Memory
  • Slot Count: 8 DIMM slots
  • Max Memory (1DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
Memory Voltage
  • 1.2V
On-Board Devices
SATA
  • SATA (6Gbps)
Chipset
  • System on Chip
Network Connectivity
  • 2 RJ45 10GbE with Broadcom® BCM57416
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

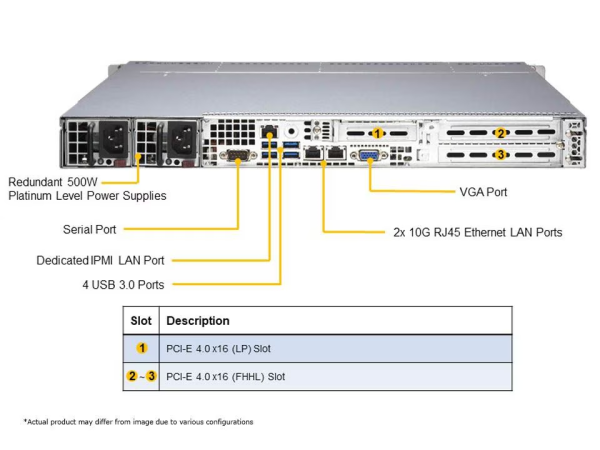

Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
  • 2 RJ45 1 GBASE-T LAN ports
USB
  • 4 USB 3.0 ports(rear)
  • 1 USB 3.0 Type-A port
Video
  • 1 VGA port
DOM
  • 2 SuperDOM (Disk on Module) ports
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
  • IPMICFG
  • SMCIPMITool
  • IPMIView
Power configurations
  • ACPI/APM Power Management
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-815TS-R504WBP4
Dimensions and Weight
Height
  • 1.7″ (43 mm)
Width
  • 17.2″ (437 mm)
Depth
  • 25.6″ (650 mm)
Package
  • 8.5″ (H) x 23.5″ (W) x 33.7″ (D)
Weight
  • Gross Weight: 46 lbs (20.87 kg)
  • Net Weight: 22 lbs (9.98 kg)
Available Color
  • Black
Front Panel
LED
  • HDD activity
  • Network activity
  • Power status
  • Universal Information (UID)
Buttons
  • Power On/Off
  • UID button

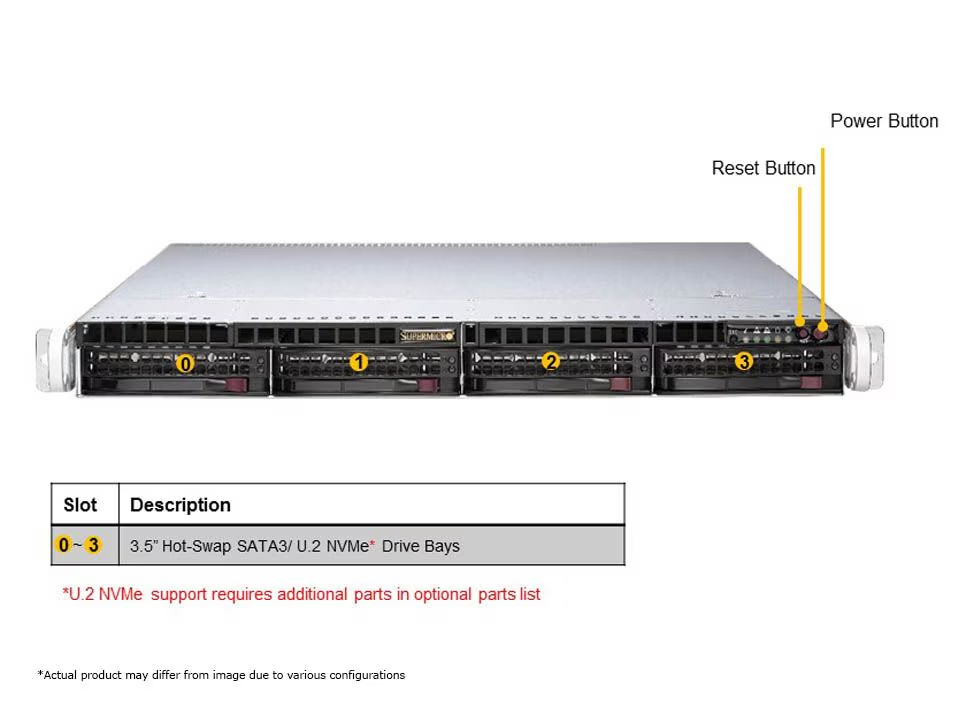

Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 4 bays
    • 4 front hot-swap 3.5″ SATA drive bays
  • Option A: Total 4 bays
    • 4 front hot-swap 3.5″/2.5″ PCIe 3.0 NVMe* drive bays
  • (*NVMe support may require additional storage controller and/or cables, please see the optional parts list for details)
Peripheral Bays
  • 1 slim DVD bay (optional)
System Cooling
Fans
  • 2 AOC cooling Fan(s)
  • 4 Counter-rotating PWM 4cm Fan(s)
Power Supply
QtyWithPsu
  • 2x 500W
Description
  • 2x 500W Redundant (1 + 1) Platinum Level (94%) power supplies
Dimension (WxHxL)
  • 54.5 x 40.25 x 320 mm
Total Output Power
Input
  • 500W: 100-240Vac / 50-60Hz
+12V
  • Max: 42A / Min: 0.5A (100Vac-240Vac)
    Max: 42A / Min: 0.5A
5V SB
  • Max: 3A / Min: 0A
    Max: 4A / Min: 0A
Output Type
  • Backplanes (gold finger)
Certification
  • Platinum Level Certified94%+  Platinum Level
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (Non-Condensing)
  • Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
