Supermicro SYS-E300-9D-8CN8TP Compact IOT System (SYS-E300-9D-8CN8TP)

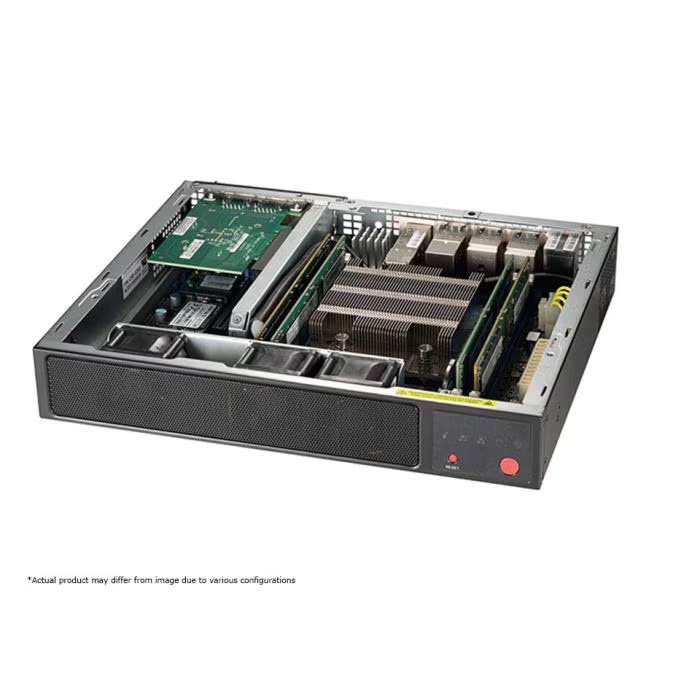

Despite its compact size, SYS-E300-9D-8CN8TP is designed to handle extreme in-memory computing, and mission critical apps with maximum configurability and scalability. E300-9D-8CN8TP-Description
This system fits in the most compact of spaces, measuring in at only 10″ x 1.7 x 8.9 inches and weighing slightly over 7.5lbs. This particular IoT/embedded system is optimized for network security appliance, universal customer premise equipment (uCPE), software defined WAN (SD-WAN), NFV edge computing server, virtualization server, and IoT edge computing / gateway.
SYS-E300-9D-8CN8TP has Intel® Xeon® processor D-2146NT(8-Core) embedded in the system, up to 256GB DDR4 RDIMM or 512GB DDR4 LRDIMM in 4 DIMM slots, and supports 1 2.5″ drive bay. In addition, this system has a total of 8 networking ports (2 10GbE RJ45 + 4 1GbE RJ45 + 2 SFP+), 1 VGA port, and 2 USB 3.0 ports.
This powerful compact system is perfect for those looking for an application optimized, cost-effective, and space-constrained system.
  • Key Features/Applications: Network Security Appliance, Universal Customer Premise Equipment (uCPE), Softare Defined WAN (SD-WAN), NFV Edge Computing Server, Virtualization Server, IoT Edge Computing / Gateway
  • CPU: Single Intel® Xeon® D-2146NT Processor, up to 8 Cores
  • Chassis: Compact Form Factor
  • Drive: Up to 1x 2.5″ SATA + 1x M.2 Onboard NVMe/SATA Drive Bays
  • RAM: Up to 512GB of DDR4 ECC LRDIMM in 4 DIMM Slots
  • Network Ports: 4x 1GbE RJ45 + 2x 10GbE RJ45 + 2x 10GbE SFP+ LAN Ports
SKU: SYS-E300-9D-8CN8TP Categorii: , , , , , , ,
Product SKUs
SYS-E300-9D-8CN8TP
  • SuperServer E300-9D-8CN8TP (Black)

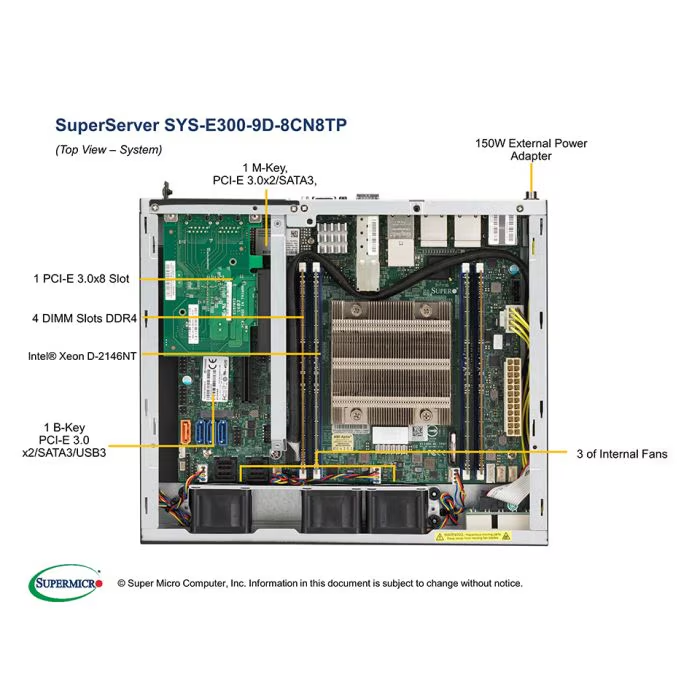

Motherboard
Super X11SDV-8C-TP8F
Processor/Cache
CPU
  • Intel® Xeon® processor D-2146NT,
    CPU TDP support 80W
Cores / Cache
  • 8 Cores, 16 Threads
System Memory
Memory Capacity
  • Up to 512GB DDR4 ECC LRDIMM
  • Up to 256GB DDR4 ECC DIMM
  • 4 DIMM slots
Memory Type
  • 2666/2400/2133MHz ECC LRDIMM and ECC DIMM
  • Operating speed up to 2400MHz
DIMM Sizes
  • RDIMM: 4GB, 8GB, 16GB, 32GB, 64GB
  • LRDIMM: 16GB, 32GB, 64GB, 128GB
Memory Voltage
  • 1.2 V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors
    (using ECC memory)
On-Board Devices
Chipset
  • System on Chip
SATA
  • SATA3 (6Gbps) ports via SoC controller
Network Controllers
  • Quad 1GbE with Intel I350-AM4
  • Dual 10GBase-T with Intel X557
  • Dual 10G SFP+ via SoC
IPMI
  • Support for Intelligent Platform
  • Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics
  • Aspeed AST2500 BMC

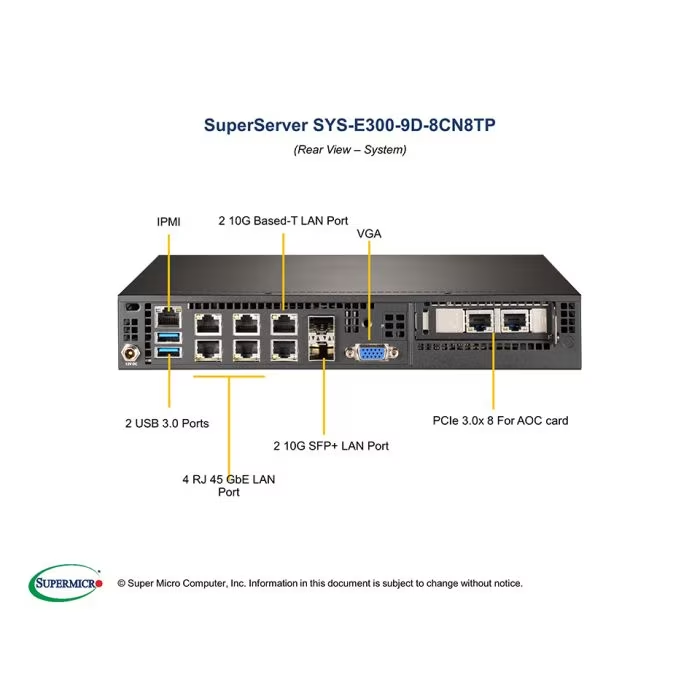

Input / Output
SATA
  • SoC controller for 4 SATA3 (6Gbps) ports
LAN
  • 2x 10G SFP+ ports
  • 2x 10GBase-T LAN ports
  • 4x 1GbE LAN ports
  • 1 Dedicated IPMI LAN port
USB
  • 2 USB 3.0 ports (rear)
Display
  • 1 VGA port
TPM
  • 1 TPM 2.0 header
Chassis
Form Factor
  • Compact
Model
  • CSE-E300
Dimensions
Width
  • 10.43″ (264.8mm) / 15″ (381mm) – pkg.
Height
  • 1.7″ (43mm) / 10.87″ (276mm) – pkg.
Depth
  • 8.9″ (226mm) / 5.59″ (142mm) – pkg.
Weight
  • Gross Weight: 7.5 lbs (3.4 kg)
  • Net Weight: 3.45 lbs (1.56 kg)
Available Colors
  • Black

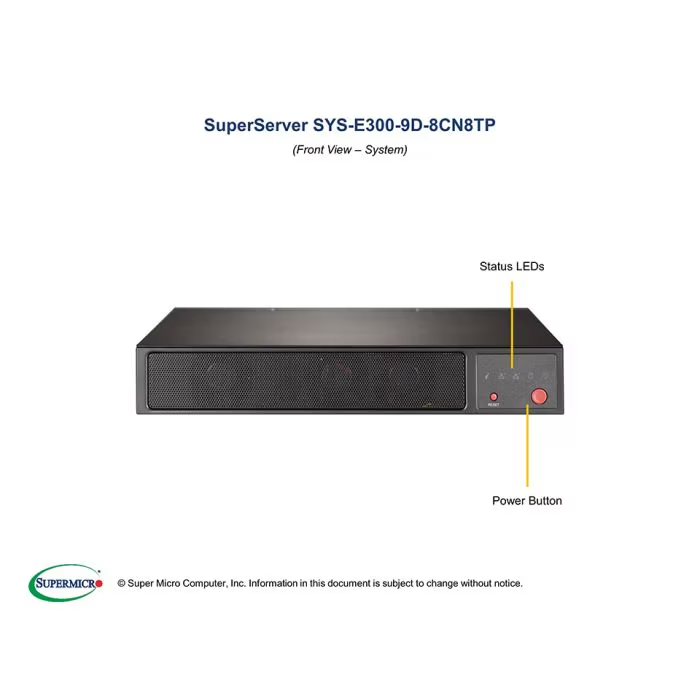

Front Panel
Buttons
  • Power On/Off button
LEDs
  • Power LED (Hard drive activity LED)
Expansion Slots
PCI-Express
  • 1 PCI-E 3.0 x8 slot
Drive Bays
Internal
  • 1 Fixed 2.5″ drive bay with bracket (when AOC area is not occupied)
System Cooling
Fans
  • 3x 40x28mm 4-PIN PWM Fan
Power Supply
DC Power Adapter with PFC
System BIOS
BIOS Type
  • 128Mb SPI Flash with AMI BIOS
BIOS Features
  • PCI 3.0
  • ACPI 5.0
  • USB Keyboard support
  • Hardware BIOS Virus protection
  • SMBIOS 2.8
  • UEFI 2.4
  • RTC (Real Time Clock) Wakeup
Management
Software
  • Intel® Node Manager
  • IPMI 2.0
  • KVM with dedicated LAN
  • NMI
  • SUM
  • SuperDoctor® 5
  • Watch Dog
Power Configurations
  • ACPI Power Management
  • +12V DC Power Input
  • Control of power-on for recovery from AC power loss
  • CPU thermal trip support for processor protection
  • M.2 NGFF connector, Node Manager Support, SDDC, System level control, UID, WOL
Fan
  • Fans with tachometer status monitoring
  • Status monitor for speed control
  • Low noise fan speed control
  • Pulse Width Modulated (PWM) fan connectors
Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
    0°C to 35°C (32°F to 95°F)
  • Non-operating Temperature:
    -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)
