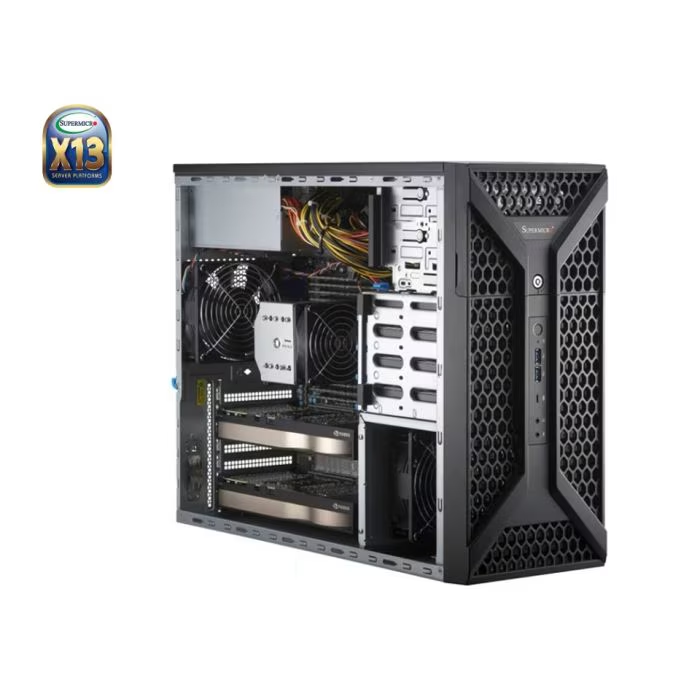

Supermicro SYS-531A-I Mid-Tower X13 SuperWorkstation (SYS-531A-I)



SYS-531A-I

Next-Gen Workstation for Creative Professionals

Supermicro X13 workstations bring data center CPU processing power and PCIe expandability to the desktop for AI, simulation, metaverse/Omniverse, and 3D media applications. Fuel your creative workflows and boost productivity with a single Intel® Xeon® W-2400 processor, lightning-fast M.2 NVMe PCIe 5.0 storage, and up to 1TB of DDR5 RAM. The SYS-531A-I SuperWorkstation offers configuration flexibility to meet your complex computing demands.

SYS-531A-I delivers optimal performance for creative professionals using leading design software for applications such as CAD, 2D/3D modeling, and rendering. The Supermicro 531A-I SuperWorkstation is designed for virtual reality (VR) developers and 2D/3D designers, engineers, and artists across the architecture, engineering, and construction (AEC) industries. This workstation can tackle graphics-intensive VR and 3D design workloads with support for up to 2 double-width GPUs.



  • Key Features/Applications: 2D/3D Content Creation, VR Content Development
  • CPU: Single Intel® Xeon® W-2400 Processor, up to 24 Cores
  • Chassis: Mid-Tower
  • Drive: Up to 4x 3.5″ SATA + 2x M.2 NVMe Drive Bays
  • RAM: Up to 1TB of DDR5 ECC RDIMM/LRDIMM in 8 DIMM Slots
  • Network Ports: 1x 1GbE RJ45 + 1x 10GbE RJ45 LAN Ports

* Estimated lead time is currently 6-8 weeks. Actual delivery schedule will depend on quantity and availability.

SKU: SYS-531A-I Categorii: , , , , , ,

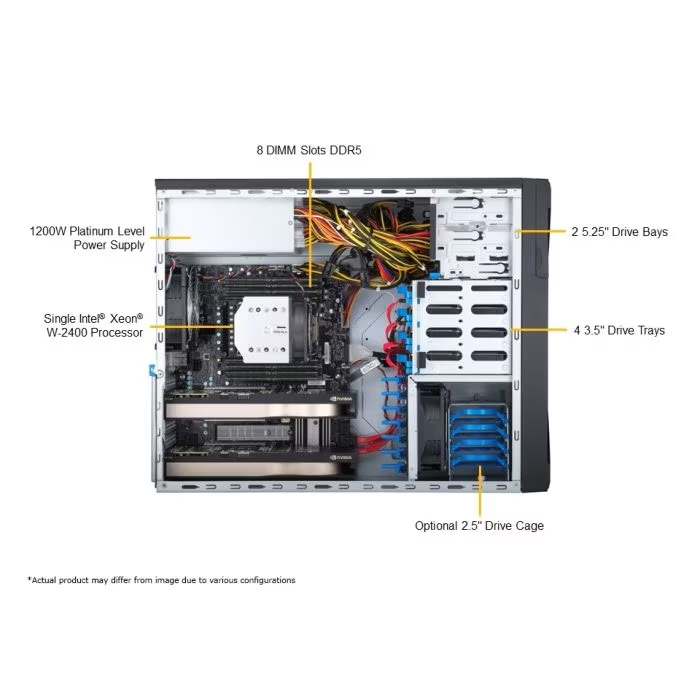

SuperWorkstation SYS-531A-I
Processor
CPU
  • Single Socket E (LGA-4677)
  • Intel® Xeon® W-2400 processors
Note
  • Supports up to 250W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 2 double-width GPU(s)
Supported GPU
  • NVIDIA PCIe: RTX A5500, RTX A6000, RTX A4500, RTX 6000 Ada Generation
System Memory
Memory
  • Slot Count: 8 DIMM slots
  • Max Memory (2DPC): Up to 1TB 4800MT/s ECC DDR5 RDIMM/LRDIMM
Memory Voltage
  • 1.1V
On-Board Devices
SATA
  • SATA (6Gbps)
Chipset
  • Intel® W790
Network Connectivity
  • 1 RJ45 10GbE with Marvell® AQC113
  • 1 RJ45 1GbE with Intel® I210-AT

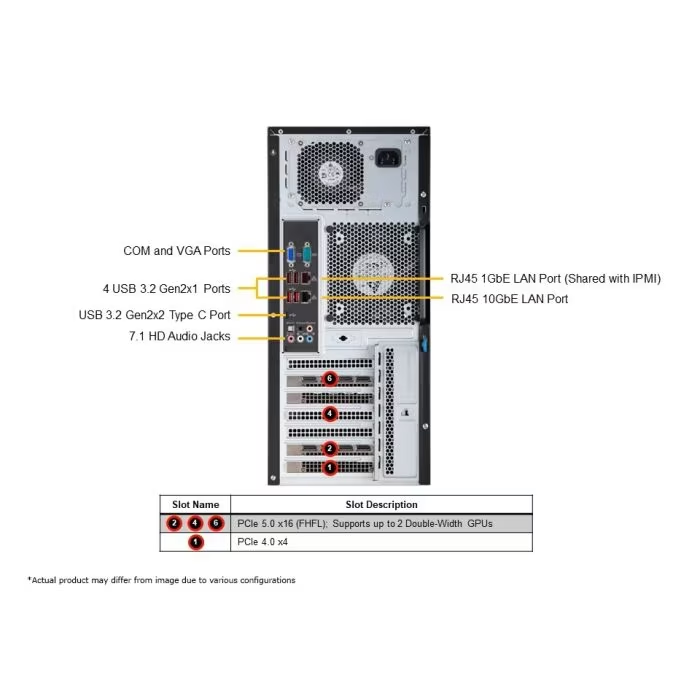

Input / Output
USB
  • 2 USB 3.2 Gen1 Type-A port(s) (front)
  • 1 USB 3.2 Gen2 Type-C port(s) (Rear)
  • 1 USB 3.2 Gen2 Type-C port(s) (Front)
  • 4 USB 3.2 Gen2 Type-A port(s) (Rear)
Video
  • 1 VGA port(s)
Serial
  • 1 COM port(s) (Rear)
Audio
  • 7.1 HD Audio
System BIOS
BIOS Type
  • AMI 256MB SPI Flash
Management
Software
  • SuperCloud Composer
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • SuperDoctor® 5
  • Super Diagnostics Offline
  • TAS: Supermicro Thin-Agent Service (TAS)
  • SAA(new!)
Power configurations
  • ACPI 6.0 Power Management
PC Health Monitoring
Voltage
  • +1.8V, +12V, +3.3V, +5V, +5V standby, 10 -fan status, 3.3V standby, HT, Memory, VBAT
Chassis
Form Factor
  • Mid-Tower
Model
  • CSE-735D4-1K26B

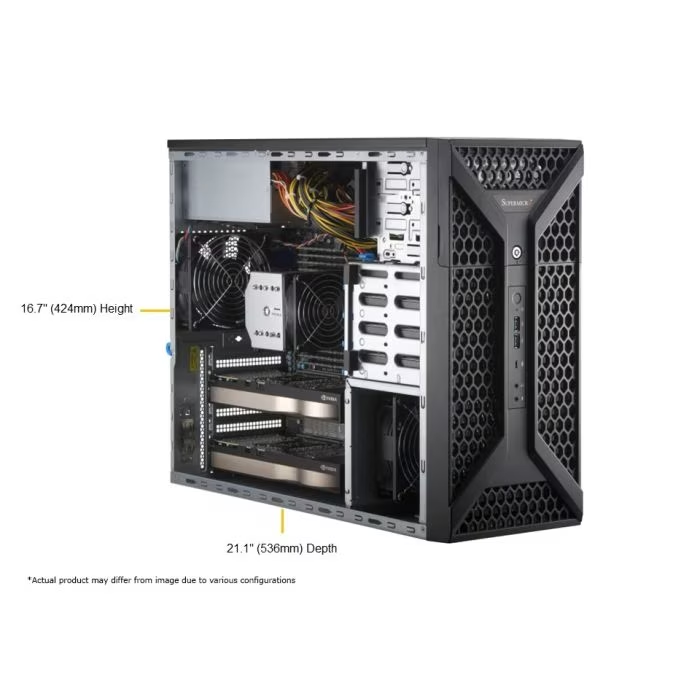

Dimensions and Weight
Height
  • 16.7″ (424 mm)
Width
  • 7.6″ (193 mm)
Depth
  • 20.68″ (525.3 mm)
Package
  • 21.38″ (H) x 11.97″ (W) x 25.28″ (D)
Weight
  • Gross Weight: 30 lbs (13.61 kg)
  • Net Weight: 27 lbs (12.25 kg)
Available Color
  • black

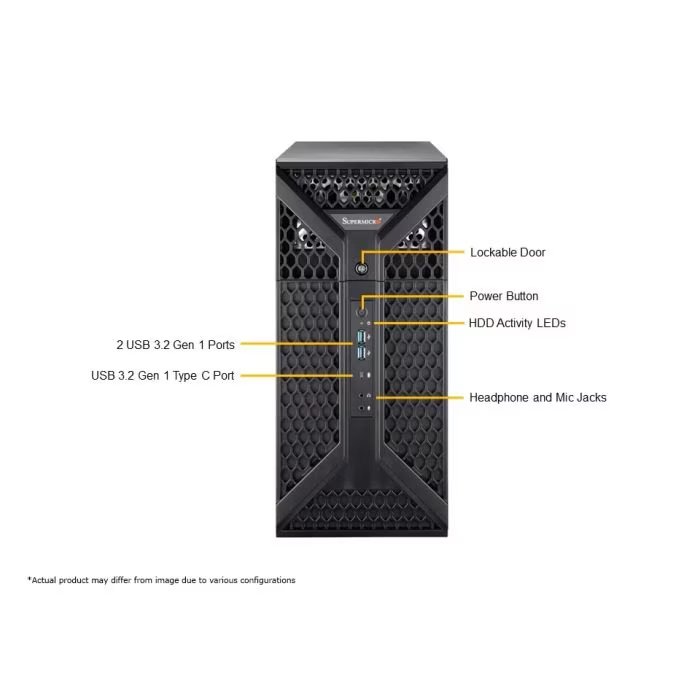

Front Panel
LED
  • HDD activity LED
Buttons
  • Power On/Off button
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 4 bay(s)
    • 4 internal fixed 3.5″ SATA drive bay(s)
M.2
  • 2 M.2 PCIe 5.0 x4 NVMe slot(s) (M-key 2280/22110)
Peripheral Bays
  • 2 5.25″ bay(s)
System Cooling
Fans
  • 1x 120mm Fan(s)
  • 1x 120mm Fan(s)
Power Supply
QtyWithPsu
  • 1x 1200W
Description
  • 1x 1200W Platinum Level (94%) power supply
Dimension (WxHxL)
  • 150 x 86 x 185 mm
AC Input
  • 1000W: 100-120Vac / 50-60Hz
    1200W: 120-240Vac / 50-60Hz
+12V
  • Max: 83A / Min: 1A (100Vac-120Vac)
    Max: 99A / Min: 1A (120Vac-240Vac)
5V SB
  • Max: 3A / Min: 0A
Output Type
  • 24pin ATX
Certification
  • Platinum Level Certified94%+  Platinum Level

    [ Test Report ]
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
