*Please contact Supermicro Technical Support for supporting conditions of high power (TDP 150W and above) or high base frequency (3.0 GHz and above) processors.
System Memory (per Node)
Memory
Memory Capacity: 16 DIMM slots
Up to 4TB: 16x 256 GB DRAM
Memory Type: 3200/2933/2666MHz ECC DDR4 RDIMM
Memory Voltage
1.2 V
Error Detection
ECC

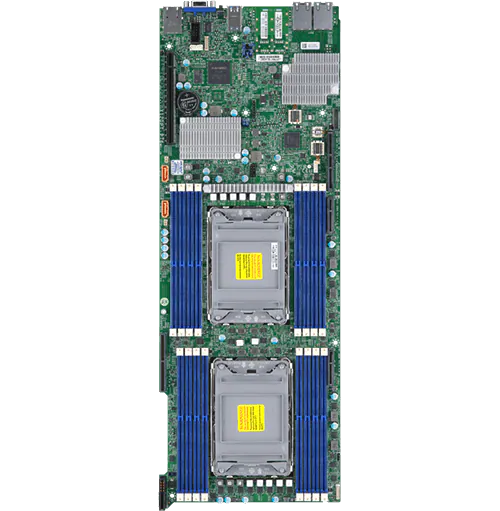

On-Board Devices (per Node)
Chipset
Intel® C621A
Network Connectivity
2x 10GbE BaseT with Intel® X710-AT2
IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

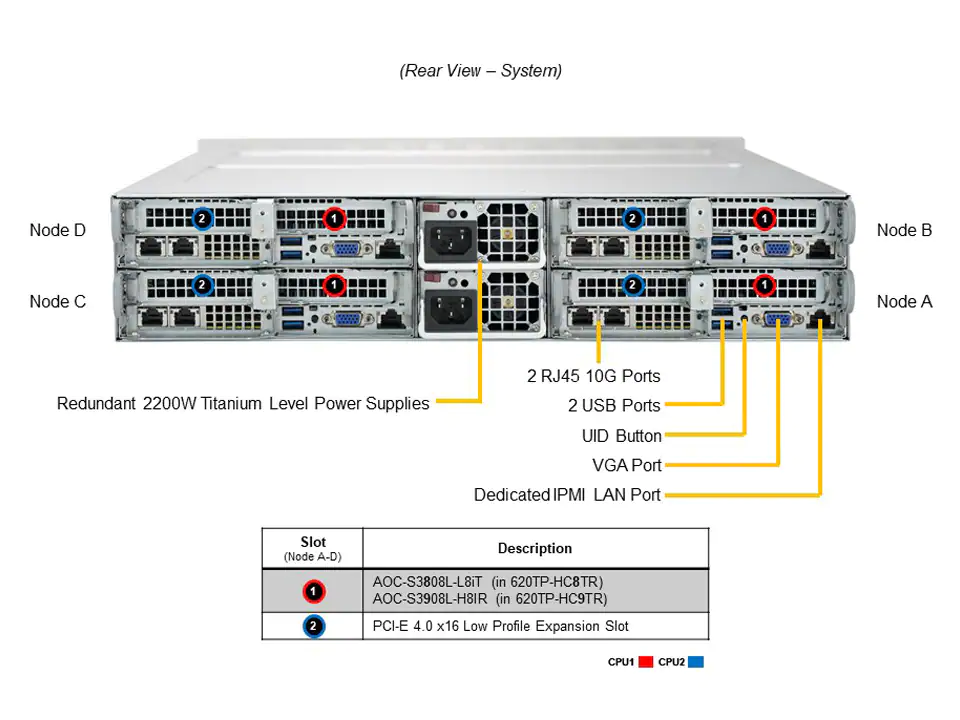

Input / Output (per Node)
LAN
1 RJ45 Dedicated IPMI LAN port
USB
2 USB 3.0 port(s) (2 rear)
Video
1 VGA port(s)
Others
M.2 2 NVME M.2 (up to 22×80 mm) support via installed SCC-P2N2M2-P2 and M.2 for OS boot only.
