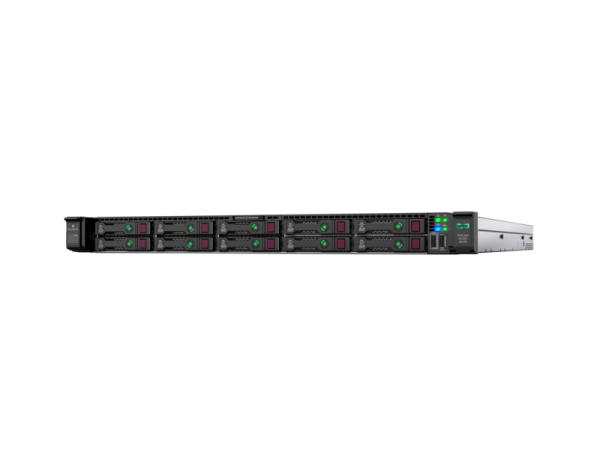

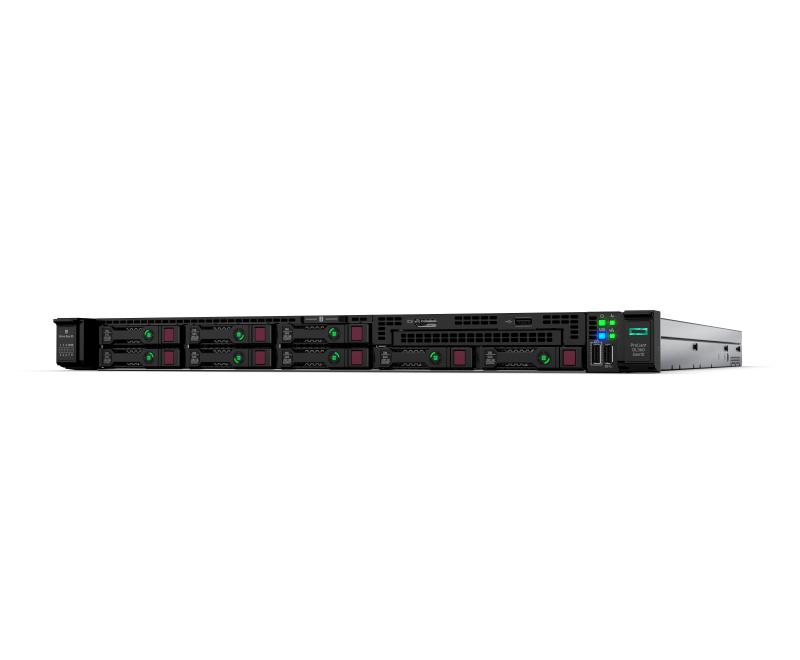

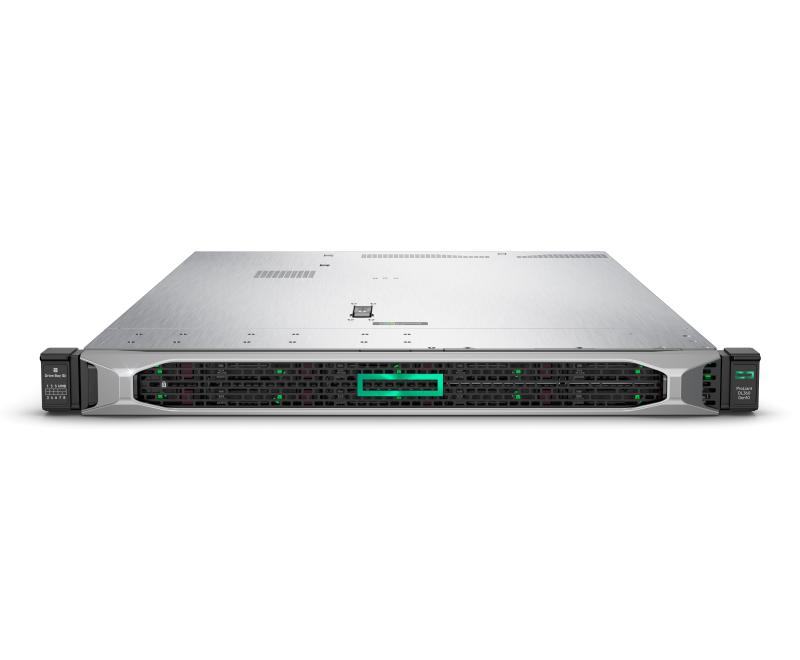

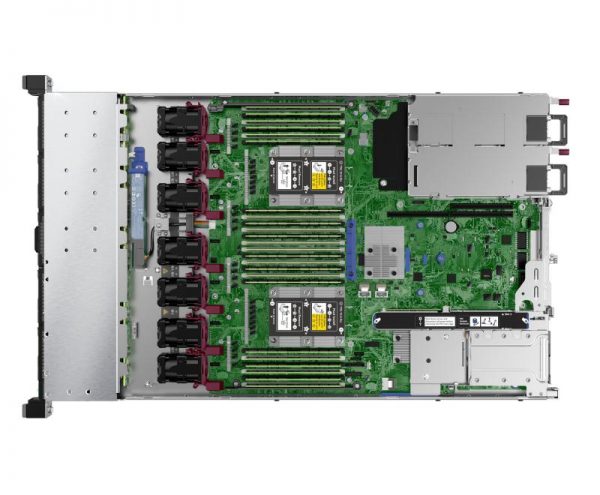

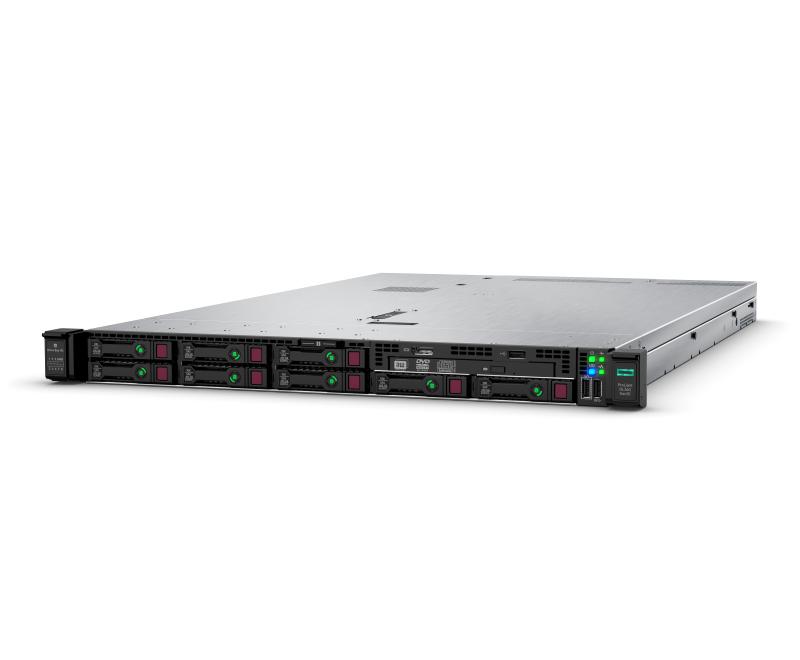

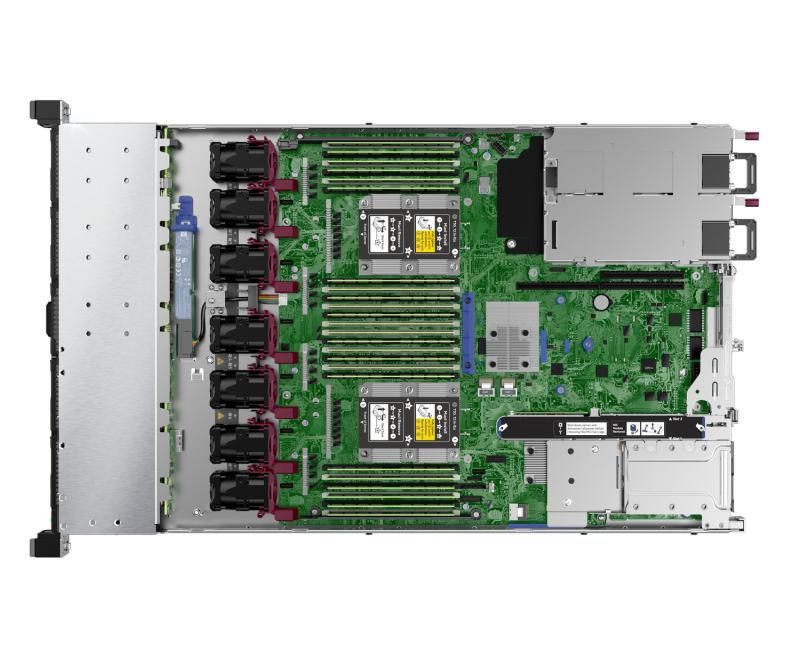

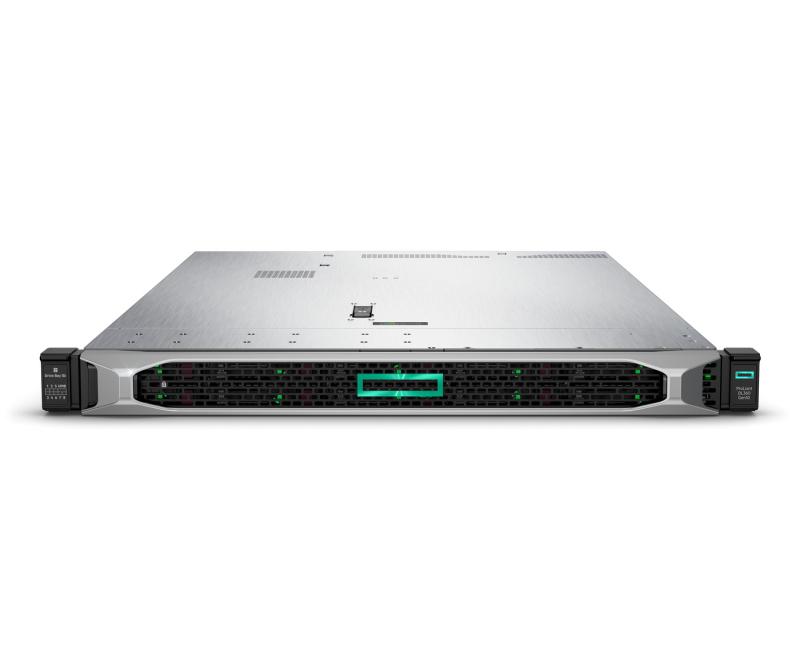

HPE SERVER DL360 GEN10 6248R 1P/32G NC 8SFF SVR P24743-B21 (P24743-B21)

Lifecycle

• Obsolete Date 29-02-2024
• End of support date 31-10-2028

Specifications

• Storage controller HPE Smart Array S100i
• NVDIMM rank N/A
• NVDIMM type N/A
• NVDIMM capacity N/A
• Memory type HPE DDR4 SmartMemory
• Number of processors 2, maximum depending on model
• Weight 13.04 kg minimum, 16.27 kg maximum
• Security Optional locking Bezel Kit, Intrusion Detection Kit, and HPE TPM 2.0
• Product Dimensions (imperial) 1.69 x 17.11 x 27.83 in
• Product Dimensions (metric) 4.29 x 43.46 x 70.7 cm
• Processor cache 35.75 MB L3
• Processor speed 3.0 GHz
• Expansion slots 2 PCIe 3.0, for detailed descriptions reference the QuickSpecs
• Memory, standard 32 GB (1 X 32 GB) RDIMM
• Processor core available 24 core
• Processor number 1 processor
• Weight 28.74 lb minimum, 35.86 lb maximum
• Processor Name Intel® Xeon® Scalable 6248R (24 core, 3.0 GHz, 205W)
• System fan features 5 single rotor hot plug fans
• Power supply type 1 HPE 800W Flex Slot Platinum hot-plug power supply
• Optical drive type None included
• Included hard drives None ship standard, 8 SFF drives supported
• Warranty 3/3/3 – Server Warranty includes three years of parts, three years of labor, three years of onsite support coverage. Additional information regarding worldwide limited warranty and technical support is available at: http://h20564.www2.hpe.com/hpsc/wc/public/home. Additional HPE support and service coverage for your product can be purchased locally. For information on availability of service upgrades and the cost for these service upgrades, refer to the HPE website at http://www.hpe.com/support
• Form factor 1U
• Infrastructure management HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download); Optional- HPE iLO Advanced, and HPE OneView Advanced (require licenses)
• Network controller HPE Ethernet 10Gb 2-port 562FLR-T Adapter
