Supermicro AS -1124US-TNR 1U Rackmount Ultra SuperServer (AS -1124US-TNR)



AS-1124US-TNR
The AS-1124US-TNR is a powerful 1U rackmount server that is designed for data center applications, cloud computing, and virtualization environments. This server is powered by dual AMD EPYC 7003/7002 series processors, delivering outstanding performance and flexibility for Enterprise Applications. It features up to 12 hot-swap 2.5″ drive bays, also support up to 8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs, making it capable of handling even the most memory-intensive applications.

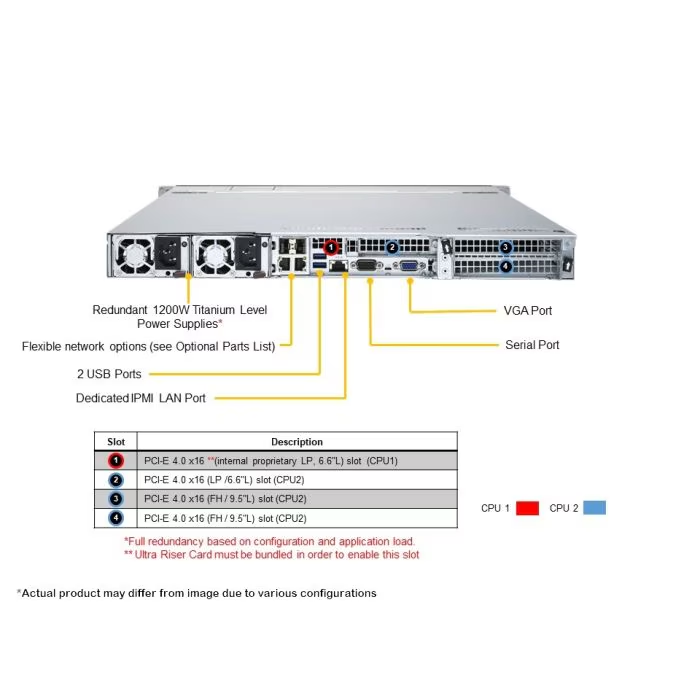

AS-1124US-TNRL-Rear
The AS-1124US-TNR is designed to deliver reliable and efficient performance with its 1U rackmountable chassis, it provides an ideal platform for managing and processing large volumes of data, making it an excellent choice for businesses and organizations that require high-performance computing capabilities.
  • Key Features/Applications: High End Enterprise Server, Data Center Applications, Cloud Computing, Virtualization
  • CPU: Dual AMD EPYC™ 7003/7002 Series Processors, up to 64 Cores
  • Chassis: 1U

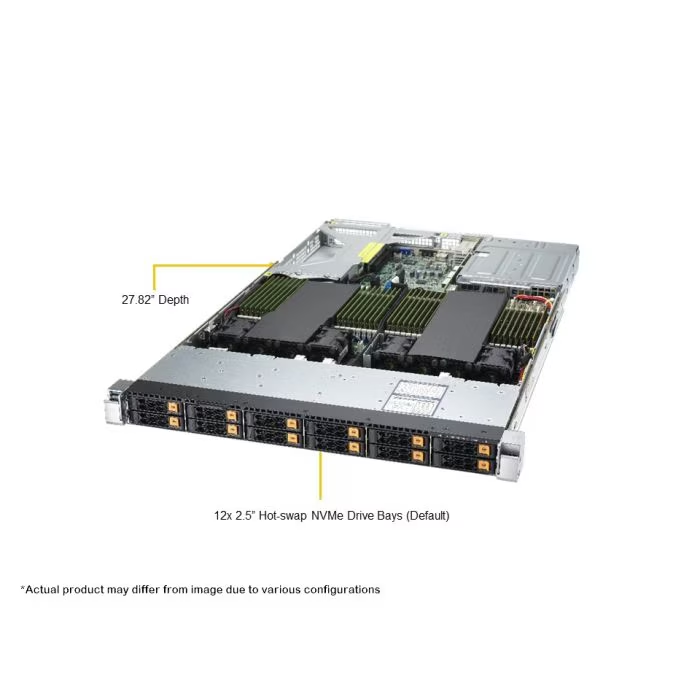

  • Drive: Up to 12x 2.5″ Hot-Swap NVMe Drive Bays
  • RAM: Up to 8TB of DDR4 ECC RDIMM in 32 DIMM Slots
  • Network Ports: Flexible Networking Options
SKU: AS -1124US-TNR Categorii: , , , , , , , , , ,
AS -1124US-TNR
  • A+ Server 1124US-TNR (Black)
Motherboard
Super H12DSU-iN
Processor/Cache
CPU
  • Dual AMD EPYC™ 7003/7002 Series Processors
    (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
  • Socket SP3
  • Supports CPU TDP up to 280W*
Cores
  • Up to 64 Cores
Note * Certain CPUs with high TDP may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization
System Memory
Memory Capacity

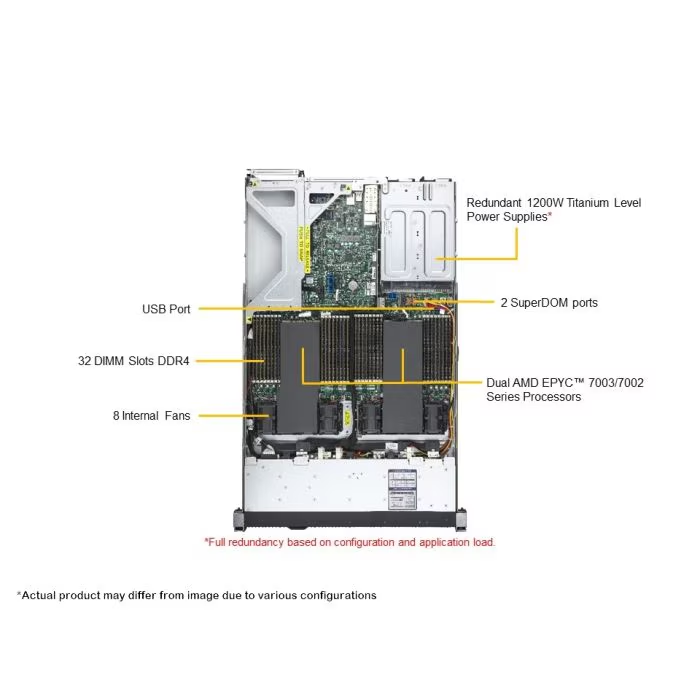

  • 32 DIMM slots
  • Supports up to 8TB Registered ECC DDR4 3200MHz SDRAM
  • 8-channel memory bus
Memory Type
  • DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs
DIMM Sizes
  • 4GB, 8GB, 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
  • System on Chip (SoC)
SATA
  • SATA3 (6Gbps)
NVMe
  • NVMe (16GT/s)
Network Connectivity
  • Flexible Ultra Riser/Network options – see Optional Parts List
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
NVMe
  • 12 NVMe ports (default)
LAN
  • Flexible Ultra Riser/Network options – see Optional Parts List
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 4 USB 3.0 ports
    (2 rear + 1 Type A + 1 front)
VGA
  • 1 VGA port
SAS
  • 12 SAS3 ports support via optional SAS kit
SATA
  • 12 SATA3 ports support via optional kits
Others
  • 1 COM port (rear)
  • 2 SATA DOM power connectors
  • TPM 2.0 header
System BIOS
BIOS Type
  • AMI 128Mb SPI Flash EEPROM
Management
Software
  • Intel® Node Manager
  • Redfish API
  • IPMI 2.0
  • KVM with dedicated LAN
  • NMI
  • SSM, SPM, SUM
  • SuperDoctor® 5
Power Configurations
  • ACPI Power Management
  • Power-on mode control for AC power loss recovery
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-119UHTS-R1K22HP-A
Dimensions and Weight
Height
  • 1.7″ (43mm)
Width
  • 17.2″ (437mm)
Depth
  • 29.1″ (739mm)
Package
  • 7.8″ (H) 23.66″ (W) 37.13″ (D)
Gross Weight
  • 48 lbs (21.8 kg)
Available Color
  • Black

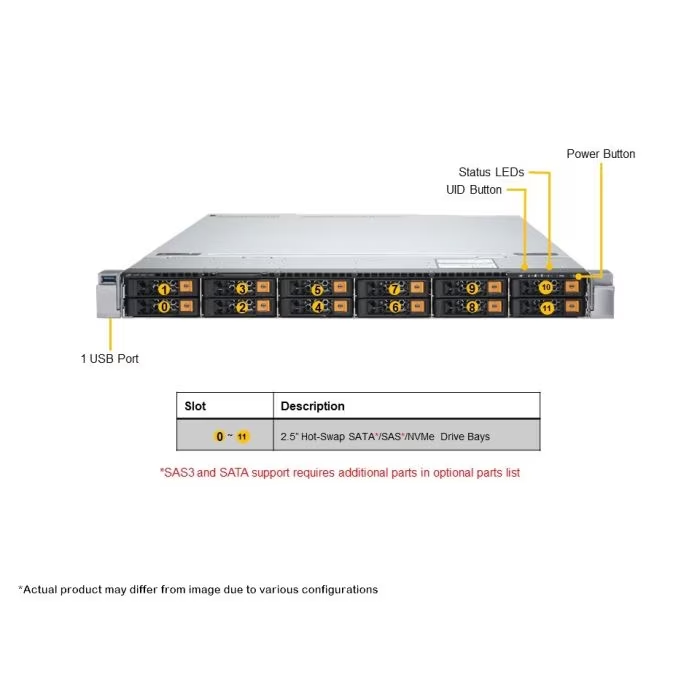

Front Panel
Buttons
  • Power On/Off button
  • System UID button
LEDs
  • Power LED
  • Hard drive activity LED
  • Network activity LEDs
  • UID LED
Expansion Slots
PCI-Express
  • 2 PCI-E 4.0 x16 (FH/HL, 9.5″L)
  • 1 PCI-E 4.0 x16 (LP)
  • 1 PCI-E 4.0 x16 (internal proprietary LP slot)*

(Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.)

* Ultra Riser Card must be bundled in order to enable this slot
Drive Bays
Hot-swap
  • 12 Hot-swap 2.5″ U.2 NVMe drive bays
Backplane
HDD Backplane
  • Supports 12 NVMe or 12 SAS3 HDD or 12 SATA3
System Cooling
Fans
  • 8 Heavy duty fans with optimal fan speed control
Air Shroud
  • 1 Air Shroud
Power Supply
1200W Redundant Power Supplies with PMBus
Total Output Power
  • 800W: 100 – 127Vac
  • 1200W: 200 – 240Vac
  • 1200W: 200 -240Vdc (for CCC only)
Dimension
(W x H x L)
  • 73.5 x 40 x 203 mm
Input
  • 100-127Vac / 9.8 – 7A / 50-60Hz
  • 200-240Vac / 7.5 – 6A / 50-60Hz
  • 200-240Vdc / 7.5 – 6A (for CCC only)
+12V
  • Max: 66.7A / Min: 0A (100-127Vac)
  • Max: 100A / Min: 0A (200-240Vac)
  • Max: 100A / Min: 0A (200-240Vdc)
+12Vsb
  • Max: 2.1A / Min: 0A
Output Type
  • 25 Pairs Gold Finger Connector
Certification Titanium Level96%Titanium Level
[ Test Report ]
Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
    10°C ~ 30°C (50°F ~ 86°F)
  • Non-operating Temperature:
    -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)
