Supermicro AS -2024S-TR 2U Rackmount Mainstream SuperServer (AS -2024S-TR)

Favorite
Compara
Pretul afisat contine TVA (19%).

15.834,40 lei

Compara

Supermicro AS -2024S-TR 2U Rackmount Mainstream SuperServer (AS -2024S-TR)

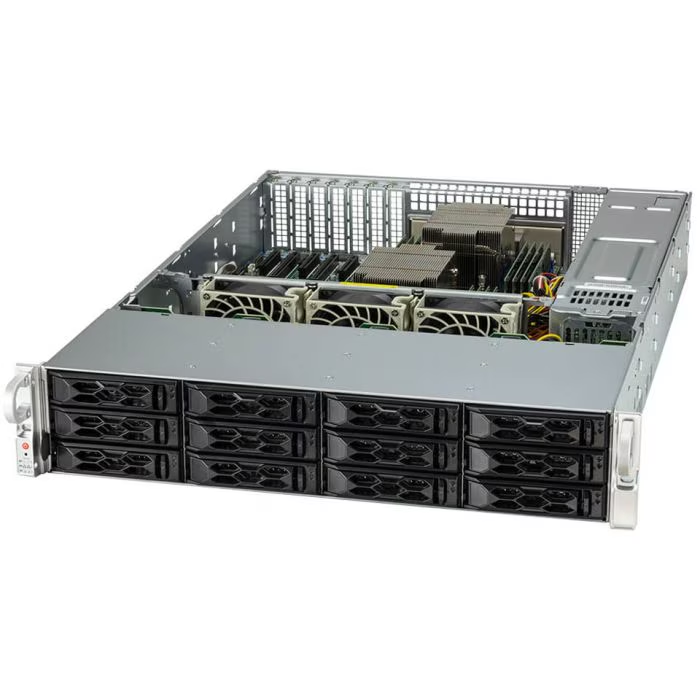

AS -2024S-TR Front View

Supermicro H12 A+ Mainstream SuperServers are designed to deliver the highest performance, flexibility, scalability, and serviceability to demanding IT environments, and to power mission-critical enterprise workloads. This Mainstream server is optimized for data centers and enterprise level applications.

The AS -2024S-TR 2U Mainstream server supports dual AMD EPYC™ 7002/7003 Series processors, up to 4TB DDR4-3200MHz of memory in 16 DIMMs slots, and twelve 3.5″/2.5” front hybrid storage drive bays. With AS -2024S-TR, you can populate and mix between NVMe, SAS or SATA drives (the default drive configuration is 8 SATA + 4 NVMe, other configurations require additional optional parts). The AS -2024S-TR also includes dual 1GbE RJ45 ports and has a dedicated 1 RJ45 IPMI port for KVM over dedicated LAN. This mainstream server has 6 PCI-E 4.0 slots [3 x PCI-E 4.0 x16 (LP), 3 x PCI-E 4.0 x8 (LP)] for exceptional expandability.

The A+ product mainstream family supports a wide variety of mainstream server applications, including virtualization, application and data serving, compute intensive applications and model analysis.



  • Key Features/Applications: Virtualization, Enterprise Server, Data Center Optimized, Application and Data Serving, Model Analysis, Compute Intensive Applications

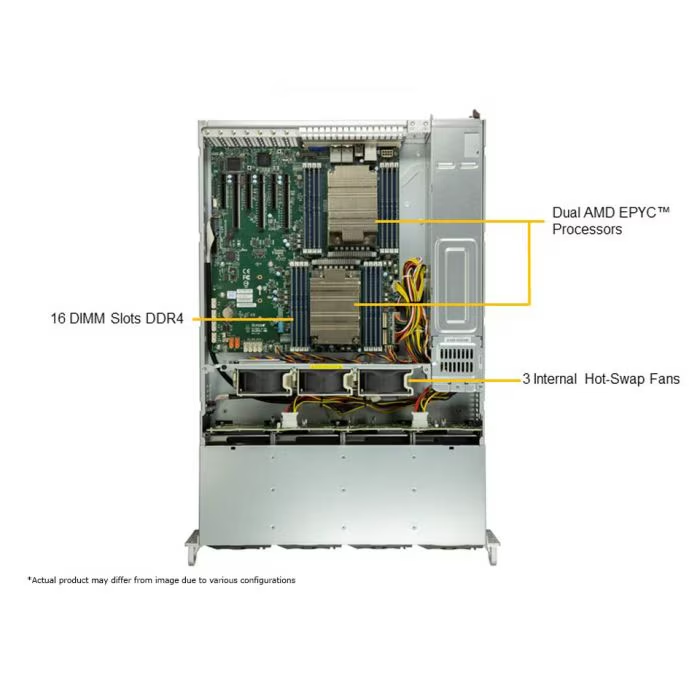

  • CPU: Dual AMD EPYC™ 7002/7003 Series Processors, up to 64 Cores
  • Chassis: 2U

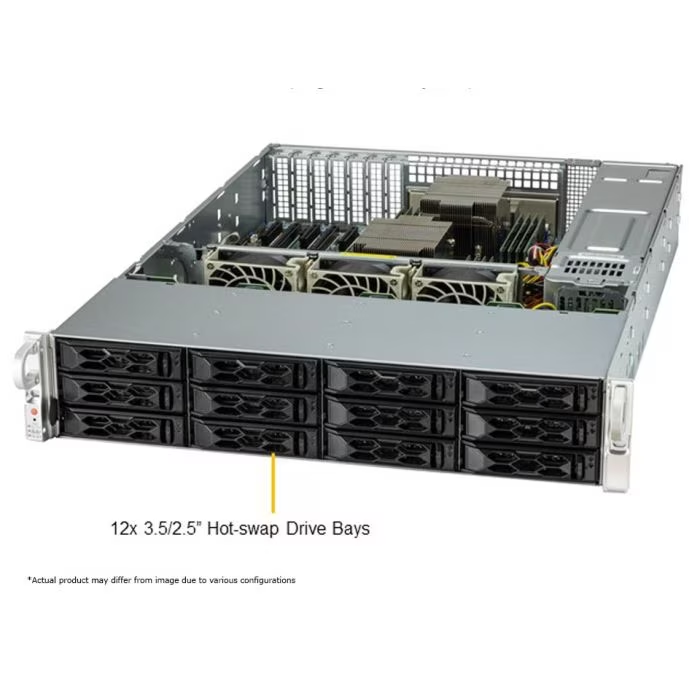

  • Drive: Up to 12x 3.5″ Hot-Swap SATA/NVMe + 1x M.2 Onboard NVMe Drive Bays
  • RAM: Up to 4TB of DDR4 ECC RDIMM/LRDIMM in 16 DIMM Slots
  • Network Ports: 2x 1GbE RJ45 LAN Ports
SKU: AS -2024S-TR Categorii: , , , , , , , , , , ,
A+ Server AS -2024S-TR
Processor
CPU
  • Dual Socket SP3
  • AMD EPYC™ 7002/7003 Series Processors
Core Count
  • Up to 64C/128T; Up to 256MB Cache per CPU
Note
  • Supports up to 240W TDP CPUs (Air Cooled)
System Memory
Memory
  • Slot Count: 16 DIMM slots
  • Max Memory (1DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
Memory Voltage
  • 1.2V
On-Board Devices
Chipset
  • AMD SP3
Network Connectivity
  • 2 RJ45 1GbE

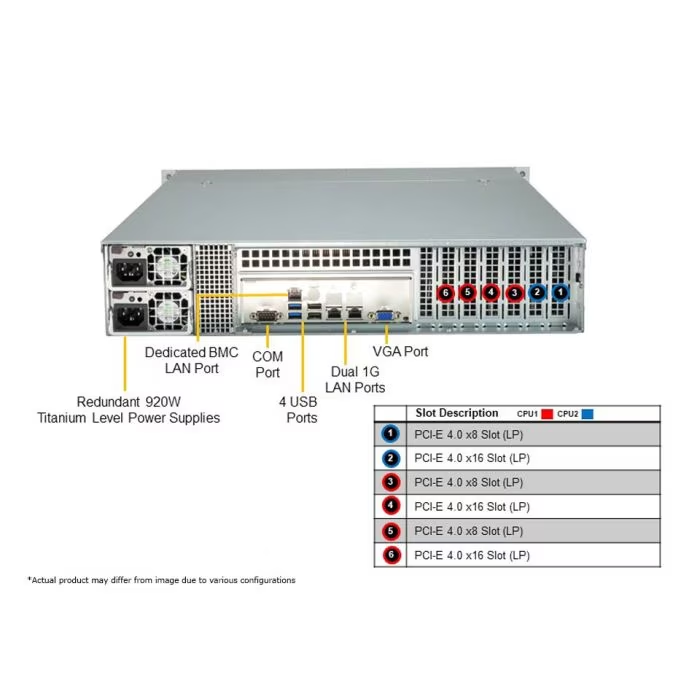

Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated IPMI LAN port(s)
  • 2 RJ45 1 GbE LAN port(s)
USB
  • 2 USB 2.0 port(s) (rear)
  • 2 USB 3.0 port(s) (rear)
Video
  • 1 VGA port(s)
DOM
  • 2 SuperDOM (Disk on Module) port(s)
Management
Software
  • SuperCloud Composer
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • SuperDoctor® 5
  • Super Diagnostics Offline
  • TAS: Supermicro Thin-Agent Service (TAS)
  • SAA(new!)
Power configurations
  • ACPI/APM Power Management
PC Health Monitoring
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 7 Phase-switching voltage regulator
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-LA26TS-R920LPP1
Dimensions and Weight
Height
  • 3.5″ (89 mm)
Width
  • 17.2″ (437 mm)
Depth
  • 25.5″ (648 mm)
Package
  • 11.4″ (H) x 26.7″ (W) x 34.5″ (D)
Weight
  • Gross Weight: 60 lbs (27.2 kg)
  • Net Weight: 33.5 lbs (15.2 kg)
Available Color
  • Silver

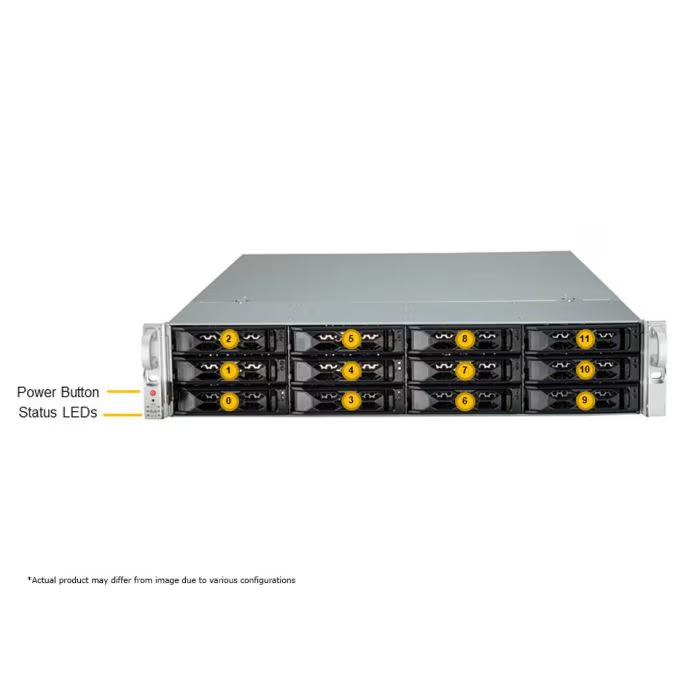

Front Panel
LED
  • HDD activity LED
  • Information LED
  • Network activity LEDs
  • Power Fail LED
  • Power status LED
Buttons
  • Power On/Off button
  • Reset button
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 12 bay(s)
    • 4 front hot-swap 3.5″ NVMe drive bay(s)
    • 8 front hot-swap 3.5″ SAS*/SATA drive bay(s)
  • Option A: Total 12 bay(s)
    • 12 front hot-swap 2.5″ SAS/SATA drive bay(s)
  • (*SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2
  • 1 M.2 NVMe slot(s) (M-key 2280/22110)
System Cooling
Air Shroud
  • 1 Clear Plastic Air Shroud(s)
Fans
  • 3 Middle 80mm Fan(s)
Power Supply
QtyWithPsu
  • 1x 920W
Description
  • 1x 920W Redundant Platinum Level (94%) power supply
Dimension (WxHxL)
  • 76 x 40 x 336 mm
AC Input
  • 920W: 100-127Vac / 50-60Hz
    920W: 200-240Vdc / 50-60Hz
    920W: 200-240Vac / 50-60Hz
+12V
  • Max: 75A / Min: 0A (100Vac-127Vac)
    Max: 75A / Min: 0A (200Vac-240Vac)
5V SB
  • Max: 4A / Min: 0A
Output Type
  • Backplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
