Supermicro SYS-220U-TNR 2U Rackmount Ultra SuperServer (SYS-220U-TNR)


Pretul afisat contine TVA (19%).

27.303,24 lei

Compara

Supermicro SYS-220U-TNR 2U Rackmount Ultra SuperServer (SYS-220U-TNR)

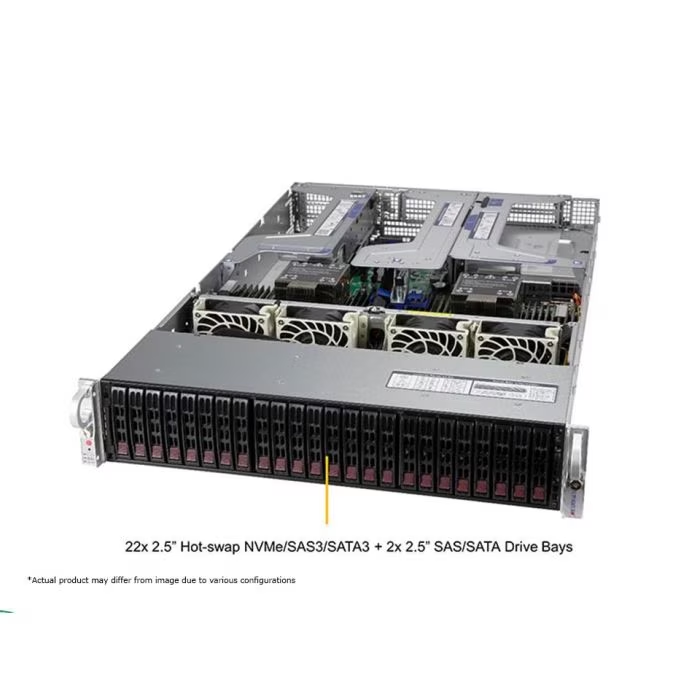

SYS-220U-TNR-Front-Image
Supermicro X12 Ultra SuperServers are designed to deliver the highest performance, flexibility, scalability and serviceability to demanding IT environments, and to power mission-critical Enterprise workloads, including support for the 3rd generation Intel® Xeon™ Scalable processors and a new class of big, affordable memory – Intel Optane DC Persistent Memory. The Intel® UltraPath Interconnect (UPI) and Cross Bar technologies provide direct communication between two CPUs in a dual socket server to catapult performance and dramatically reduce latency.

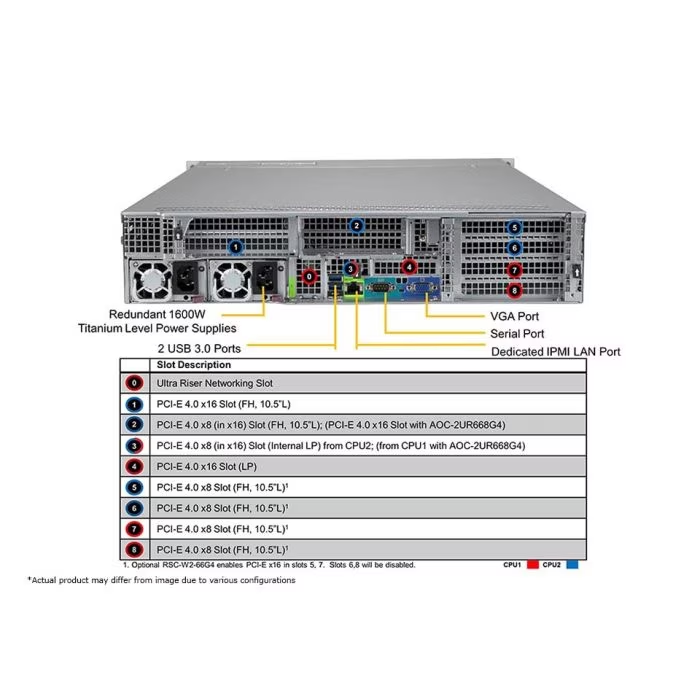

SYS-220U-TNR Back View
This SYS-220U-TNR 2U Ultra server supports the latest 3rd generation Intel® Xeon™ Scalable processors, up to 8TB DDR4-3200MHz memory in 32 DIMMs slots, and 24 direct attached 2.5″ hybrid storage drives. With Ultra 220U-TNR, you can populate and mix between 24x Gen 4 NVMe, SAS or SATA in any tray with no limitation and no speed lost. Whats more is that this SYS-22U-TNR supports dual 10GbE RJ45 ports + dual 10GbE SFP+ ports which provides you with flexible networking options to fit your needs. The SYS-220U-TNR has 8 PCI-E 4.0 in the rear side (1 internal PCI-E 4.0 x8, 1 PCI-E 4.0 x16 (FH, 10.5″L), 1 PCI-E 4.0 x16 (LP), 5 PCI-E 4.0 x8 (FH, 10.5″L).

Ultra SuperServer® 12th generation is one of the world most powerful, balanced and green computing server. Ultra is designed to deliver the highest performance, flexibility, scalability and serviceability to demanding IT environments, and to power mission-critical enterprise workloads. X12 has been a flagship legendary in the last 2 generation of Supermicro Intel platform, and got a lot more enhanced in the this 3rd generation.

  • Key Features/Applications: Virtualization, Cloud Computing, Software Defined Storage, 5G/Telco, HPC, High End Enterprise, Application Tier Service Provider
  • CPU: Dual 3rd Gen Intel® Xeon® Scalable Processors, up to 40 Cores
  • Chassis: 2U
  • Drive: Up to 24x 2.5″ Hot-Swap NVMe/SATA/SAS Drive Bays
  • RAM: Up to 12TB of DDR4 ECC RDIMM/LRDIMM in 32 DIMM Slots
  • Network Ports: Flexible Networking Options
SKU: SYS-220U-TNR Categorii: , , , , , , , , ,
Product SKUs
SuperServer SYS-220U-TNR
Processor
CPU
  • Dual Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 40C/80T; Up to 60MB Cache per CPU
Note
  • Supports up to 270W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 4 double-width or 6 single-width GPU(s)
Supported GPU
  • NVIDIA PCIe: T4, RTX A6000, RTX A5000, A40, A30, A16, A2, A100, A10
Certification
System Memory
Memory
  • Slot Count: 32 DIMM slots
  • Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
  • Supports Intel® Optane™ persistent memory 200 series
Memory Voltage
  • 1.2V
On-Board Devices
SATA
  • SATA (6Gbps) ; RAID 0/1/5/10 support
NVMe
  • NVMe; RAID 0/1/5/10 support
Chipset
  • Intel® C621A
Network Connectivity
  • 2 RJ45 10GBASE-T with Intel® X710-AT2 (optional)
  • 2 RJ45 10GBASE-T with Intel® X710-TM4 (optional)
  • 2 SFP+ 10GbE with Intel® X710-TM4 (optional)
  • No NIC option supported
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port(s)
USB
  • 2 USB 3.0 port(s) (rear)
Video
  • 1 VGA port(s)
DOM
  • 2 SuperDOM (Disk on Module) port(s)
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
  • SuperCloud Composer
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • SuperDoctor® 5
  • Super Diagnostics Offline
  • TAS: Supermicro Thin-Agent Service (TAS)
  • SAA(new!)
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
  • 7 +1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-219U3TS-R1K62P-T
Dimensions and Weight
Height
  • 3.5″ (89 mm)
Width
  • 17.2″ (437 mm)
Depth
  • 28.2″ (717.2 mm)
Package
  • 9.96″ (H) x 24.6″ (W) x 45.43″ (D)
Weight
  • Gross Weight: 63 lbs (28.6 kg)
  • Net Weight: 37 lbs (16.8 kg)
Available Color
  • Black Front & Silver Body

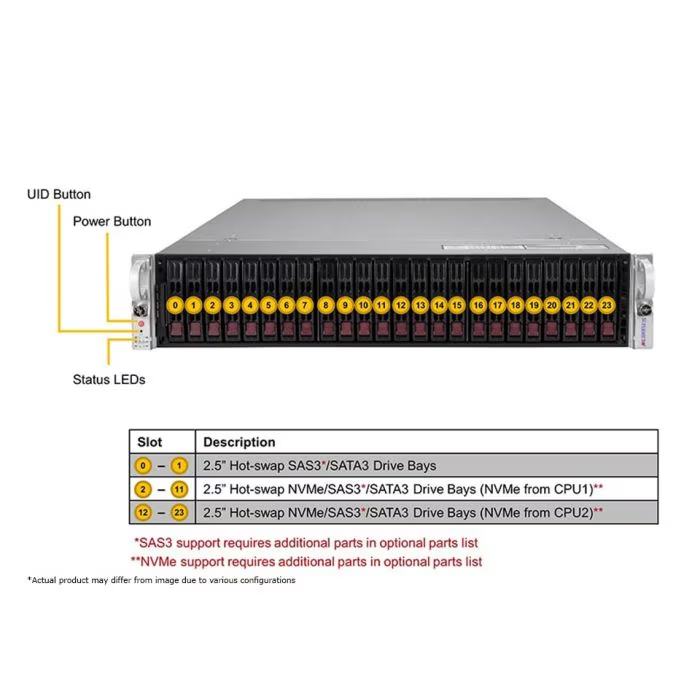

Front Panel
LED
  • HDD activity
  • LAN1 activity
  • LAN2 acticity
  • Power Fail
  • Power status
  • System information (overheat/UID)
Buttons
  • Power On/Off
  • UID button
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 24 bay(s)
    • 22 front hot-swap 2.5″ NVMe/SAS*/SATA drive bay(s)
    • 2 front hot-swap 2.5″ SAS*/SATA drive bay(s)
  • (*SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
System Cooling
Fans
  • 4x 8cm heavy duty fans with optimal fan speed control
Air Shroud
  • 2 Air Shroud(s)
Power Supply
QtyWithPsu
  • 1x 1600W
Description
  • 1x 1600W Redundant Titanium Level (96%) Hot-plug power supply
Dimension (WxHxL)
  • 73.5 x 40 x 203 mm
AC Input
  • 1000W: 100-127Vac / 50-60Hz
    1600W: 200-240Vac / 50-60Hz
+12V
  • Max: 83.3A / Min: 0A (100Vac-127Vac)
    Max: 133A / Min: 0A (200Vac-240Vac)
12V SB
  • Max: 2.1A / Min: 0A
Output Type
  • Backplanes (gold finger)
Certification
  • Titanium Level94%+  Titanium Level

    [ Test Report ]

Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
