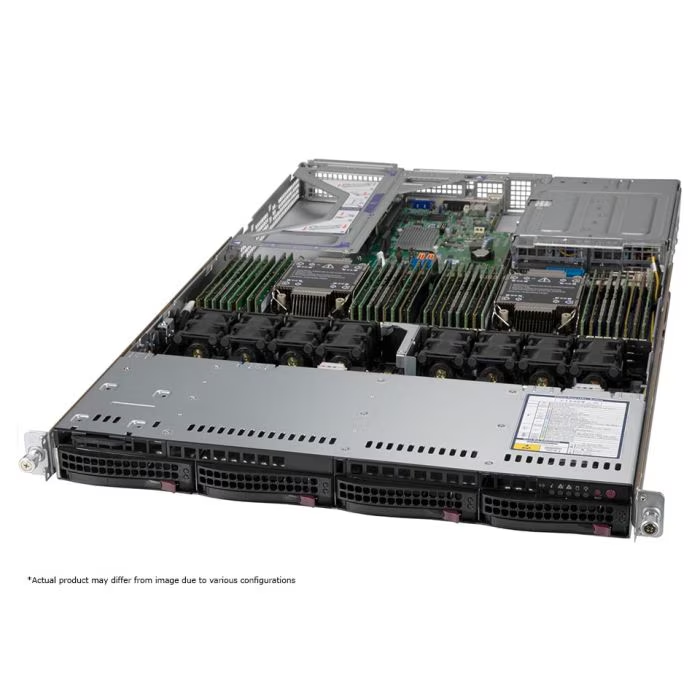

Supermicro SYS-610U-TNR 1U Rackmount Ultra SuperServer (SYS-610U-TNR)


Pretul afisat contine TVA (19%).

23.010,61 lei

Compara

Supermicro SYS-610U-TNR 1U Rackmount Ultra SuperServer (SYS-610U-TNR)







SYS-610U-TNR

Powerful and Flexible Server for Demanding Workloads

The Supermicro SYS-610U-TNR 1U Ultra server is perfect for businesses looking for a powerful and flexible server that can handle demanding workloads: General Purpose, Cloud Computing, or Software Defined Storage.

Impressive Storage Capabilities

Powered by the latest 3rd generation Intel® Xeon® Scalable processors, this server boasts up to 8TB DDR4-3200MHz memory in 32 DIMMs slots, and supports 4 direct attached 3.5″ hybrid storage drives. With the Ultra 610U-TNR, you can mix and match between 4x Gen 4 NVMe, SAS, or SATA drives in any tray without any limitations or speed loss.

The SYS-610U-TNR also supports dual 10GbE RJ45 ports, providing blazing-fast networking speeds that are perfect for any business. With 4 PCI-E slots in the rear, including 1 internal PCI-E 4.0 x16, 1 PCI-E 4.0 x16 (LP), and 2 PCI-E 4.0 x16 (FH, 10.5″”L).

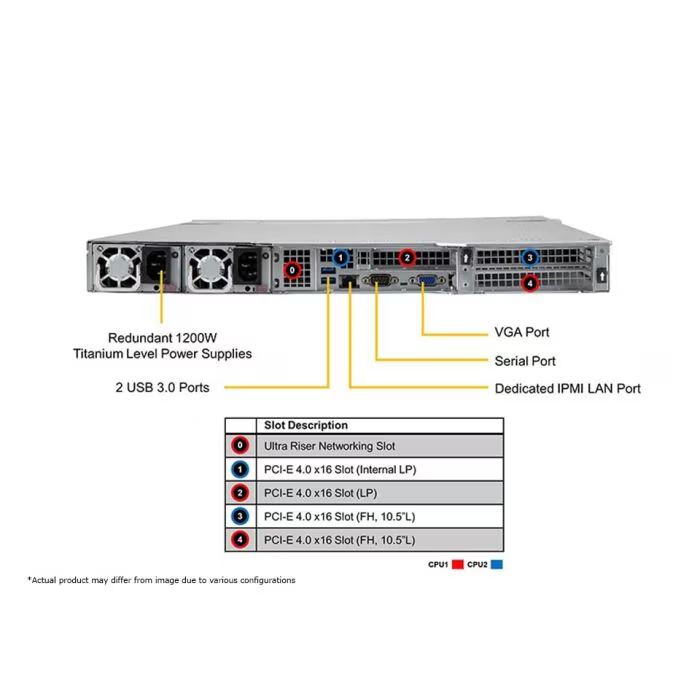

SYS-610U-TNR Back View





Two CPUs in a Dual Socket Server to Catapult Performance

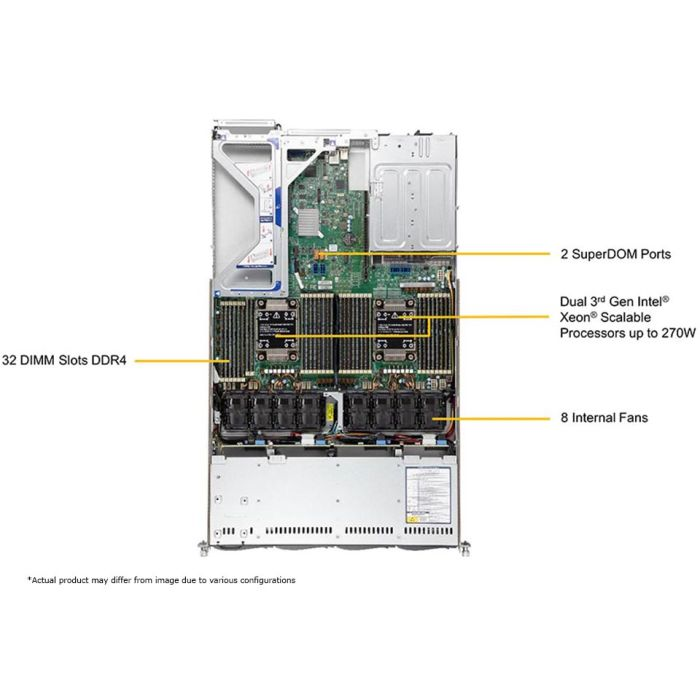

Powered by the X12DPU-6 motherboard, the Intel® UltraPath Interconnect (UPI) and Cross Bar technologies provide direct communication between two CPUs in a dual socket server to catapult performance and dramatically reduce latency. The SYS-610U-TNR is designed to deliver the highest performance, flexibility, scalability, and serviceability to demanding IT environments, it’s the perfect cost-effective solution for businesses looking to optimize their server performance.



  • Key Features/Applications: Virtualization, HPC, Cloud Computing, High End Enterprise Server, Software Defined Storage, Application Tier Service Provider, 5G/Telco
  • CPU: Dual 3rd Gen Intel® Xeon® Scalable Processors, up to 40 Cores
  • Chassis: 1U
  • Drive: Up to 4x 3.5″ Hot-Swap NVMe/SATA/SAS Drive Bays
  • RAM: Up to 12TB of DDR4 ECC RDIMM/LRDIMM in 32 DIMM Slots
  • Network Ports: Flexible Networking Options
SKU: SYS-610U-TNR Categorii: , , , , , , , ,
SuperServer SYS-610U-TNR
Processor
CPU
  • Dual Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 40C/80T; Up to 60MB Cache per CPU
Note
  • Supports up to 270W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 2 double-width or 2 single-width GPU(s)
Supported GPU
  • NVIDIA PCIe: T4, RTX A4000, A30, A16, A2, A100
System Memory
Memory
  • Slot Count: 32 DIMM slots
  • Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
  • Supports Intel® Optane™ persistent memory 200 series
Memory Voltage
  • 1.2V
On-Board Devices
SATA
  • SATA (6Gbps) ; RAID 0/1/5/10 support
NVMe
  • NVMe; RAID 0/1/5/10 support
Chipset
  • Intel® C621A
Network Connectivity
  • 2 RJ45 10GBASE-T with Intel® X710-AT2 (optional)
  • 2 RJ45 10GBASE-T with Intel® X710-TM4 (optional)
  • 2 SFP+ 10GbE with Intel® X710-TM4 (optional)
  • No NIC option supported
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port(s)
USB
  • 2 USB 3.0 port(s) (rear)
Video
  • 1 VGA port(s)
DOM
  • 2 SuperDOM (Disk on Module) port(s)
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
  • SuperCloud Composer
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • SuperDoctor® 5
  • Super Diagnostics Offline
  • TAS: Supermicro Thin-Agent Service (TAS)
  • SAA(new!)
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
  • 7 +1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-819U3TS-R1K22P-T
Dimensions and Weight
Height
  • 1.7″ (43 mm)
Width
  • 17.2″ (437 mm)
Depth
  • 29.7″ (754 mm)
Package
  • 7.99″ (H) x 23.81″ (W) x 37.4″ (D)
Weight
  • Gross Weight: 44.5 lbs (20.2 kg)
  • Net Weight: 29.5 lbs (13.4 kg)
Available Color
  • Black Front & Silver Body
Front Panel
LED
  • HDD activity
  • LAN1 activity
  • LAN2 acticity
  • Power status
  • System information (overheat/UID)
Buttons
  • Power On/Off
  • UID button

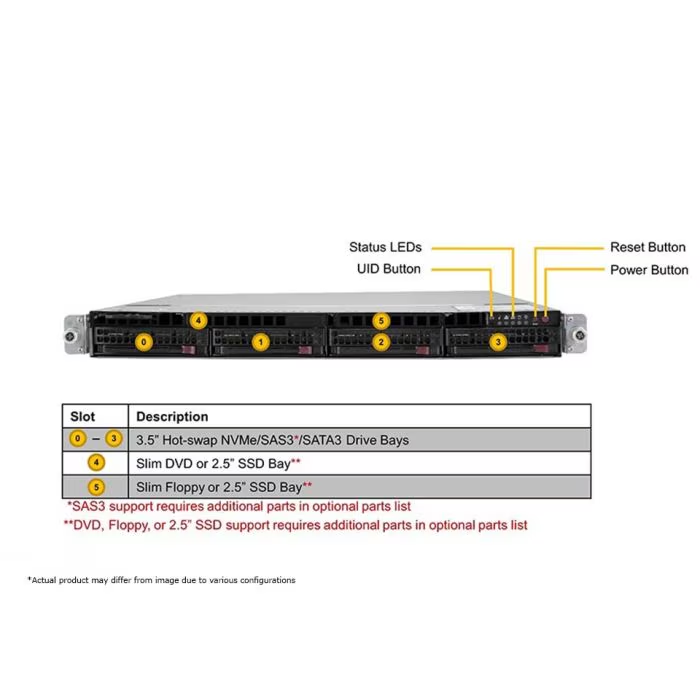

Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 4 bay(s)
    • 4 front hot-swap 2.5″ NVMe*/SAS*/SATA drive bay(s)
  • (*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
System Cooling
Fans
  • 8x 4cm heavy duty fans with optimal fan speed control
Air Shroud
  • 2 Air Shroud(s)
Power Supply
QtyWithPsu
  • 1x 1200W
Description
  • 1x 1200W Redundant Titanium Level (96%) Hot-plug power supply
Dimension (WxHxL)
  • 73.5 x 40 x 203 mm
AC Input
  • 800W: 100-127Vac / 50-60Hz
    1200W: 200-240Vac / 50-60Hz
    1200W: 200-240Vdc / 50-60Hz (for CCC only)
+12V
  • Max: 66.7A / Min: 0A (100Vac-127Vac)
    Max: 100A / Min: 0A (200Vdc-240Vdc)
    Max: 100A / Min: 0A (200Vac-240Vac)
12V SB
  • Max: 2.1A / Min: 0A
Output Type
  • Backplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
