Supermicro SYS-620P-TRT 2U Rackmount Mainstream SuperServer (SYS-620P-TRT)


Pretul afisat contine TVA (19%).

20.573,22 lei

Compara

Supermicro SYS-620P-TRT 2U Rackmount Mainstream SuperServer (SYS-620P-TRT)



The SYS-620P-TRT is an ideal solution for data center optimization, virtualization, and compute-intensive applications. It features dual socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors with a TDP of up to 270W and is optimized for application and data serving, model analysis, and more.

This system boasts eight hot-swap 3.5″ SATA3 drive bays (“2.5” drive can be supported with an optional drive converter), an Intel® C621A controller, and support for RAID 0,1,5,10, making it an excellent choice for storage-intensive applications. Additionally, it has one M.2 slot, two optional fixed 2.5″ NVMe/SSD/HDD/SuperDOM support with optional parts, and can support up to 4TB of Intel® Optane™ Persistent Memory 200 Series.

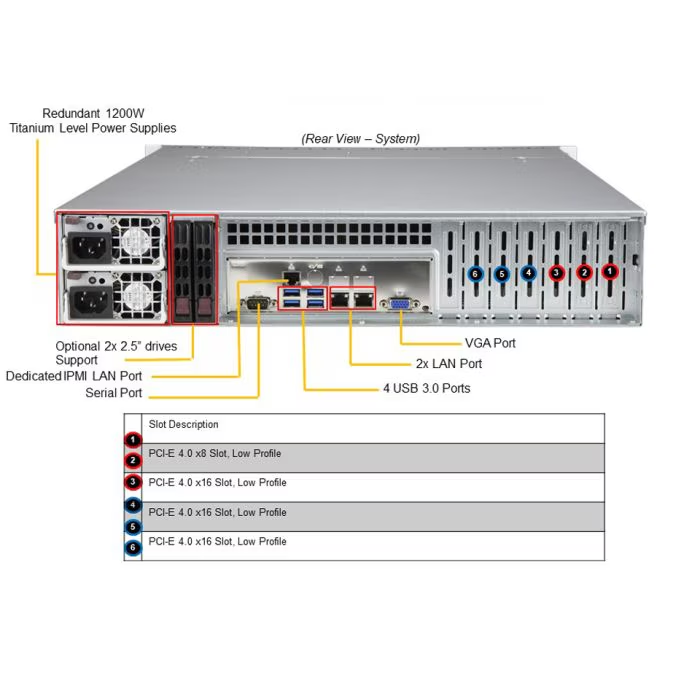

SYS-620P-TRT_rear
With support up to 4TB of 3DS ECC RDIMM/LRDIMM DDR4-3200MHz memory in 18 DIMM slots (P1-DIMMB2 and P2-DIMMB2 are reserved for Intel® Optane Persistent Memory 200 Series only), the SYS-620P-TRT offers plenty of capacity for demanding workloads. It also has four PCIe 4.0 x16 LP slots, two PCIe 4.0 x8 LP slots, dual 10GBase-T LAN with an Intel® X550 Ethernet controller, and a range of I/O ports including VGA, USB, and COM ports.
  • Key Features/Applications: Virtualization, Enterprise Server, Data Center Optimized, Application and Data Serving, Model analysis, Compute Intensive Applications
  • CPU: Dual 3rd Gen Intel® Xeon® Scalable Processor, up to 40 Cores
  • Chassis: 2U

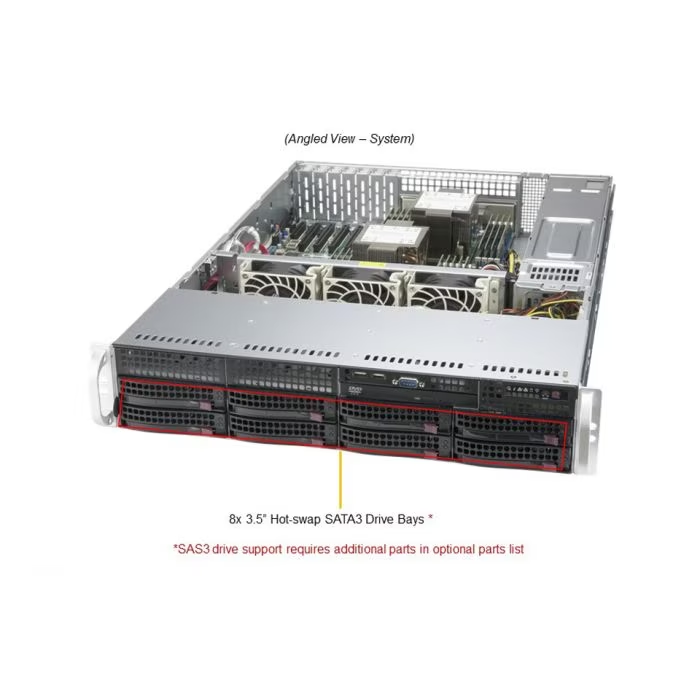

  • Drive: Up to 8x 3.5″ Hot-Swap SATA + 1x M.2 NVMe Drive Bays
  • RAM: Up to 4TB of DDR4 ECC RDIMM/LRDIMM in 16 DIMM Slots
  • Cooling: Up to 3 Heavy Duty Fans with Optimal Fan Speed Control
  • Network Ports: 2x 10GbE LAN Ports
SuperServer SYS-620P-TRT
Processor
CPU
  • Dual Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 36C/72T; Up to 60MB Cache per CPU
Note
  • Supports up to 270W TDP CPUs (Air Cooled)
System Memory
Memory
  • Slot Count: 16 DIMM slots
  • Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
  • Supports Intel® Optane™ persistent memory 200 series
On-Board Devices
Chipset
  • Intel® C621A
Network Connectivity
  • 2 RJ45 10GbE
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port(s)
USB
  • 2 USB 2.0 port(s) (front)
  • 4 USB 3.0 port(s) (rear)
Video
  • 1 VGA port(s)
DOM
  • 2 SuperDOM (Disk on Module) port(s)
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
  • SuperCloud Composer
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • SuperDoctor® 5
  • Super Diagnostics Offline
  • TAS: Supermicro Thin-Agent Service (TAS)
  • SAA(new!)
Power configurations
  • ACPI/APM Power Management
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-825BTS-R1K23LPP1
Dimensions and Weight
Height
  • 3.5″ (89 mm)
Width
  • 17.2″ (437 mm)
Depth
  • 25.5″ (647 mm)
Package
  • 11.4″ (H) x 26.7″ (W) x 34.5″ (D)
Weight
  • Gross Weight: 69 lbs (31.2 kg)
  • Net Weight: 36.38 lbs (16.5 kg)
Available Color
  • Black

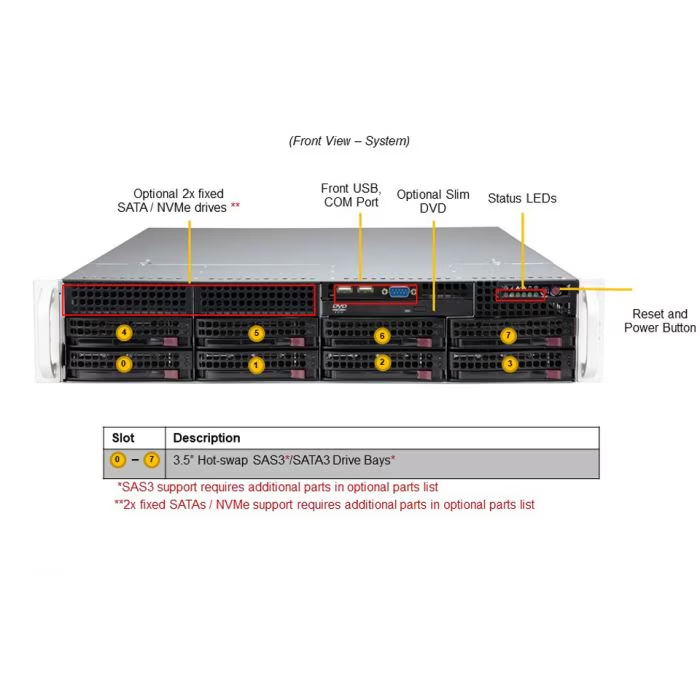

Front Panel
LED
  • HDD activity
  • Network activity
  • Power status
  • System information (overheat/UID)
Buttons
  • Power On/Off
  • System Reset
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 8 bay(s)
    • 8 front hot-swap 3.5″ SAS*/SATA drive bay(s)
  • Option A: Total 10 bay(s)
    • 8 front hot-swap 3.5″ SAS*/SATA drive bay(s)
    • 2 front fixed 3.5″ NVMe*/SATA* drive bay(s)
  • (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2
  • 1 M.2 NVMe slot(s) (M-key)
Peripheral Bays
  • 1 slim DVD bay(s) (optional)
System Cooling
Fans
  • 3 heavy duty fans with optimal fan speed control
Power Supply
QtyWithPsu
  • 1x 1200W
Description
  • 1x 1200W Redundant Titanium Level (96%) power supply
Dimension (WxHxL)
  • 76 x 40 x 336 mm
AC Input
  • 1000W: 100-127Vac / 50-60Hz
    1200W: 200-240Vac / 50-60Hz
    1200W: 200-240Vdc / 50-60Hz (for CCC only)
+12V
  • Max: 83A / Min: 0A (100Vac-127Vac)
    Max: 100A / Min: 0A (200Vdc-240Vdc)
    Max: 100A / Min: 0A (200Vac-240Vac)
5V SB
  • Max: 4A / Min: 0A
Output Type
  • Backplanes (gold finger)
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (Non-Condensing)
  • Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
