Supermicro SYS-620U-TNR 2U Rackmount Ultra SuperServer (SYS-620U-TNR)


Pretul afisat contine TVA (19%).

24.665,62 lei

Compara

Supermicro SYS-620U-TNR 2U Rackmount Ultra SuperServer (SYS-620U-TNR)



The 3rd Generation Intel® Xeon™ Scalable Processors

Supermicro X12 Ultra SuperServers supports the latest 3rd generation Intel® Xeon™ Scalable processors, up to 8TB DDR4-3200MHz memory in 32 DIMMs slots, and 12 direct attached 3.5″ hybrid storage drives with the ability to mix between 12x Gen 4 NVMe, SAS or SATA in any tray without any speed loss or limitations. It is perfect for mission-critical enterprise workloads. Whether you’re running General Purpose, Cloud Computing, or Software Defined Storage, you can experience the highest performance and serviceability with the Supermicro SYS-620U-TNR.

Two CPUs in a Dual Socket Server to Catapult Performance

With support for a new class of big, affordable memory – Intel Optane DC Persistent Memory. The Intel® UltraPath Interconnect (UPI) and Cross Bar technologies provide direct communication between two CPUs in a dual socket server to catapult performance and dramatically reduce latency.

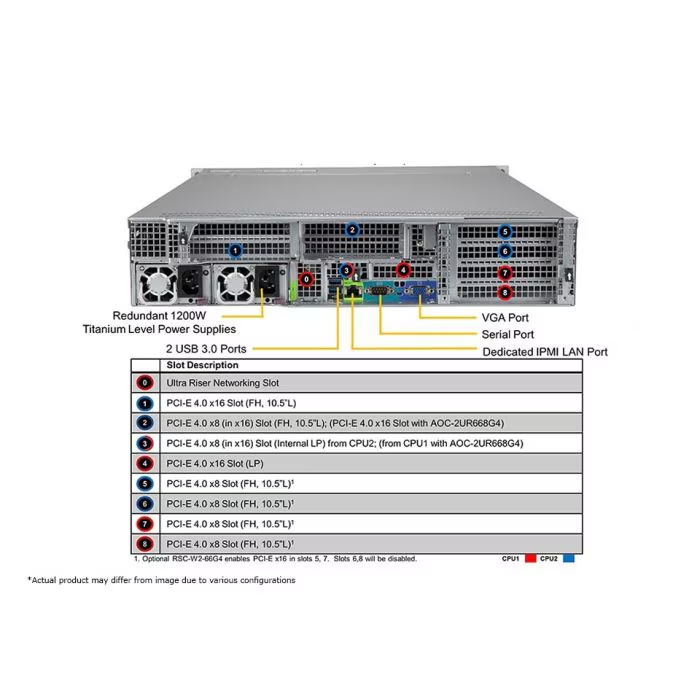

SYS-620U-TNR rear description

Flexible Networking Options

In terms of networking options, the SYS-620U-TNR has dual 10GbE RJ45 ports + dual 10GbE SFP+ ports, providing users with flexible options to fit their needs. The server also has 8 PCI-E 4.0 slots in the rear side, including 1 x PCI-E x16 (FH, 10.5″L), 2 x PCI-E 4.0 x8, 1 x PCI-E 4.0 x16 (LP), and 4 x PCI-E 4.0 x8 (FH, 10.5″L).

With unparalleled performance, this Ultra SuperServer® is one of the world’s most powerful, balanced, and green computing servers.



  • Key Features/Applications: Virtualization, Cloud Computing, Software Defined Storage, 5G/Telco, HPC, High End Enterprise, Application Tier Service Provider
  • CPU: Dual 3rd Gen Intel® Xeon® Scalable Processors, up to 40 Cores
  • Chassis: 2U

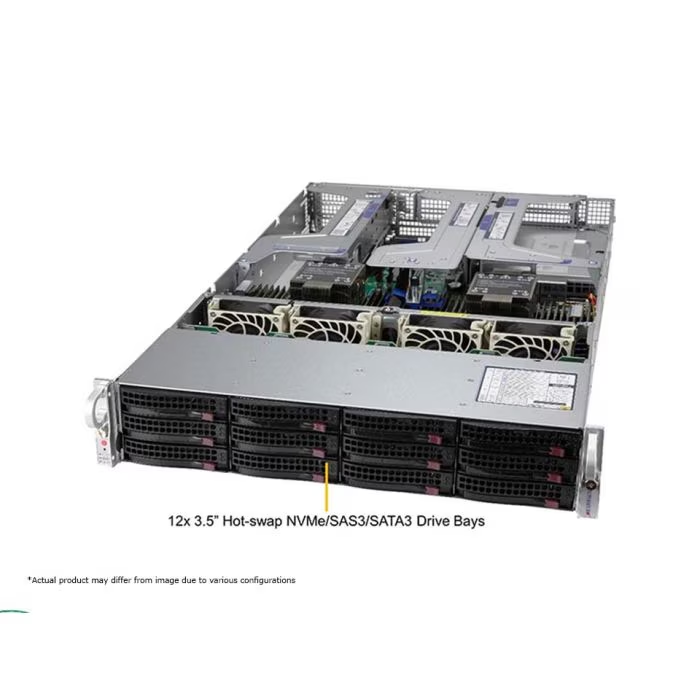

  • Drive: Up to 12x 3.5″ Hot-Swap NVMe/SATA/SAS Drive Bays
  • RAM: Up to 12TB of DDR4 ECC RDIMM/LRDIMM in 32 DIMM Slots
  • Network Ports: Flexible Networking Options
SKU: SYS-620U-TNR Categorii: , , , , , , , , ,
SuperServer SYS-620U-TNR
Processor
CPU
  • Dual Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 40C/80T; Up to 60MB Cache per CPU
Note
  • Supports up to 270W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 4 double-width or 6 single-width GPU(s)
Supported GPU
  • NVIDIA PCIe: T4, RTX A6000, RTX A5000, RTX A4000, A40, A30, A16, A2, A100, A10
Certification
System Memory
Memory
  • Slot Count: 32 DIMM slots
  • Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
  • Supports Intel® Optane™ persistent memory 200 series
Memory Voltage
  • 1.2V
On-Board Devices
SATA
  • SATA (6Gbps) ; RAID 0/1/5/10 support
NVMe
  • NVMe; RAID 0/1/5/10 support
Chipset
  • Intel® C621A
Network Connectivity
  • 2 RJ45 10GBASE-T with Intel® X710-AT2 (optional)
  • 2 RJ45 10GBASE-T with Intel® X710-TM4 (optional)
  • 2 SFP+ 10GbE with Intel® X710-TM4 (optional)
  • No NIC option supported
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port(s)
USB
  • 2 USB 3.0 port(s) (rear)
Video
  • 1 VGA port(s)
DOM
  • 2 SuperDOM (Disk on Module) port(s)
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
  • SuperCloud Composer
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • SuperDoctor® 5
  • Super Diagnostics Offline
  • TAS: Supermicro Thin-Agent Service (TAS)
  • SAA(new!)
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
  • 7 +1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-829U3TS-R1K22P-T
Dimensions and Weight
Height
  • 3.5″ (89 mm)
Width
  • 17.2″ (437 mm)
Depth
  • 29.05″ (737.9 mm)
Package
  • 10.07″ (H) x 23.81″ (W) x 37.28″ (D)
Weight
  • Gross Weight: 57.5 lbs (26.2 kg)
  • Net Weight: 35.5 lbs (16.2 kg)
Available Color
  • Black Front & Silver Body

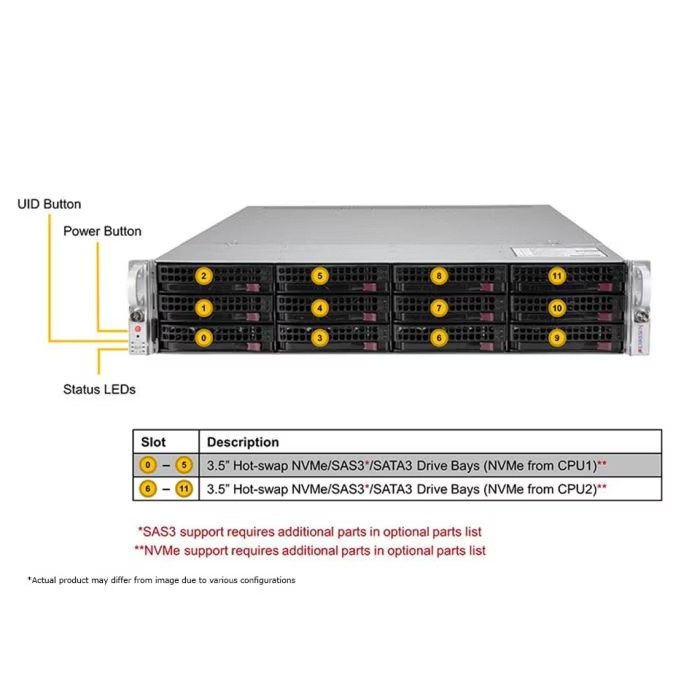

Front Panel
LED
  • HDD activity
  • Power status
Buttons
  • Power On/Off
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 12 bay(s)
    • 12 front hot-swap 3.5″ NVMe/SAS*/SATA drive bay(s)
  • (*SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
System Cooling
Fans
  • 4x 8cm heavy duty fans with optimal fan speed control
Air Shroud
  • 2 Air Shroud(s)
Power Supply
QtyWithPsu
  • 1x 1200W
Description
  • 1x 1200W Redundant Titanium Level (96%) Hot-plug power supply
Dimension (WxHxL)
  • 73.5 x 40 x 203 mm
AC Input
  • 800W: 100-127Vac / 50-60Hz
    1200W: 200-240Vac / 50-60Hz
    1200W: 200-240Vdc / 50-60Hz (for CCC only)
+12V
  • Max: 66.7A / Min: 0A (100Vac-127Vac)
    Max: 100A / Min: 0A (200Vdc-240Vdc)
    Max: 100A / Min: 0A (200Vac-240Vac)
12V SB
  • Max: 2.1A / Min: 0A
Output Type
  • Backplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
