Supermicro SYS-740A-T Full-Tower SuperWorkstation (SYS-740A-T)

Favorite
Compara
Pretul afisat contine TVA (19%).

21.705,85 lei

Compara

Supermicro SYS-740A-T Full-Tower SuperWorkstation (SYS-740A-T)



Supermicro’s X12 SuperWorkstations are optimized for the most demanding applications and workflows requiring powerful graphics capabilities, which can tackle rendering, engineering, and visual computing workloads with ease. With rich multimedia features, these workstations are also the perfect choice for creative and technical professionals in animation and gaming.

The Supermicro SuperWorkstation SYS-740A-T is the ultimate high-performance workstation with huge storage options. Supporting up to two Intel® Xeon® Scalable Processors with 16 DDR4 DIMM slots to take on the most complex of tasks. The six PCI-E slots allow great expandability for GPU and other professional cards while the dual Gigabit Ethernet ports with IPMI support will keep you connected no matter where you are. Bigger, faster storage options with 8 Hot-swap drive bays provides superior storage capabilities to execute heavy data processing with ease.  This extremely feature-rich workstation also includes 7.1 HD audio, onboard M.2 slot, 2 NVMe internal ports and 8 USB ports for even more versatility and expandability all within your reach.  This workstation is powered by a 1200W platinum level power supply, giving you one of the most reliable and efficient workstations available today.



  • Key Features/Applications: Rendering, CAD, Multimedia/Digital Content Creation, Engineering/Scientific Research
  • CPU: Dual 3rd Gen Intel® Xeon® Scalable Processors, up to 40 Cores
  • Chassis: 4U Tower
  • Drive: Up to 8x 3.5″ Hot-Swap SATA + 2x M.2 NVMe Drive Bays. Supports up to 3x 5.25″ Peripheral Drive Bays (Optional)
  • RAM: Up to 3TB of DDR4 ECC RDIMM/LRDIMM in 16 DIMM Slots
  • Network Ports: 2x 1GbE RJ45 LAN Ports



SKU: SYS-740A-T Categorii: , , , , , , , , ,
SuperWorkstation SYS-740A-T
Processor
CPU
  • Dual Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 40C/80T; Up to 60MB Cache per CPU
Note
  • Supports up to 270W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 2 double-width or 2 single-width GPU(s)
Supported GPU
  • NVIDIA PCIe: RTX A6000, RTX A5000, RTX A4000, RTX 5000
CPU-GPU Interconnect
  • PCIe 4.0 x16 Switch Single-Root

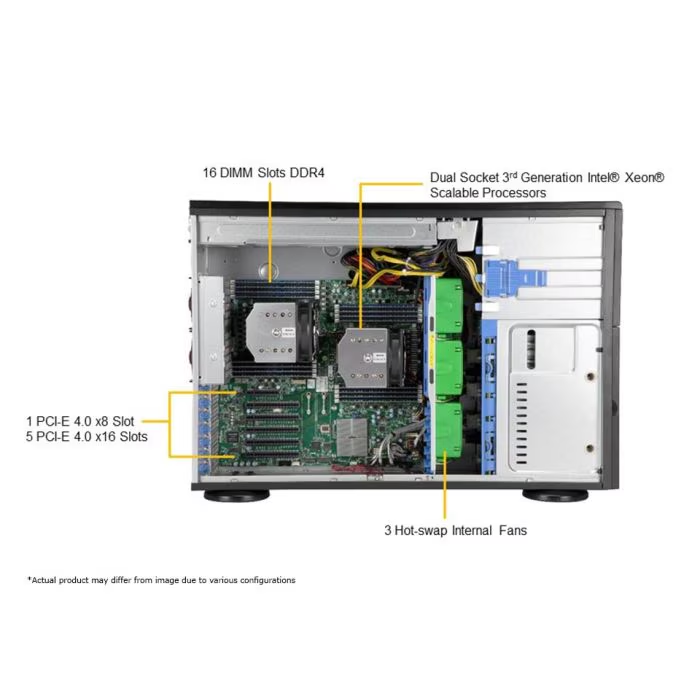

System Memory
Memory
  • Slot Count: 16 DIMM slots
  • Max Memory (2DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
  • Supports Intel® Optane™ persistent memory 200 series
Memory Voltage
  • 1.2V
On-Board Devices
SATA
  • SATA (6Gbps) ; RAID 0/1/5/10 support
Chipset
  • Intel® C621A
Network Connectivity
  • 2 RJ45 1GbE

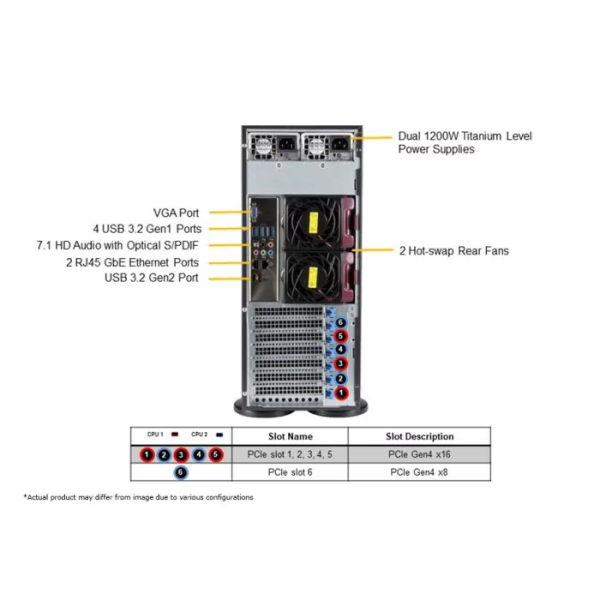

Input / Output
LAN
  • 2 RJ45 1 GbE LAN port(s) (IPMI shared on LAN port 1)
USB
  • 4 USB 3.2 Gen1 port(s) (rear)
  • 2 USB 3.2 Gen1 port(s) (front)
Video
  • 1 VGA port(s)
DOM
  • 2 SATA DOM (Disk on Module) port(s)
Audio
  • 7.1 HD Audio
System BIOS
BIOS Type
  • AMI 32MB SPI FLASH ROM
Management
Software
  • SuperCloud Composer
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • SuperDoctor® 5
  • Super Diagnostics Offline
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • ACPI/APM Power Management
PC Health Monitoring
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
Chassis
Form Factor
  • 4U Tower Rackmount
Model
  • CSE-745BTS-R1K23BP3

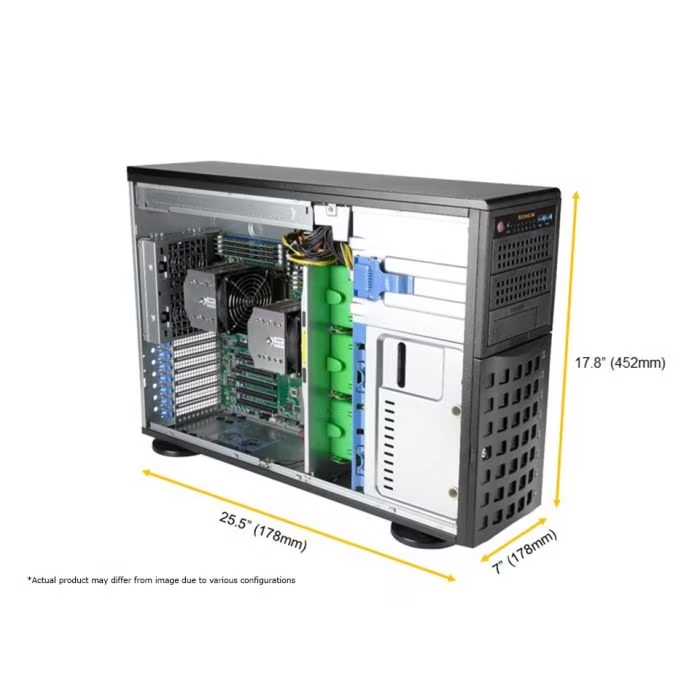

Dimensions and Weight
Height
  • 17.8″ (452 mm)
Width
  • 7″ (178 mm)
Depth
  • 25.5″ (647 mm)
Package
  • 24.6″ (H) x 14″ (W) x 31.3″ (D)
Weight
  • Gross Weight: 62 lbs (28.12 kg)
  • Net Weight: 59 lbs (26.76 kg)
Available Color
  • black

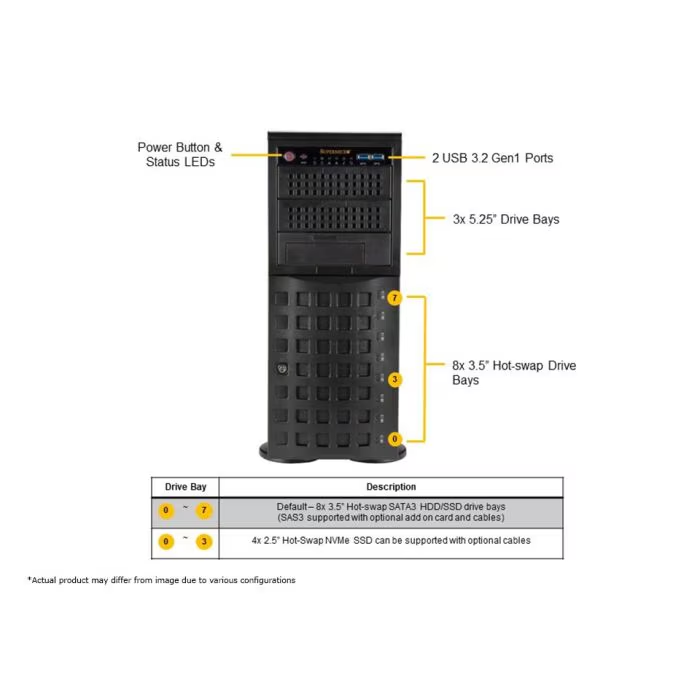

Front Panel
LED
  • HDD activity LED
  • Network activity LEDs
  • Power status LED
Buttons
  • Power On/Off button
  • Reset button
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 8 bay(s)
    • 4 front hot-swap 3.5″ SAS*/SATA drive bay(s)
    • 4 front hot-swap 3.5″ NVMe*/SATA drive bay(s)
  • (*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2
  • 2 M.2 NVMe slot(s) (M-key)
Peripheral Bays
  • 3 5.25″ peripheral bay(s) (optional)
System Cooling
Fans
  • 5x 8cm heavy duty fans with optimal fan speed control
Power Supply
QtyWithPsu
  • 1x 1200W
Description
  • 1x 1200W Redundant Titanium Level (96%) power supply
Dimension (WxHxL)
  • 76 x 40 x 336 mm
AC Input
  • 1000W: 100-127Vac / 50-60Hz
    1200W: 200-240Vac / 50-60Hz
    1200W: 200-240Vdc / 50-60Hz (for CCC only)
+12V
  • Max: 83A / Min: 0A (100Vac-127Vac)
    Max: 100A / Min: 0A (200Vac-240Vac)
5V SB
  • Max: 4A / Min: 0A
Output Type
  • Backplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
