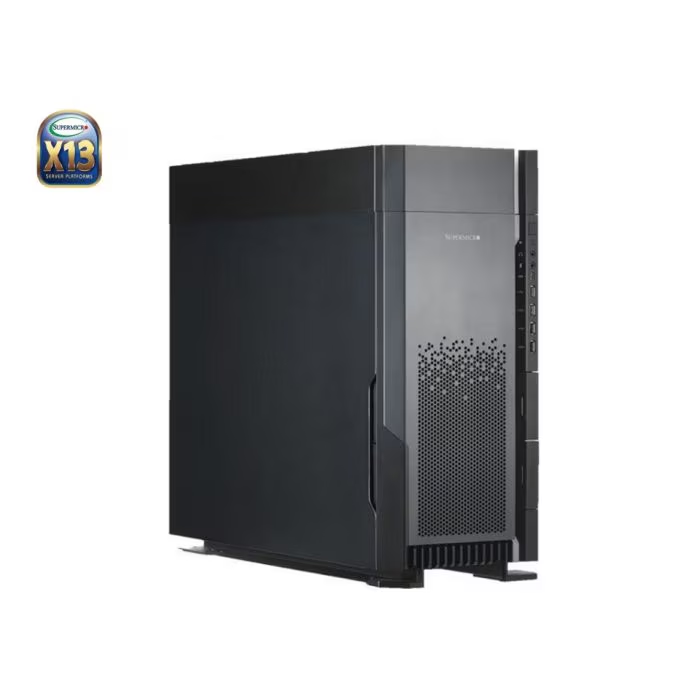

Supermicro SYS-751A-I 5U Full-Tower X13 SuperWorkstation (SYS-751A-I)



Unleashing Computational Power in a Compact Form

Discover the Supermicro SYS-751A-I, a powerhouse designed for rendering, CAD, multimedia, digital content creation, and engineering/scientific research. This system is equipped with features that redefine versatility and performance in a portable workstation.

Next-Gen Processing Power

Harness the capabilities of 5th/4th Gen Intel® Xeon® Scalable processors supported by the Intel® C741 Chipset. This dynamic duo delivers unparalleled compute power, ensuring seamless handling of the most demanding workloads.

SYS-751A-I Front

Versatile Configuration and Accessibility

With 5 PCIe 5.0 x16 slots, 1 PCIe 5.0 x8 slot, and 2 NVMe M.2 slots, the SYS-751A-I allows for extensive expansion. Front access to 2x 2.5″ SATA drive bays with easy- swap capability, 4x internal 3.5″/2.5” SATA drive bays, and 2x 5.25″ peripheral drive bays provide easy and versatile storage solutions.

Compact, Secure, and Future-Ready

Experience compact and quiet operation without compromising power. The new front bezel with a keylock ensures added security. With support for up to two double-width active GPUs, this workstation is ready to meet the challenges of evolving computational needs.

Supermicro SYS-751A-I brings the efficiency of a data center to your fingertips, offering a compact yet powerful solution for professionals across various industries.



  • Key Features/Applications: Rendering, CAD, Multimedia/Digital Content Creation, Engineering/Scientific Research

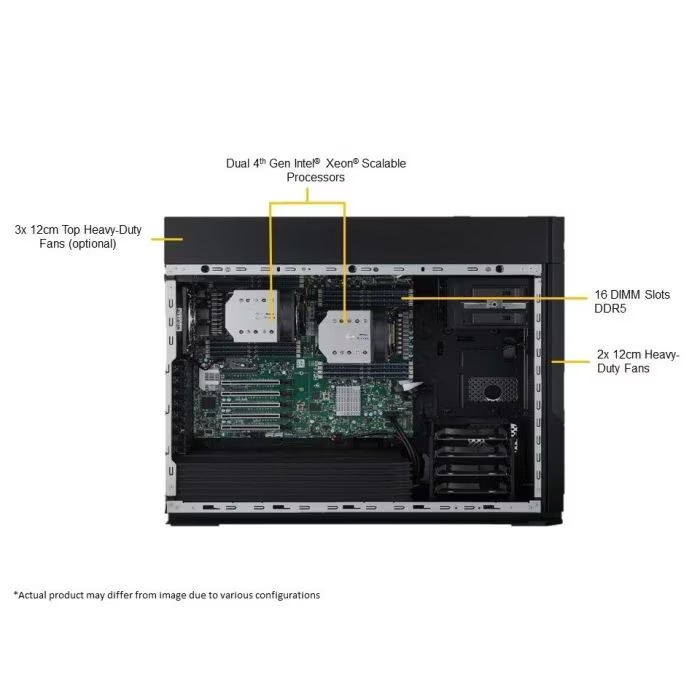

  • CPU: Dual 5th/4th Gen Intel® Xeon® Scalable Processors, up to 350W TDP
  • Chassis: Full-Tower/5U Rackmount
  • Drive: Up to 4x Internal 3.5″/2.5” Easy-Swap SATA + 2x Front 2.5″ Easy-Swap SATA + 2x 5.25″ Peripheral Drive Bays (Optional)
  • RAM: Up to 4TB of DDR5 ECC RDIMM in 16 DIMM Slots
  • GPU: Up to 2 Double-Width GPUs
  • Network Ports: 2x 10GbE RJ45 LAN Ports
  • Power Supply: 2000W Platinum Level Power Supplies
SuperWorkstation SYS-751A-I
Processor
CPU
  • Dual Socket E (LGA-4677)
  • 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 64C/128T; Up to 320MB Cache per CPU
Note
  • Supports up to 350W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 2 double-width GPU(s)
Supported GPU
  • NVIDIA PCIe: T400, RTX A5500, T1000, RTX A6000, RTX A5000, RTX A4500, RTX A4000, RTX A2000, RTX 6000 Ada Generation
CPU-GPU Interconnect
  • PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect
  • PCIe
System Memory
Memory
  • Slot Count: 16 DIMM slots
  • Max Memory (1DPC): Up to 2TB 5600MT/s ECC DDR5 RDIMM
Memory Voltage
  • 1.1V
On-Board Devices
SATA
  • SATA (6Gbps) ; RAID 0/1/5/10 support
Chipset
  • Intel® C741
Network Connectivity
  • 2 RJ45 10GbE

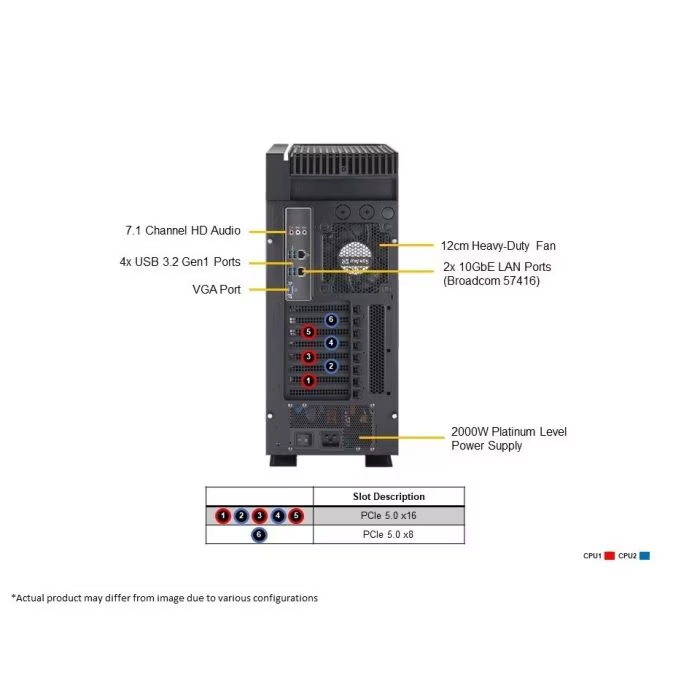

Input / Output
LAN
  • 2 RJ45 10 GbE LAN port(s) (IPMI shared on LAN port 1)
USB
  • 4 USB 3.2 Gen1 port(s) (rear)
  • 5 USB 2.0 port(s) (front)
Video
  • 1 VGA port(s)
DOM
  • 2 SATA DOM (Disk on Module) port(s)
Audio
  • 7.1 HD Audio
  • Line Out
  • Mic in
System BIOS
BIOS Type
  • AMI 32MB SPI FLASH ROM
Management
Software
  • SuperCloud Composer
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • SuperDoctor® 5
  • Super Diagnostics Offline
  • TAS: Supermicro Thin-Agent Service (TAS)
  • SAA(new!)
Power configurations
  • ACPI/APM Power Management
PC Health Monitoring
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
FAN
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
Chassis
Form Factor
  • Tower or 5U Rackmount
Model
  • CSE-GS7A-000NBP3

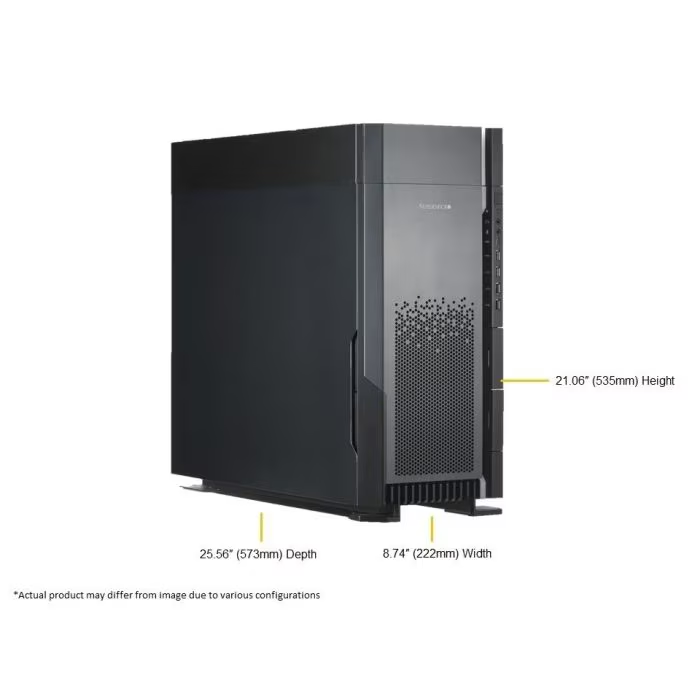

Dimensions and Weight
Height
  • 21.1″ (536 mm)
Width
  • 8.7″ (221 mm)
Depth
  • 22.6″ (574 mm)
Package
  • 27.6″ (H) x 14.6″ (W) x 28″ (D)
Weight
  • Gross Weight: 59.5 lbs (27 kg)
  • Net Weight: 56.2 lbs (25.5 kg)
Available Color
  • Black
Front Panel
Buttons
  • LED On/Off Button
  • Power On/Off button
LED
  • Power status LED

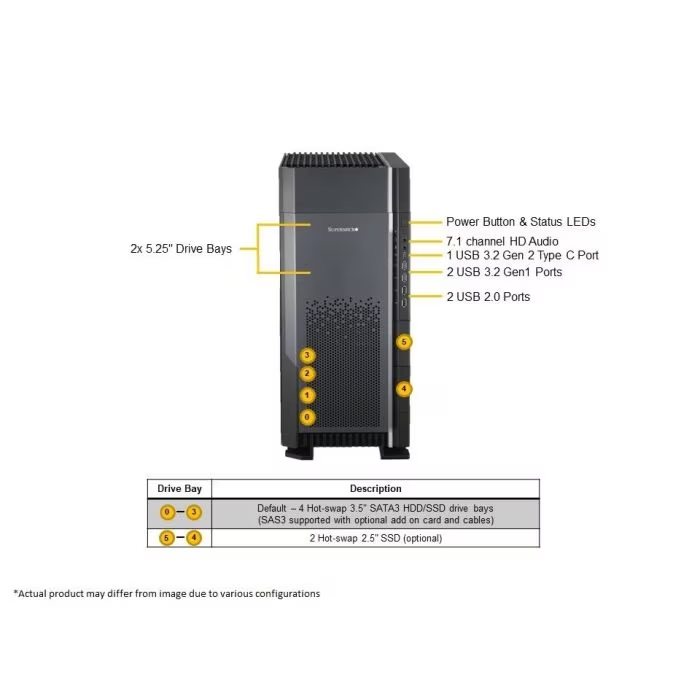

Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 4 bay(s)
    • 4 front hot-swap 3.5″ NVMe/SAS*/SATA drive bay(s)
  • Option A: Total 6 bay(s)
    • 4 front hot-swap 3.5″ NVMe/SAS*/SATA drive bay(s)
    • 2 front hot-swap 2.5″ NVMe/SAS*/SATA drive bay(s)
  • (*SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2
  • 2 M.2 NVMe slot(s) (M-key 2280/22110)
Peripheral Bays
  • 2 5.25″ bay(s) (optional)
System Cooling
Fans
  • 3x 12cm Fan(s)
Power Supply
QtyWithPsu
  • 1x 2000W
Description
  • 1x 2000W Platinum Level (92%) power supply
Dimension (WxHxL)
  • 150 x 86 x 200 mm
AC Input
  • 1200W: 100-115Vac / 50-60Hz
    1500W: 115-200Vac / 50-60Hz
    2000W: 200-264Vac / 50-60Hz
+12V
  • Max: 100A / Min: 0.1A (100Vac-115Vac)
    Max: 125A / Min: 0.1A (115Vac-120Vac)
    Max: 166.6A / Min: 0.1A (200Vac-264Vac)
5V SB
  • Max: 4A / Min: 0A
Output Type
  • 24pin ATX
Certification
  • Platinum Level Certified  Platinum Level[ Test Report ]
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
