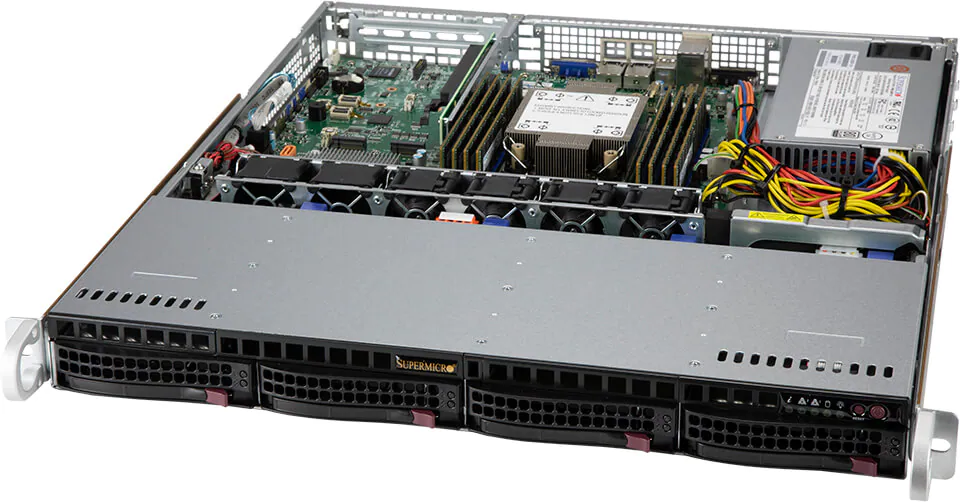

SUPERMICRO UP SuperServer SYS-510P-M (SYS-510P-M)
SUPERMICRO UP SuperServer SYS-510P-M (SYS-510P-M) - imagine 2
SUPERMICRO UP SuperServer SYS-510P-M (SYS-510P-M) - imagine 3
SUPERMICRO UP SuperServer SYS-510P-M (SYS-510P-M) - imagine 4
SUPERMICRO UP SuperServer SYS-510P-M (SYS-510P-M) - imagine 5
SUPERMICRO UP SuperServer SYS-510P-M (SYS-510P-M) - imagine 6
SUPERMICRO UP SuperServer SYS-510P-M (SYS-510P-M) - imagine 7
, , , , , , , ,

SUPERMICRO UP SuperServer SYS-510P-M (SYS-510P-M)

Favorite
Compara
Pretul afisat contine TVA (21%).

15.742,03 lei

Specifications
Product SKUs
SYS-510P-M
  • SuperServer SYS-510P-M (Black)

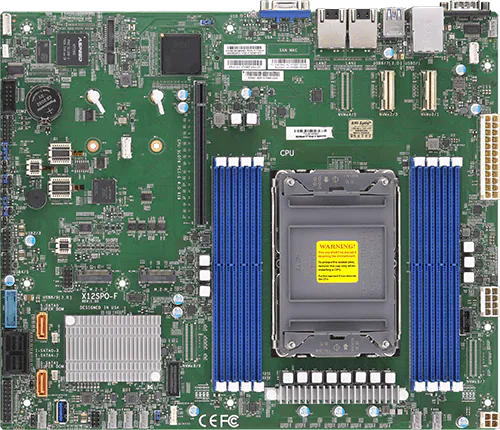

Motherboard
Super X12SPO-F
Processor
CPU
  • Single Socket P+ (LGA 4189)
  • Support Intel® 3rd Gen Xeon® Scalable Processors
  • Support CPU TDP 220W
Cores
  • Up to 36C/72T; Up to 54MB Cache
System Memory
Memory
  • Memory Capacity: 8 DIMM slots
  • Up to 2TB: 8x 256 GB DRAM
  • Up to 3TB: 4x 256 GB DRAM and 4x 512 GB PMem
  • Memory Type: 3200/2933/2666MHz ECC DDR4 RDIMM;LRDIMM
  • Intel® Optane™ persistent memory 200 series
Memory Voltage
  • 1.25 V
Error Detection
  • Yes
On-Board Devices
SATA
  • SATA3 (6Gbps); RAID 0/1/5/10 support
NVMe
  • NVMe; RAID 0/1/5/10 support (*VROC HW key is required)
Chipset
  • Intel® C621A
Network Connectivity
  • 2x 1GbE BaseT with Intel® i350
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

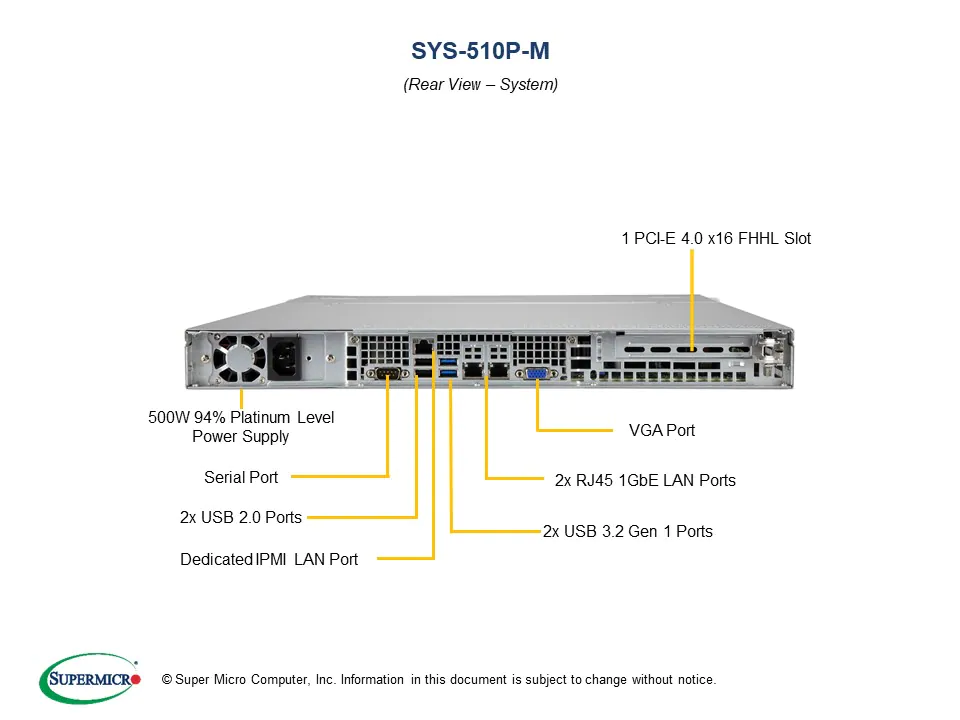

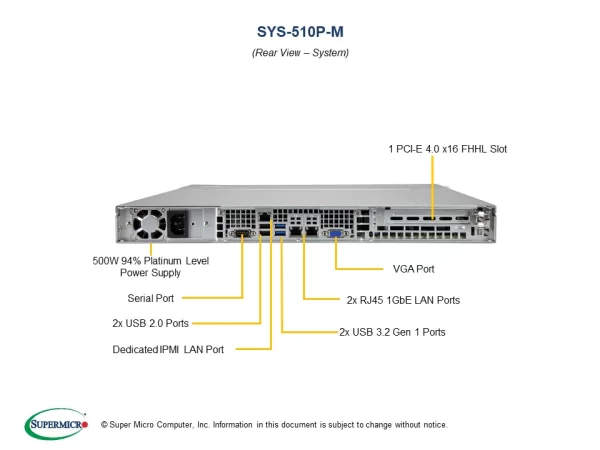

Input / Output
SATA
  • 10 SATA (6Gbps) port(s)
LAN
  • 1 RJ45 Dedicated IPMI LAN port
  • 2 RJ45 1GbE LAN ports
USB
  • 5 USB 3.2 Gen 1 port(s) (2 headers; 2 rear; 1 Type A)
  • 6 USB 2.0 port(s) (4 headers; 2 rear)
Video
  • 1 VGA port(s)
Serial Port
  • 2 COM Port(s) (1 header; 1 rear)
DOM
  • 2 SuperDOM (Disk on Module) port with built-in power
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
  • IPMI2.0
  • Redfish API
  • SSM
  • Intel® Node Manager
  • SPM
  • KVM with dedicated LAN
  • SUM
  • NMI
Power Configurations
  • ACPI/APM Power Management
PC Health Monitoring
CPU
  • 7+1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-813MF2TS-505CBP

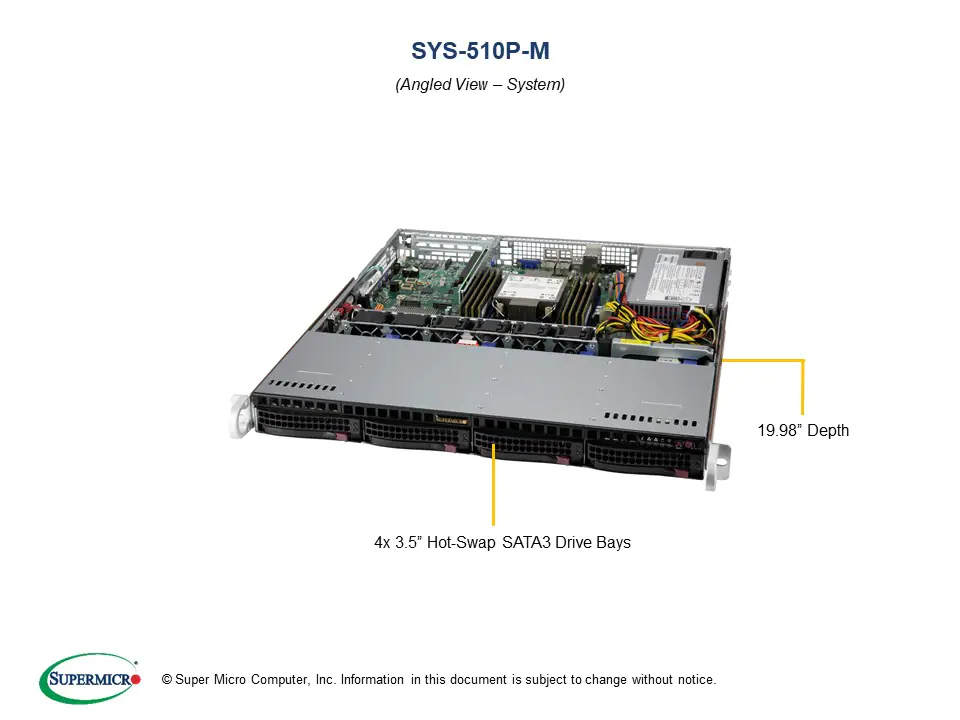

Dimensions and Weight
Height
  • 1.7″ (43mm)
Width
  • 17.2″ (437mm)
Depth
  • 19.98″ (507mm)
Package
  • 8.5″ (H) x 24″ (W) x 29.5″ (D)
Weight
  • Net Weight: 17.6 lbs (8 kg)
  • Gross Weight: 30.4 lbs (13.8 kg)
Available Color
  • Black

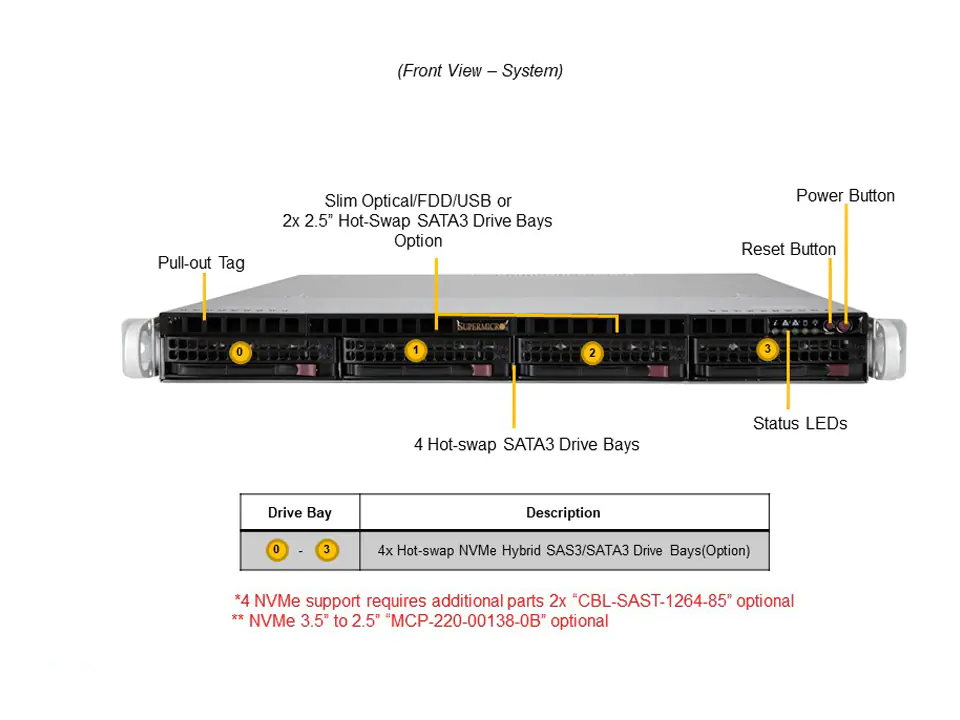

Front Panel
Buttons
  • Power On/Off
  • System Reset
LEDs
  • Device Activity
  • LAN 1 Activity
  • LAN 2 Activity
  • Power status
  • System information
Expansion Slots
PCI-Express (PCI-E)
  • Slot 1: PCI-E 4.0 x16 FHHL
Drive Bays / Storage
Drive Bays
  • 4x 3.5″ NVMe/SATA drive bays (4x 3.5″ NVMe hybrid)
M.2
  • 2x PCI-E 3.0 x 4 and SATA
  • M-key, 2280, 22110
Peripheral Bays
  • 2x 2.5″ drive bays
System Cooling
Fans
  • 2 AOC cooling Fan(s) (optional)
  • 4 middle cooling PWM 40x40x28mm Fan(s)
Power Supply
1U 500W Multi-output, Platinum level with PMbus 24pin, W100xL180xH40mm,RoHS/REACH
Total Output Power
  • 500W
Dimension

(W x H x L)
  • 100 x 40 x 180 mm
AC Input
  • 500W: 100-240Vac / 3.2A-6.6A / 50-60Hz
+12V
  • Max: 41A / Min: 0.5A
5V SB
  • Max: 3A / Min: 0A
Certification Platinum Level Certified94%+  Platinum Level



[ Test Report ]
Operating Environment
Environmental Spec.
  • Operating Temperature:
    10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
    -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)
