Supermicro AS -2115HS-TNR 2U Rackmount H13 Hyper SuperServer (AS -2115HS-TNR)



er SuperServer is a high-performance, highly configurable system designed for enterprise and telco applications, making it an optimal choice for workloads requiring powerful computing capabilities. With its flexible front and rear I/O configurations, you can easily integrate this system into their existing infrastructure.

AS -2115HS-TNR supports single 4th Gen AMD EPYC™ 9004 Series Processors and up to 6TB DDR5-4800 memory in 24 DIMM slots. In addition, this system offers flexible networking options with an AIOM slot, allowing businesses to easily pick and choose the networking card that best suit their needs.

AS -2115HS-TNR



HyperSuperServer features lightning-fast storage, powered by the latest generation PCIe 5.0 NVMe SSDs. With up to 24 2.5” hot-swappable hybrid NVMe/SATA/SAS drive bays, this system is capable of handling your storage needs. Hyper SuperServer also features a tool-less design that simplifies serviceability and lowers maintenance time, resulting in lower TCO.

The Hyper SuperServer product family is optimized for your 5G Core, edge, hyperconverged storage, cloud computing, and AI inferencing/machine learning needs.



  • Key Features/Applications: Virtualization, AI Inference, Machine Learning, Software-Defined Storage, Cloud Computing
  • CPU: Single 4th Gen AMD EPYC™ 9004 Series Processors, up to 128 Cores
  • Chassis: 2U
  • Drive: Up to 24x 2.5″ Hot-Swap NVMe/SATA/SAS Drive Bays
  • RAM: Up to 6TB of DDR5 ECC RDIMM in 24 DIMM Slots
  • Network Ports: Flexible Networking Options
  • Power Supply: 1600W Redundant Titanium Level Power Supplies
A+ Server AS -2115HS-TNR

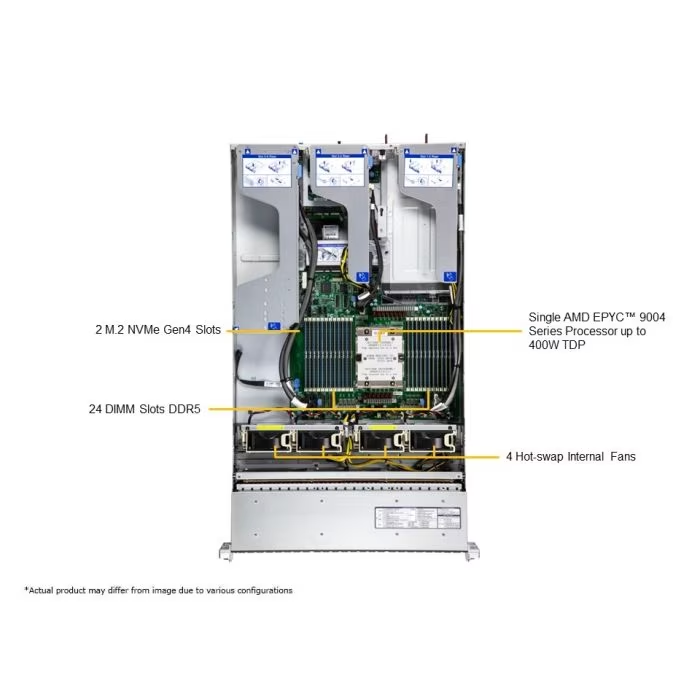

Processor
CPU
  • Single Socket SP5
  • AMD EPYC™ 9004 Series Processors
Core Count
  • Up to 128C/256T
Note
  • Supports up to 400W TDP CPUs (Air Cooled)*
  • *Air Cooled CPUs with TDP over 290W only supported under specific conditions. Contact a Supermicro representative for details.
GPU
Max GPU Count
  • Up to 2 double-width GPU(s)
Supported GPU
  • NVIDIA PCIe: RTX A6000, RTX 6000 Ada Generation
CPU-GPU Interconnect
  • PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect
  • PCIe
System Memory
Memory
  • Slot Count: 24 DIMM slots
  • Max Memory (1DPC): Up to 3TB 4800MT/s ECC DDR5 RDIMM
  • Max Memory (2DPC): Up to 6TB 4000MT/s ECC DDR5 RDIMM
Memory Voltage
  • 1.1V
On-Board Devices
Chipset
  • System on Chip
Network Connectivity
  • Via AIOM

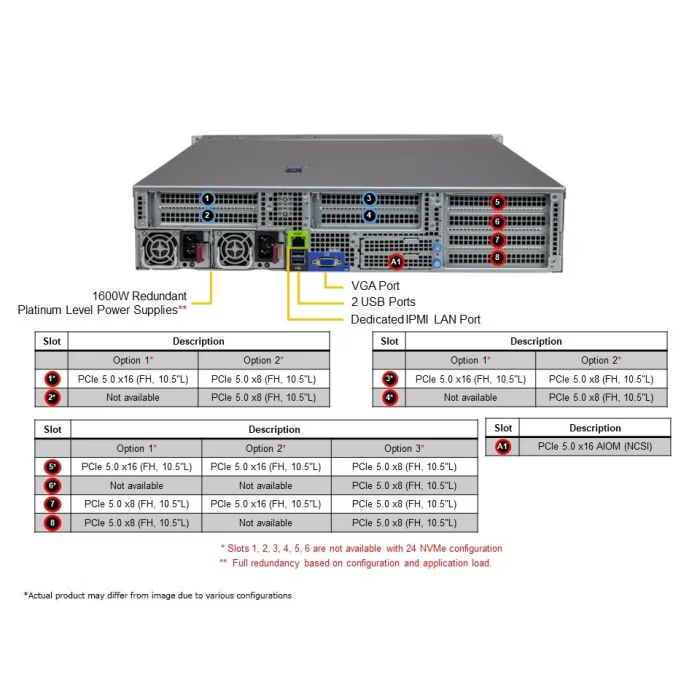

Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated IPMI LAN port(s)
USB
  • 2 USB 3.0 port(s) (rear)
Video
  • 1 VGA port(s)
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
BIOS Features
  • ACPI 6.4
  • Plug and Play (PnP)
  • SMBIOS 3.5 or later
  • UEFI 2.8
  • USB Keyboard support
Management
Software
  • SuperCloud Composer
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • SuperDoctor® 5
  • Super Diagnostics Offline
  • TAS: Supermicro Thin-Agent Service (TAS)
  • SAA(new!)
Power configurations
  • ACPI Power Management
  • Power-on mode control for AC power loss recovery
  • Power button override mechanism,
PC Health Monitoring
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Voltage
  • System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support
Chassis
Form Factor
  • 2U
Model
  • CSE-HS219-R1K63P-A
Dimensions and Weight
Height
  • 3.5″ (88.9 mm)
Width
  • 17.2″ (437 mm)
Depth
  • 29.9″ (760 mm)
Package
  • 10.4″ (H) x 23.8″ (W) x 43.6″ (D)
Weight
  • Gross Weight: 72 lbs (32.7 kg)
  • Net Weight: 39 lbs (17.7 kg)
Available Color
  • Black front & silver body

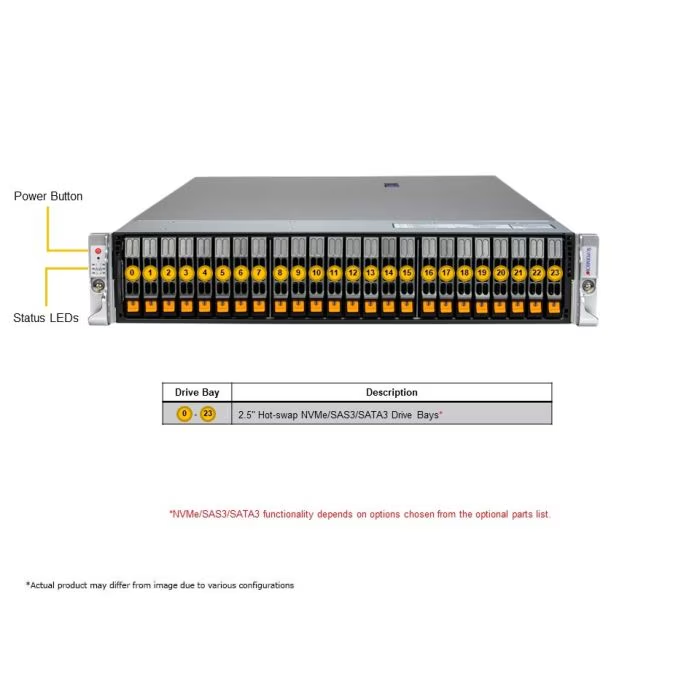

Front Panel
LED
  • HDD activity
  • LAN1 activity
  • Power status
  • System information
Buttons
  • Power On/Off
  • UID button

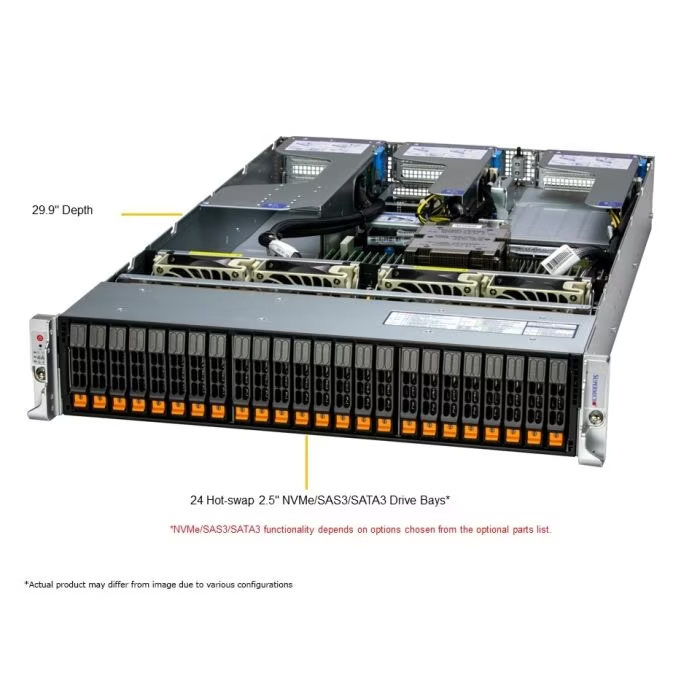

Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 24 bay(s)
    • 24 front hot-swap 2.5″ NVMe*/SAS*/SATA* drive bay(s)
  • (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2
  • 1 M.2 PCIe 3.0 x4 NVMe slot(s) (M-key 22110(default)/2280)
  • 1 M.2 PCIe 3.0 x2 NVMe slot(s) (M-key 22110(default)/2280)
System Cooling
Fans
  • 4 counter-rotating 80x80x38mm Fan(s)
Power Supply
QtyWithPsu
  • 2x 1600W
Description
  • 2x 1600W Redundant Titanium Level (96%) power supplies
Dimension (WxHxL)
  • 73.5 x 40 x 265 mm
AC Input
  • 1000W: 100-127Vac / 50-60Hz
    1600W: 200-240Vac / 50-60Hz
    1600W: 200-240Vdc / 50-60Hz (for CQC only)
+12V
  • Max: 83.3A / Min: 0A (100Vac-127Vac)
    Max: 133.3A / Min: 0A (200Vac-240Vac)
12V SB
  • Max: 3.5A
Output Type
  • Backplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
