Supermicro AS -5014A-TT Full-Tower SuperWorkstation (AS -5014A-TT)


Pretul afisat contine TVA (19%).

18.856,91 lei

Compara

Supermicro AS -5014A-TT Full-Tower SuperWorkstation (AS -5014A-TT)



Powerhouse Performance

Experience unparalleled power and performance with the Supermicro AS-5014A-TT Workstation. Designed specifically for the demanding needs of the media and entertainment professionals, this workstation is powered by the battle-tested AMD Ryzen™ Threadripper™ PRO 5000 WX-Series processors. With up to 64 cores and 128 threads, it delivers exceptional processing power to handle resource-intensive tasks such as video editing, rendering, and 3D modeling. Boost your productivity and accelerate your workflow with lightning-fast processing speeds and seamless multitasking capabilities.

Reliable and Versatile

The Supermicro AS-5014A-TT Workstation offers reliability and versatility to meet the unique requirements of media and entertainment professionals. Built with server-grade components and a robust chassis, this workstation ensures durability and long-term performance. Its flexible design allows for easy customization and expansion, enabling you to add more storage, memory, or graphics cards as your needs evolve. Whether you’re working on high-resolution videos or complex visual effects, this workstation provides the reliability and scalability required to tackle your most demanding projects.

AS -5014A-TT-Side

Enhanced Multimedia Capabilities

Take your media and entertainment projects to new heights with the enhanced multimedia capabilities of the Supermicro AS-5014A-TT Workstation. Equipped with advanced graphics options, including support for multiple GPUs, it enables smooth playback, accelerated rendering, and real-time simulations. The workstation’s high-speed storage options, such as NVMe storage options, ensure quick access to large files, reducing latency and enhancing overall performance. Coupled with a comprehensive suite of connectivity options, including USB Gen 3.2×2 20Gbps USB-C connection, you can seamlessly integrate your peripherals and transfer data at lightning-fast speeds. Unlock your creative potential and achieve stunning results with the Supermicro AS-5014A-TT Workstation.
  • Key Features/Applications: Media/Entertainment Content Creation, Product Design, Engineering Simulation, AI/Deep Learning
  • CPU: Single AMD Ryzen™ Threadripper™ PRO 5000WX/3000WX Series Processor, up to 64 Cores
  • Chassis: Full Tower
  • Drive: Up to 4x 2.5″/3.5″ SATA + 2x 2.5″ SATA + 4x M.2 NVMe Drive Bays
  • RAM: Up to 2TB of DDR4 ECC RDIMM in 8 DIMM Slots
  • Network Ports: 1x 10GbE RJ45 LAN Ports
  • GPU: Up to 4 GPUs, Support NVIDIA RTX 6000 Ada Generation Graphics Card
  • Glass Side Panel Special Editions: Air Cooling and Liquid Cooling are available now
SKU: AS -5014A-TT Categorii: , , , , , , , ,
SuperWorkstation
  • AS -5014A-TT (Black)
Motherboard
Super M12SWA-TF
Processor/Cache
CPU
  • Single AMD Ryzen™ Threadripper™ PRO 5000WX/3000WX Series processor
  • Socket sWRX8/SP3
  • Supports CPU TDP up to 280W
Cores
  • Up to 64 Cores
System Memory
Memory Capacity
  • 8 DIMM slots
  • Supports up to 2TB Registered ECC DDR4 3200-MHz SDRAM
  • 8-channel memory bus
On-Board Devices
Chipset
  • AMD WRX80
SATA
  • SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Controllers
  • 10G LAN: Single LAN via Marvel AQC113C 10G Ethernet Controller
  • 1GbE LAN: Single LAN with Intel® i210AT Enternet Controller (shared with IPMI)
Audio
  • 7.1 channel HD Audio by Realtek LC4050H + ALC1220

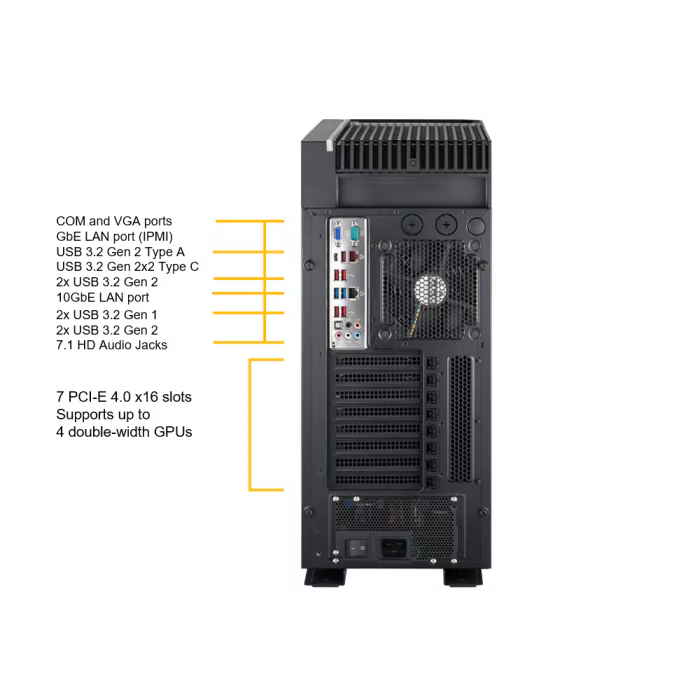

Input / Output
SATA
  • 4 SATA3 (6Gbps) ports
LAN
  • 1 RJ45 10GBase-T Ethernet LAN port
  • 1 RJ45 GbE Ethernet LAN port (shared with IPMI)
USB
  • 1 USB 3.2 Gen2x2 port (Type C, 20Gbps)
  • 5 USB 3.2 Gen2 ports (4 Type A, 1 front Intel Type C header, 10Gbps)
  • 5 USB 3.2 Gen1 ports (3 Type A, 1 via header)
  • 2 USB 2.0 via header
Video
  • 1 VGA port (dedicated for IPMI)
Audio
  • 7.1 HD Audio with optical S/PDIF
Serial Port / Header
  • 1 COM port (rear)
TPM
  • 1 TPM 2.0 Header
System BIOS
BIOS Type
  • 256Mb SPI Flash with AMI BIOS
Management
Software
  • Intel® Node Manager
  • IPMI 2.0
  • SSM, SPM, SUM
  • SuperDoctor® 5
  • Watchdog
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • Full Tower
  • Optional Rackmount Kit (6U)
Model
  • CSE-GS7A-2000B
Dimensions and Weight
Height
  • 21.06″ (535mm)
Width
  • 8.74″ (222mm)
Depth
  • 22.56″ (573mm)

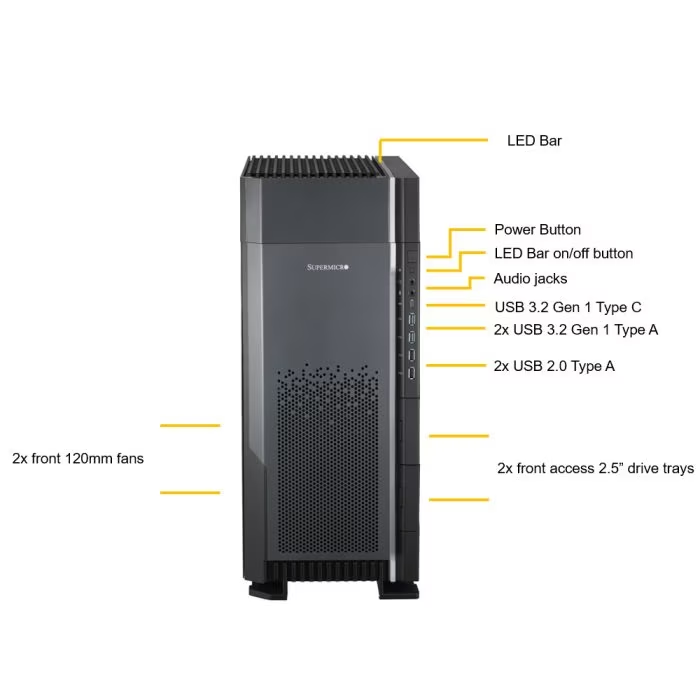

Front Panel
Buttons
  • Power On/Off button
  • LED On/Off button
LEDs
  • Power LED
Ports
  • 1 headphone jack
  • 1 audio jack
  • 1 USB 3.2 Port (Type C)
  • 2 USB 3.2 Ports (Type A)
  • 2 USB 2.0 Ports

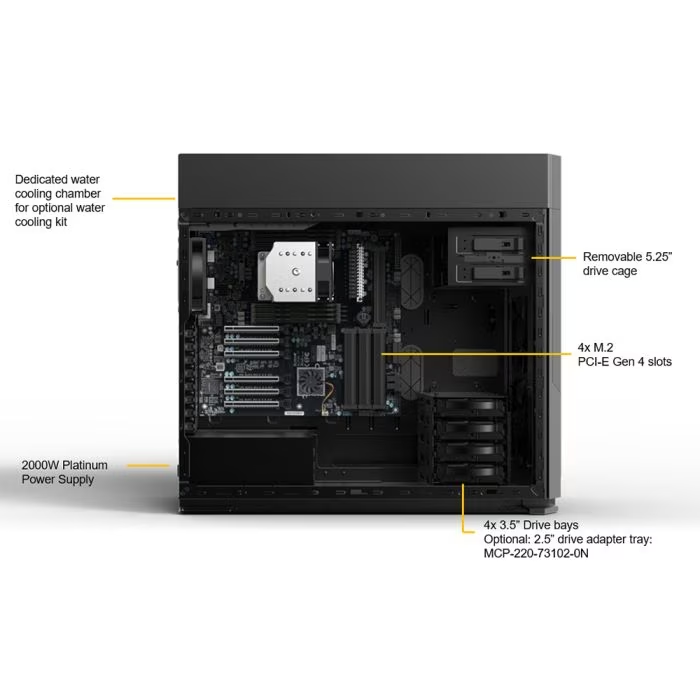

Expansion Slots
PCI-Express
  • 6 PCI-E 4.0 x16 slots
M.2
  • M.2 Interface: 4 PCI-E 4.0 x4
  • Form Factor: 2280, 22110
  • Key: M-Key
U.2
  • Interface: 2 U.2 Sockets
  • Software RAID 0,1 support
Drive Bays
Fixed
  • 4 internal fixed 3.5″/2.5″ SATA3 drive bays
  • 2 front fixed 2.5″ SATA3 drive bays
Peripheral Bay(s)
  • 2x 5.25″ drive bays
System Cooling
Water Cooling
  • Optional high-performance closed-loop water cooling for CPU
Fans
  • 1x 12cm rear exhaust fan
  • 2x 12cm front cooling fans
  • 3x 12cm top cooling fans (optional)
Power Supply
2000W PS/2 Multi-Output Power Supply
Total Output Power and Input
  • 1200W with Input 100 – 115Vac
  • 1500W with Input 115 – 200Vac
  • 2000W with Input 200 – 264Vac
AC Input Frequency
  • 50-60Hz
Dimensions
(W x H x L)
  • 150 x 86 x 200 mm
+5V
  • Max: 25A / Min: 0.1A
+12V
  • Max: 100A / Min: 0.1A (100-115Vac)
  • Max: 125A / Min: 0.1A (115-120Vac)
  • Max: 166.6A / Min: 0.1A (200-264Vac)
+3.3V
  • Max: 25A / Min: 0A
5VSB
  • Max: 4A / Min: 0A
-12V
  • Max: 0.5A / Min: 0A
Output Type
  • 24pin ATX
Certification Platinum Level Certified
Platinum Certified
Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
    10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
    -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)
