SUPERMICRO IoT SuperServer SYS-210TP-HPTRD (SYS-210TP-HPTRD)

Favorite
Compara
Pretul afisat contine TVA (19%).

41.398,63 lei

Compara
Specifications
Product SKUs
SYS-210TP-HPTRD
  • SuperServer SYS-210TP-HPTRD (Silver)
Motherboard

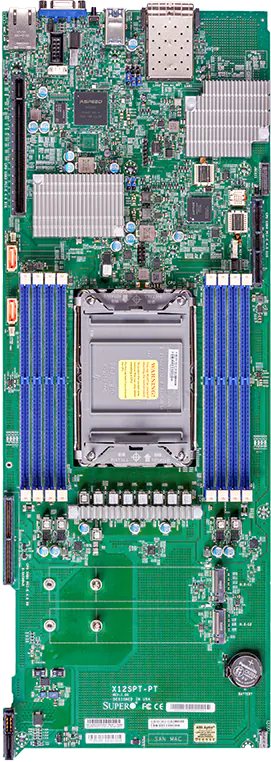

Super X12SPT-PT
Processor (per Node)
CPU
  • Single Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
  • Support CPU TDP 85-270W
  • Please contact Supermicro Technical Support for supporting conditions of high power (TDP >240W) processors.
Cores
  • Up to 32C/64T; Up to 48MB Cache
System Memory (per Node)
Memory
  • Memory Capacity: 8 DIMM slots
  • Memory Type: 3200MHz ECC DDR4 RDIMM/LRDIMM
Memory Voltage
  • 1.2 V
Error Detection
  • ECC
On-Board Devices (per Node)
SATA
  • SATA3 (6Gbps)
Chipset
  • Intel® C621A
Network Connectivity
  • 2x 10GbE port(s)
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output (per Node)
LAN
  • 1 RJ45 Dedicated IPMI LAN port
  • 2x 10GbE SFP+
USB
  • 2 USB 3.2  Gen1 port(s) (2 USB)
Video
  • 1 VGA port(s)
System BIOS
BIOS Type
  • AMI 32MB UEFI
Management
Software
  • SSM
  • SUM
  • SPM
  • Redfish API
  • Intel® Node Manager
  • KVM with dedicated LAN
  • NMI
  • Watch Dog
  • SuperDoctor® 5
  • IPMI 2.0
Power Configurations
  • Power-on mode for power recovery
  • ACPI Power Management
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • CPU thermal trip support, PEPI
  • Monitoring for CPU and chassis environment



Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-217HQ+-R2K04BP4
Dimensions and Weight
Height
  • 3.5″ (88mm)
Width
  • 17.25″ (438mm)
Depth
  • 28.75″ (730mm)
Package
  • 9.8″ (H) x 20.7″ (W) x 38″ (D)
Weight
  • Net Weight: 70 lbs (31.8 kg)
  • Gross Weight: 90 lbs (40.8 kg)
Available Color
  • Silver

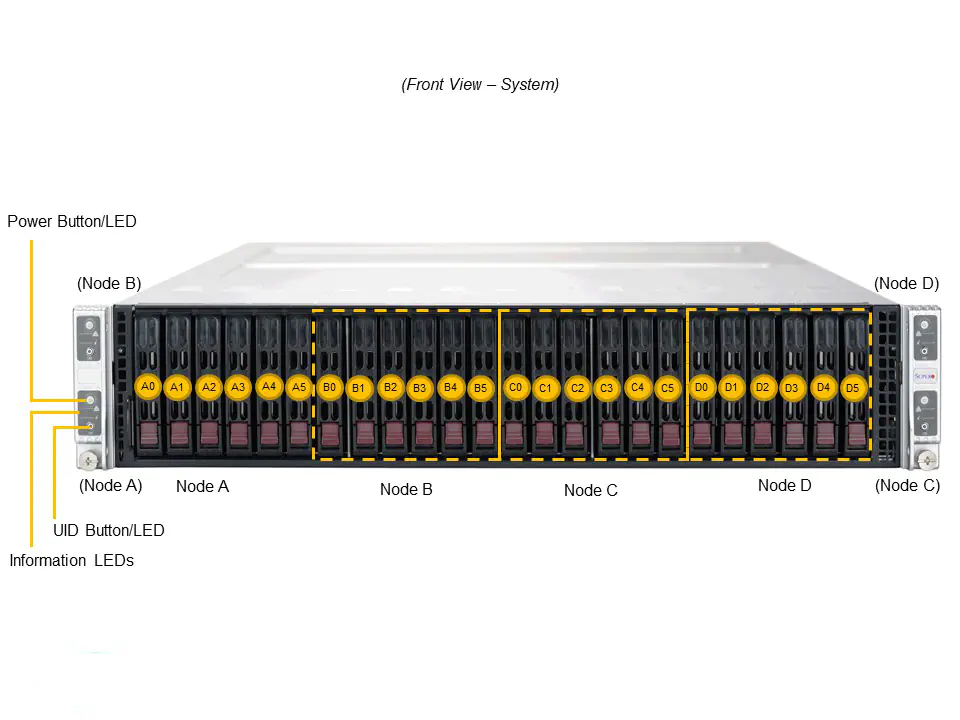

Front Panel
Buttons
  • Power On/Off button
  • Power On/Off
  • UID button
LEDs
  • HDD activity
  • LAN1 activity
  • LAN2 activity
  • Network activity LED
  • Power status
  • Power status LED
  • System information
  • System information (overheat/UID) LED
Expansion Slots (per Node)
PCI-Express (PCI-E)
  • Slot 1: PCI-E 4.0 x16 LP
  • Slot 2: PCI-E 4.0 x16 LP
Drive Bays / Storage (per Node)
Hot-swap
  • 6x 2.5″ hot-swap SATA drive bays
M.2
  • 2 M.2 NVMe
  • M-Key, 2280/22110
System Cooling
Air Shroud
  • 4 Air Shroud(s) Air Shroud(s)
Fans
  • 4x 8cm heavy duty fans with optimal fan speed control 80x80x38mm Fan(s)
Power Supply
2000W -48Vdc single output power supply
Total Output Power
  • 2000W : (-45) – (-66) Vdc
Dimension

(W x H x L)
  • 76 x 40 x 360 mm
+12V
  • Max: 166.6A
5V SB
  • Max: 6A
Certification

[ Test Report ]
Operating Environment
Environmental Spec.
  • Operating Temperature:
    0°C ~ 35°C (32°F ~ 95°F)
  • Non-operating Temperature:
    0°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)
