Supermicro SSG-520P-ACTR12L 2U Rackmount SuperStorage Server (SSG-520P-ACTR12L)



Single Socket P+ (LGA-4189) 3rd Gen Intel Xeon Scalable Processor for Exceptional Performance

The Supermicro SSG-520P-ACTR12L is a 2U rackmount server with a single socket P+ (LGA-4189) 3rd Gen Intel Xeon Scalable processor. With its single processor and exceptional processing power and speed, making it ideal for enterprise-level applications and mission-critical workloads. This server is designed to handle database processing and storage, as well as appliance-optimized storage.

Support for Up to 8 DIMMs and DDR4-3200 Memory, Ideal for Demanding Applications

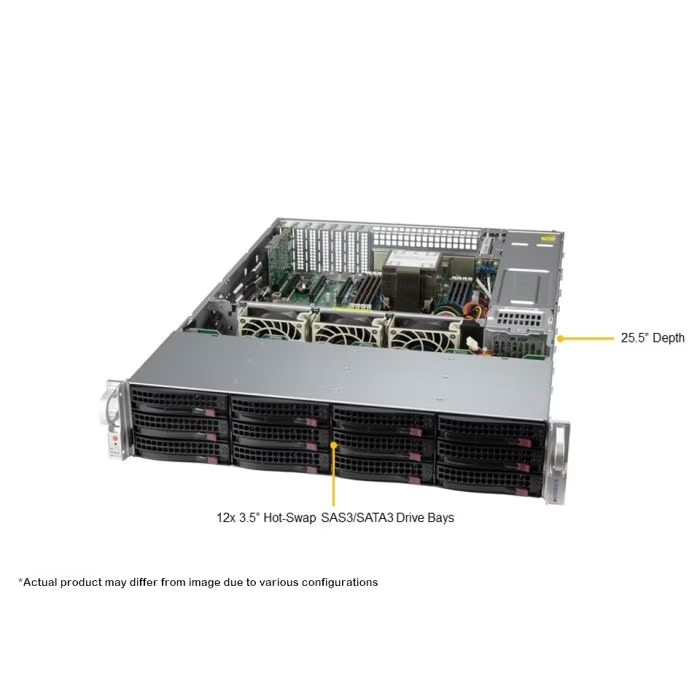

The SSG-520P-ACTR12L is equipped with 12 direct-attached hot-swap 3.5″ SAS3/SATA3 drive bays, an onboard NVMe/SATA M.2 slot, and 2 hot-swap 2.5″ NVMe/SATA drive bays (rear, optional), the SSG-520P-ACTR12L provides ample storage options and flexibility. It can support up to 8 DIMMs and DDR4-3200 RDIMM/LRDIMM/Intel DCPMM memory, making it suitable for even the most demanding applications.



SSG-520P-ACTR12L-Description

Expansion Slots Provide the Flexibility to Adapt and Expand as Business Demands Change

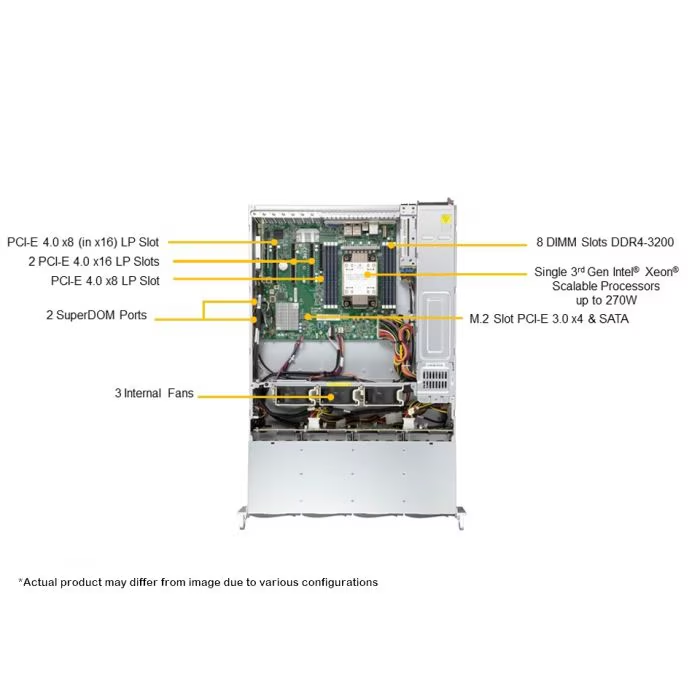

The Supermicro SSG-520P-ACTR12L features 2 PCIe 4.0 x16 (LP) slots and 2 PCIe 4.0 x8 (LP) slots, the flexibility offered by expansion slots not only enhances the functionality of server products but also enables businesses to stay agile in a rapidly evolving digital landscape, which offers a flexible platform for your business-critical applications. With its advanced features and high-performance capabilities, The SSG-520P-ACTR12L is a powerful and dependable solution that can handle the most demanding workloads with ease.



  • Key Features/Applications: Enterprise Server, Database Processing & Storage, Appliance Optimized Storage
  • CPU: Single 3rd Gen Intel® Xeon® Scalable Processor, up to 40 Cores
  • Chassis: 2U
  • Drive: Up to 12x 3.5″ Hot-Swap SAS/SATA + 1x M.2 Onboard NVMe/SATA Drive Bays. Supports up to 2x 2.5″ Hot-Swap NVMe/SATA Drive Bays (Optional)
  • RAM: Up to 3TB of DDR4 ECC RDIMM/LRDIMM in 8 DIMM Slots
  • Network Ports: 2x 10GbE RJ45 LAN Ports
  • Power Supply: 800W Redundant Titanium Level Power Supply
SKU: SSG-520P-ACTR12L Categorii: , , , , , , , , ,
Product SKUs
SuperServer SSG-520P-ACTR12L
Processor
CPU
  • Single Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 40C/80T; Up to 60MB Cache
Note
  • Supports up to 270W TDP CPUs (Air Cooled)
System Memory
Memory
  • Slot Count: 8 DIMM slots
  • Max Memory (1DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
  • Supports Intel® Optane™ persistent memory 200 series
Memory Voltage
  • 1.2V
On-Board Devices
SATA
  • SATA (6Gbps) ; RAID 0/1/5/10 support
SAS
  • SAS (12Gbps) via Broadcom® 3816; (IT mode)
NVMe
  • NVMe; RAID 0/1 support(Intel® VROC RAID key required)
Chipset
  • Intel® C621A
Network Connectivity
  • 2 RJ45 10GbE with Intel® X550
Input / Output
LAN
  • 2 RJ45 1 GbE LAN port(s)
  • 1 RJ45 1 GbE Dedicated IPMI LAN port(s) (IPMI shared on LAN port 1)
USB
  • 2 USB 2.0 port(s) (header)
  • 2 USB 3.2 Gen1 Type-A port(s) (rear)
  • 2 USB 2.0 Type-A port(s) (rear)
  • 2 USB 3.2 Gen1 port(s) (Header)
  • 1 USB 3.2 Gen1 Type-A port(s)
Video
  • 1 VGA port(s)
Serial
  • 1 COM port(s) (Header)
DOM
  • 2 SuperDOM (Disk on Module) port(s) with built-in power
TPM
  • 1 TPM header
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
  • SuperCloud Composer
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • SuperDoctor® 5
  • Super Diagnostics Offline
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • ACPI/APM Power Management
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
  • 7+1 Phase-switching voltage regulator module (VRM)
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-826BTS-R802LPB
Dimensions and Weight
Height
  • 3.5″ (89 mm)
Width
  • 17.2″ (437 mm)
Depth
  • 25.6″ (650 mm)
Package
  • 11.5″ (H) x 26.5″ (W) x 34″ (D)
Weight
  • Gross Weight: 58 lbs (26.3 kg)
  • Net Weight: 34 lbs (15.4 kg)
Available Color
  • Black

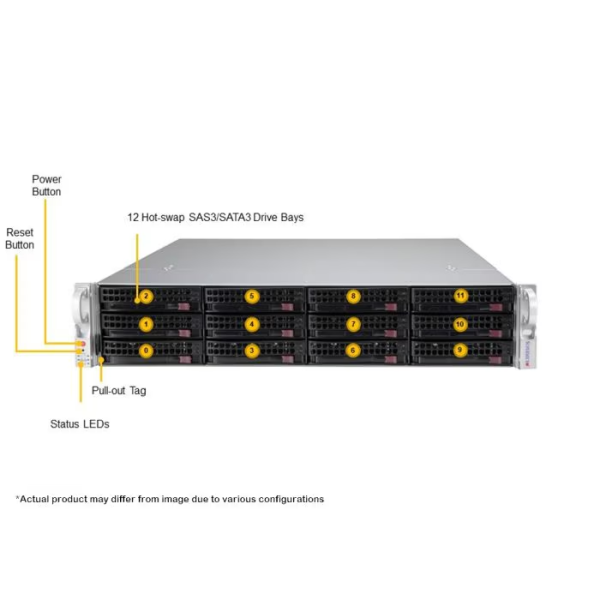

Front Panel
LED
  • Device Activity
  • LAN 1 Activity
  • LAN 2 Activity
  • Power Failure LED
  • Power status
  • System information
Buttons
  • Power On/Off
  • System Reset
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 12 bay(s)
    • 12 front hot-swap 3.5″ SAS/SATA drive bay(s)
  • Option A: Total 14 bay(s)
    • 12 front hot-swap 3.5″ SAS/SATA drive bay(s)
    • 2 rear hot-swap 2.5″ PCIe 4.0 NVMe*/SAS*/SATA* drive bay(s)
  • (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2
  • 1 M.2 PCIe 3.0 x4 NVMe/SATA slot(s) (M-key 2280/22110)
System Cooling
Fans
  • 3 Heavy Duty PWM 80x80x38mm Fan(s)
Power Supply
QtyWithPsu
  • 2x 800W
Description
  • 2x 800W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)
  • 76 x 40 x 336 mm
AC Input
  • 800W: 100-240Vac / 50-60Hz
    800W: 200-240Vdc / 50-60Hz
+12V
  • Max: 66A / Min: 0A (100Vac-240Vac)
    Max: 66A / Min: 0A (200Vdc-240Vdc)
5V SB
  • Max: 4A / Min: 0A
Output Type
  • Backplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
