Supermicro SYS-110C-FHN4T 1U Rackmount IOT System
Optimized Performance for IoT: Discover the Budget-Friendly and compact SYS-110C-FHN4T System

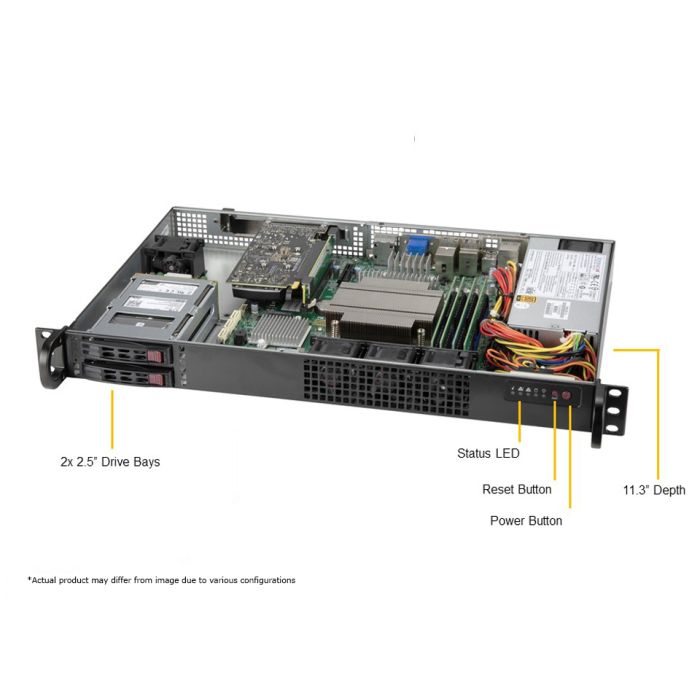

The SYS-110C-FHN4T is a budget-friendly and compact 1U short-depth system optimized for IoT applications. It supports the latest 10th Gen Intel® Core™I&Xeon W-1200 processors and can accommodate up to 128GB of UDIMM/Non-ECC UDIMM DDR4 memory. With a size of 11.3″ (D) x 17.2″ (W) x 1.7″ (H) and a weight of just over 14 lbs, this system is perfect for space-constrained environments.
High-Speed Networking and Expandable Storage
This IoT/embedded system features 4 LAN ports, including 2 10GbE RJ45 and 2 1GbE RJ45 ports for high-speed networking. It also includes a PCI-E 3.0 x16 slot for additional networking or storage expansion. With support for 2 2.5″ internal storage bays and 1 M.2 (SATA or NVMe), this system offers plenty of storage options. Additionally, the included 200W low noise AC-DC power supply provides ample power to run the system.
Versatile Solutions for Video Surveillance and More
The SYS-110C-FHN4T is optimized for applications such as video surveillance, office servers, DVR/NVR, digital signage, POS, and network security. The X12SCZ-TLN4F motherboard provides stable and reliable performance, making this system an excellent choice for those seeking a compact and cost-effective solution for their IoT needs.
- Key Features/Applications: Compact 1U Network Security, Video Surveillance, Office Server, DVR/NVR, Digital Signage, POS
- CPU: Single 10th Gen Intel® Core™ I Series or Intel® Xeon® W-1200 Processors, up to 10 Cores
- Chassis: 1U

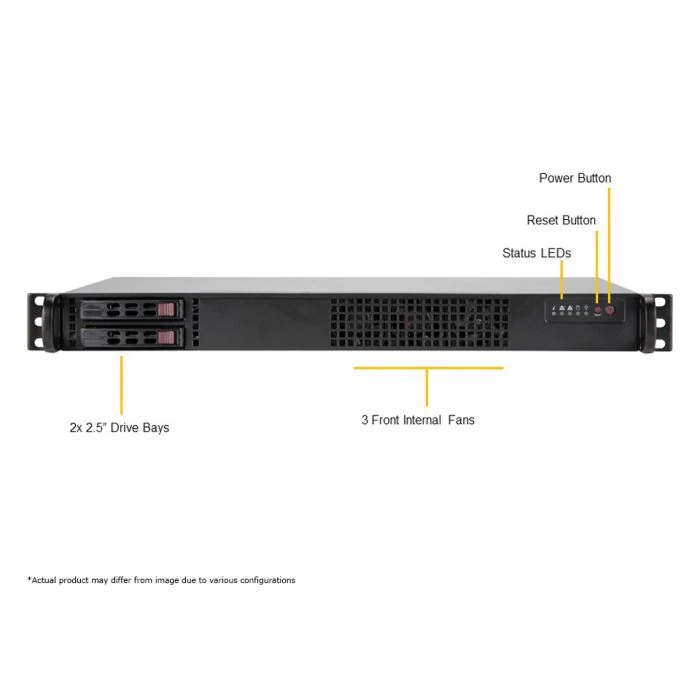

- Drive: Up to 2x 2.5″ SATA Drive Bays + 1x M.2 Onboard NVMe/SATA Drive Bay
- RAM: Up to 128GB of DDR4 ECC UDIMM in 4 DIMM Slots

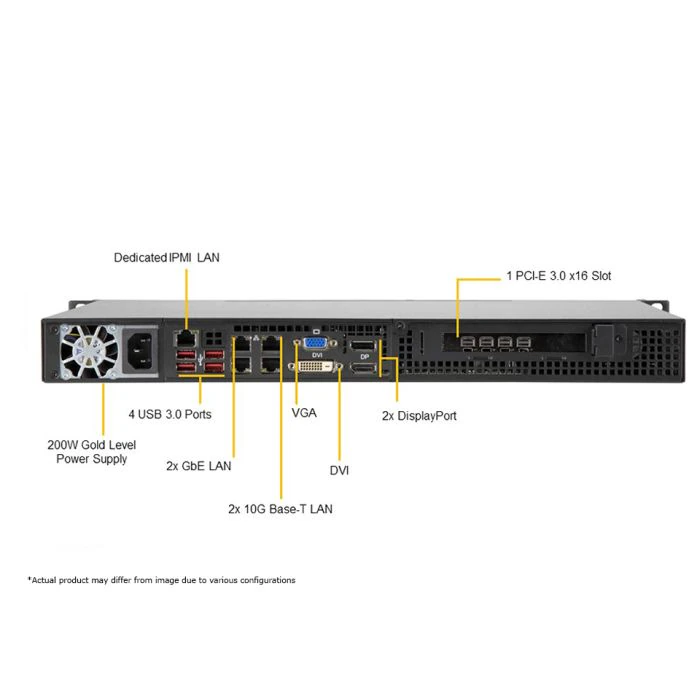

- Network Ports: 2x 10GbE RJ45 + 2x 1GbE RJ45 LAN Ports
- Long Life Cycle Support
