Supermicro SYS-110P-WTR 1U Rackmount WIO SuperServer (SYS-110P-WTR)

Supermicro SYS-110P-WTR 1U Rackmount WIO SuperServer

Supermicro WIO SuperServer® systems allow users to select from a wide range of I/O options to optimize the storage and networking solutions to best fit their applications. In addition to enabling customizable configurations and optimization for a wide range of application requirements, Supermicro WIO SuperServers also provide attractive cost advantages and investment protection.

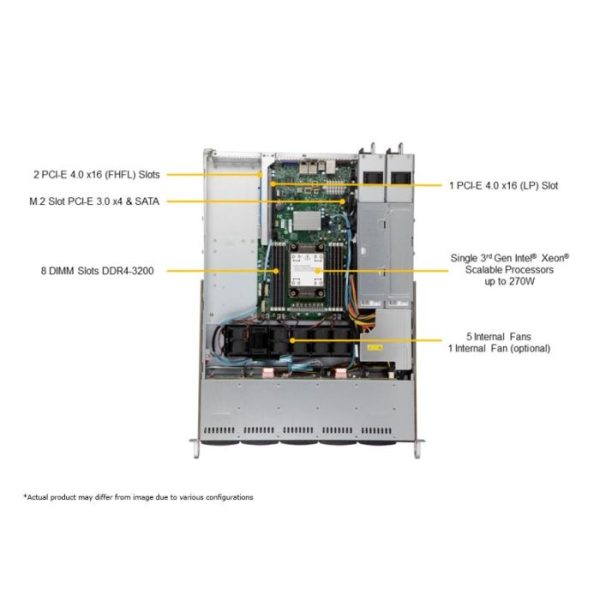

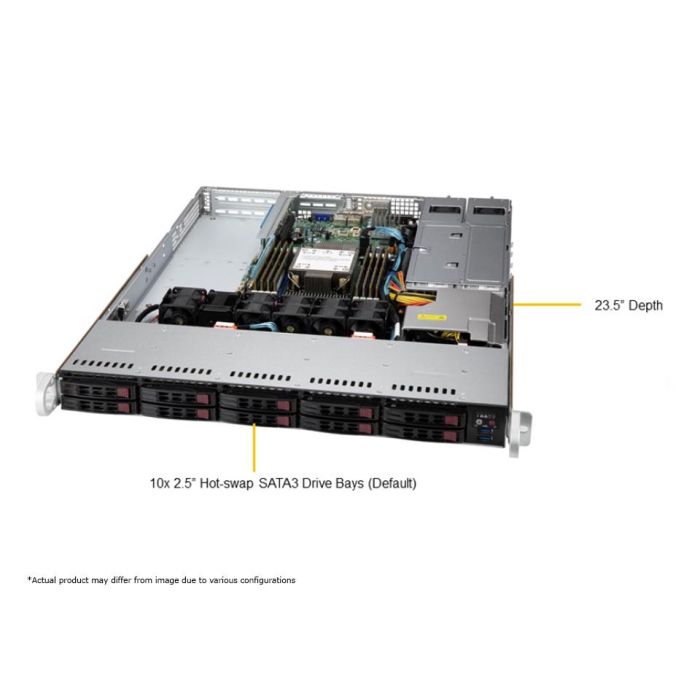

The Supermicro SYS-110P-WTR WIO SuperServer® supports Intel® Xeon® Scalable Processors (up to 36 cores) and 3TB ECC DDR4-2933MHz RDIMM/LRDIMM memory in 8 DIMM slots. The SYS-110P-WTR includes 10 hot-swappable 2.5” SATA drive bays which makes changing hard drives easy without needing to open up the server. In addition, this WIO supports up to 2 SuperDOM with built-in power which is designed for use as a boot drive, backup recovery device, license drive, or OS installation device (replacing CD/DVD-ROMs). It can also be utilized as an embedded system storage element (to be deployed into very harsh environments where mechanical hard disk drives would fail or in a thin client due to its small size and power requirements).

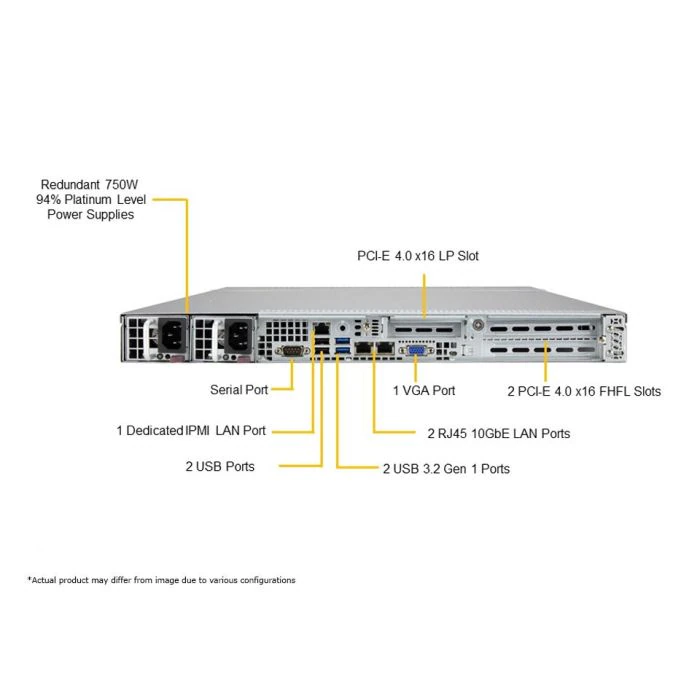

The 1U UP WIO server supports up to 3 add-on cards (via included riser card) and LAN that supports up to dual 10GBase-T with Intel® Ethernet Controller X550 ports. To power the entire system, there is a 750W Platinum power supply with over a 94% efficiency rating.

Supermicro WIO SuperServers are optimized for General Purpose, ERP/MRP, and Network and Security Appliance Applications.

• Key Features/Applications: Virtualization, Cloud Computing, Enterprise Server, Data Center Optimized, Database Processing and Storage
• CPU: Single 3rd Gen Intel® Xeon® Scalable Processor, up to 40 Cores
• Chassis: 1U

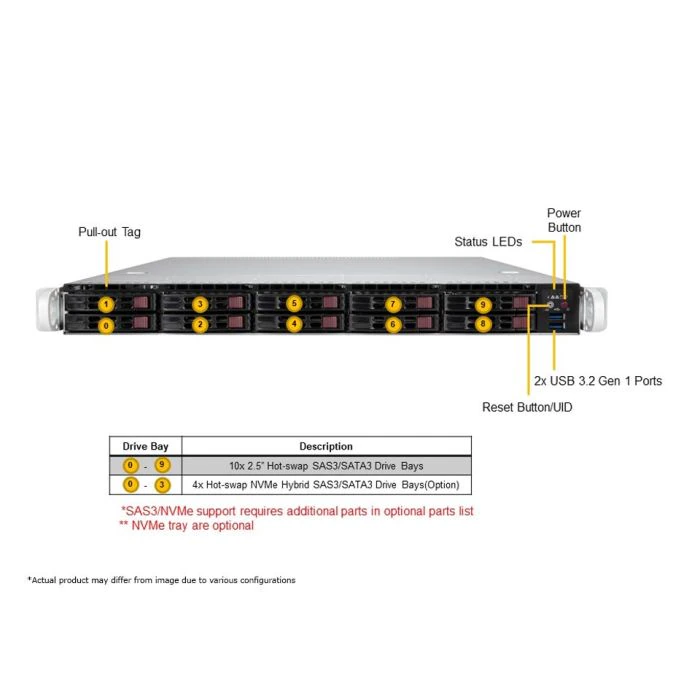

• Drive: Up to 10x 2.5″ SATA + 1x M.2 Onboard NVMe/SATA Drive Bays
• RAM: Up to 3TB of DDR4 ECC RDIMM/LRDIMM in 8 DIMM Slots
• Network Ports: 2x 10GbE RJ45 LAN ports
