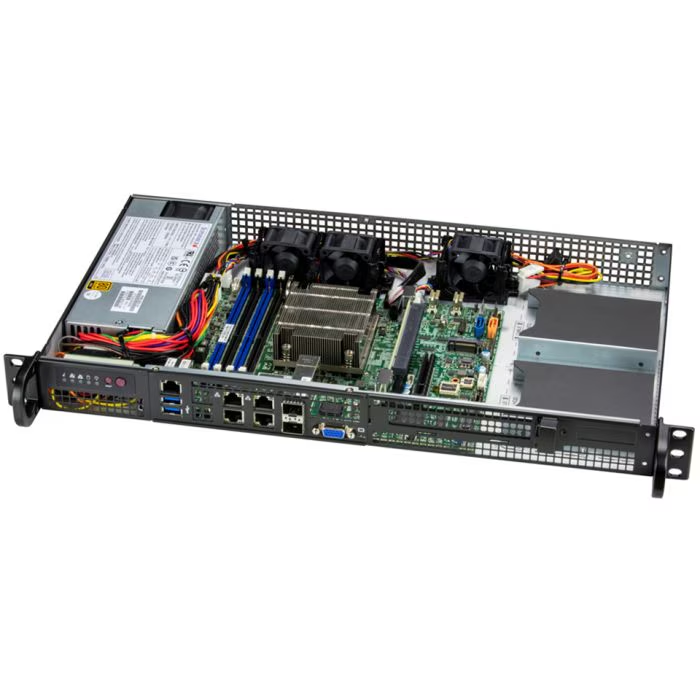

Supermicro SYS-510D-4C-FN6P Mini-1U Rackmount IOT System (SYS-510D-4C-FN6P)





This SYS-510D-4C-FN6P comes with Intel Xeon D-1718T Processor what has 4 cores, 8 threads, base frequency 2.6GHz, 10MB cache and TDP 46W. The server is supporting 2 fixed SATA drives, up to 256GB DDR4-2933MHz RDIMM in 4 DIMM slots. On board dual 25Gb/s Intel (2x SFP28), quad 1Gb/s Intel Ethernet Controller I350 & I210 (4x RJ45) and RJ45 port for IPMI 2.0 remote management with KVM and remote virtual media mount and TPM 2.0. The power supplies energy efficiency is Gold Level.



  • Key Features/Applications: IoT Edge Computing / Gateway
  • CPU: Single Intel® Xeon® D-1718T Processor, up to 4 Cores
  • Chassis: Mini-1U
  • Drive: Up to 1x 3.5″ or 4x 2.5″ SATA/PCIe + 1x M.2 Onboard NVMe/SATA Drive Bays
  • RAM: Up to 256GB of DDR4 ECC RDIMM in 4 DIMM Slots
  • Network Ports: 4x 1GbE LAN Ports + 2x 25GbE SFP+ LAN ports
SKU: SYS-510D-4C-FN6P Categorii: , , , , , , ,
Product SKUs
SuperServer SYS-510D-4C-FN6P

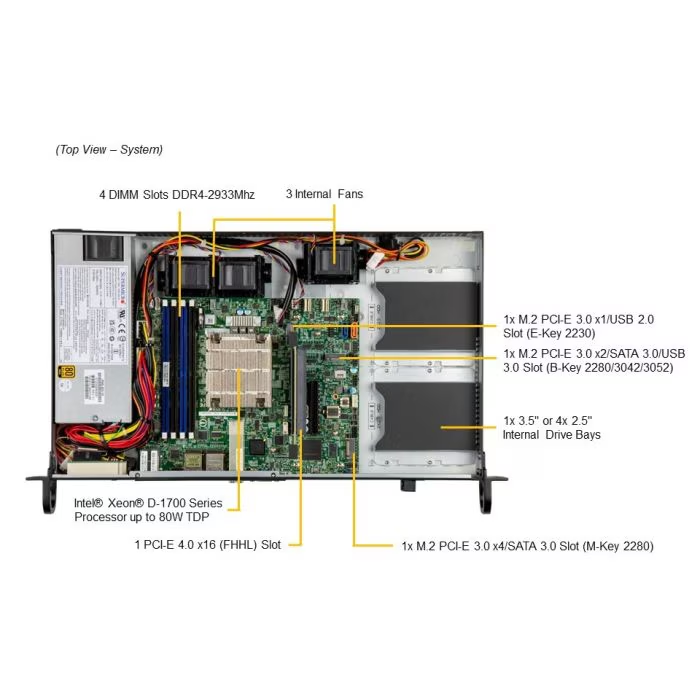

Processor
CPU
  • Single FCBGA-2227
  • Intel® Xeon® Processor D-1700 Series
Note
  • Supports up to 46W TDP CPUs (Air Cooled)
System Memory
Memory
  • Slot Count: 4 DIMM slots
  • Max Memory (2DPC): Up to 256GB 2933MT/s ECC DDR4 RDIMM
Memory Voltage
  • 1.2V
On-Board Devices
Chipset
  • Intel® SoC
Network Connectivity
  • 2 RJ45 1GBASE-T with Intel® I210
  • 2 SFP28 25GbE with Intel® SoC
  • 2 RJ45 1GBASE-T with Intel® I350-AM2

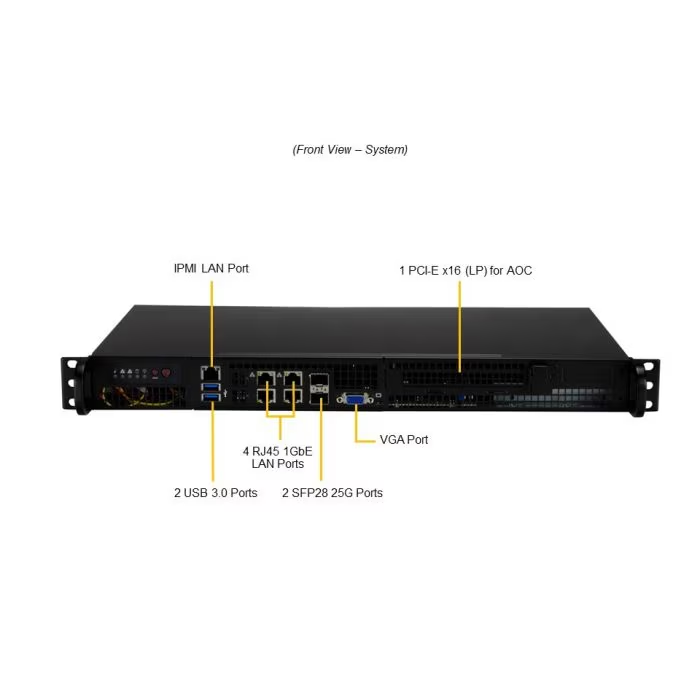

Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated IPMI LAN port(s)
  • 2 SFP28 25 GbE LAN port(s) (Intel® SOC)
  • 2 RJ45 1 GbE LAN port(s) (Intel® I350-AM2)
  • 2 RJ45 1 GbE LAN port(s) (Intel® I210-IT)
USB
  • 2 port(s)
Video
  • 1 VGA port(s)
Management
Software
  • SuperCloud Composer
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • SuperDoctor® 5
  • Super Diagnostics Offline
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control
Temperature
  • CPU thermal trip support, PEPI Monitoring for CPU and chassis environment
Chassis
Form Factor
  • Mini-1U
Model
  • CSE-505-203B
Dimensions and Weight
Height
  • 1.7″ (43 mm)
Width
  • 17.2″ (437 mm)

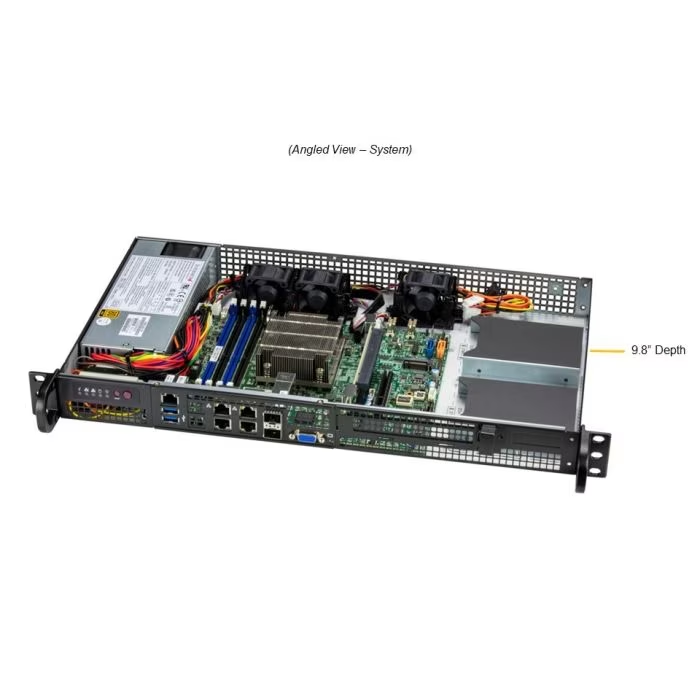

Depth
  • 9.8″ (249 mm)
Package
  • 6.1″ (H) x 25.8″ (W) x 18.3″ (D)
Weight
  • Gross Weight: 10 lbs (4.54 kg)
Available Color
  • Black
Front Panel
LED
  • Fan Fail/System Over Heat LED
  • HDD activity LED
  • Network Activity LEDs
  • Power status LED
Buttons
  • Power On/Off button
  • System Reset button
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 4 bay(s)
    • 4 internal fixed 2.5″ SATA drive bay(s)
M.2
  • 1 M.2 PCIe 3.0 x1 SATA slot(s) (E-key 2230; USB 2.0)
  • 1 M.2 PCIe 3.0 x2 SATA slot(s) (B-key 2280/3042/3052; USB 3.0)
  • 1 M.2 PCIe 3.0 x4 SATA slot(s) (M-key 2280)
System Cooling
Fans
  • 4x 4-PIN PWM 40x28mm Fan(s) (optional)

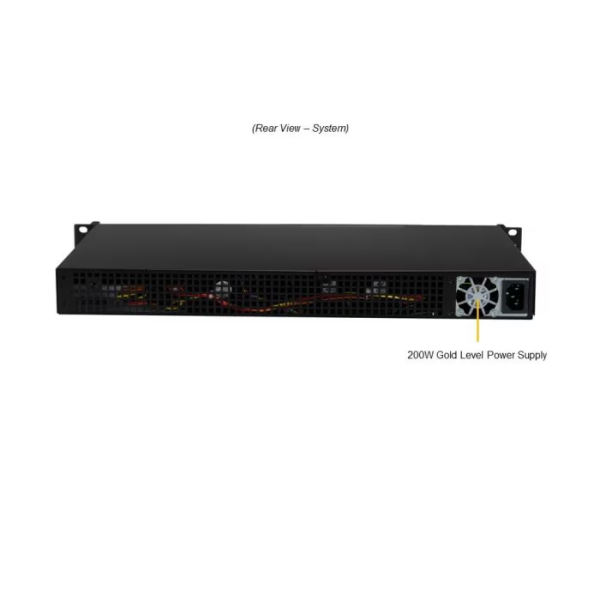

Power Supply
QtyWithPsu
  • 1x 200W
Description
  • 1x 200W Gold Level (91%) power supply
Dimension (WxHxL)
  • 76 x 40.3 x 192 mm
AC Input
  • 200W: 100-240Vac / 50-60Hz
+12V
  • Max: 16A / Min: 0.1A (100Vac-240Vac)
5V SB
  • Max: 2A / Min: 0A
Output Type
  • 20pin ATX
Certification
  •   Gold Level[ Test Report ]
Operating Environment
Environmental Spec.
  • Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
