Supermicro SYS-510T-MR-EU 1U Rackmount Mainstream SuperServer (SYS-510T-MR-EU)


Pretul afisat contine TVA (19%).

11.937,86 lei

Compara

Supermicro SYS-510T-MR-EU 1U Rackmount Mainstream SuperServer (SYS-510T-MR-EU)

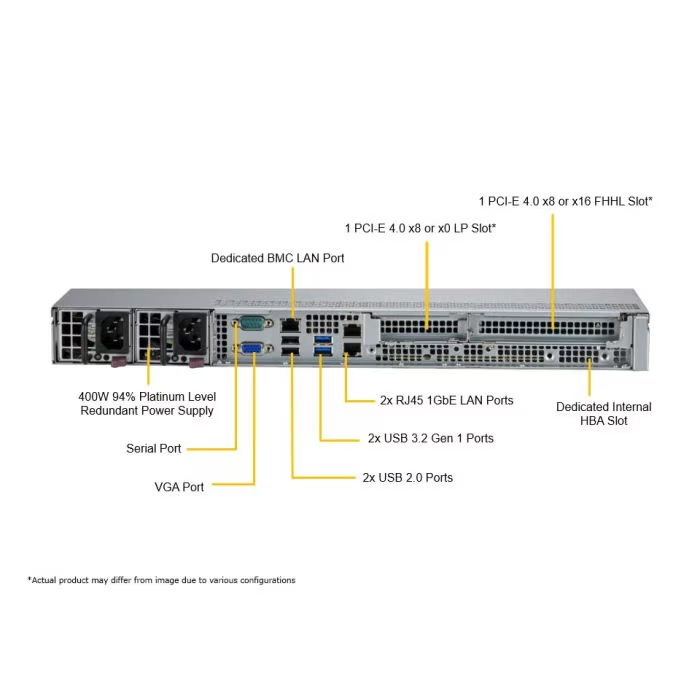

SYS-510T-MR Back View

Supermicro™’s Mainstream Application Optimized SuperServer® is an optimal entry-level or volume selection for Enterprise IT managers. By choosing the exact model with just the right set of integrated features needed for their applications, customers can save significant amounts on CAPEX, while Supermicro™’s energy-efficient server designs will help them save on OPEX.



The Supermicro SYS-510T-MR-EU Mainstream SuperServer® supports a single Intel® Xeon® E-2300 processor and up to 128GB ECC DDR4-3200 UDIMM memory in 4 DIMM slots. Like other mainstream servers, the SYS-510T-MR-EU has a NVMe M.2 onboard and includes 4 hot-swap 3.5″ SATA drive bays with option to support SAS3 with an additional SAS controller.

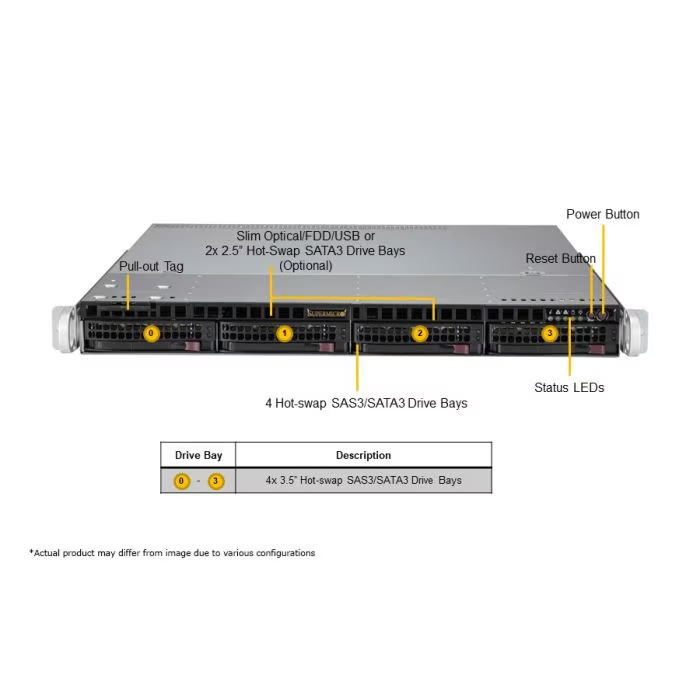

SYS-510T-MR Front View

This mainstream server has up to PCI-E slot (via included butterfly riser card) that can support 2 PCI-E x8 or 1 PCI-E x16. The SYS-510T-MR-EU has LAN that supports up to 2x RJ45 1GbE ports and 1x RJ45 dedicated IPMI port for KVM over dedicated LAN.



The Supermicro Mainstream Application Optimized product family supports a wide variety of mainstream server applications, including virtualization, encoding/decoding, and small business in many attractive and cost-effective form factors.



  • Key Features/Applications: Virtualization, Small Business, Encoding Decoding
  • CPU: Single Intel® Xeon® E-2300 Series Processor, up to 8 Cores
  • Chassis: 1U
  • Drive: Up to 4x 3.5″ Hot-Swap SATA + 1x M.2 Onboard NVMe Drive Bays
  • RAM: Up to 128GB of DDR4 ECC UDIMM in 4 DIMM Slots
  • Network Ports: 2x 1GbE RJ45 LAN ports
Product SKUs
SuperServer SYS-510T-MR Standard version with PWS-407P-1R (Platinum Level)
SuperServer SYS-510T-MR-EU European version with PWS-602A-1R (Titanium Level)
Processor
CPU
  • Single Socket H5 (LGA-1200)
  • Intel® Xeon® E-2300 series Processors and 10th Gen. Pentium® Processors
Core Count
  • Up to 8C/16T; Up to 16MB Cache
Note
  • Supports up to 95W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 1 single-width GPU(s)
Supported GPU
  • NVIDIA PCIe: T400, T1000
CPU-GPU Interconnect
  • PCIe 4.0 x16 CPU-to-GPU Interconnect
System Memory
Memory
  • Slot Count: 4 DIMM slots
  • Max Memory (2DPC): Up to 128GB 3200MT/s ECC DDR4 UDIMM
Memory Voltage
  • 1.2V
On-Board Devices
SATA
  • SATA (6Gbps) ; RAID 0/1/5/10 support
Chipset
  • Intel® C256
Network Connectivity
  • 2 RJ45 1GbE with Intel® I210
Input / Output
LAN
  • 2 RJ45 1 GbE LAN port(s)
  • 1 RJ45 1 GbE Dedicated IPMI LAN port(s) (IPMI shared on LAN port 1)
USB
  • 4 USB 2.0 port(s) (header)
  • 2 USB 3.2 Gen1 Type-A port(s) (rear)
  • 2 USB 2.0 Type-A port(s) (rear)
  • 2 USB 3.2 Gen1 port(s) (Header)
  • 1 USB 3.2 Gen1 Type-A port(s) (Header)
Video
  • 1 VGA port(s)
Serial
  • 1 COM port(s) (Rear)
  • 1 COM port(s) (Header)
DOM
  • 2 SuperDOM (Disk on Module) port(s) with built-in power
TPM
  • 1 TPM header
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
  • SuperCloud Composer
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • SuperDoctor® 5
  • Super Diagnostics Offline
  • TAS: Supermicro Thin-Agent Service (TAS)
  • SAA(new!)
Power configurations
  • ACPI/APM Power Management
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
  • 6 + 2 + 1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-813MF2TS-R407RCBP
Dimensions and Weight
Height
  • 1.7″ (43 mm)
Width
  • 17.2″ (437 mm)
Depth
  • 19.98″ (507 mm)
Package
  • 8.5″ (H) x 24″ (W) x 29.5″ (D)
Weight
  • Gross Weight: 30.4 lbs (13.8 kg)
  • Net Weight: 17.6 lbs (8 kg)
Available Color
  • Black
Front Panel
LED
  • Device Activity
  • LAN 1 Activity
  • LAN 2 Activity
  • Power status
  • System information
Buttons
  • Power On/Off
  • System Reset
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 4 bay(s)
    • 4 front hot-swap 3.5″ SATA drive bay(s)
M.2
  • 1 M.2 NVMe slot(s) (M-key 2280/22110)
Peripheral Bays
  • 2 2.5″ bay(s)
System Cooling
Fans
  • 2 AOC cooling Fan(s) (optional)
  • 4 middle cooling PWM 40x40x28mm Fan(s)
Power Supply
QtyWithPsu
  • 2x 400W
Description
  • 2x 400W Redundant (1 + 1) Platinum Level (94%) power supplies
Dimension (WxHxL)
  • 54.5 x 40.25 x 220 mm
AC Input
  • 400W: 100-240Vac / 50-60Hz
    400W: 200-240Vdc / 50-60Hz
+12V
  • Max: 33A / Min: 0A (100Vac-240Vac)
5V SB
  • Max: 3A / Min: 0A
Output Type
  • Backplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
