Supermicro SYS-521C-NR 2U Rackmount X13 CloudDC SuperServer (SYS-521C-NR)

Favorite
Compara
Pretul afisat contine TVA (19%).

23.011,07 lei

Compara

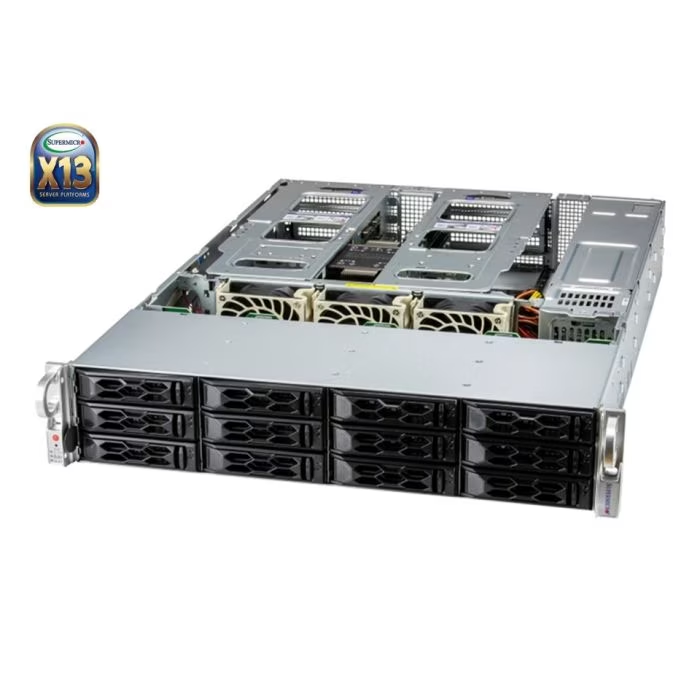

Supermicro SYS-521C-NR 2U Rackmount X13 CloudDC SuperServer (SYS-521C-NR)



CloudDC (Cloud Data Center) is the newest product in X13 single socket server offerings. The CloudDC product family is optimized for data centers and cloud solutions. CloudDC provides customers with the flexibility to fine-tune their configuration to get the best value.

The Supermicro SYS-521C-NR CloudDC SuperServer® supports 4th Gen Intel® Xeon® Scalable Processors (up to 60 cores) and 4TB ECC DDR5-4800/4400 MT/s RDIMM memory in 16 DIMM slots. The system also comes with 6 PCI-E 5.0 x16 expansion slots and 1 flexible AIOM slot (OCP 3.0). So you can easily swap in 1GbE, 10GbE, 25GbE, 100GbE AIOM card to support your networking requirements. The system is a GPU powerhouse for its support for 2x double-width GPUs.



SYS-521C-NR-Back-Description

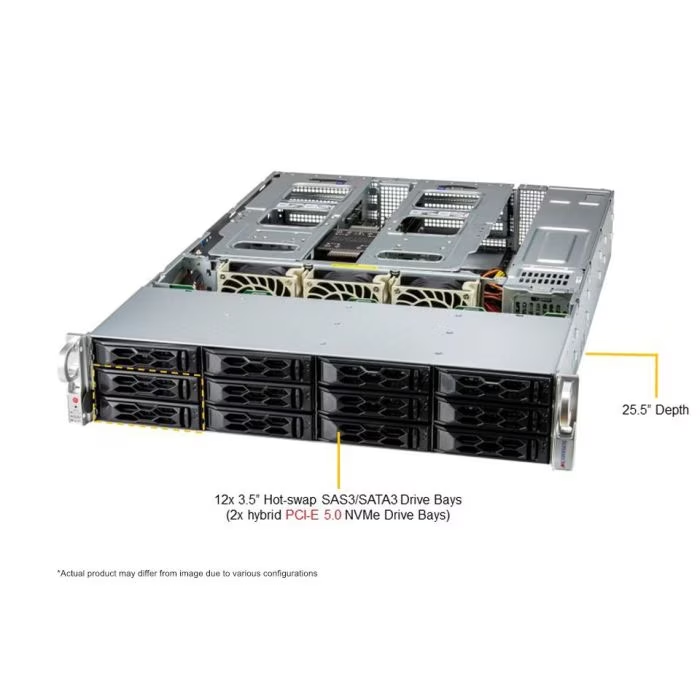

This system includes 12 tool-less & hot-swappable 3.5” SATA/SAS drive bays, with 2 of them being Gen5 NVMe hybrid. It is a capable 2U storage server that can handle all your storage needs. If you want to change or add any PCI-E or AIOM cards, the brackets that holds PCI-E cards are all tool-less so you can easily swap out cards at ease. To power the entire system, there are redundant 1200W Titanium Level power supplies with 96% efficiency rating.

SYS-521C-NR server is optimized for datacenter, AI inferencing, ML training, cloud computing, database/storage and network appliance applications.

  • Key Features/Applications: Cloud Computing, Data Center Optimized, Network Appliance, AI Inferencing, ML Training, Database/Storage

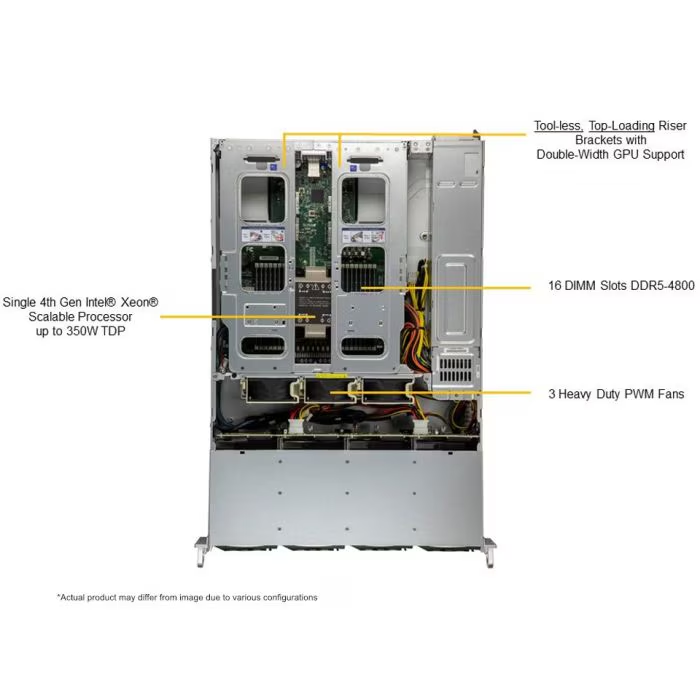

  • CPU: Single 4th Gen Intel® Xeon® Scalable Processor, up to 60 Cores
  • Chassis: 2U
  • Drive: Up to 12x 3.5″ Hot-Swap NVMe/SATA/SAS + 2x M.2 NVMe Drive Bays
  • RAM: Up to 4TB of DDR5 ECC RDIMM in 16 DIMM Slots
  • Network Ports: 2x 1GbE RJ45 LAN Ports + Flexible AIOM Options
SKU: SYS-521C-NR Categorii: , , , , , , , , , , ,
SuperServer SYS-521C-NR
Processor
CPU
  • Single Socket E (LGA-4677)
  • 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 64C/128T; Up to 320MB Cache
Note
  • Supports up to 350W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 2 double-width or 4 single-width GPU(s)
Supported GPU
  • NVIDIA PCIe: H100, L40, T1000, RTX A6000, RTX A4000, RTX A2000, L40S, L4, A40, A30, A16, A2
CPU-GPU Interconnect
  • PCIe 5.0 x16 CPU-to-GPU Interconnect
System Memory
Memory
  • Slot Count: 16 DIMM slots/8 Channels
  • Max Memory (1DPC): Up to 2TB 5600MT/s ECC DDR5 RDIMM
  • Max Memory (2DPC): Up to 4TB 4400MT/s ECC DDR5 RDIMM
Memory Voltage
  • 1.1V
On-Board Devices
SATA
  • SATA (6Gbps) ; RAID 0/1/5/10 support
NVMe
  • NVMe; RAID 0/1/5/10 support(Intel® VROC RAID key required)
Chipset
  • Intel® C741
Network Connectivity
  • Via AIOM
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port(s)
USB
  • 2 USB 2.0 port(s) (header)
  • 2 USB 3.2 Gen1 Type-A port(s) (rear)
Video
  • 1 VGA port(s)
Serial
  • 1 COM port(s) (Rear)
TPM
  • 1 TPM header
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
  • SuperCloud Composer
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • SuperDoctor® 5
  • Super Diagnostics Offline
  • TAS: Supermicro Thin-Agent Service (TAS)
  • SAA(new!)
Power configurations
  • ACPI/APM Power Management
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
  • 8 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-LA26TS-R1K23AWP1
Dimensions and Weight
Height
  • 3.5″ (89 mm)
Width
  • 17.2″ (437 mm)
Depth
  • 25.5″ (648 mm)
Package
  • 11.4″ (H) x 26.7″ (W) x 34.5″ (D)
Weight
  • Gross Weight: 59 lbs (26.76 kg)
  • Net Weight: 33 lbs (15 kg)
Available Color
  • Black front & sliver body
Front Panel
LED
  • Drive activity
  • Network activity
  • Power status
  • Universal Information (UID)
Buttons
  • Power On/Off
  • Universal Information (UID)
Drive Bays / Storage

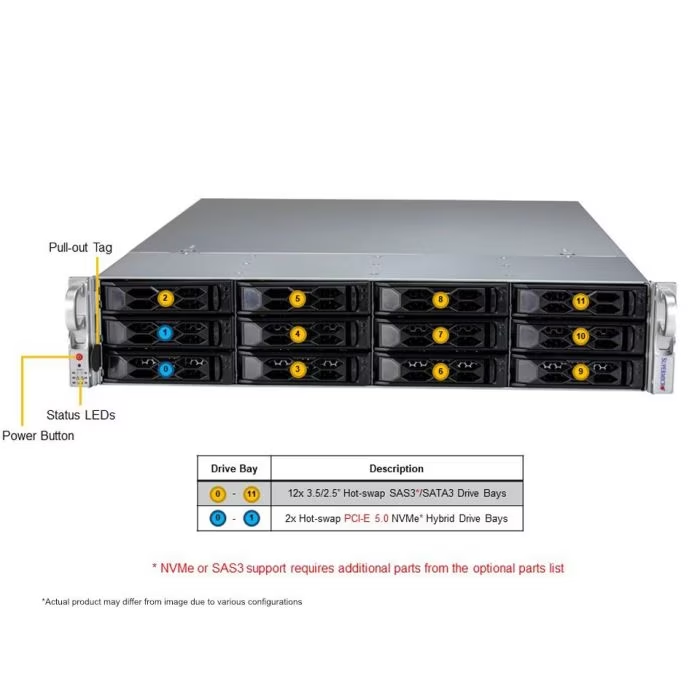

Drive Bays Configuration
  • Default: Total 12 bay(s)
    • 10 front hot-swap 3.5″ SAS*/SATA drive bay(s)
    • 2 front hot-swap 3.5″ PCIe 5.0 NVMe*/SAS*/SATA drive bay(s)
  • (*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2
  • 2 M.2 PCIe 3.0 x2 NVMe/SATA slot(s) (M-key 2280/22110)
System Cooling
Fans
  • 3 heavy duty PWM 80x80x38mm Fan(s)
Power Supply
QtyWithPsu
  • 2x 1200W
Description
  • 2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)
  • 76 x 40 x 336 mm
AC Input
  • 1000W: 100-127Vac / 50-60Hz
    1200W: 200-240Vac / 50-60Hz
    1200W: 200-240Vdc / 50-60Hz (for CCC only)
+12V
  • Max: 83A / Min: 0A (100Vac-127Vac)
    Max: 100A / Min: 0A (200Vdc-240Vdc)
    Max: 100A / Min: 0A (200Vac-240Vac)
5V SB
  • Max: 4A / Min: 0A
Output Type
  • Backplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
  • Operating Relative Humidity: 8% to 80% (non-condensing)
  • Non-operating Relative Humidity: 8% to 90% (non-condensing)
