Supermicro SYS-531A-IL Mid-Tower X13 SuperWorkstation (SYS-531A-IL)





High performance workstation for content creation

Accelerate workflow & increase productivity with Supermicro SuperWorkstation, SYS-531A-IL. Powered by a single Intel® Core™ i7-12700K processor with ultra-fast NVMe storage, the Supermicro SYS-531A-IL is flexible and customizable for your computing and budgetary needs.

The newest X13 workstation delivers the right level of performance for teams using leading design software for applications such as CAD, 2D/3D modeling, and VR rendering. The performance Supermicro 531A-IL Workstation is ideal for professional content creators, engineers, and designers across industries such as AEC (Architecture, Engineering, and Construction) and, product manufacturing. Instantly boost your SuperWorkstation’s performance and productivity by adding an NVIDIA® Quadro RTX graphics card powered by cutting-edge RTX ray tracing technology.



  • Key Features/Applications: CAD/3D Modeling, 2D/3D Content Creation, VR Content Development
  • CPU: Single 12th Gen Intel® Core™ i Processor, up to 24 Cores
  • Chassis: Mid-Tower
  • Drive: Up to 4x 3.5″ SATA + 3x M.2 NVMe Drive Bays. Supports up to 4x 2.5″ SATA Drive Bays (Optional)
  • RAM: Up to 128GB of DDR5 ECC UDIMM in 4 DIMM Slots
  • Network Ports: 1x 1GbE RJ45 + 1x 2.5GbE RJ45 LAN Ports
SKU: SYS-531A-IL Categorii: , , , , , ,
Product SKUs
SuperWorkstation SYS-531A-IL
Processor
CPU
  • Single LGA-1700
  • 14th/13th/12th Gen Intel® Core™ i9/i7/i5/i3 Processors
Core Count
  • Up to 24C/32T; Up to 36MB Cache
Note
  • Supports up to 150W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 1 double-width GPU(s)
Supported GPU
  • NVIDIA PCIe: RTX A5500, T1000, RTX A6000, RTX A5000, RTX A4500, RTX A4000, RTX A2000
System Memory
Memory
  • Slot Count: 4 DIMM slots
  • Max Memory (2DPC): Up to 192GB 4400MT/s non-ECC DDR5 UDIMM
Memory Voltage
  • 1.1V
On-Board Devices
SATA
  • SATA (6Gbps)
Chipset
  • Intel® W680
Network Connectivity
  • 1 RJ45 1GbE with Intel® I219-LM
  • 1 RJ45 2.5GbE with Intel® I225-V

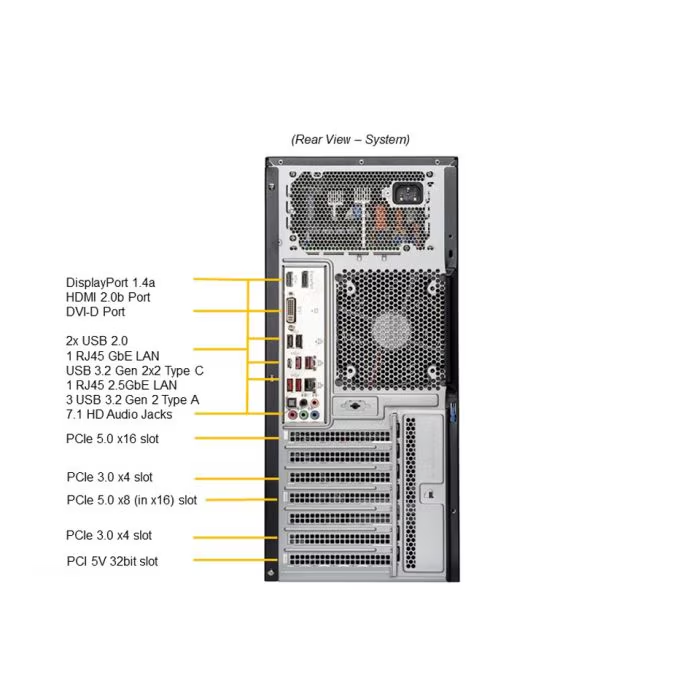

Input / Output
USB
  • 2 USB 2.0 Type-A port(s) (rear)
  • 2 USB 3.2 Gen1 Type-A port(s) (front)
  • 1 USB 3.2 Gen2 Type-C port(s) (Rear)
  • 1 USB 3.2 Gen2 Type-C port(s) (Front)
  • 3 USB 3.2 Gen1 Type-A port(s) (Rear)
Video
  • 1 HDMI 2.0b port(s)
  • 1 DVI-D port(s)
  • 1 DisplayPort 1.4a port(s)
Audio
  • 7.1 HD Audio
TPM
  • 1 TPM header
System BIOS
BIOS Type
  • AMI 256MB SPI Flash
Management
Software
  • SuperCloud Composer
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • SuperDoctor® 5
  • Super Diagnostics Offline
  • TAS: Supermicro Thin-Agent Service (TAS)
  • SAA(new!)
Power configurations
  • ACPI 6.0 Power Management
PC Health Monitoring
Voltage
  • +1.0V PCH, +1.8V PCH, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 3.3V standby, 5 (4-pin), CPU, CPU temperature, CPU thermal trip support, PCH temperature, System temperature, VBAT, VRM temperature
Chassis
Form Factor
  • Mid-Tower
Model
  • CSE-735D4-668B
Dimensions and Weight
Height
  • 16.7″ (424 mm)
Width
  • 7.6″ (193 mm)
Depth
  • 21.1″ (536 mm)
Package
  • 11.97″ (H) x 21.38″ (W) x 25.28″ (D)
Weight
  • Gross Weight: 30 lbs (13.61 kg)
  • Net Weight: 28 lbs (12.7 kg)
Available Color
  • Black

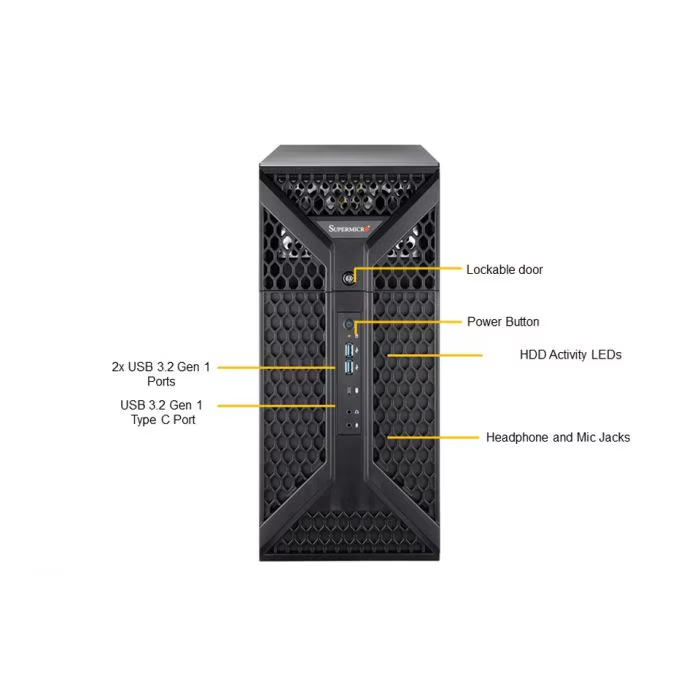

Front Panel
Port
  • Audio Jack(s)
  • USB 3.0 Port(s)
  • USB 3.2 Gen 2 Type C
LED
  • HDD activity LED
  • Power LED
Buttons
  • Power On/Off button
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 4 bay(s)
    • 4 internal fixed 3.5″ SATA drive bay(s)
M.2
  • 3 M.2 PCIe 4.0 x4 NVMe slot(s) (M-key 2280)
Peripheral Bays
  • 2 5.25″ bay(s)
System Cooling
Fans
  • 1x 120mm Fan(s)
  • 1x 120mm Fan(s) (optional)
Power Supply
QtyWithPsu
  • 1x 668W
Description
  • 1x 668W Platinum Level (92%) power supply
Dimension (WxHxL)
  • 150 x 86 x 185 mm
AC Input
  • 668W: 100-240Vac / 50-60Hz
+12V
  • Max: 54A / Min: 0.2A (100Vac-240Vac)
5V SB
  • Max: 2A / Min: 0A
Output Type
  • 24pin ATX
Certification
  • Platinum Level Certified  Platinum Level

    [ Test Report ]
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
