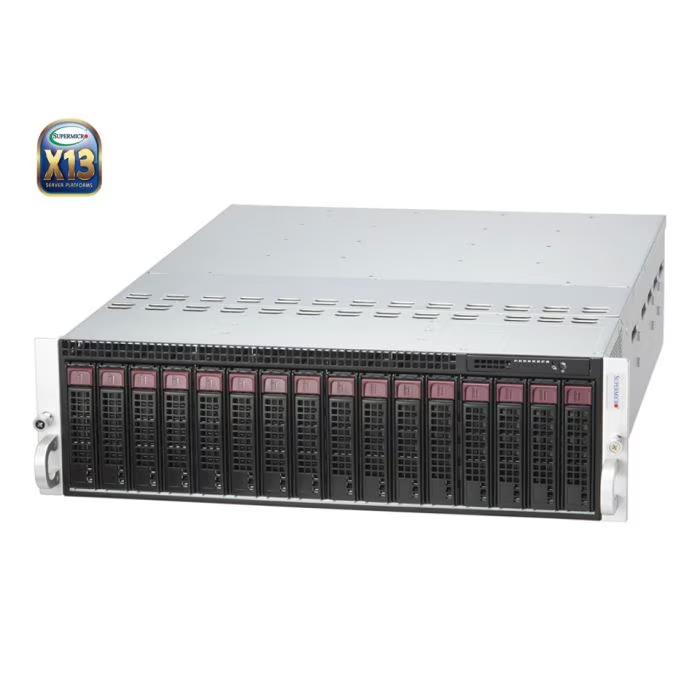

Supermicro SYS-531MC-H8TNR 3U Rackmount X13 Microcloud SuperServer (SYS-531MC-H8TNR)



Efficient Cloud Solutions for Diverse Needs

The Supermicro SYS-531MC-H8TNR is designed to meet the demands of cloud computing, web hosting, virtualization, online game server hosting, IT infrastructure, web caching, and social networking applications. Powered by Intel® Xeon® E-2400/Pentium® processors, it supports up to 95W TDP for exceptional performance.

Flexible Configuration Options

With support for up to 128GB ECC UDIMM DDR5 memory running at 4400MHz, and multiple PCIe 5.0 x8 low profile slots, this system offers flexibility for various workloads. Additionally, it features PCIe 4.0 x8 Micro-LP slots for expanded connectivity options, ensuring compatibility with a wide range of peripherals.

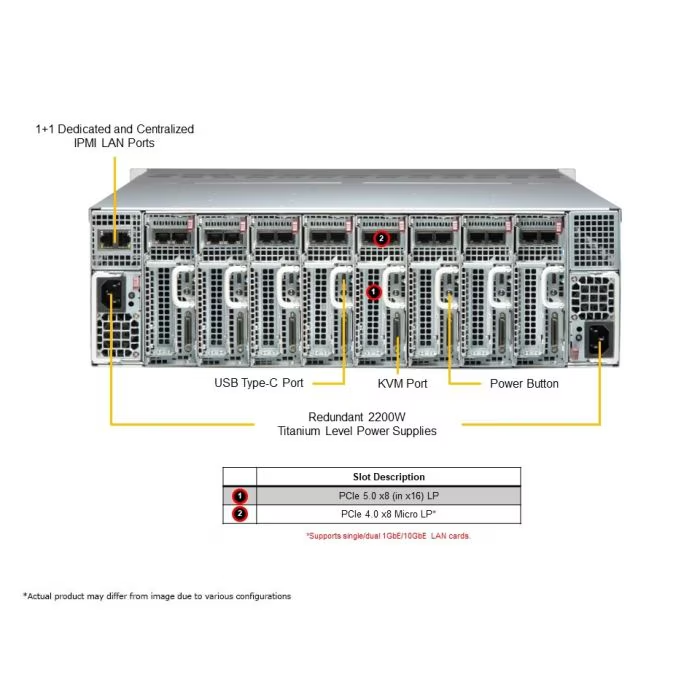

SYS-531MC-H8TNR Rear

High Density and Cost Efficiency

The MicroCloud modular architecture delivers high density and serviceability, ideal for hyperscale deployments. Its compact 3U chassis, less than 30 inches deep, saves over 76% of rack space compared to traditional 1U servers. This design optimizes space utilization while reducing operational costs, making it a cost-effective solution for businesses.

Reliable Power and Serviceability

Equipped with 2200W redundant Titanium Level high-efficiency power supplies, the SYS-531MC-H8TNR ensures reliable and uninterrupted operation, minimizing downtime. Its front hot-swappable drive bays enable easy maintenance and serviceability, enhancing overall system reliability and uptime.

By combining powerful performance, flexible configurations, and efficient design, the Supermicro SYS-531MC-H8TNR offers a reliable solution for businesses seeking scalable and cost-effective cloud infrastructure.



  • Key Features/Applications: Cloud Computing, Web Hosting, VM, Online Game Server Hosting, IT Infrastructure, Web Cache, Social Networking
  • CPU: Single Intel® Xeon® E-2400 / Pentium® G7400 and G6400T Processors, up to 95W TDP
  • Chassis: 3U / 8 Node
  • Drive: Up to 2x 3.5″ Front Hot-Swap NVMe/SATA/SAS Drive Bays Per Node
  • RAM: Up to 128GB of DDR5 ECC UDIMM in 4 DIMM Slots Per Node
  • GPU: Up to 1 Single-Width GPU Per Node
  • Network Ports: 1+1 Dedicated and Centralized IPMI LAN Ports Per Node
  • Power Supply: 2x 2200W Redundant Titanium Level Power Supplies
SuperServer SYS-531MC-H8TNR

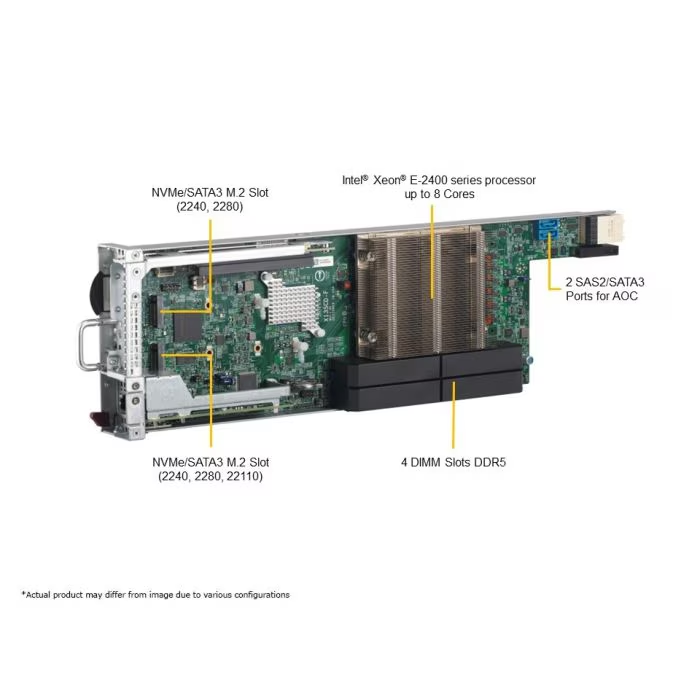

Processor (per Node)
CPU
  • Single LGA-1700
  • Intel® Xeon® E-2400/Pentium® G7400 and G6400T Processors
Note
  • Supports up to 95W TDP CPUs (Air Cooled)
GPU (per Node)
Max GPU Count
  • Up to 1 single-width GPU(s)
System Memory (per Node)
Memory
  • Slot Count: 4 DIMM slots
  • Max Memory (2DPC): Up to 128GB 4400MT/s ECC DDR5 UDIMM
On-Board Devices (per Node)
SATA
  • SATA (6Gbps) ; RAID 0/1 support
Chipset
  • Intel® C266
Network Connectivity
  • No NIC option supported
Input / Output (per Node)
USB
  • 1 Type-C port(s) (front)
  • 2 USB 2.0 Type-A port(s)
Video
  • 1 port(s)
System BIOS
BIOS Type
  • AMI 256MB SPI Flash EEPROM
Management
Software
  • SuperCloud Composer
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • SuperDoctor® 5
  • Super Diagnostics Offline
  • TAS: Supermicro Thin-Agent Service (TAS)
  • SAA(new!)
Power configurations
  • Power-on mode for AC power recovery
  • ACPI 6.0 Power Management
PC Health Monitoring
Temperature
  • Monitoring for CPU and chassis environment
CPU
  • Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
  • 3-Phase-switching voltage regulator with auto-sense from 0.5V-2.3V
FAN
  • Fan speed control, Dual Cooling Zone
Chassis
Form Factor
  • 3U Rackmount
Model
  • CSE-938NH-R2K20BP2
Dimensions and Weight
Height
  • 5.21″ (132 mm)
Width
  • 17.26″ (438 mm)
Depth
  • 23.2″ (589 mm)
Package
  • 11.65″ (H) x 26.26″ (W) x 34″ (D)
Weight
  • Gross Weight: 88 lbs (39.92 kg)
  • Net Weight: 62.2 lbs (28.21 kg)
Available Color
  • N/A

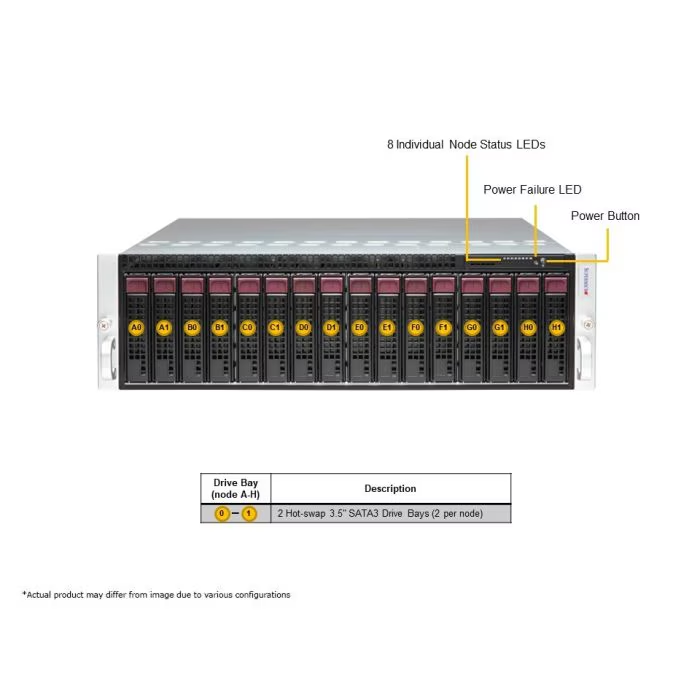

Front Panel
LED
  • 8 Individual Node Status Indicators
  • Power Failure
Buttons
  • Power On/Off

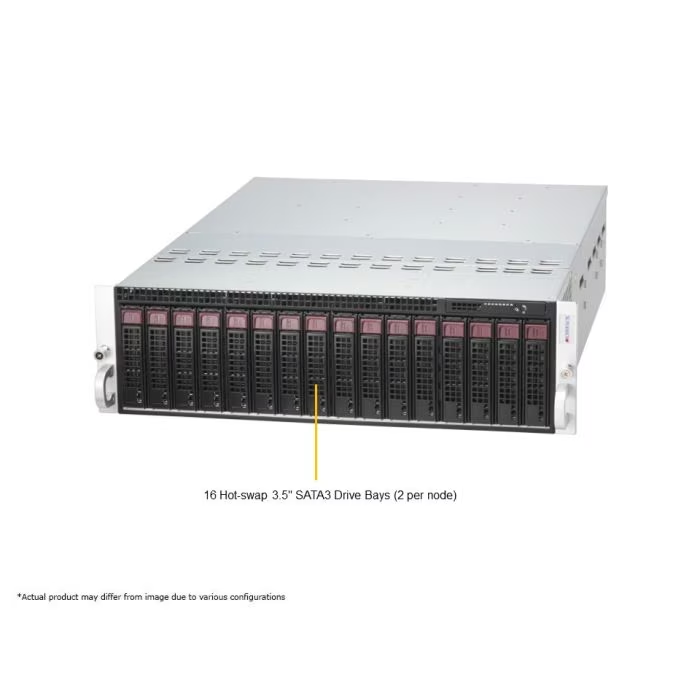

Drive Bays / Storage (per Node)
Drive Bays Configuration
  • Default: Total 2 bay(s)
    • 2 front hot-swap 3.5″ NVMe/SAS/SATA drive bay(s)
M.2
  • 2 M.2 NVMe/SATA slot(s) (M-key 2280/22110)
System Cooling
Fans
  • 4 Heavy Duty 8cm Fan(s)
Power Supply
QtyWithPsu
  • 1x 2200W
Description
  • 1x 2200W Redundant Titanium Level (96%) power supply
Dimension (WxHxL)
  • 76 x 40 x 336 mm
AC Input
  • 1200W: 100-127Vac / 50-60Hz
    1800W: 200-220Vac / 50-60Hz
    2090W: 200-220Vac / 50-60Hz (for UL/cUL use only)
    1980W: 220-230Vac / 50-60Hz
    2200W: 220-240Vac / 50-60Hz (for UL/cUL use only)
    2090W: 230-240Vac / 50-60Hz
    2090W: 230-240Vdc / 50-60Hz (for CCC only)
+12V
  • Max: 100A / Min: 0A (100Vac-127Vac)
    Max: 150A / Min: 0A (200Vac-220Vac)
    Max: 165A / Min: 0A (220Vac-230Vac)
    Max: 183.33A / Min: 0A (220Vac-240Vac) (for UL/cUL only)
    Max: 174.17A / Min: 0A (230Vac-240Vac)
    Max: 174.17A / Min: 0A (230Vdc-240Vdc) (for CCC only)
    Max: 174.17A / Min: 0A (230Vac-240Vac) (for UL/cUL only)
5V SB
  • Max: 1A / Min: 0A
Output Type
  • Backplanes (gold finger)
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 8% to 95% (non-condensing)
