Supermicro SYS-540A-TR Full-Tower Scalable GPU SuperWorkstation (SYS-540A-TR)





SYS-540A-TR Side View
Supermicro’s X12 SuperWorkstations are optimized for the most demanding applications and workflows requiring powerful graphics capabilities, which can tackle deep learning, artificial intelligence, and machine learning development workloads with ease.
The Supermicro SuperWorkstation SYS-540A-TR is the ultimate high-performance workstation with vast storage options. Supporting one Intel® Xeon® Scalable Processor with 16 DDR4 DIMM slots to take on the most complex of tasks. The seven PCI-E slots allow great expandability for GPU and other professional cards while the 10GbE and GbE LAN ports with IPMI support will keep you connected no matter where you are. Bigger, faster storage options with 8 Hot-swap 3.5″ SATA drive bays provide superior storage capabilities to execute heavy data processing with ease. This workstation is powered by 2200W redundant power supplies, giving you one of the most reliable and efficient workstations available today.



  • Key Features/Applications: Deep Learning, AI, Machine Learning Development
  • CPU: Single 3rd Gen Intel® Xeon® Scalable Processor, up to 40 Cores
  • Chassis: Full-Tower
  • Drive: Up to 8x 3.5″ Hot-Swap SATA + 4x M.2 NVMe/PCIe Drive Bays + 3x 5.25″ Peripheral Drive Bays
  • RAM: Up to 4TB of DDR4 ECC RDIMM/LRDIMM in 16 DIMM Slots
  • Network Ports: 1x 10GbE + 1x 1GbE + 1x 1GbE Dedicated IPMI LAN Ports
SKU: SYS-540A-TR Categorii: , , , , , , , ,
SuperWorkstation SYS-540A-TR
Processor
CPU
  • Single Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 40C/80T; Up to 60MB Cache
Note
  • Supports up to 270W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 4 double-width or 4 single-width GPU(s)
Supported GPU
  • NVIDIA PCIe: RTX A6000, RTX A5000, RTX A4000
Certification
System Memory
Memory
  • Slot Count: 16 DIMM slots
  • Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
Memory Voltage
  • 1.2V
On-Board Devices
SATA
  • SATA (6Gbps)
Chipset
  • Intel® C621A
Network Connectivity
  • 1 RJ45 1GbE with Intel® I210-AT
  • 1 RJ45 1GbE with Realtek RTL8211F PHY (dedicated IPMI)
  • 1 RJ45 10GbE with Marvell® AQC113
Input / Output
USB
  • 2 USB 2.0 port(s) (header)
  • 2 USB 2.0 port(s) (rear)
  • 2 port(s) (header)
  • 4 port(s) (rear)
Video
  • 1 VGA port(s)
TPM
  • 1 TPM header
System BIOS
BIOS Type
  • AMI 256MB SPI Flash
Management
Software
  • SuperCloud Composer
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • SuperDoctor® 5
  • Super Diagnostics Offline
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • ACPI 6.0 Power Management
PC Health Monitoring
Voltage
  • +1.8V, +12V, +3.3V, +5V, +5V standby, 10 -fan status, 3.3V standby, HT, Memory, VBAT
Chassis
Form Factor
  • Full-Tower
Model
  • CSE-747BTS-R2K20BP

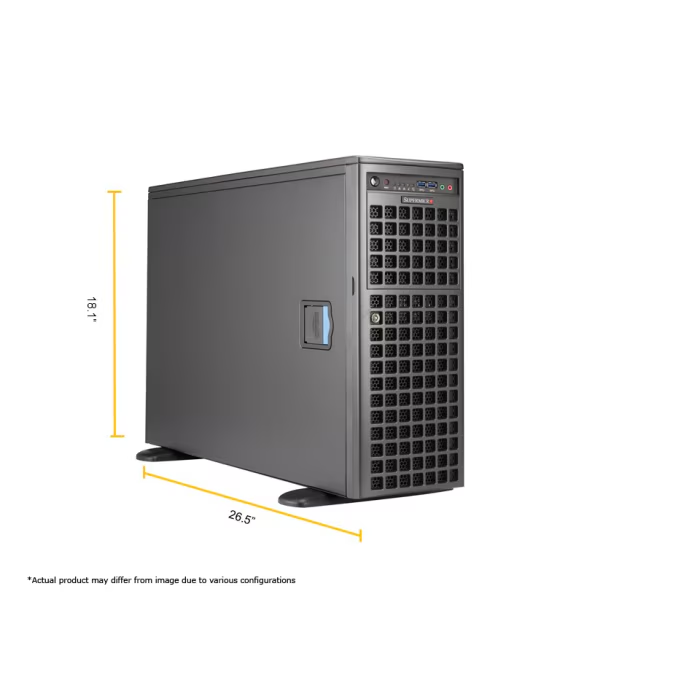

Dimensions and Weight
Height
  • 18.1″ (460 mm)
Width
  • 7″ (178 mm)
Depth
  • 26.5″ (673 mm)
Package
  • 12.7″ (H) x 27″ (W) x 37.5″ (D)
Weight
  • Gross Weight: 57 lbs (25.85 kg)
  • Net Weight: 52.9 lbs (24 kg)
Available Color
  • black

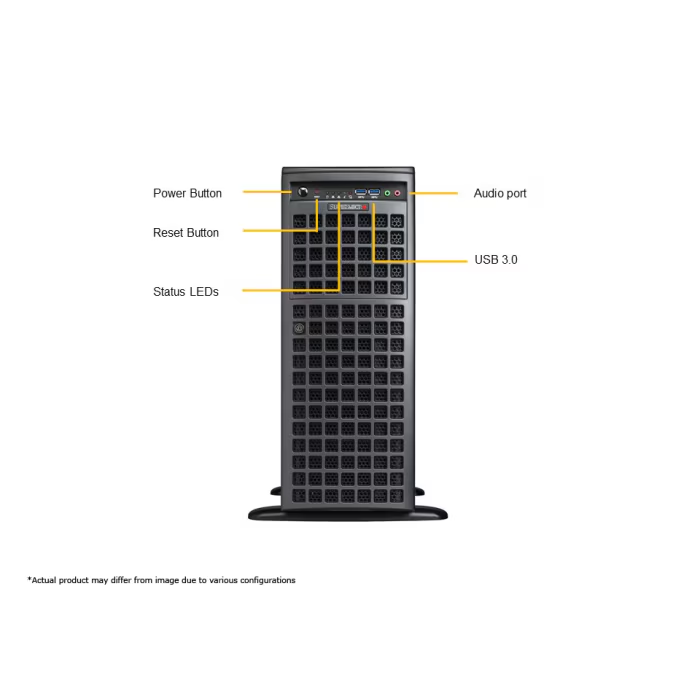

Front Panel
LED
  • HDD activity
  • Network activity
  • Power On
  • System Overheat / Fan Fail LED
Buttons
  • Power On/Off
  • System Reset
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 8 bay(s)
    • 8 front hot-swap 3.5″ SATA drive bay(s)
M.2
  • 4 M.2 PCIe 4.0 x4 NVMe slot(s) (M-key 2280/22110)
Peripheral Bays
  • 3 5.25″ bay(s)
System Cooling
Fans
  • 2x 80mm Fan(s)
  • 4x 92mm Fan(s)
Power Supply
QtyWithPsu
  • 1x 2200W
Description
  • 1x 2200W Redundant Titanium Level (96%) power supply
Dimension (WxHxL)
  • 76 x 40 x 336 mm
AC Input
  • 1200W: 100-127Vac / 50-60Hz
    1800W: 200-220Vac / 50-60Hz
    2090W: 200-220Vac / 50-60Hz (for UL/cUL use only)
    1980W: 220-230Vac / 50-60Hz
    2200W: 220-240Vac / 50-60Hz (for UL/cUL use only)
    2090W: 230-240Vac / 50-60Hz
    2090W: 230-240Vdc / 50-60Hz (for CCC only)
+12V
  • Max: 100A / Min: 0A (100Vac-127Vac)
    Max: 150A / Min: 0A (200Vac-220Vac)
    Max: 165A / Min: 0A (220Vac-230Vac)
    Max: 183.33A / Min: 0A (220Vac-240Vac) (for UL/cUL only)
    Max: 174.17A / Min: 0A (230Vac-240Vac)
    Max: 174.17A / Min: 0A (230Vdc-240Vdc) (for CCC only)
    Max: 174.17A / Min: 0A (230Vac-240Vac) (for UL/cUL only)
5V SB
  • Max: 1A / Min: 0A
Output Type
  • Backplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
