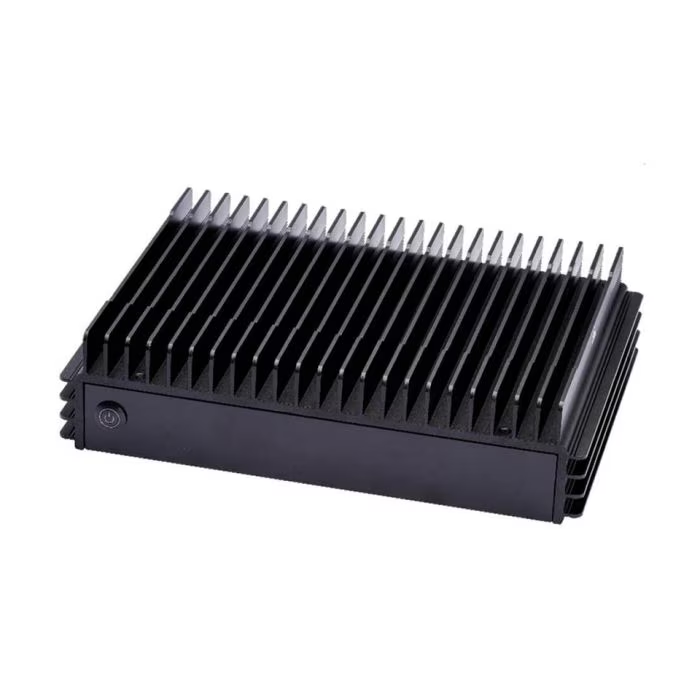

Supermicro SYS-E302-12D-8C Fanless IOT/Embedded System (SYS-E302-12D-8C)



Empowering Connectivity for Diverse Applications

Discover the Supermicro SYS-E302-12D-8C, a versatile solution designed to meet the demands of various applications. Whether for IoT gateways, network security appliances, SD-WAN, embedded networking applications, retail, industrial automation, or AI/ML, this system stands ready to deliver optimal performance.

Advanced Fanless Cooling System with Intel® Xeon® Ice Lake Processor

Breaking away from traditional fanless systems, the SYS-E302-12D-8C, powered by the Intel® Ice Lake Xeon D-1736NT processor with QuickAssist Technology (QAT), distinguishes itself as one-of-a-kind fanless system in the market. This system not only delivers fanless efficiency but also high-performance capabilities, boasting 8 cores at 2.7GHz. With 6 networking interfaces, including 2 x 25G SFP28 and 4 x 1GbE, it offers strong connectivity, enabling seamless integration into complex network environments. Experience an unparalleled combination of robust performance and silent operation, making it an ideal solution for noise-sensitive environments.

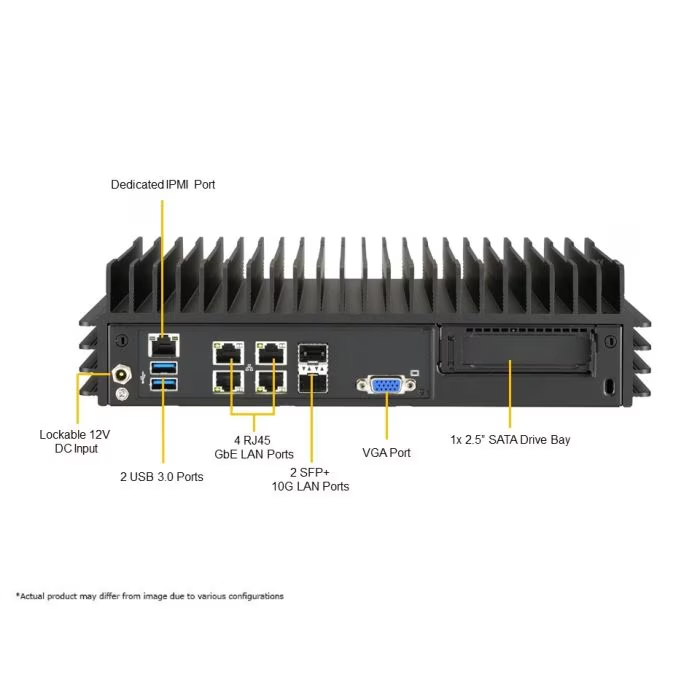

SYS-E302-12D-8C Rear

Compact and Efficient Design

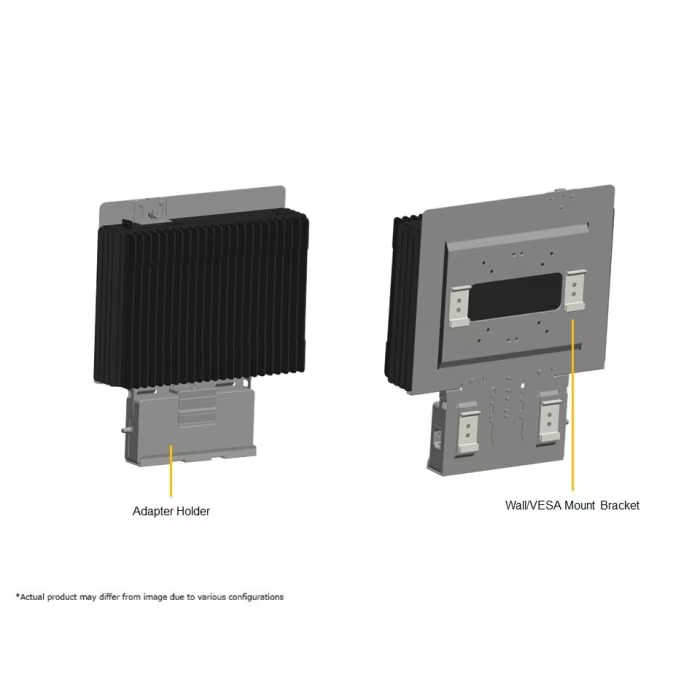

Featuring a wall-mount bracket, this system is space-efficient, making it suitable for diverse environments. The fanless cooling design ensures silent and reliable operation, while the operating temperature range of 0°C to 35°C enhances adaptability.

Versatile Storage and Expandability

Equipped with 1x 2.5″ SATA drive bay, 1x M.2 M-Key 2280 slot, and additional M.2 slots for diverse applications, the SYS-E302-12D-8C offers flexibility in storage and expansion. The inclusion of a dedicated IPMI LAN enhances remote management capabilities.

Elevate your network infrastructure with the Supermicro SYS-E302-12D-8C, a reliable and adaptable solution designed to excel in the ever-evolving landscape of modern connectivity needs.



  • Key Features/Applications: IoT Gateway, Network Security Appliance, SD WAN, Embedded Networking Applications, Retail, Industrial Automantion, Artificial Intelligence, Machine Learning
  • CPU: Single Intel® Xeon® Processor D-1736NT Processor, up to 8 Cores
  • Chassis: Fanless Embedded
  • Drive: Up to 1x 2.5″ SATA + 1x M.2 M-Key 2280 Drive Bays
  • RAM: Up to 256GB of DDR4 ECC RDIMM in 4 DIMM Slots
  • Network Ports: 2x 25G SFP28 + 4x 1GbE RJ45 LAN Ports
  • Fanless Cooling and Wall Mount Bracket Support
SKU: SYS-E302-12D-8C Categorii: , , , , , , ,
Product SKUs
SuperServer SYS-E302-12D-8C
Processor
CPU
  • Single FCBGA-2227
  • Intel® Xeon® Processor D-1736NT
Core Count
  • Up to 8C/16T; Up to 15MB Cache
Note
  • Supports up to 67W TDP CPUs (Air Cooled)
System Memory
Memory
  • Slot Count: 4 DIMM slots
  • Max Memory (2DPC): Up to 256GB 2933MT/s ECC DDR4 RDIMM
Memory Voltage
  • 1.2V
On-Board Devices
Chipset
  • Intel® SoC
Network Connectivity
  • 4 RJ45 1GBASE-T
  • 2 SFP28 25GbE
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated IPMI LAN port(s)
  • 2 SFP28 25 GbE LAN port(s)
  • 4 RJ45 1 GbE LAN port(s)
USB
  • 2 USB 3.0 port(s)
Video
  • 1 VGA port(s)
System BIOS
BIOS Type
  • AMI 32MB UEFI
BIOS Features
  • ACPI 6.3
  • UEFI 2.7
  • SMBIOS 3.3
  • PCI FW 3.0
Management
Software
  • SuperCloud Composer
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • SuperDoctor® 5
  • Super Diagnostics Offline
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • Watch Dog Function
  • Power Button Function
  • Restore on AC Power Loss
  • Front USB Port(s)
  • Rear USB Port(s)
Chassis
Form Factor
  • Fanless Embedded
Model
  • CSE-E302iL

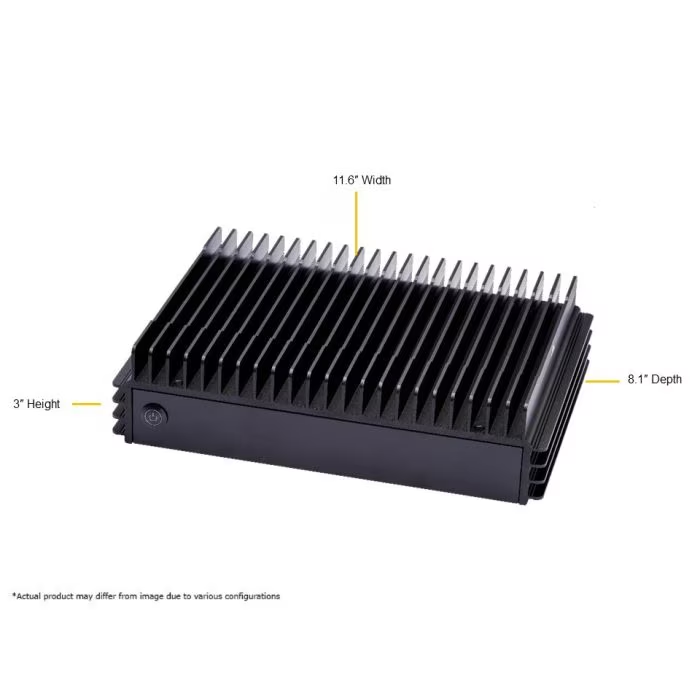

Dimensions and Weight
Height
  • 3″ (76 mm)
Width
  • 11.6″ (295 mm)
Depth
  • 8.1″ (206 mm)
Package
  • 12″ (H) x 16.45″ (W) x 7.6″ (D)
Weight
  • Gross Weight: 12 lbs (5.44 kg)
  • Net Weight: 8 lbs (3.63 kg)
Palletized Packing (W x H x L)
  • 50.79″ (1290 mm) x 87.8″ (2230 mm) x 34.25″ (870 mm)
Available Color
  • Black

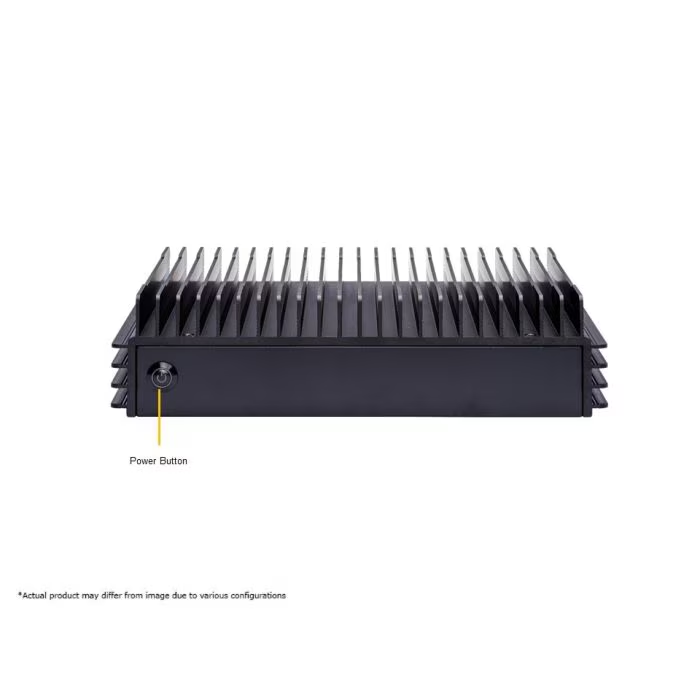

Front Panel
Buttons
  • Power On/Off
LED
  • Power status
  • System information
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 1 bay(s)
    • 1 internal fixed 2.5″ NVMe/SATA drive bay(s)
M.2
  • 1 M.2 PCIe 3.0 x4 NVMe/SATA slot(s) (M-key 2280)
System Cooling
Fans
  • N/A
Power Supply
QtyWithPsu
  • 1x 180W
Description
  • 1x 180W power supply
Dimension (WxHxL)
AC Input
  • 180W: 100-240Vac / 47-63Hz
Operating Environment
Environmental Spec.
  • Operating Temperature: 0°C ~ 35°C (32°F ~ 95°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
