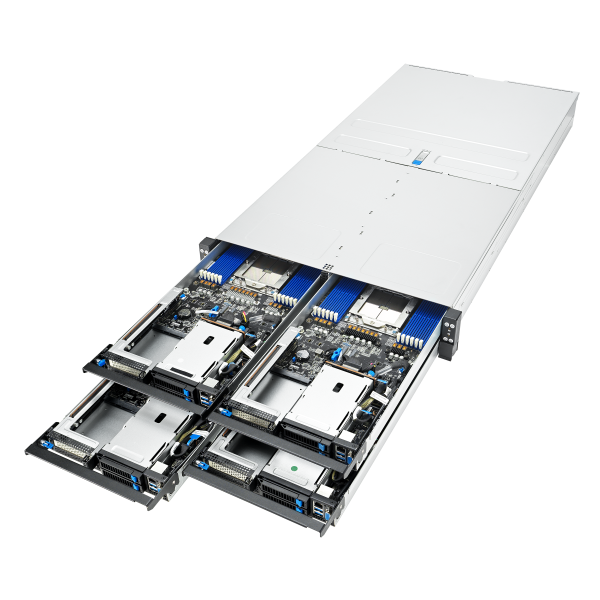

ASUS RS520QA-E13-RS8U
ASUS RS520QA-E13-RS8U - imagine 2
ASUS RS520QA-E13-RS8U - imagine 3
ASUS RS520QA-E13-RS8U - imagine 4
ASUS RS520QA-E13-RS8U - imagine 5
ASUS RS520QA-E13-RS8U - imagine 6
ASUS RS520QA-E13-RS8U - imagine 7
ASUS RS520QA-E13-RS8U - imagine 8
ASUS RS520QA-E13-RS8U - imagine 9
ASUS RS520QA-E13-RS8U - imagine 10
, , , , Configureaza acest server →

ASUS RS520QA-E13-RS8U

Favorite
Compara

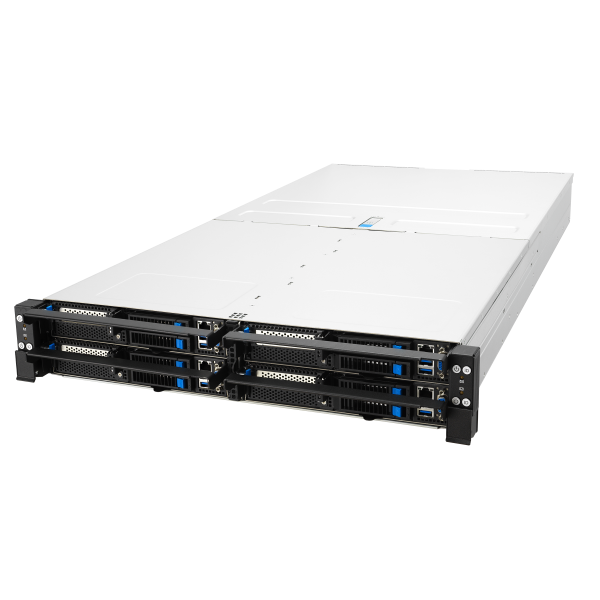

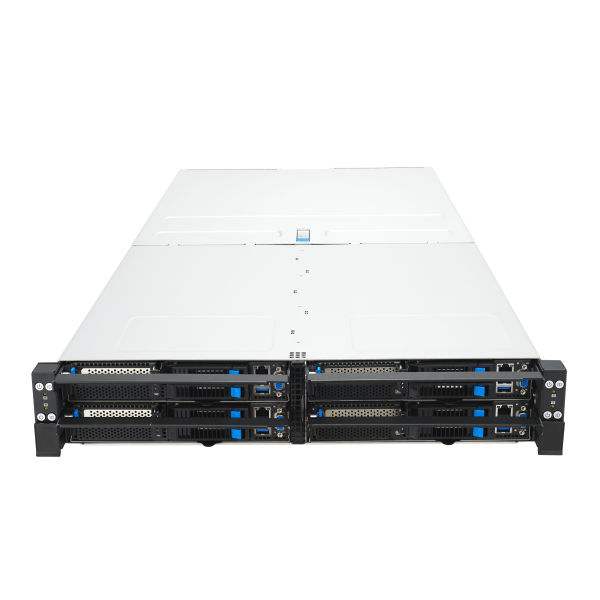

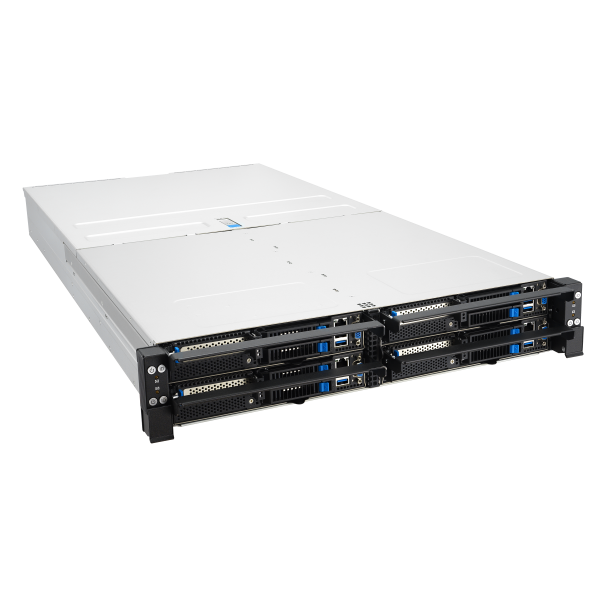

A single-socket 2U4N server powered by AMD EPYC™ 9005 Turin processor, designed for high-density workload with each node supports up to 20 DIMMs, two NVMe , two M.2, one PCIe® 5.0 slot, and one OCP 3.0 slot

Pretul afisat contine TVA (21%).

RS520QA-E13-RS8U

A single-socket 2U4N server powered by AMD EPYC™ 9005 Turin processor, designed for high-density workload with each node supports up to 20 DIMMs, two NVMe , two M.2, one PCIe® 5.0 slot, and one OCP 3.0 slot

Key Features

  • Powerful performance: Powered by a single AMD EPYC™ 9005 Turin processor with 12 DIMMs supporting up to 6400MHz (1DPC), built for high scalability, dense computing, and diverse workloads.
  • High memory expansion: Optional CXL-enabled design supports eight additional DIMMs per node at 4400MHz (2DPC), delivering high capacity and cost-efficient scalability.
  • Flexible-access design: Front-access layout allows IT staff to service the server without entering hot aisles, enhancing convenience and uptime.
  • Tool-less maintenance: Ergonomic handle, quick-release top cover, and tool-less brackets for PCIe, M.2 riser, and backplane simplify servicing and upgrades.
  • Advanced air cooling: Supports up to 500W TDP CPUs with exceptional thermal performance using air-cooling, improving power efficiency.
  • Smarter IT management: Includes ASUS ASMB12-iKVM with ASPEED AST2600, ASUS Control Center, and Root-of-Trust for secure, centralized management.

Specifications

Processor / System Bus

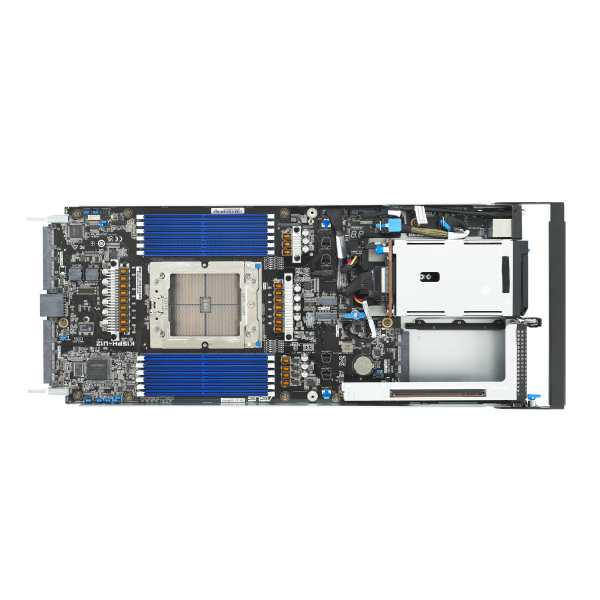

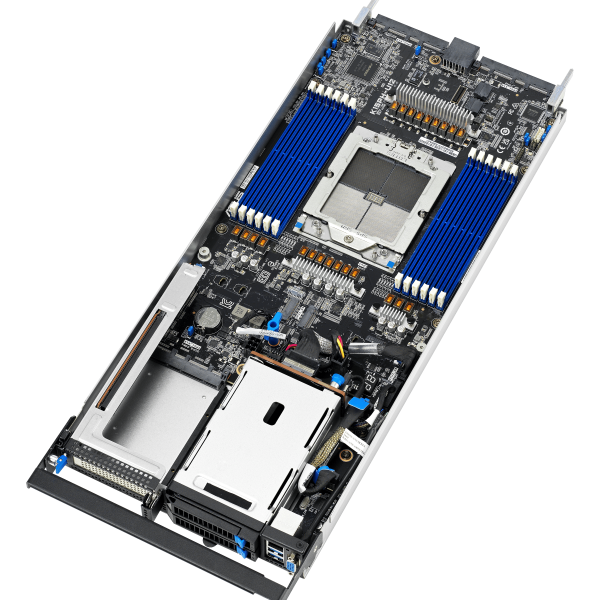

  • Per node: 1 x Socket SP5 (LGA 6096P)
  • AMD EPYC™ 9005 Series Processors (Up to 400W/500W* TDP)
  • *500W TDP requires an operating temperature of 25°C
Generation
  • E13
Memory
  • Total Slots :
  • Per node: 12 + 8 DIMM slots
  • 12 x on-board, additional 8 x on CXL module (Optional)
  • Capacity :
  • Per node: Total Maximum up to 2560GB
  • Memory Type :
  • On-board: DDR5 up to 6400 MT/s
  • CXL module: DDR5 up to 5600*/4400 MT/s
  • * CXL modules support 5600 MT/s in 1DPC mode
  • Memory Size :
  • 128GB, 96GB, 64GB, 32GB RDIMM
  • 128GB, 96GB, 64GB, 32GB 3DS RDIMM
  • ** CXL is optional and dependent on configuration
  • *** Refer to www.asus.com/support for more information
Expansion Slots
  • Per node:
  • 1 x PCIe (Gen5 x16 link, HHHL)
  • 1 x OCP 3.0 (SFF)
Drive Bays
  • Per node:
  • 2 x 2.5†hot-swap drive bays (NVMe/SATA/SAS*)
  • * SAS support requires an optional HBA/RAID card
  • 2 x M.2 connectors (Gen5 x4 link, 2280)
System Fan
  • 4
Networking
  • Per node:
  • 1 x Management Port
Graphic
  • Aspeed AST2600 64MB

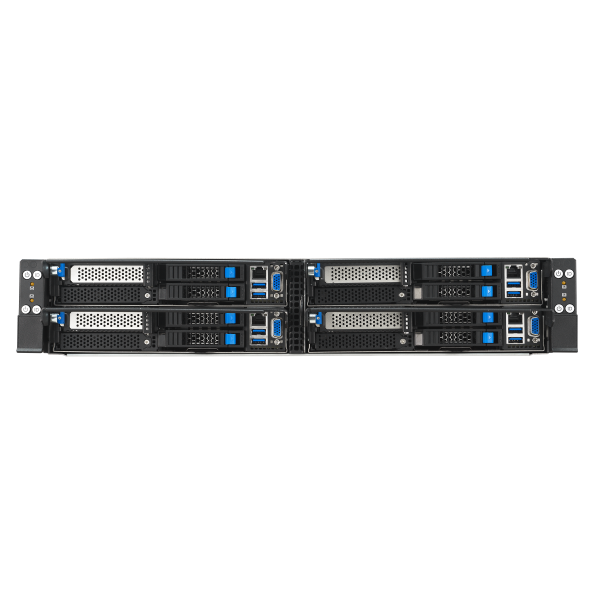

Front I/O Ports
  • Per node:
  • 2 x USB 3.2 Gen1 ports
  • 1 x VGA port
  • 1 x RJ-45 Management LAN port
Rear I/O Ports
  • Per node:
  • 1 x UART debug port
Switch/LED
  • Per node:
  • Front Switch/LED:
  • 1 x Power switch w/ LED
  • 1 x Message LED
  • 1 x Location switch w/ LED
  • 1 x BMC heartbeat LED
  • 1 x LAN LED
  • 2 x HDD Access LED
OS Support
  • Please find the latest OS support from https://servers.asus.com/support/os
Management Solution
  • On-Board ASMB12-iKVM for KVM-over-IP
  • ASUS Control Center Enterprise (Optional)
Regulatory Compliance
  • BSMI, CE, FCC(Class A)
Dimensions
  • 900(L) x 446(W) x 87.2(H) mm
  • 35.43(L) x 17.56(W) x 3.43(H) inch
Form Factor
  • 2U
Weight
  • Without CXL Modules:
  • Net Weight: 23.7KG
  • Gross Weight: 36KG
  • With CXL Modules:
  • Net Weight: 27KG
  • Gross Weight: 39.3KG

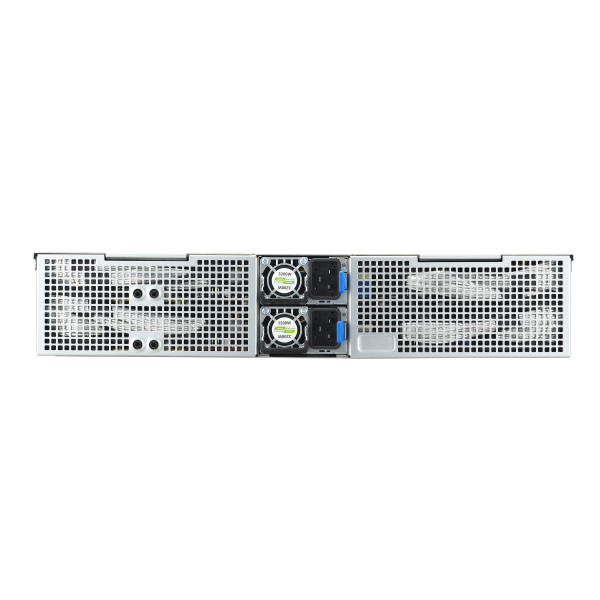

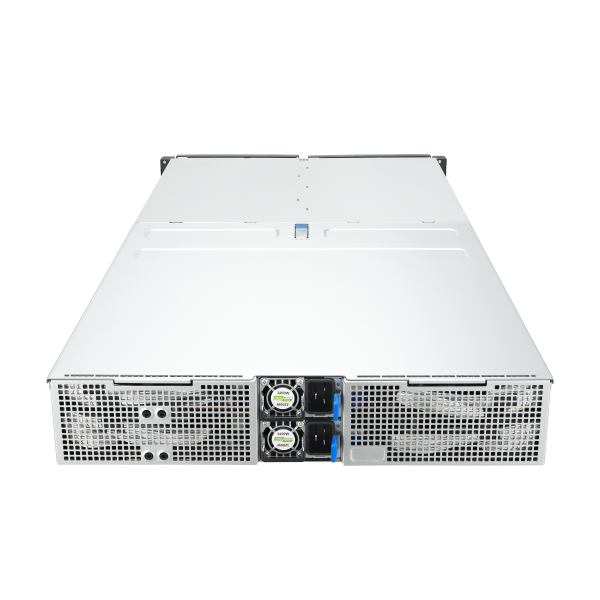

Power Supply
  • 2 + Spare/1 + 1* 3200W 80 PLUS Titanium Power Supply
  • Rating: 220-240 Vac, 16A, 50/60Hz
  • * Support 1 + 1 Redundant 3200W with particular configuration. Please contact our sales representatives for further evaluation.
Environment
  • Operation temperature: 10℃ ~ 35℃
  • Non operation temperature: -40℃ ~ 60℃
  • Non operation humidity: 20% ~ 90% (Non condensing)
CPU Heatsink/ Cooler
  • 4 x 1U EVAC Heatsink
SKU: rs520qa-e13-rs8u Categorii: , , , ,
