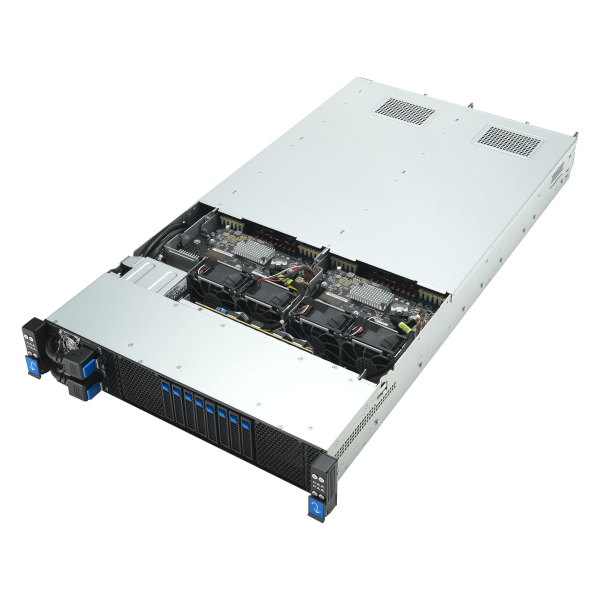

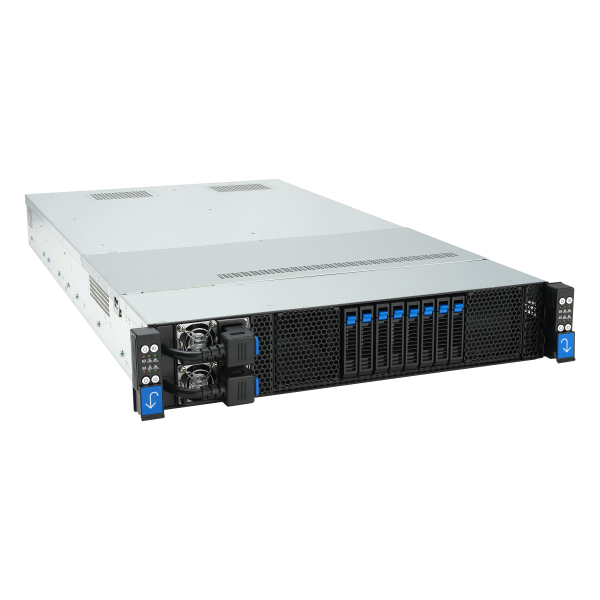

ASUS RS720QA-E12-RS8U
ASUS RS720QA-E12-RS8U - imagine 2
ASUS RS720QA-E12-RS8U - imagine 3
ASUS RS720QA-E12-RS8U - imagine 4
ASUS RS720QA-E12-RS8U - imagine 5
ASUS RS720QA-E12-RS8U - imagine 6
ASUS RS720QA-E12-RS8U - imagine 7
ASUS RS720QA-E12-RS8U - imagine 8
ASUS RS720QA-E12-RS8U - imagine 9
ASUS RS720QA-E12-RS8U - imagine 10
, , , , Configureaza acest server →

ASUS RS720QA-E12-RS8U

Favorite
Compara

AMD EPYC™ 9004 high density 2U4N server that designed for liquid cooling solutions and support up to dual processors, 24 DIMM, two PCIe 5.0 slots, two M.2, 2 NVMe, and two 10G LAN per node

Pretul afisat contine TVA (21%).

RS720QA-E12-RS8U

AMD EPYC™ 9004 high density 2U4N server that designed for liquid cooling solutions and support up to dual processors, 24 DIMM, two PCIe 5.0 slots, two M.2, 2 NVMe, and two 10G LAN per node

Key Features

  • Powerful performance: Powered by AMD EPYC 9004 processors with 128 Zen 4c cores, 12-channel, up to 4800 MHz DDR5 and support for a maximum TDP of up to 400 watts per socket
  • Scale-out infrastructure: The four-node architecture design is ideal for CDN, HCI and cloud workloads to drive IT agility and digital transformation
  • Direct liquid cooling (DLC): Fully designed for cooling integration and installation, including CPU with higher TDP to increase data center efficiency and power density
  • Scale-up node design: Each node supports for dual processors, 24 DIMM, two PCIe 5.0 x16 slots and two M.2, two 10G LAN and 2 NVMe
  • High power efficiency: Redundant 3200W or 2600W Titanium power supplies
  • Enhanced IT-infrastructure management: ASUS ASMB11-iKVM remote control with ASPEED AST2600, ASUS Control Center IT management software and hardware-level Root-of-Trust solution

Specifications

Processor / System Bus
  • Per node: 2 x Socket SP5 (LGA 6096)
  • AMD EPYC™ 9004 Series Processors
  • (Air cool with EVAC up to 240W, with Liquid cool up to 400W)
  • 4th Generation AMD EPYC Processors
  • with AMD 3D V-Cache technology
Generation
  • E12
Memory
  • Total Slots :
  • Per node: 24 x DIMM slots
  • Capacity :
  • Maximum 6TB
  • Memory Type :
  • DDR5 up to 4800 RDIMM
  • DDR5 up to 4800 RDIMM 3DS
  • Memory Size :
  • 64GB, 32GB RDIMM
  • 64GB, 32GB RDIMM 3DS
  • * Refer to support page for more information
Expansion Slots
  • Per node:
  • 2 x PCI-E x16 (Gen5 x16 link), LP, HL (CPU1)
  • 2 x M.2 connector(2242/2260/2280/22110) PCIe mode (CPU1)
Storage
  • Per node
  • SAS/SATA Controller :
  • LSI 3008 8-port SAS 12G Controller
Drive Bays
  • 8 x 2.5†hot-swap drive bays (NVMe/SATA/SAS*)
  • *SATA/SAS support from optional CB board
Networking
  • Per node:
  • 2 x 10GbE LAN port
  • 1 x Management Port
Graphic
  • Aspeed AST2600 with 64MB VRAM

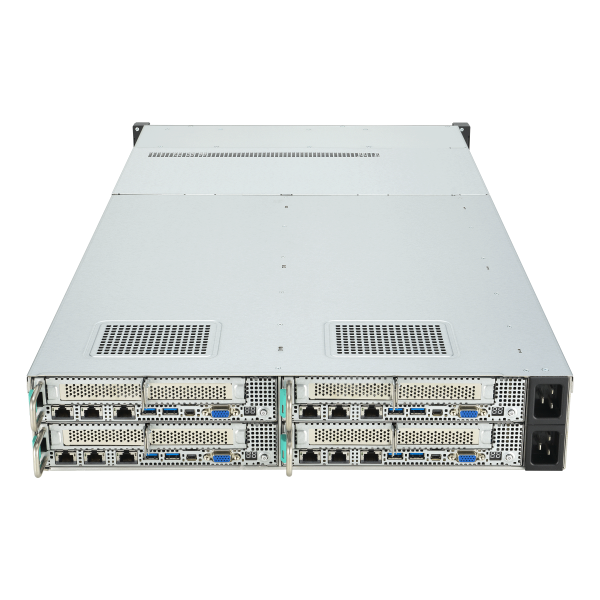

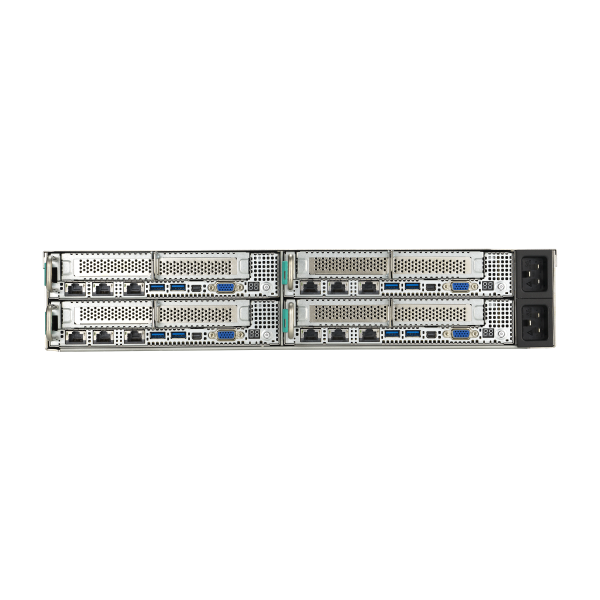

Rear I/O Ports
  • Per node:
  • 2 x USB 3.2 Gen1 ports
  • 1 x VGA port
  • 1 x Mini-DP port
  • 1 x Management port
  • 2 x 10GbE LAN ports
Switch/LED
  • Per node:
  • Rear Switch/LED:
  • 1 x Power Switch/LED
  • 1 x Q-Code/Port 80 LED

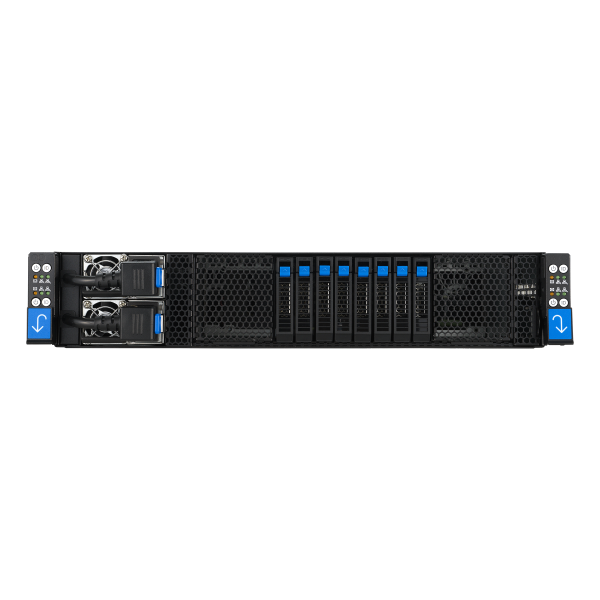

  • Front Switch/LED:
  • 1 x Power Switch/LED
  • 1 x Location Switch/LED
  • 1 x Message LED
  • 2 x LAN LED
OS Support
  • Please find the latest OS support from https://servers.asus.com/support/os
Management Solution
  • On-Board ASMB11-iKVM for KVM-over-IP
  • ASUS Control Center Enterprise (Optional)
Regulatory Compliance
  • BSMI, CE, FCC(Class A)
Dimensions
  • 847mm x 444mm x 87.3mm (2U)
  • 33.35″ x 17.48″ x 3.44″
Form Factor
  • 2U
Weight
  • Net Weight : 29.25KG
  • Gross Weight : 33.37KG
Power Supply
  • 1+1 Redundant 2600W 80 PLUS Titanium Power Supply
  • 1+1 Redundant 3200W 80 PLUS Titanium Power Supply
Environment
  • Operation temperature: 10℃ ~ 35℃
  • Non operation temperature: -40℃ ~ 60℃
  • Non operation humidity: 20% ~ 90% (Non condensing)
FRU Part List
  • Motherboard: 90SB0BL0-M0XBN0
  • Converter Board: 90SC0C50-M0XBN1
  • Backplane: 90SC0K70-M0XBN1
  • Riser Card Right: 90SC0PF0-M0XBN2
  • Riser Card Left: 90SC0PH0-M0XBN2
  • MCIO Cable: 90SKS000-M3XAN0
  • SLSAS Cable: 90SKS000-M3YAN0
  • 2.5″ HDD Tray: 90SKH000-MPPBN0
  • HSK Set: 90SKS000-M4VAN0
  • CRPS 2600W TITANIUM: 90SKP000-M4VAN0
  • R40C Rail: 90SK0000-M0TAN0
SKU: rs720qa-e12-rs8u Categorii: , , , ,
