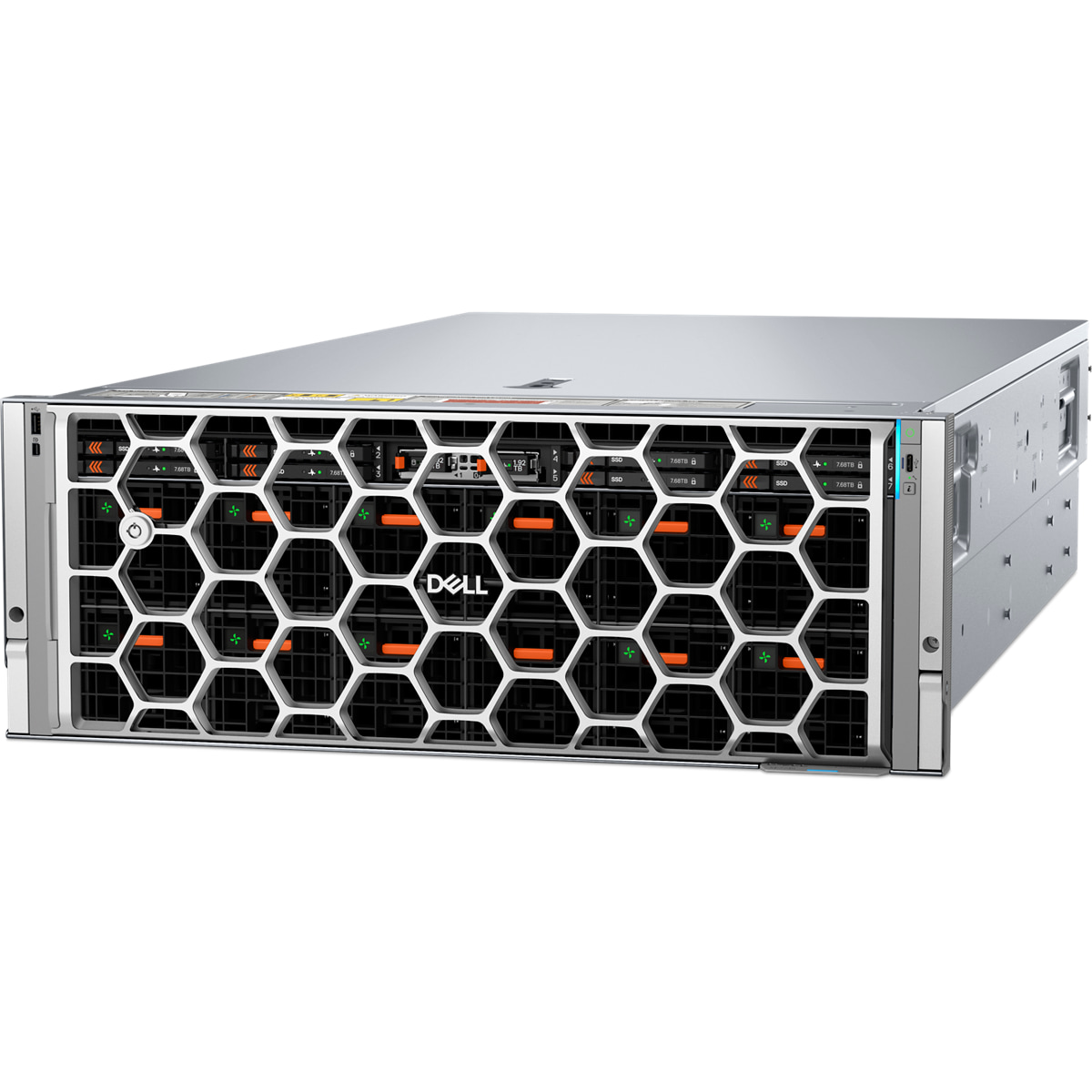

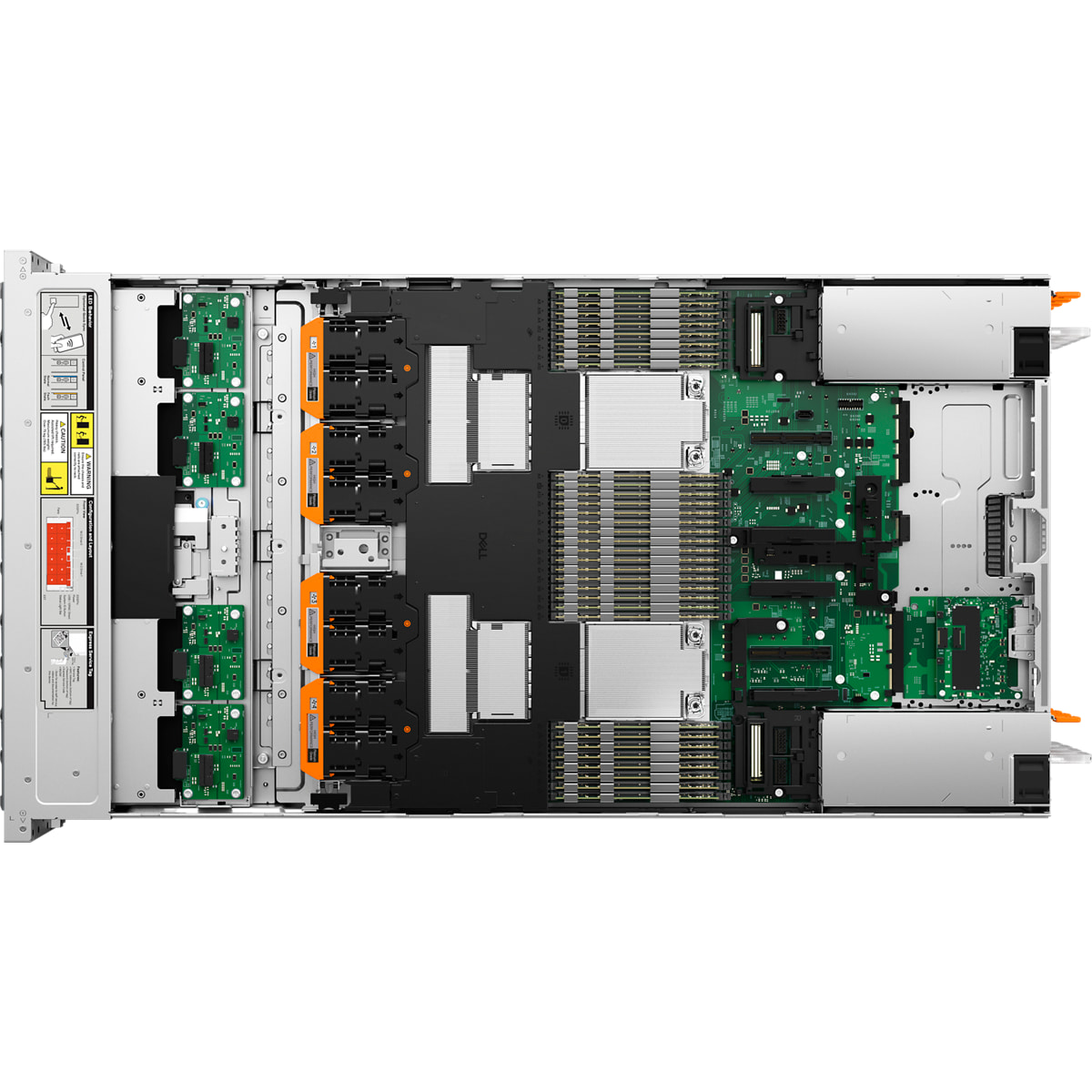

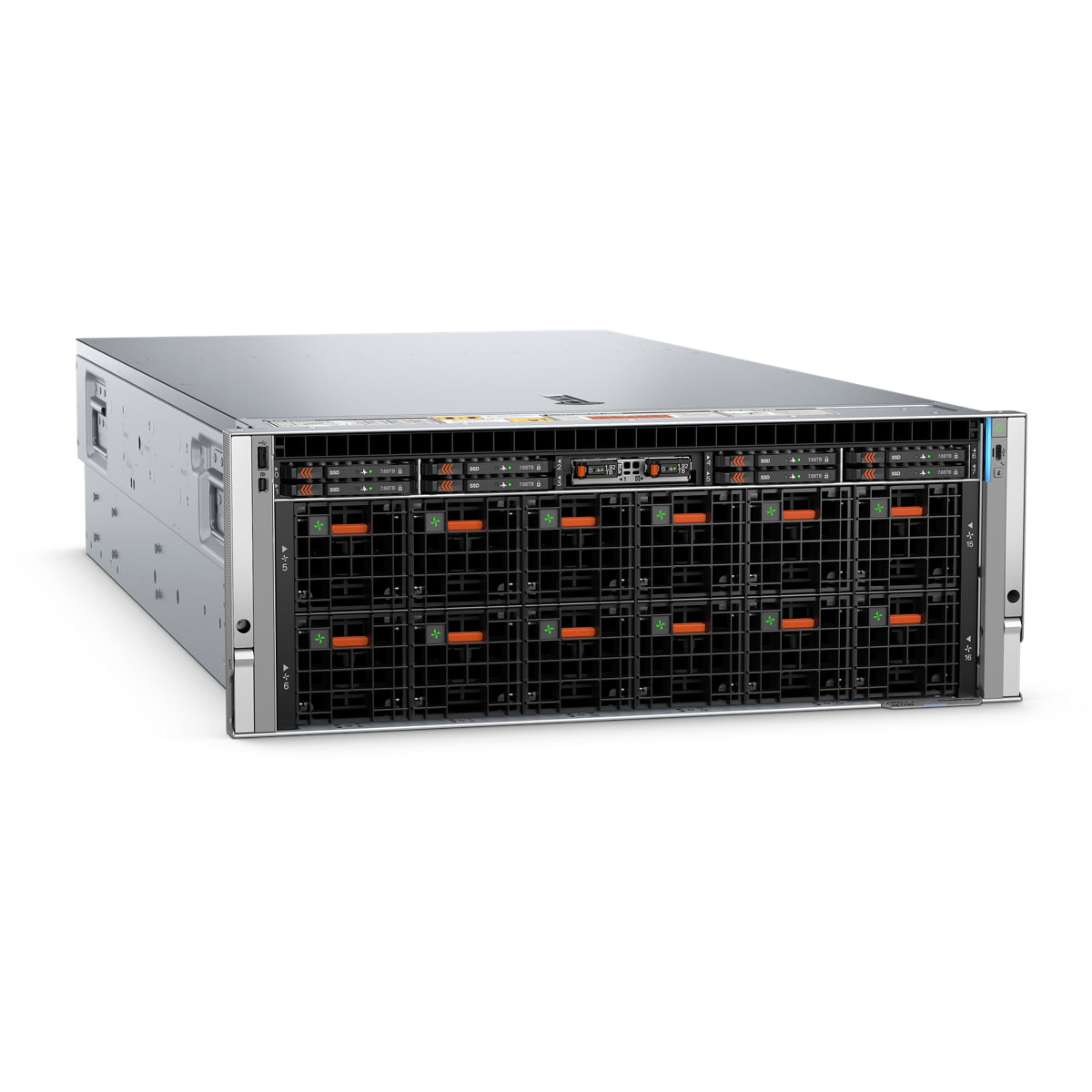

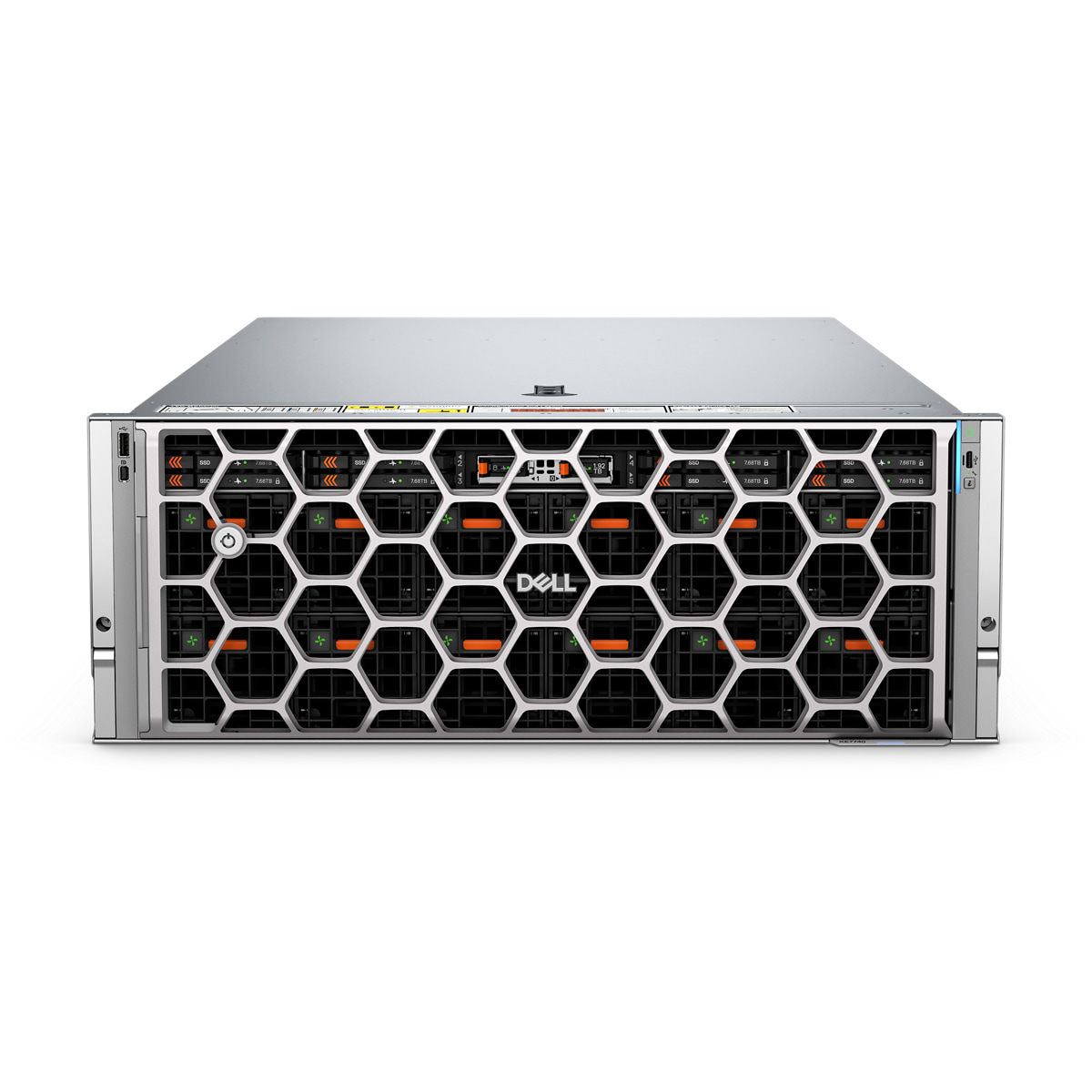

Dell PowerEdge XE7740
PowerEdge XE7740 empowers enterprise AI insights with flexible air-cooled PCIe GPU configurations for inferencing and model fine-tuning.
PowerEdge XE7740
PowerEdge XE7740 empowers enterprise AI insights with flexible air-cooled PCIe GPU configurations for inferencing and model fine-tuning.
Key Features
Flexible AI acceleration
PowerEdge XE7740 empowers enterprise AI insights with flexible air-cooled PCIe GPU configurations for inferencing and model fine-tuning.
Specifications
| Processor | Two Intel®Xeon®6 series processors with up to 86 cores per processor |
| Operating System | Canonical Ubuntu Server LTS RedHat Enterprise Linux SUSE Linux Enterprise Server VMWare ESXi |
| Accelerators | 8x PCIe Gen 5 x16 DW-FHFL up to 600W |
| Memory | DIMM Speed Up to 6400 MT/s Memory Type RDIMM Memory Module Slots 32 DDR5 DIMM slots Maximum RAM RDIMM 3 TB |
| Storage | Front Bay Up to 8 x EDSFF E3.S Gen5 NVMe (SSD) max 122.88 TB |
| Storage Controllers | Internal Boot Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS): HWRAID 1, 2 x M.2 NVMe SSDs Internal controllers NA |
| Security | Chassis Intrusion Detection Cryptographically signed firmware Data at Rest Encryption (SEDs with local or external key mgmt) Secure Boot Secured Component Verification (Hardware integrity check) Silicon Root of Trust Secure Erase System Lockdown (requires iDRAC10 Enterprise or Datacenter) TPM 2.0 FIPS, CC-TCG certified |
| Management | Embedded / At-the-Server iDRAC iDRAC Direct iDRAC RESTful API with Redfish RACADM CLI iDRAC Service Module (iSM) Tools IPMI |
| Power Supplies | 3200 W Titanium 200—240 VAC or 240 VDC Fans Up to 4 sets of high performance (HPR) platinum grade fans (dual fan module) installed in mid tray Up to 12 high performance (HPR) platinum grade fans installed on the front of the system |
| Ports | Network Options OCP NIC card 3.0 Front Ports 1 x USB 2.0 Type A port (iDRAC/BMC Direct) 1 x USB 2.0 Type A port (optional) 1 x Mini-DisplayPort (optional) Rear Ports 1 x Dedicated ethernet port for iDRAC management 1 x VGA 2 x USB 3.1 Type A ports Internal Ports 1 x USB 3.1 Type A port |
| Slots | PCIe Up to 8 x16 Gen5 PCIe slots Video Card 1 x VGA Bezel Optional security bezel |
| Form Factor | 4U rack server |
| Dimensions & Weight | Height 6.86 in. (174.30 mm) Width 18.98 in. (482.00 mm) Depth 35.42 in. (899.56 mm) with bezel 34.91 in. (886.73 mm) without bezel Weights 157.30 lb (71.35 kg) |
| Rack Support | Generic Tool-less stab-in sliding rail, support for tool-less installation in 19″ EIA-310-E compliant square hole and unthreaded round hole 4-post racks. Support for full extension of the system out of the rack to allow serviceability of key internal components. |
| Recommended Support | Reduce complexity and enable your IT teams to drive innovation with Dell Services. Unparalleled IT support, expert deployment, skilled management, as well as AI-powered technology that enhances your IT and end-user experiences. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region. For more information, go towww.delltechnologies.com/Services |
| Processor | Two Intel®Xeon®6 series processors with up to 86 cores per processor |
| Operating System | Canonical Ubuntu Server LTS RedHat Enterprise Linux SUSE Linux Enterprise Server VMWare ESXi |
| Accelerators | 8x PCIe Gen 5 x16 DW-FHFL up to 600W |
| Memory | DIMM Speed Up to 6400 MT/s Memory Type RDIMM Memory Module Slots 32 DDR5 DIMM slots Maximum RAM RDIMM 3 TB |
| Storage | Front Bay Up to 8 x EDSFF E3.S Gen5 NVMe (SSD) max 122.88 TB |
| Storage Controllers | Internal Boot Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS): HWRAID 1, 2 x M.2 NVMe SSDs Internal controllers NA |
| Security | Chassis Intrusion Detection Cryptographically signed firmware Data at Rest Encryption (SEDs with local or external key mgmt) Secure Boot Secured Component Verification (Hardware integrity check) Silicon Root of Trust Secure Erase System Lockdown (requires iDRAC10 Enterprise or Datacenter) TPM 2.0 FIPS, CC-TCG certified |
| Management | Embedded / At-the-Server iDRAC iDRAC Direct iDRAC RESTful API with Redfish RACADM CLI iDRAC Service Module (iSM) Tools IPMI |
| Power Supplies | 3200 W Titanium 200—240 VAC or 240 VDC Fans Up to 4 sets of high performance (HPR) platinum grade fans (dual fan module) installed in mid tray Up to 12 high performance (HPR) platinum grade fans installed on the front of the system |
| Ports | Network Options OCP NIC card 3.0 Front Ports 1 x USB 2.0 Type A port (iDRAC/BMC Direct) 1 x USB 2.0 Type A port (optional) 1 x Mini-DisplayPort (optional) Rear Ports 1 x Dedicated ethernet port for iDRAC management 1 x VGA 2 x USB 3.1 Type A ports Internal Ports 1 x USB 3.1 Type A port |
| Slots | PCIe Up to 8 x16 Gen5 PCIe slots Video Card 1 x VGA Bezel Optional security bezel |
| Form Factor | 4U rack server |
| Dimensions & Weight | Height 6.86 in. (174.30 mm) Width 18.98 in. (482.00 mm) Depth 35.42 in. (899.56 mm) with bezel 34.91 in. (886.73 mm) without bezel Weights 157.30 lb (71.35 kg) |
| Rack Support | Generic Tool-less stab-in sliding rail, support for tool-less installation in 19″ EIA-310-E compliant square hole and unthreaded round hole 4-post racks. Support for full extension of the system out of the rack to allow serviceability of key internal components. |
| Recommended Support | Reduce complexity and enable your IT teams to drive innovation with Dell Services. Unparalleled IT support, expert deployment, skilled management, as well as AI-powered technology that enhances your IT and end-user experiences. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region. For more information, go towww.delltechnologies.com/Services |
