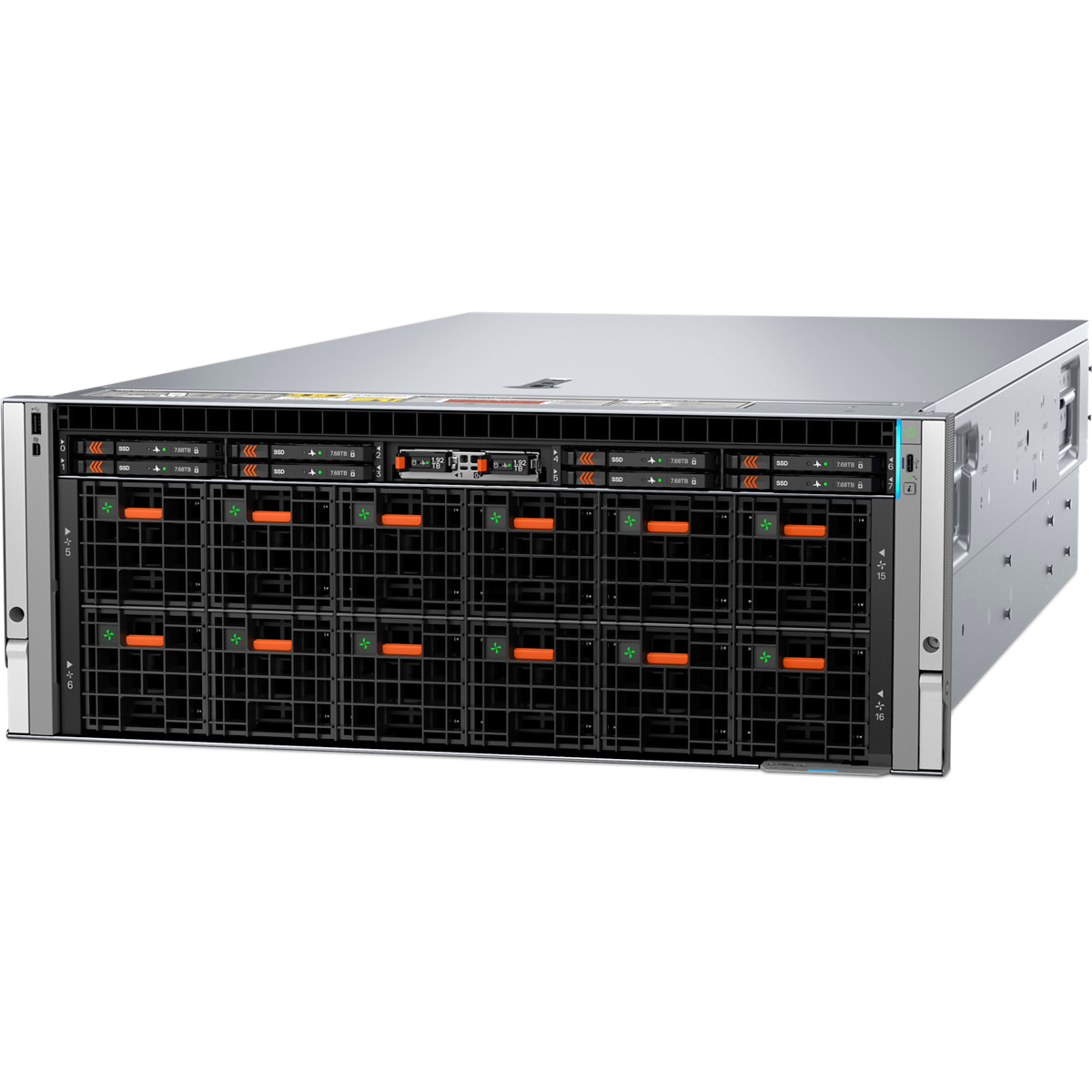

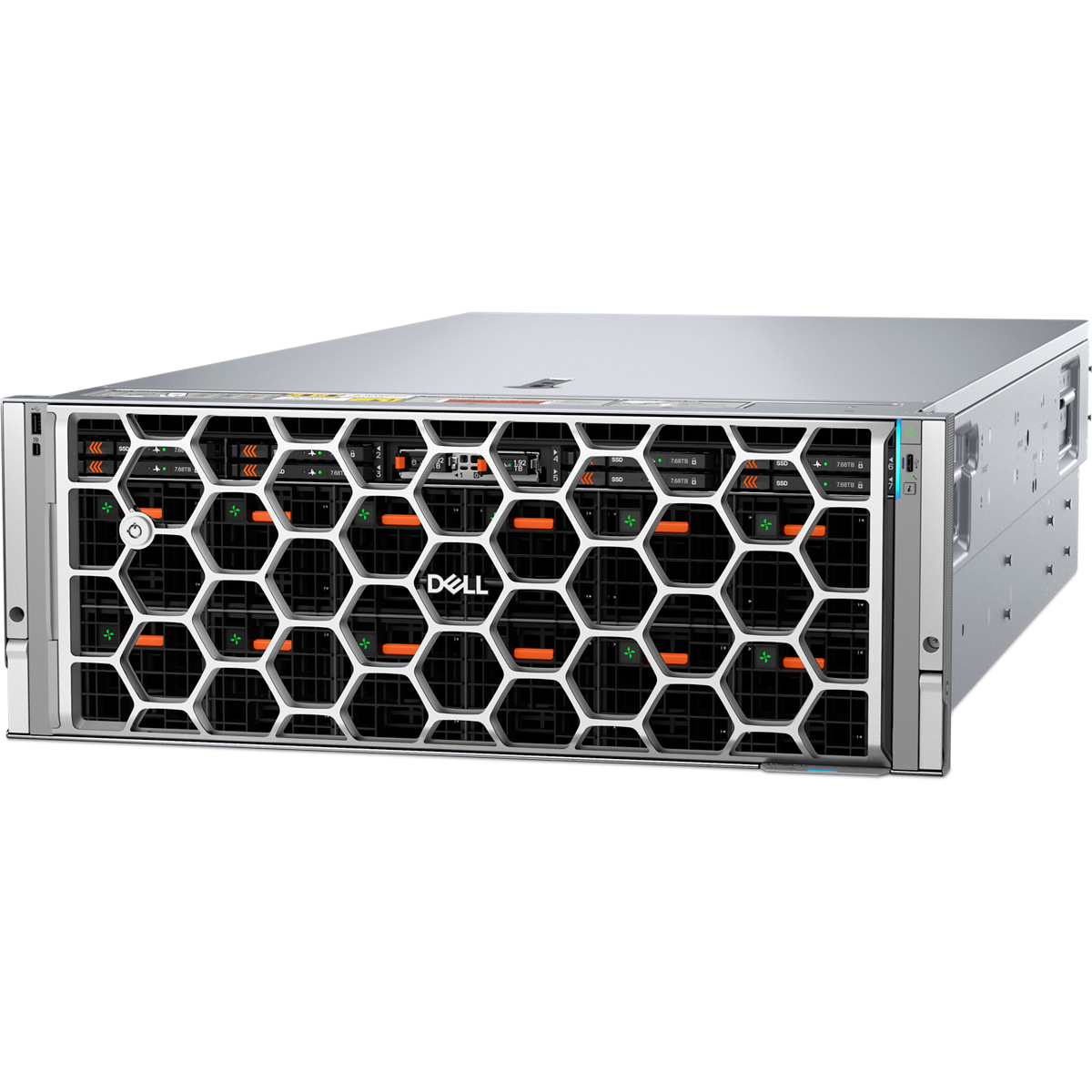

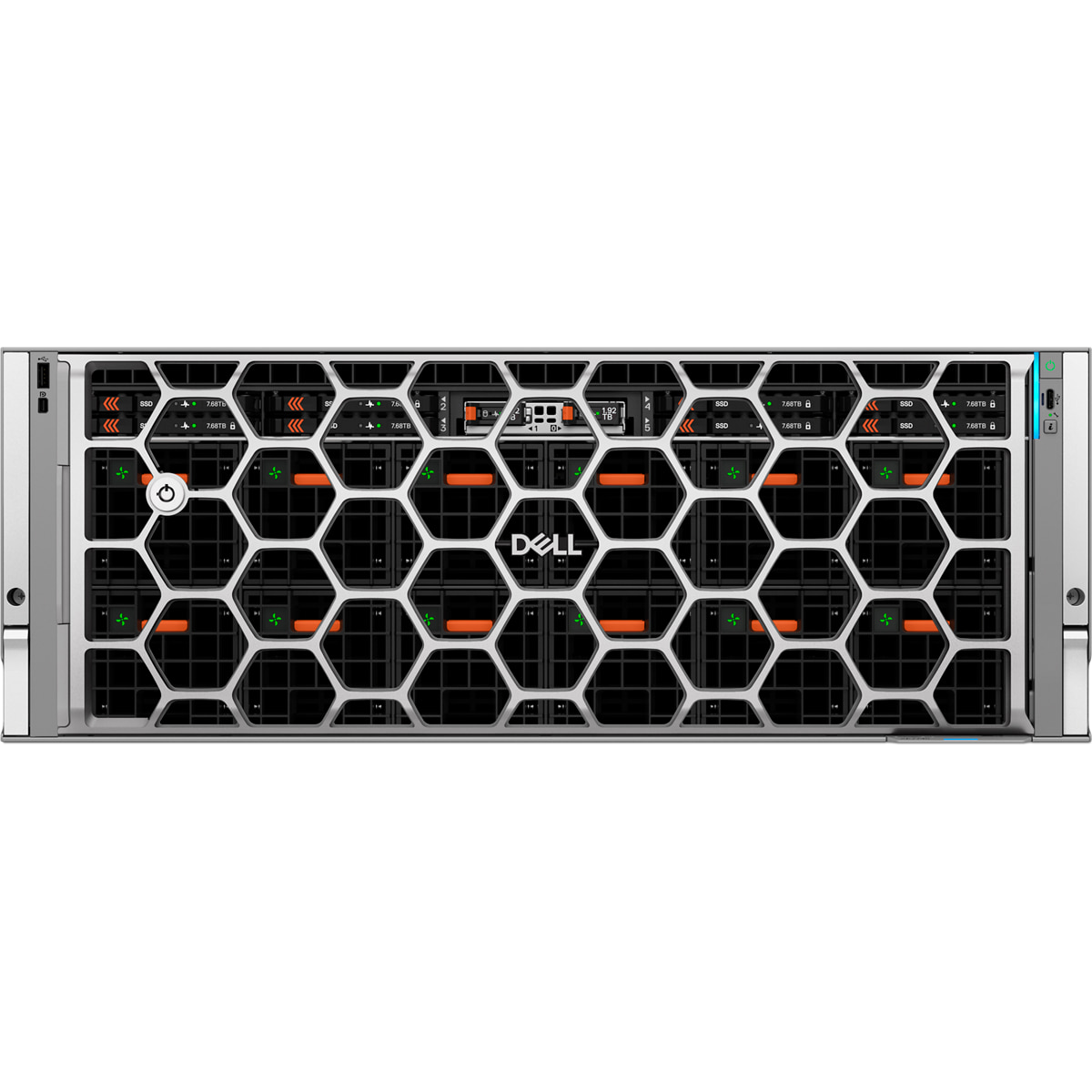

Dell PowerEdge XE7745
PowerEdge XE7745 empowers enterprise AI insights with flexible air-cooled PCIe GPU configurations for inferencing and model fine-tuning.
PowerEdge XE7745
PowerEdge XE7745 empowers enterprise AI insights with flexible air-cooled PCIe GPU configurations for inferencing and model fine-tuning.
Key Features
Flexible AI acceleration
PowerEdge XE7745 empowers enterprise AI insights with flexible air-cooled PCIe GPU configurations for inferencing and model fine-tuning.
Specifications
| Processor | Two AMD EPYC 9005 Series processor with up to 192 Zen5 cores per processor |
| Operating System | Canonical Ubuntu Server LTS RedHat Enterprise Linux SUSE Linux Enterprise Server VMWare ESXi |
| Chipset | AMD chipset |
| Accelerators | 8x PCIe Gen 5 x16 DW up to 600W or 16x PCIe Gen 5 x16 SW up to 75W |
| Memory | DIMM Speed Up to 6000 MT/s Memory Type RDIMM Memory Module Slots 24 DDR5 DIMM slot Maximum RAM RDIMM 3.072 TB |
| Storage | Front Bays Up to 8 x EDSFF E3.S Gen5 NVMe (SSD) max 122.88 TB Mid Bay N/A Rear Bay N/A |
| Storage Controllers | Internal Boot Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS): HWRAID 1, 2 x M.2 NVMe SSDs USB Internal controllers NA |
| Security | Cryptographically signed firmware Data at Rest Encryption (SEDs with local or external key mgmt) (available with future releases) Secure Boot Secured Component Verification (Hardware integrity check) Silicon Root of Trust Secure Erase System Lockdown (requires iDRAC10 Enterprise or Datacenter) (available with future releases) TPM 2.0 FIPS, CC-TCG certified AMD Secure Memory Encryption (SME) AMD Secure Encrypted Virtualization (SEV) |
| Management | Embedded / At-the-Server iDRAC10* iDRAC Direct iDRAC RESTful API with Redfish Tools Dell Repository Manager Dell System Update Enterprise Catalogs iDRAC RESTful API with Redfish IPMI RACADM CLI *Expected to be available in the first half of2025. Planned Offerings are subject tochange and may not be released as originallydesigned.​ |
| Power Supplies | 3200 W Titanium 200—240 VAC or 240 VDC Fans Up to four sets of high performance (HPR) platinum grade fans (dual fan module) installed in mid tray Up to twelve high performance (HPR) platinum grade fans installed on the front of the system |
| Ports | Network Options OCP NIC card 3.1 Front Ports 1 x USB 2.0 Type A port 1 x USB 2.0 Type A port (iDRAC/BMC Direct) 1 x Mini-DisplayPort (optional) Rear Ports 1 x Dedicated ethernet port for iDRAC management 1 x VGA 2 x USB 3.1 Type A ports Internal Ports 1 x USB 3.1 Type A port (optional) |
| Slots | PCIe Up to 8 x 16 lane PCIe slots (in addition to 16 internal GPU PCIe slots) Video Card 1 x VGA Bezel Optional security bezel |
| Form Factor | 4U rack server |
| Dimensions & Weight | Height 6.86 in. (174.3 mm) Width 18.98 in. (482.00 mm) Depth 35.42 in. (899.56 mm) with bezel 34.91 in. (886.73 mm) without bezel Weight 151.02 lbs (68.5 Kg) |
| Rack Support | Generic Tool-less stab-in sliding rail, Support for tool-less installation in 19″” EIA-310-E compliant square hole and unthreaded round hole 4-post racks. Support for full extension of the system out of the rack to allow serviceability of key internal components. |
| Recommended Support | Reduce complexity and enable your IT teams to drive innovation with Dell Services. Unparalleled IT support, expert deployment, skilled management, as well as AI-powered technology that enhances your IT and end-user experiences. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region. For more information, go towww.delltechnologies.com/Services |
| Processor | Two AMD EPYC 9005 Series processor with up to 192 Zen5 cores per processor |
| Operating System | Canonical Ubuntu Server LTS RedHat Enterprise Linux SUSE Linux Enterprise Server VMWare ESXi |
| Chipset | AMD chipset |
| Accelerators | 8x PCIe Gen 5 x16 DW up to 600W or 16x PCIe Gen 5 x16 SW up to 75W |
| Memory | DIMM Speed Up to 6000 MT/s Memory Type RDIMM Memory Module Slots 24 DDR5 DIMM slot Maximum RAM RDIMM 3.072 TB |
| Storage | Front Bays Up to 8 x EDSFF E3.S Gen5 NVMe (SSD) max 122.88 TB Mid Bay N/A Rear Bay N/A |
| Storage Controllers | Internal Boot Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS): HWRAID 1, 2 x M.2 NVMe SSDs USB Internal controllers NA |
| Security | Cryptographically signed firmware Data at Rest Encryption (SEDs with local or external key mgmt) (available with future releases) Secure Boot Secured Component Verification (Hardware integrity check) Silicon Root of Trust Secure Erase System Lockdown (requires iDRAC10 Enterprise or Datacenter) (available with future releases) TPM 2.0 FIPS, CC-TCG certified AMD Secure Memory Encryption (SME) AMD Secure Encrypted Virtualization (SEV) |
| Management | Embedded / At-the-Server iDRAC10* iDRAC Direct iDRAC RESTful API with Redfish Tools Dell Repository Manager Dell System Update Enterprise Catalogs iDRAC RESTful API with Redfish IPMI RACADM CLI *Expected to be available in the first half of2025. Planned Offerings are subject tochange and may not be released as originallydesigned.​ |
| Power Supplies | 3200 W Titanium 200—240 VAC or 240 VDC Fans Up to four sets of high performance (HPR) platinum grade fans (dual fan module) installed in mid tray Up to twelve high performance (HPR) platinum grade fans installed on the front of the system |
| Ports | Network Options OCP NIC card 3.1 Front Ports 1 x USB 2.0 Type A port 1 x USB 2.0 Type A port (iDRAC/BMC Direct) 1 x Mini-DisplayPort (optional) Rear Ports 1 x Dedicated ethernet port for iDRAC management 1 x VGA 2 x USB 3.1 Type A ports Internal Ports 1 x USB 3.1 Type A port (optional) |
| Slots | PCIe Up to 8 x 16 lane PCIe slots (in addition to 16 internal GPU PCIe slots) Video Card 1 x VGA Bezel Optional security bezel |
| Form Factor | 4U rack server |
| Dimensions & Weight | Height 6.86 in. (174.3 mm) Width 18.98 in. (482.00 mm) Depth 35.42 in. (899.56 mm) with bezel 34.91 in. (886.73 mm) without bezel Weight 151.02 lbs (68.5 Kg) |
| Rack Support | Generic Tool-less stab-in sliding rail, Support for tool-less installation in 19″” EIA-310-E compliant square hole and unthreaded round hole 4-post racks. Support for full extension of the system out of the rack to allow serviceability of key internal components. |
| Recommended Support | Reduce complexity and enable your IT teams to drive innovation with Dell Services. Unparalleled IT support, expert deployment, skilled management, as well as AI-powered technology that enhances your IT and end-user experiences. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region. For more information, go towww.delltechnologies.com/Services |
