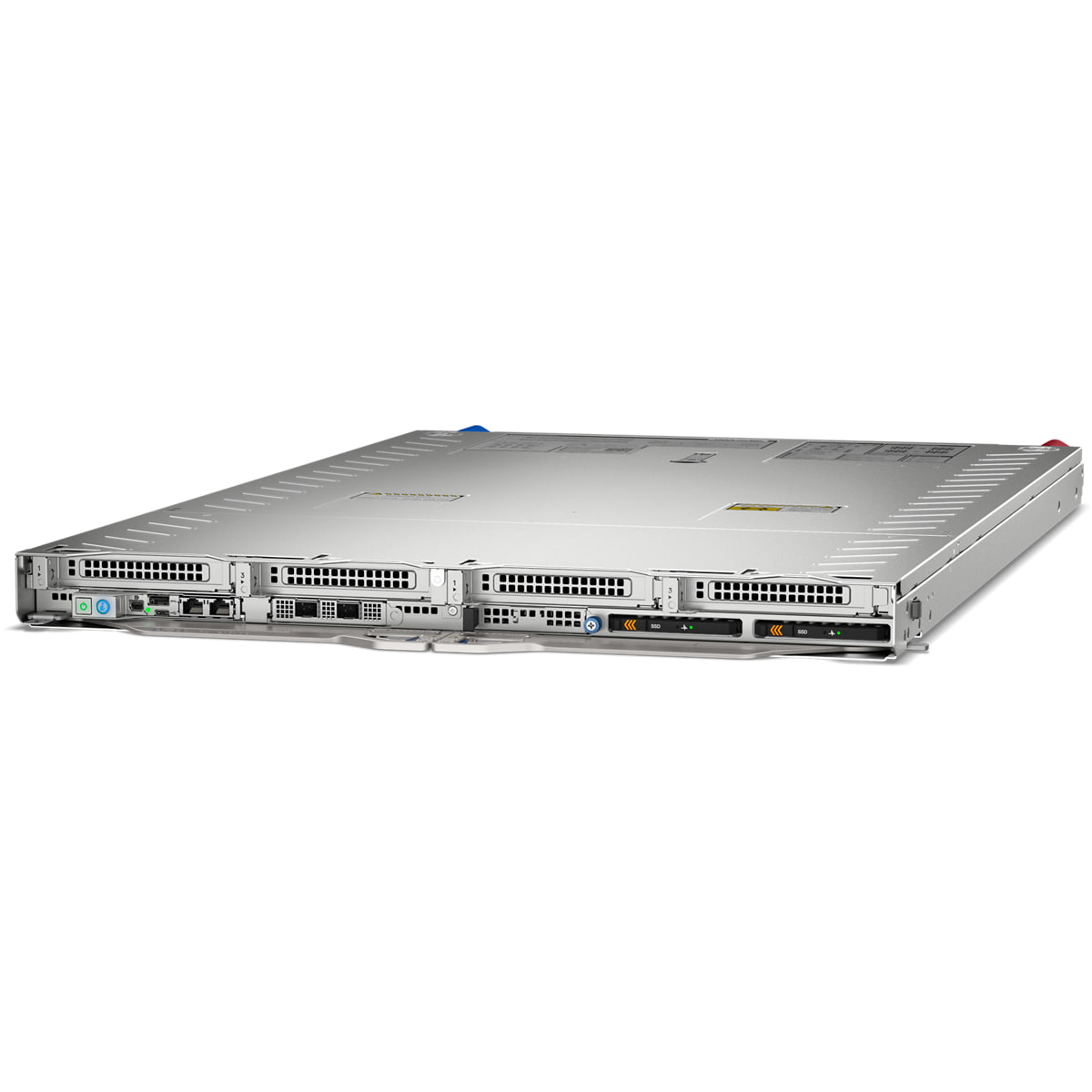

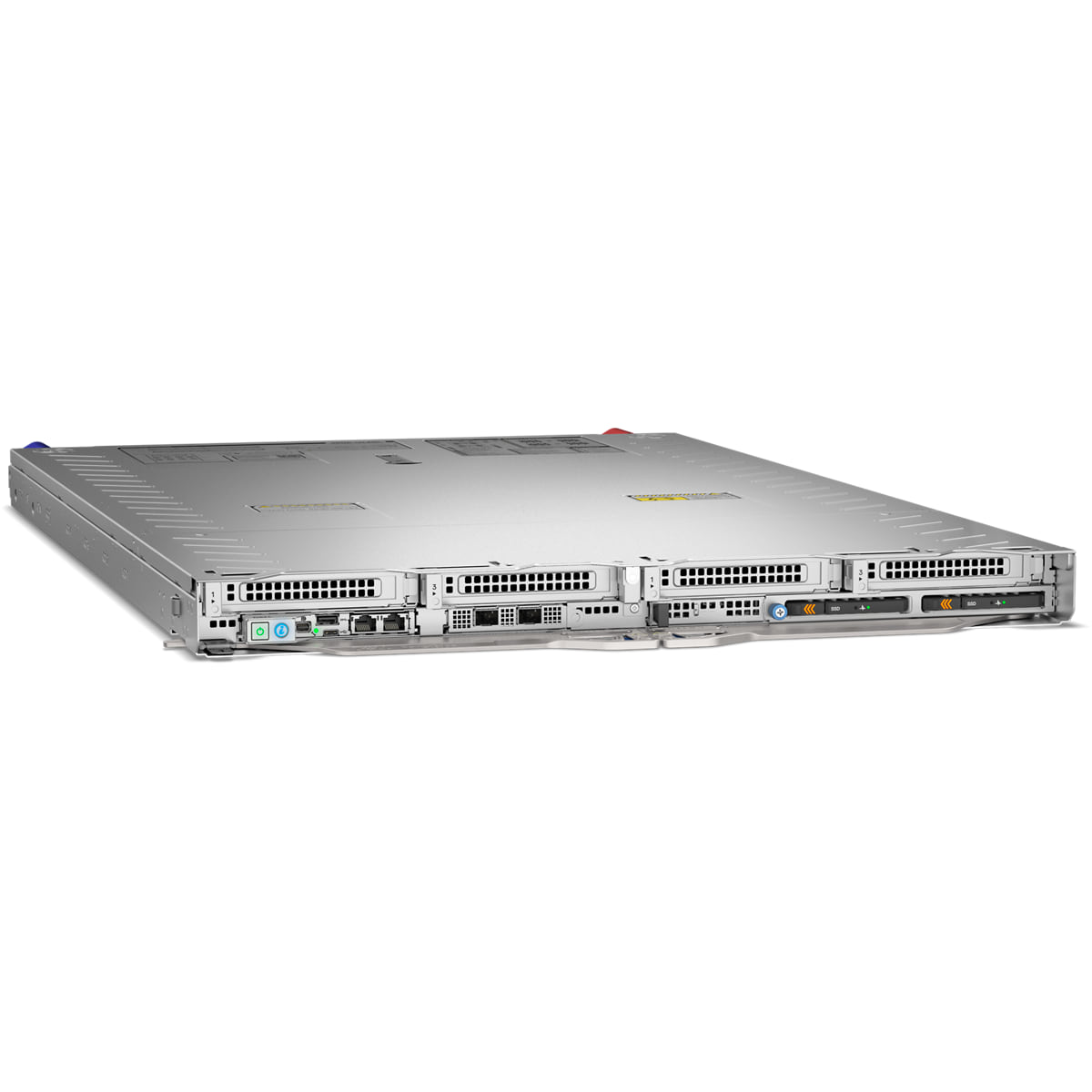

Dell PowerEdge XE8712
Purpose-built for the future of AI, delivering unmatched performance and scalability to drive the next generation of AI models
PowerEdge XE8712
Purpose-built for the future of AI, delivering unmatched performance and scalability to drive the next generation of AI models
Key Features
Redefining AI infrastructure
Purpose-built for the future of AI, delivering unmatched performance and scalability to drive the next generation of AI models
Specifications
| Processor | Two Nvidia Grace with 72 cores per processor Cooling options Direct Liquid Cooling (DLC) |
| Operating System | Red Hat Enterprise Linux |
| Accelerators | 4 Blackwell Ultra GPUs 900GB/s of coherent memory through NVLINK CPU-GPU interconnect |
| Memory | 480 GB of LP DDR5 memory with error-correction code (ECC) / CPU 192 GB HBM3e / GPU |
| Storage | Front Bays Up to 2 x EDSFF E3.S hot-swappable NVMe drives |
| Storage Controllers | No HBA or PERC, direct NVMe only Integrated Rack Solution IR7044 or IR7050 ORv3 (OCP Open Rack version 3) Boot Drives 1 x M.2 Boot |
| Management | Embedded / At-the-Server Aspeed AST2600 BMC DC-SCI compatible iDRAC10 BMC-to-Nvidia HMC for HPM management |
| Power Supplies | IR7000 rack consists of Power Shelf 33kW (PS33) that supports 6 x 5500 W AC PSUs PS33 supplies up to 54 VDC to the XE8712 through Power bus bar located on IR7000 rack Fans Eight high performance gold (HPR GOLD) cooling fans |

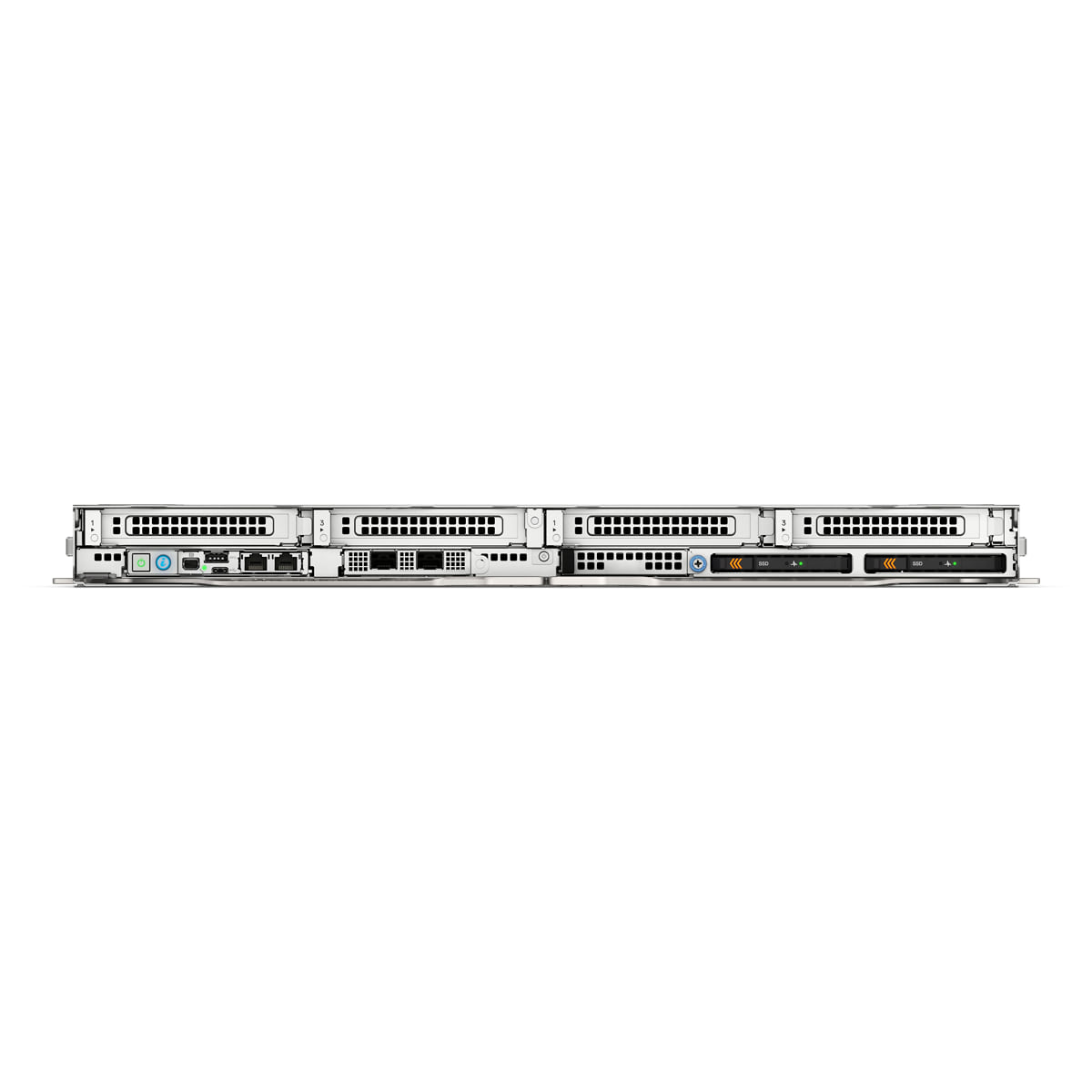

| Ports | Network Options 4 x16 CX7 or 2 CX8 OSFP ports Front Ports 1 x USB 3.0 Type – A port 1 x USB 2.0 Host/Managed Type – C port 2 x RJ45 dedicated iDRAC Ethernet ports 1 x Mini-DisplayPort |
| Slots | PCIe slots and Risers Up to 4 x16 FH HL Gen5, front risers only PCIe cards 1 x BF3 SuperNIC Full Height Half Length |

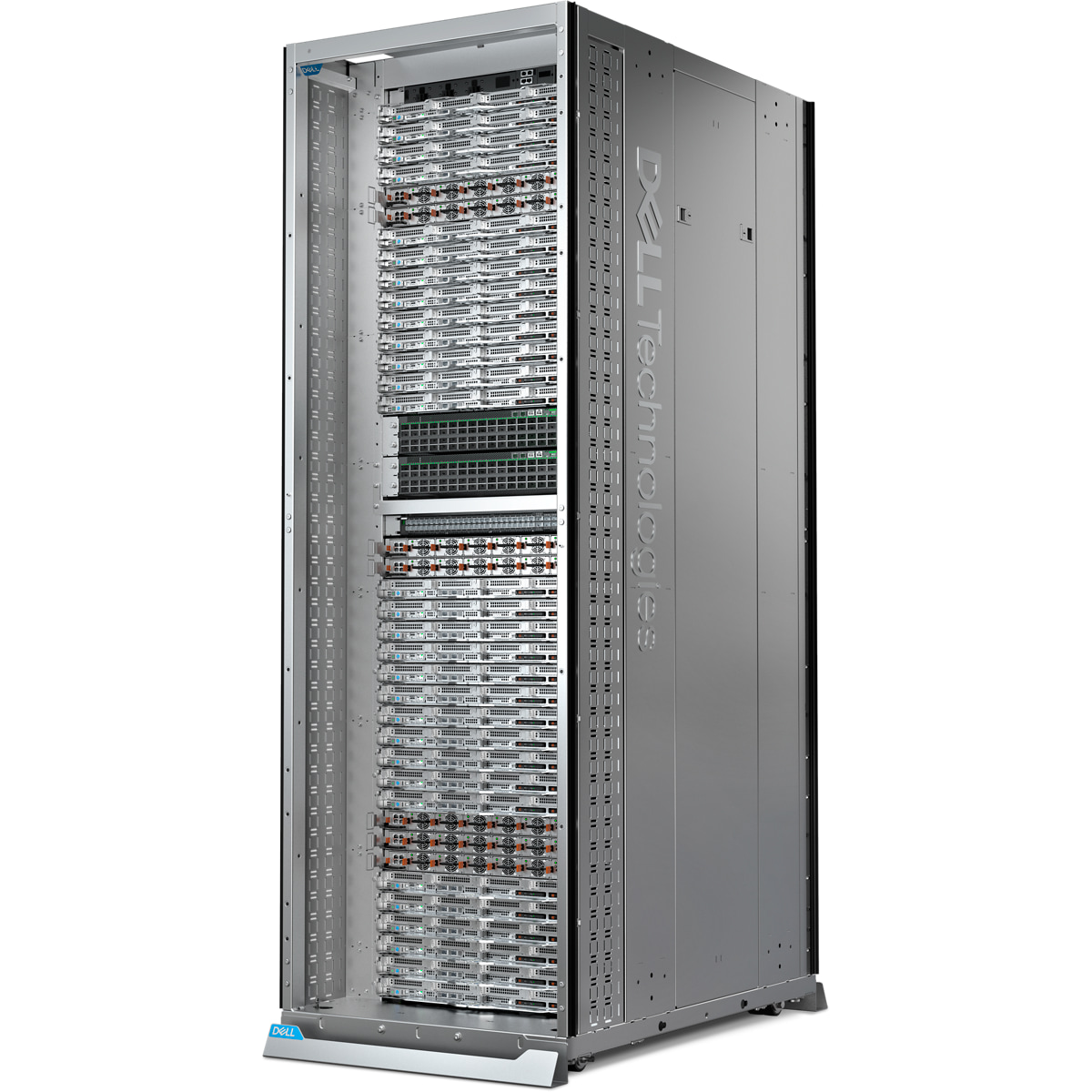

| Form Factor | IR7044 is a 44 OU (Open Rack Units) rack IR7050 is a 50 OU (Open Rack Units) rack Each XE8712 sled is 1 OU Note: 1 OU = 48 mm (1.88 inch) height, and 537 mm (21.14 inch) width. |
| Dimensions & Weight | IR7000 Rack Height 90.00 inches (2286.00 mm) for IR7044 rack 101.33 inches (2574.00 mm) for IR7050 rack Width 29.52 inches (750.00 mm) Depth 47.24 inches (1200.00 mm) 57.75 inches (1340.00 mm) with front and rear doors XE8712 Sled Height 1.83 inches (46.45mm) Width 22.05inches (560.00 mm) Depth 33.10inches (840.85mm) Weight Up to72.90pounds (33.07kg) |
| Rack Support | Static rails for ORv3 IR7000 rack |
| Recommended Support | Choose Dell ProSupport Plus or Dell ProSupport for premium hardware and software support. Consulting and deployment offerings are also available. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region. For more information, visitwww.delltechnologies.com/Services. |
| Processor | Two Nvidia Grace with 72 cores per processor Cooling options Direct Liquid Cooling (DLC) |
| Operating System | Red Hat Enterprise Linux |
| Accelerators | 4 Blackwell Ultra GPUs 900GB/s of coherent memory through NVLINK CPU-GPU interconnect |
| Memory | 480 GB of LP DDR5 memory with error-correction code (ECC) / CPU 192 GB HBM3e / GPU |
| Storage | Front Bays Up to 2 x EDSFF E3.S hot-swappable NVMe drives |
| Storage Controllers | No HBA or PERC, direct NVMe only Integrated Rack Solution IR7044 or IR7050 ORv3 (OCP Open Rack version 3) Boot Drives 1 x M.2 Boot |
| Management | Embedded / At-the-Server Aspeed AST2600 BMC DC-SCI compatible iDRAC10 BMC-to-Nvidia HMC for HPM management |
| Power Supplies | IR7000 rack consists of Power Shelf 33kW (PS33) that supports 6 x 5500 W AC PSUs PS33 supplies up to 54 VDC to the XE8712 through Power bus bar located on IR7000 rack Fans Eight high performance gold (HPR GOLD) cooling fans |
| Ports | Network Options 4 x16 CX7 or 2 CX8 OSFP ports Front Ports 1 x USB 3.0 Type – A port 1 x USB 2.0 Host/Managed Type – C port 2 x RJ45 dedicated iDRAC Ethernet ports 1 x Mini-DisplayPort |
| Slots | PCIe slots and Risers Up to 4 x16 FH HL Gen5, front risers only PCIe cards 1 x BF3 SuperNIC Full Height Half Length |
| Form Factor | IR7044 is a 44 OU (Open Rack Units) rack IR7050 is a 50 OU (Open Rack Units) rack Each XE8712 sled is 1 OU Note: 1 OU = 48 mm (1.88 inch) height, and 537 mm (21.14 inch) width. |
| Dimensions & Weight | IR7000 Rack Height 90.00 inches (2286.00 mm) for IR7044 rack 101.33 inches (2574.00 mm) for IR7050 rack Width 29.52 inches (750.00 mm) Depth 47.24 inches (1200.00 mm) 57.75 inches (1340.00 mm) with front and rear doors XE8712 Sled Height 1.83 inches (46.45mm) Width 22.05inches (560.00 mm) Depth 33.10inches (840.85mm) Weight Up to72.90pounds (33.07kg) |
| Rack Support | Static rails for ORv3 IR7000 rack |
| Recommended Support | Choose Dell ProSupport Plus or Dell ProSupport for premium hardware and software support. Consulting and deployment offerings are also available. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region. For more information, visitwww.delltechnologies.com/Services. |
