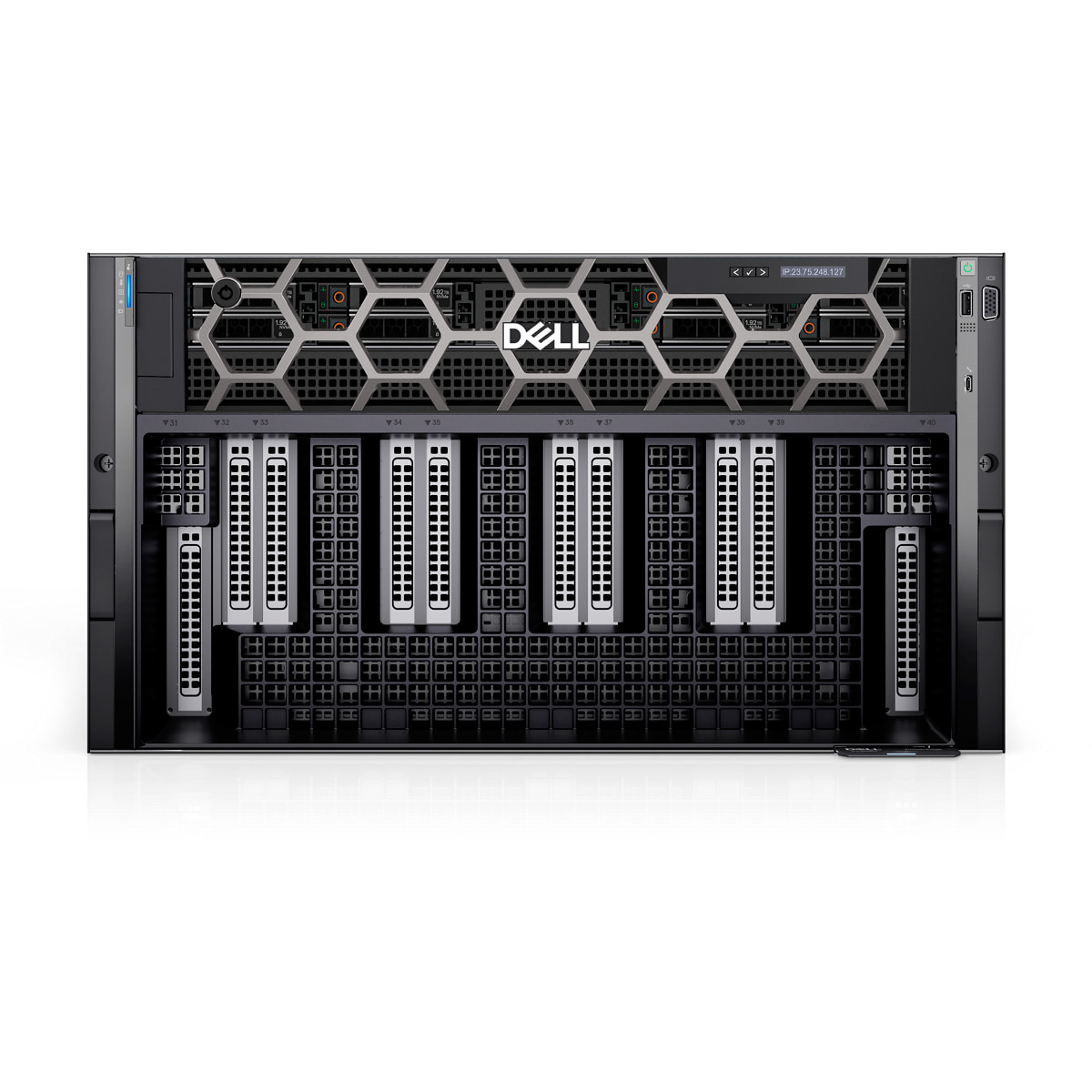

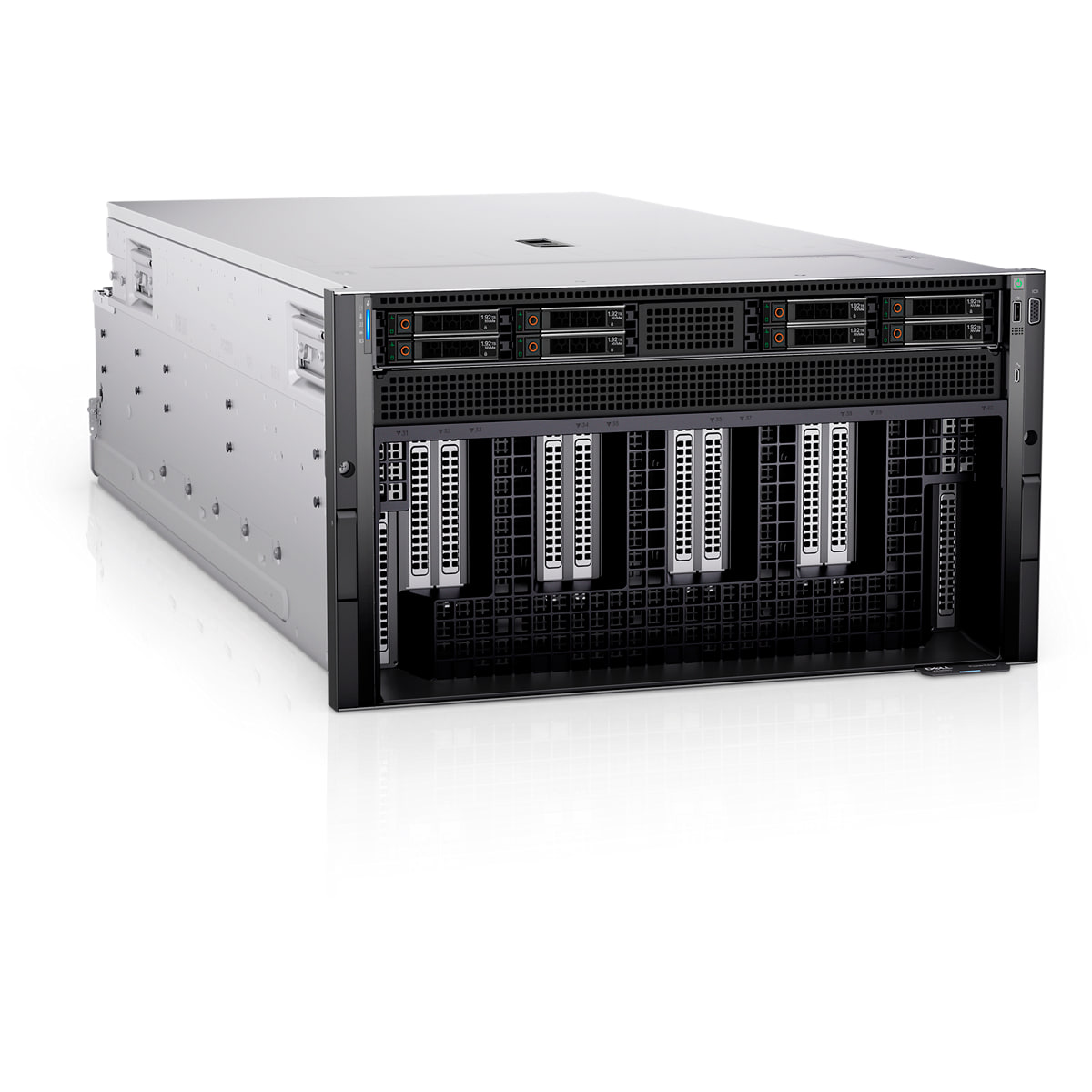

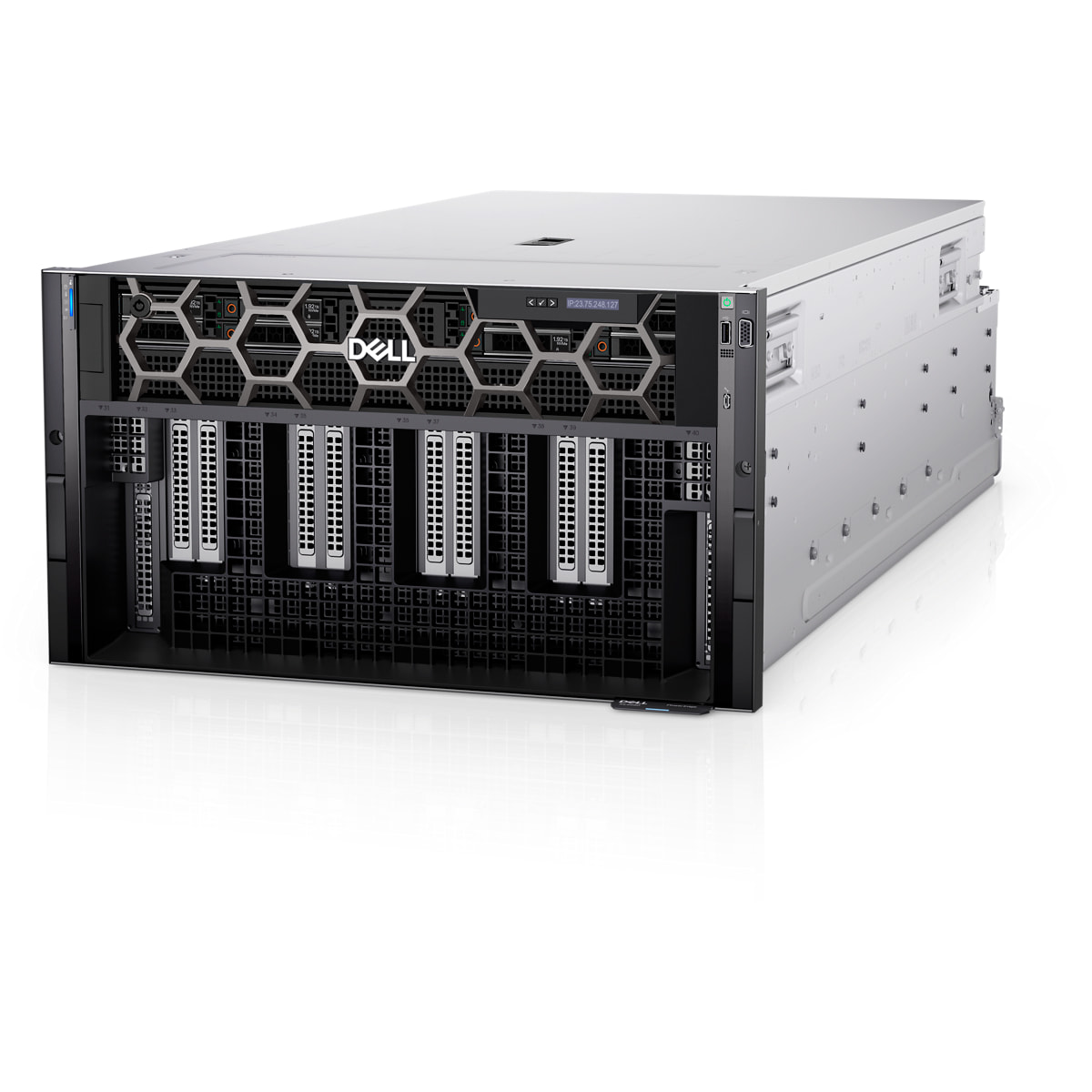

Dell PowerEdge XE9680
Rapidly develop, train and deploy large machine learning models with this high-performance application server made for artificial intelligence (AI), machine learning and deep learning. Dell’s PowerEdge XE9680 delivers the industry’s best AI performance.*
PowerEdge XE9680
Rapidly develop, train and deploy large machine learning models with this high-performance application server made for artificial intelligence (AI), machine learning and deep learning. Dell’s PowerEdge XE9680 delivers the industry’s best AI performance.*
Key Features
Take on demanding artificial intelligence, machine learning and deep learning
Rapidly develop, train and deploy large machine learning models with this high-performance application server made for artificial intelligence (AI), machine learning and deep learning. Dell’s PowerEdge XE9680 delivers the industry’s best AI performance.*
Specifications
| Processor | Two 5th Generation Intel®Xeon®Scalable processors with up to 64 cores per processor Two 4th Generation Intel®Xeon®Scalable processors with up to 56 cores per processor |
| Operating System | Canonical®Ubuntu®Server LTS Red Hat®Enterprise Linux SUSE Linux Enterprise Server VMware ESXi |
| Chipset | Intel®C741 chipset |
| Accelerators | 8 NVIDIA HGX H100 80GB 700W SXM5 GPUs, fully interconnected with NVIDIA NVLink technology or, 8 NVIDIA HGX H200 141GB 700W SXM5 GPUs, fully interconnected with NVIDIA NVLink technology or, 8 AMD Instinct MI300X 192GB 750W OAM accelerator with AMD Infinity Fabric connectivity, 8 Intel Gaudi3 128GB 900W OAM accelerator with embedded RoCE ports for ethernet connectivity |
| Memory | DIMM Speed Up to 5600 MT/s on the 5th Generation Intel®Xeon®Scalable processors Up to 4800 MT/s on the 4th Generation Intel®Xeon®Scalable processors Memory Type RDIMM Memory Module Slots 32 DDR5 DIMM slots Maximum RAM RDIMM 4 TB max |
| Storage | Front Bays Up to 8 x 2.5-inch NVMe/SAS/SATA SSD drives max 122.88 TB Up to 16 x E3.S NVMe direct drives max 122.88 TB Note: Only 8 x 2.5-inch NVMe SSD drives are supported with Intel Gaudi3. |
| Storage Controllers | Internal Controllers PERC H965i (Not supported with Intel Gaudi3) Internal Boot Boot Optimized Storage Subsystem (NVMe BOSS-N1): HWRAID 1, 2 x M.2 SSDs |
| Security | Cryptographically signed firmware Data at Rest Encryption (SEDs with local or external key mgmt) Secure Boot Secured Component Verification (Hardware integrity check) Secure Erase Silicon Root of Trust System Lockdown (requires iDRAC9 Enterprise or Datacenter) TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ |
| Management | Embedded / At-the-Server iDRAC9 iDRAC Direct iDRAC RESTful API with Redfish iDRAC Service Module Consoles CloudIQ for PowerEdge plug in OpenManage Enterprise OpenManage Power Manager plugin OpenManage Service plugin OpenManage Update Manager plugin Tools Dell System Update Dell Repository Manager Enterprise Catalogs iDRAC RESTful API with Redfish IPMI RACADM CLI OpenManage Integrations BMC Truesight OpenManage Integration with ServiceNow |
| Power Supplies | 2800W Titanium 200-240 VAC or 240 VDC redundant, hot swap Fans Up to 6 High performance (HPR) gold grade fans installed in mid tray Up to ten high performance (HPR) gold grade fans installed on the rear of the system (up to 12 fans with Intel Gaudi3) All are hot swap fans Embedded OSFP 6 x 800 Gb (available only with Intel Gaudi3) |
| Ports | Network Options 1 x OCP 3.0 (optional) 2 x 1GbE LOM (optional) Front Ports 1 x iDRAC Direct (Micro-AB USB) port 1 x USB 2.0 1 x VGA Rear Ports 1 x USB 2.0 1 x USB 3.0 1 x VGA 1 x RJ45 iDRAC9 ethernet port |
| Slots | PCIe Up to 10 x16 Gen5 (x16 PCIe) full-height, half-length (8 PCIe slots with Intel Gaudi3) |
| Bezel | Optional LCD bezel or security bezel |
| Form Factor | 6U rack server |
| Dimensions & Weight | Height 10.36 in. (263.20 mm) Width 18.97 in. (482.00 mm) Depth 39.71 in. (1008.77 mm) with bezel 39.17 in. (995.00 mm) without bezel Weight up to 114.05 kg (251.44 lbs.) |
| Recommended Support | Choose Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your PowerEdge solution. Consulting and deployment offerings are also available. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region. |
| Processor | Two 5th Generation Intel®Xeon®Scalable processors with up to 64 cores per processor Two 4th Generation Intel®Xeon®Scalable processors with up to 56 cores per processor |
| Operating System | Canonical®Ubuntu®Server LTS Red Hat®Enterprise Linux SUSE Linux Enterprise Server VMware ESXi |
| Chipset | Intel®C741 chipset |
| Accelerators | 8 NVIDIA HGX H100 80GB 700W SXM5 GPUs, fully interconnected with NVIDIA NVLink technology or, 8 NVIDIA HGX H200 141GB 700W SXM5 GPUs, fully interconnected with NVIDIA NVLink technology or, 8 AMD Instinct MI300X 192GB 750W OAM accelerator with AMD Infinity Fabric connectivity, 8 Intel Gaudi3 128GB 900W OAM accelerator with embedded RoCE ports for ethernet connectivity |
| Memory | DIMM Speed Up to 5600 MT/s on the 5th Generation Intel®Xeon®Scalable processors Up to 4800 MT/s on the 4th Generation Intel®Xeon®Scalable processors Memory Type RDIMM Memory Module Slots 32 DDR5 DIMM slots Maximum RAM RDIMM 4 TB max |
| Storage | Front Bays Up to 8 x 2.5-inch NVMe/SAS/SATA SSD drives max 122.88 TB Up to 16 x E3.S NVMe direct drives max 122.88 TB Note: Only 8 x 2.5-inch NVMe SSD drives are supported with Intel Gaudi3. |
| Storage Controllers | Internal Controllers PERC H965i (Not supported with Intel Gaudi3) Internal Boot Boot Optimized Storage Subsystem (NVMe BOSS-N1): HWRAID 1, 2 x M.2 SSDs |
| Security | Cryptographically signed firmware Data at Rest Encryption (SEDs with local or external key mgmt) Secure Boot Secured Component Verification (Hardware integrity check) Secure Erase Silicon Root of Trust System Lockdown (requires iDRAC9 Enterprise or Datacenter) TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ |
| Management | Embedded / At-the-Server iDRAC9 iDRAC Direct iDRAC RESTful API with Redfish iDRAC Service Module Consoles CloudIQ for PowerEdge plug in OpenManage Enterprise OpenManage Power Manager plugin OpenManage Service plugin OpenManage Update Manager plugin Tools Dell System Update Dell Repository Manager Enterprise Catalogs iDRAC RESTful API with Redfish IPMI RACADM CLI OpenManage Integrations BMC Truesight OpenManage Integration with ServiceNow |
| Power Supplies | 2800W Titanium 200-240 VAC or 240 VDC redundant, hot swap Fans Up to 6 High performance (HPR) gold grade fans installed in mid tray Up to ten high performance (HPR) gold grade fans installed on the rear of the system (up to 12 fans with Intel Gaudi3) All are hot swap fans Embedded OSFP 6 x 800 Gb (available only with Intel Gaudi3) |
| Ports | Network Options 1 x OCP 3.0 (optional) 2 x 1GbE LOM (optional) Front Ports 1 x iDRAC Direct (Micro-AB USB) port 1 x USB 2.0 1 x VGA Rear Ports 1 x USB 2.0 1 x USB 3.0 1 x VGA 1 x RJ45 iDRAC9 ethernet port |
| Slots | PCIe Up to 10 x16 Gen5 (x16 PCIe) full-height, half-length (8 PCIe slots with Intel Gaudi3) |
| Bezel | Optional LCD bezel or security bezel |
| Form Factor | 6U rack server |
| Dimensions & Weight | Height 10.36 in. (263.20 mm) Width 18.97 in. (482.00 mm) Depth 39.71 in. (1008.77 mm) with bezel 39.17 in. (995.00 mm) without bezel Weight up to 114.05 kg (251.44 lbs.) |
| Recommended Support | Choose Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your PowerEdge solution. Consulting and deployment offerings are also available. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region. |
