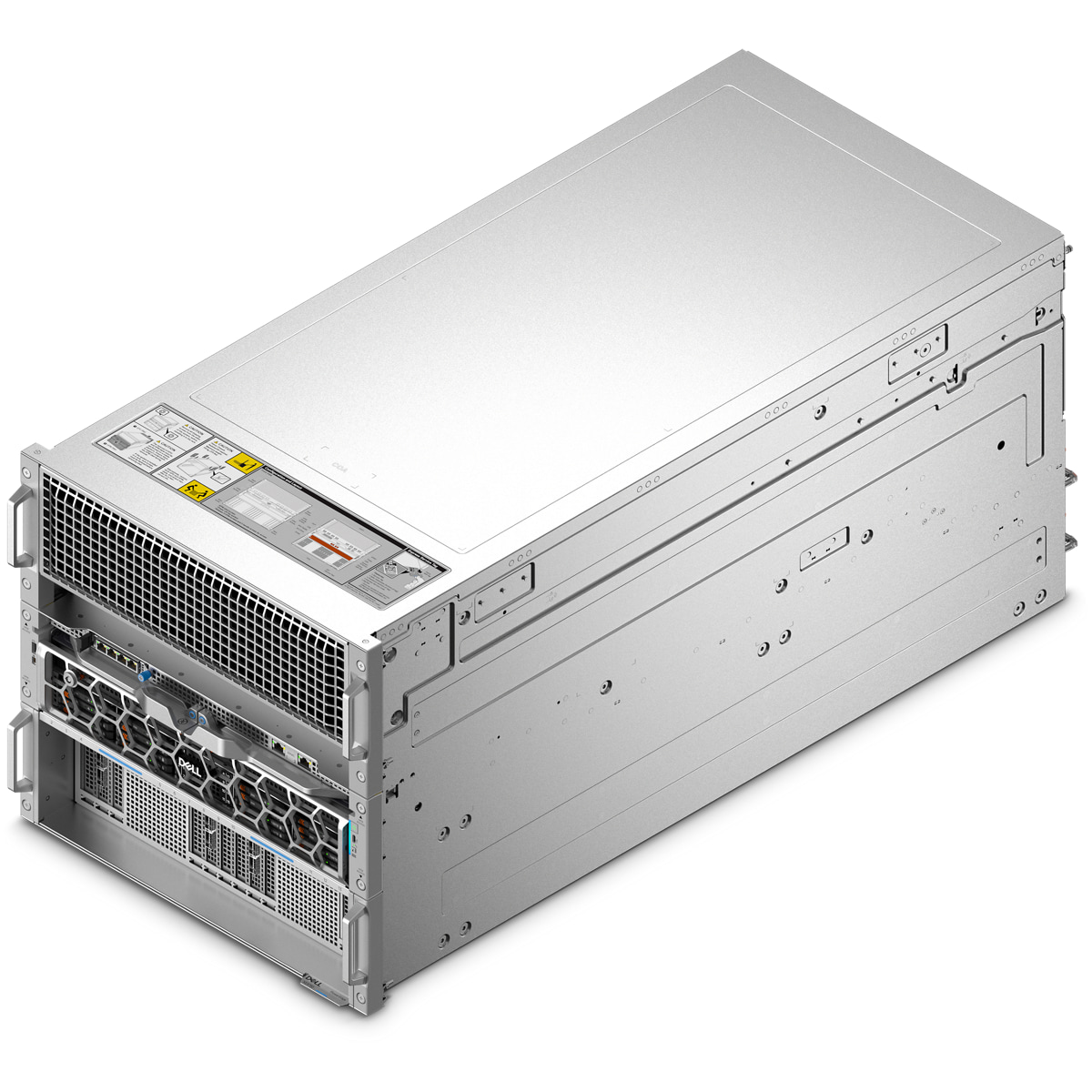

Dell PowerEdge XE9780
Air-cooled AI servers designed for performance, simplicity, and seamless integration.
PowerEdge XE9780
Air-cooled AI servers designed for performance, simplicity, and seamless integration.
Key Features
Built for AI model training and inferencing
Air-cooled AI servers designed for performance, simplicity, and seamless integration.
Specifications
| Processor | Two 6th Generation Intel Xeon Scalable processors with up to 86 cores per processor Cooling options Air cooling |
| Operating System | Canonical Ubuntu Server LTS Red Hat Enterprise Linux |
| Accelerators | 8 NVIDIA HGX B300 NVL8 270GB 1100W SXM6 GPUs, fully interconnected with NVIDIA NVLink technology 8 NVIDIA HGX B200 180GB 1000W SXM6 GPUs, fully interconnected with NVIDIA NVLink technology No GPU configuration |
| Memory | DIMM Speed Up to 6400 MT/s Memory Type RDIMM Memory Module Slots 32 DDR5 DIMM slots Maximum RAM RDIMM 4 TB max (32 x 128 GB) |
| Storage | Front Bays Up to 16 x E3.S NVMe direct drives max 122.88 TB Up to 10 x U.2 NVMe SSD drives max 153.6 TB No drive configuration |
| Storage Controllers | Internal Controllers NA Internal Boot Boot Optimized Storage Subsystem (NVMe BOSS-N1): HWRAID 1, 2 x M.2 SSDs |
| Security | Cryptographically signed firmware Data at Rest Encryption (SEDs with local or external key mgmt) Secure Boot Secured Component Verification (Hardware integrity check) Secure Erase Silicon Root of Trust System Lockdown (requires iDRAC10 Enterprise or Datacenter) Soldered down TPM on Mezzanine DC-SCM |
| Management | Embedded / At-the-Server iDRAC10 iDRAC Direct iDRAC RESTful API with Redfish iDRAC Service Module OpenManage Software CloudIQ for PowerEdge plug in OpenManage Enterprise OpenManage Power Manager plugin OpenManage Service plugin OpenManage Update Manager plugin Tools Dell System Update Dell Repository Manager Enterprise Catalogs iDRAC RESTful API with Redfish IPMI RACADM CLI OpenManage Integrations BMC Truesight OpenManage Integration with ServiceNow RedHat Ansible Modules Terraform Providers |
| Power Supplies | 12 x 3200W Titanium 200-240 VAC or 240 VDC, hot swap redundant Fans 15 Standard grade GPU fans, All are hot swap fans 5 Standard grade CPU fans, All are cold swap fans Embedded OSFP B300: 8 x CX8 OSFP (default) |
| Ports | Network Options 1 x OCP 3.0 (Gen5 x8 PCIe lanes) Front Ports 1 x iDRAC Direct (USB C) port 2 x RJ45 dedicated iDRAC Ethernet ports 1 x USB A 1 x Mini-DisplayPort |
| Slots | PCIe B300: 4 x 150W Gen5 x16 FHHL cards B200: up to 12 (8 x 75W, 4 x up to 150W) Gen5 x16 FHHL cards Bezel Front Security bezel |
| Dimensions & Weight | Height 17.30 inches (439.5 mm) Width 18.98 inches (482.3 mm) Depth 41.12 inches (1044.7 mm) with bezel 40.27 inches (1023 mm) without bezel Weight Up to 343.92 pounds (156 kg) |
| Rack Support | Static Rail |
| Recommended Support | Choose Dell ProSupport Plus or Dell ProSupport for premium hardware and software support. Consulting and deployment offerings are also available. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region. For more information, visitwww.delltechnologies.com/Services. |
| Processor | Two 6th Generation Intel Xeon Scalable processors with up to 86 cores per processor Cooling options Air cooling |
| Operating System | Canonical Ubuntu Server LTS Red Hat Enterprise Linux |
| Accelerators | 8 NVIDIA HGX B300 NVL8 270GB 1100W SXM6 GPUs, fully interconnected with NVIDIA NVLink technology 8 NVIDIA HGX B200 180GB 1000W SXM6 GPUs, fully interconnected with NVIDIA NVLink technology No GPU configuration |
| Memory | DIMM Speed Up to 6400 MT/s Memory Type RDIMM Memory Module Slots 32 DDR5 DIMM slots Maximum RAM RDIMM 4 TB max (32 x 128 GB) |
| Storage | Front Bays Up to 16 x E3.S NVMe direct drives max 122.88 TB Up to 10 x U.2 NVMe SSD drives max 153.6 TB No drive configuration |
| Storage Controllers | Internal Controllers NA Internal Boot Boot Optimized Storage Subsystem (NVMe BOSS-N1): HWRAID 1, 2 x M.2 SSDs |
| Security | Cryptographically signed firmware Data at Rest Encryption (SEDs with local or external key mgmt) Secure Boot Secured Component Verification (Hardware integrity check) Secure Erase Silicon Root of Trust System Lockdown (requires iDRAC10 Enterprise or Datacenter) Soldered down TPM on Mezzanine DC-SCM |
| Management | Embedded / At-the-Server iDRAC10 iDRAC Direct iDRAC RESTful API with Redfish iDRAC Service Module OpenManage Software CloudIQ for PowerEdge plug in OpenManage Enterprise OpenManage Power Manager plugin OpenManage Service plugin OpenManage Update Manager plugin Tools Dell System Update Dell Repository Manager Enterprise Catalogs iDRAC RESTful API with Redfish IPMI RACADM CLI OpenManage Integrations BMC Truesight OpenManage Integration with ServiceNow RedHat Ansible Modules Terraform Providers |
| Power Supplies | 12 x 3200W Titanium 200-240 VAC or 240 VDC, hot swap redundant Fans 15 Standard grade GPU fans, All are hot swap fans 5 Standard grade CPU fans, All are cold swap fans Embedded OSFP B300: 8 x CX8 OSFP (default) |
| Ports | Network Options 1 x OCP 3.0 (Gen5 x8 PCIe lanes) Front Ports 1 x iDRAC Direct (USB C) port 2 x RJ45 dedicated iDRAC Ethernet ports 1 x USB A 1 x Mini-DisplayPort |
| Slots | PCIe B300: 4 x 150W Gen5 x16 FHHL cards B200: up to 12 (8 x 75W, 4 x up to 150W) Gen5 x16 FHHL cards Bezel Front Security bezel |
| Dimensions & Weight | Height 17.30 inches (439.5 mm) Width 18.98 inches (482.3 mm) Depth 41.12 inches (1044.7 mm) with bezel 40.27 inches (1023 mm) without bezel Weight Up to 343.92 pounds (156 kg) |
| Rack Support | Static Rail |
| Recommended Support | Choose Dell ProSupport Plus or Dell ProSupport for premium hardware and software support. Consulting and deployment offerings are also available. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region. For more information, visitwww.delltechnologies.com/Services. |
