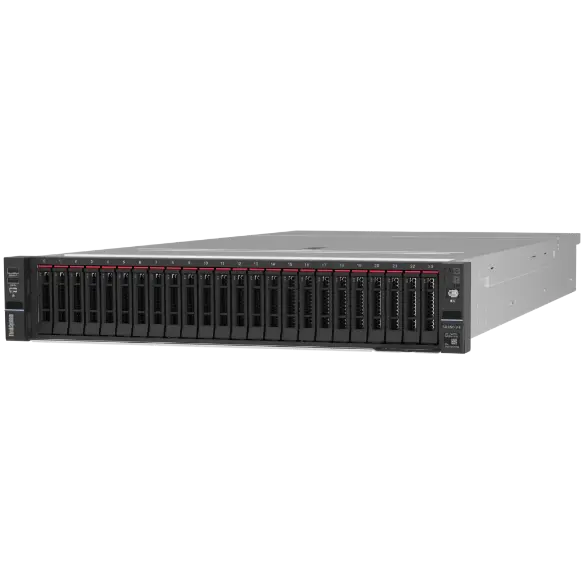

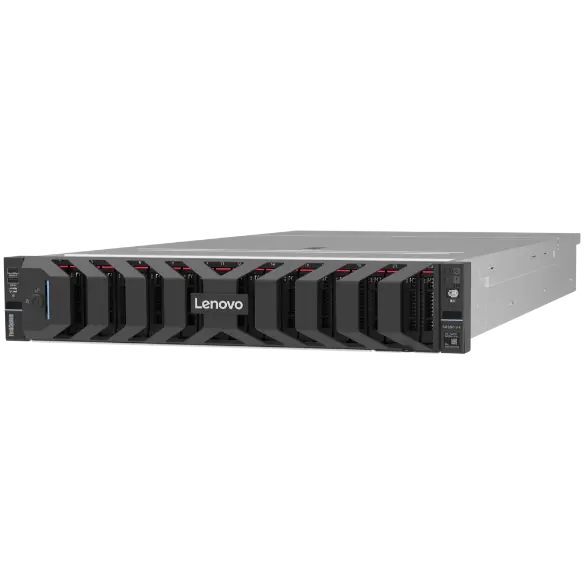

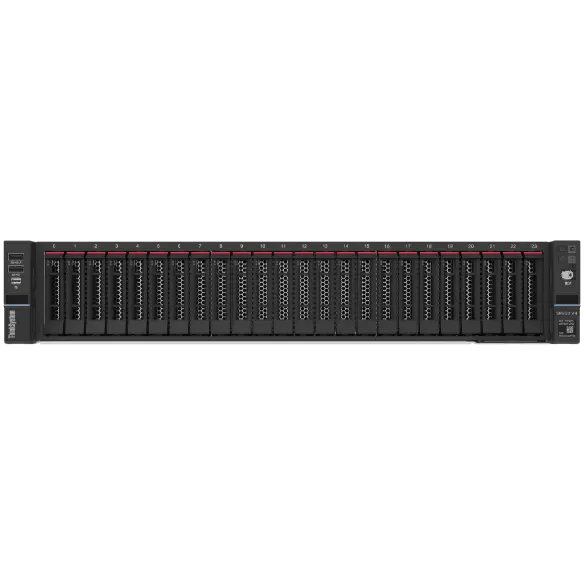

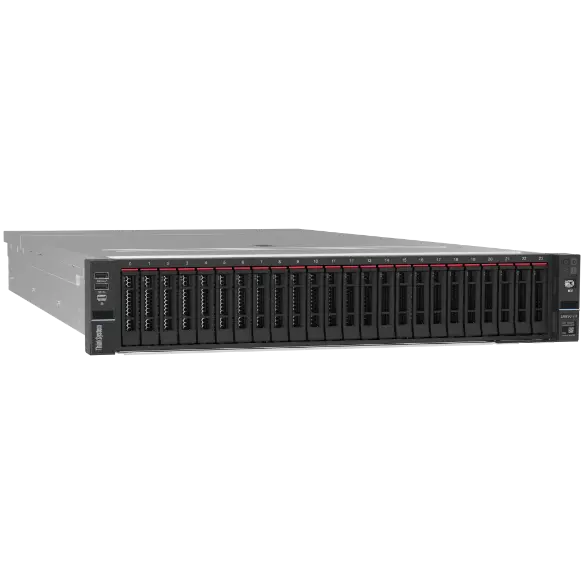

Lenovo Density & Performance in a 2U Form Factor

Density & Performance in a 2U Form Factor

2 or 4 Intel® Xeon® 6 processors (up to 350W); Mesh topology with 3x UPI links; With up to 4x QAT, DLB, IAA and DSA accelerators

Support Neptune™ Core open loop direct water cooling

Up to 2x double-width 400W GPUs or 4x single-width 75W GPUs

Up to 16TB DDR5 or 3DS RDIMM memory, CXL 2.0 enabled

Up to 32x E3.S 1T direct connection NVMe drives, or 24x 2.5” drive bays (24x NVMe direct connection) and up to 2x M.2 boot drives

Up to 12x slots (11x Gen5 + 1x Gen4) or 2x dedicated OCP 3.0 slots

Key Features

In-memory databases, ERP, CRM, BI platforms, and virtualization are the workloads that drive every enterprise. The ThinkSystem SR850 V4 is designed to be the scale up and scale out, performance-tuned engine that runs those workloads and propels your enterprise. With up to four Intel® Xeon® 6 processors, massive memory capacity and available expansion for up to two full-size GPUs and up to 32 drives, you can confidently run and scale your enterprise’s critical workloads on the ThinkSystem SR850 V4.

The Lenovo ThinkSystem 2U SR850 V4 4S supports up to 344 CPU cores and offers 33% more memory bandwidth* with the latest DDR5 memory. The new PCIe Gen5 technology eliminates bottlenecks from expansion slots to NVMe drives. SR850 V4 three more PCIe Gen 5 slots*. Support for up to two enterprise-grade full size GPUs, and 32 E3.S 1T or 24 2.5” direct connection NVMe drives, arm your organization with technologies that create exceptional performance and value needed for enterprise-class workloads. *Compared to ThinkSystem SR850 V3

When your system is down, minutes are hours. Running enterprise-class workloads requires enterprise-class uptime. The ThinkSystem SR850 V4 includes features like Predictive Failure Analysis and error detection to avoid downtime, with Lightpath diagnostics for fast failure identification to get you back up and running faster. Lenovo’s embedded XClarity Controller is like a built-in mini-computer that provides remote monitoring of key health indicators like temperature and voltage, while managing power states of the system – even if the hardware is powered down.

Specifications
