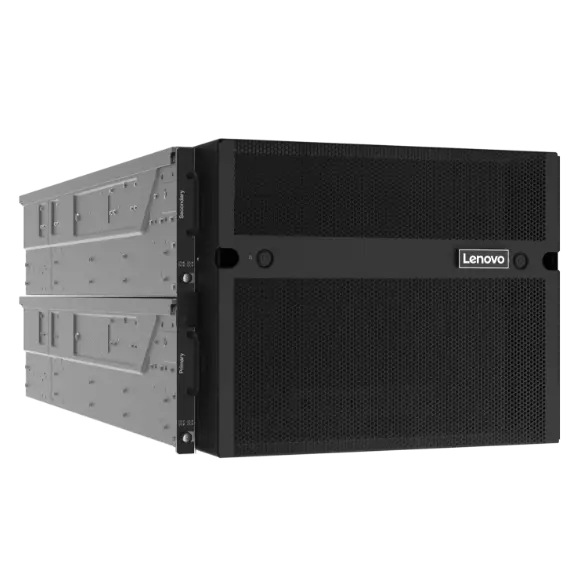

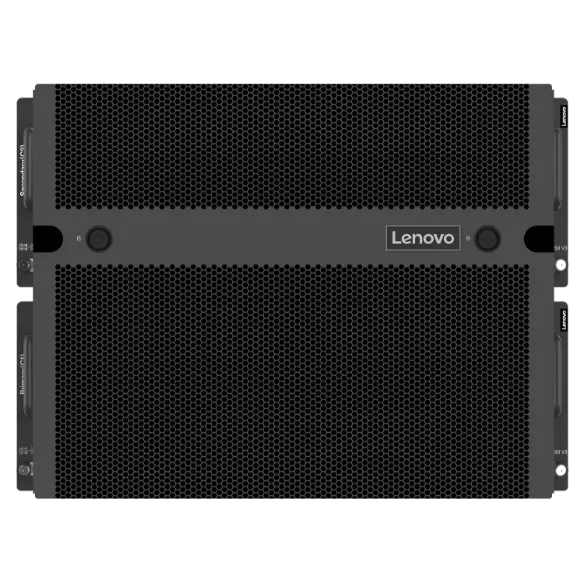

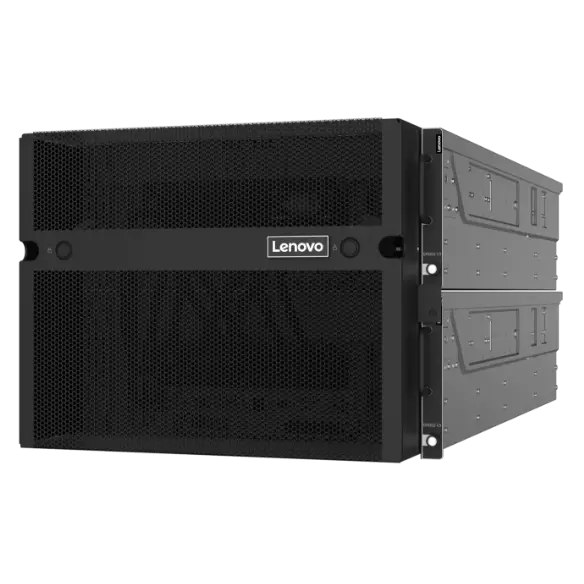

The unique, modular 8U/8S ThinkSystem SR950 V3 is a resilient, scalable system with large memory and storage capacity that runs the most crucial workloads and demanding applications.
Specifications
| Form Factor/Height | 8U rack |
| Processor | 8x 4th Gen Intel® Xeon® Scalable processors, up to 350W, No HBM, 4 UPI Mesh topology; With up to 4x QAT, DLB, IAA and DSA Accelerators |
| Drive Bays | Front: Up to 16x E3.S EDSFF PCIe 5.0 NVMe or up to 16x 2.5†SAS/SATA SSDs Internal: 2x M.2 NVMe |
| Memory | Up to 128x DDR5 memory DIMMs DDR5 RDIMMs: 32GB/64GB; 3DS RDIMMs 128GB/256GB 4800MHz @1DPC, 4400MHz @2DPC |
| Expansion Slots | Support 6x FHHL x16 PCIe 5.0 slots at frontSupport up to 8x FHHL x16 PCIe 4.0 slots at rearSupport up to 1x rear OCP (supports NCSI) |
| HANA Appliance | SAP Business Warehouse on HANA (BWoH) (Analytical) – 8TB 8S HANASAP Business Suite on HANA (SoH)/S/4HANA (Transactional) – 16TB 8S HANA |
| Network Interface | 1 OCP 3.0 slot supporting 1GbE, 10GbE or 25GbE1GbE dedicated management port |
| Ports | FIO LED (power, locate, error, network activity)Video Port – Front, external LCD operational portUSB 2x 3.0 – 1x USB 2.0 in FrontDedicated RJ-45 Ethernet management port |
| HBA/RAID Support | Common building block PCIe RAID/HBA cards |

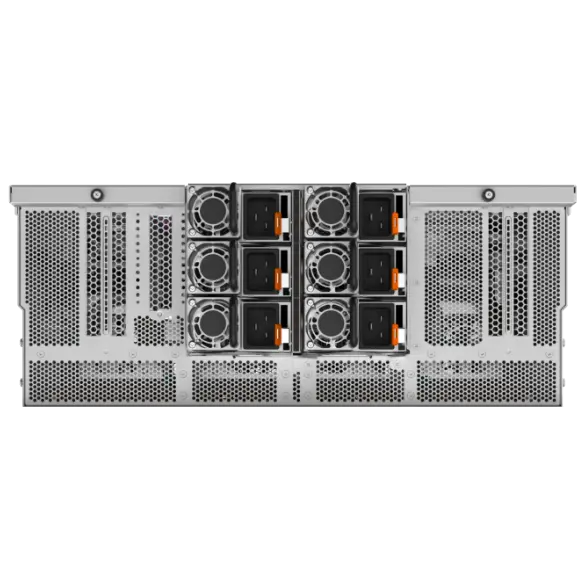

| Power Supply | Up to 12x PSUs, Redundant N+N CFFv4: 1800W Titanium |
| Systems Management | XClarity Controller embedded management, XClarity Administrator centralized infrastructure delivery, XClarity Integrator plugins, and XClarity Energy Manager centralized server power management |
| OS Support | SUSE, Red Hat, VMware vSphere; Visit lenovopress.com/osig for details. |
| Limited Warranty | 1-year and 3-year customer replaceable unit and onsite service, next business day 9×5; optional service upgrades |
