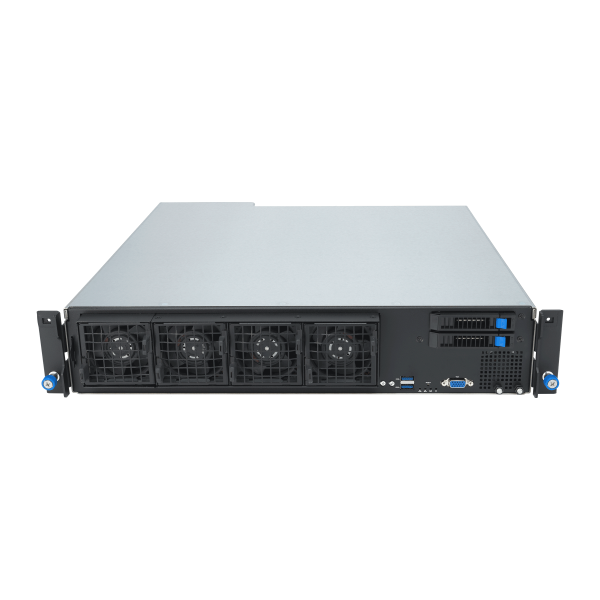

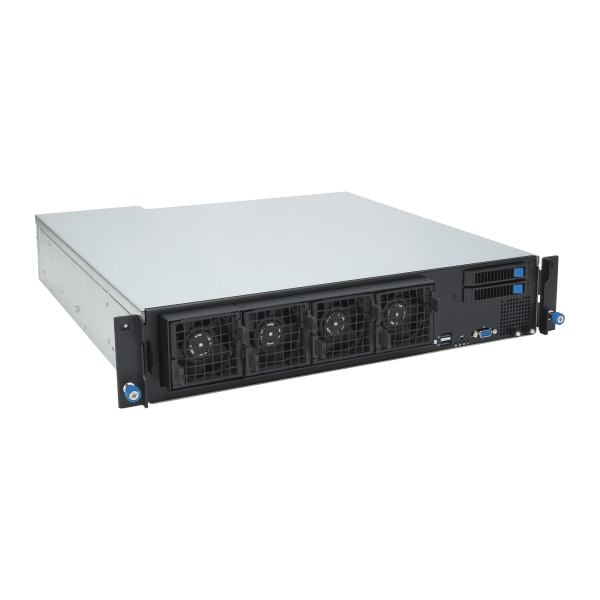

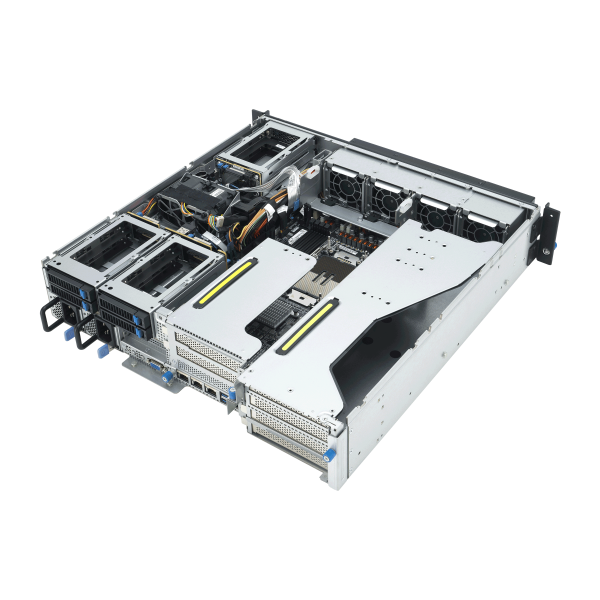

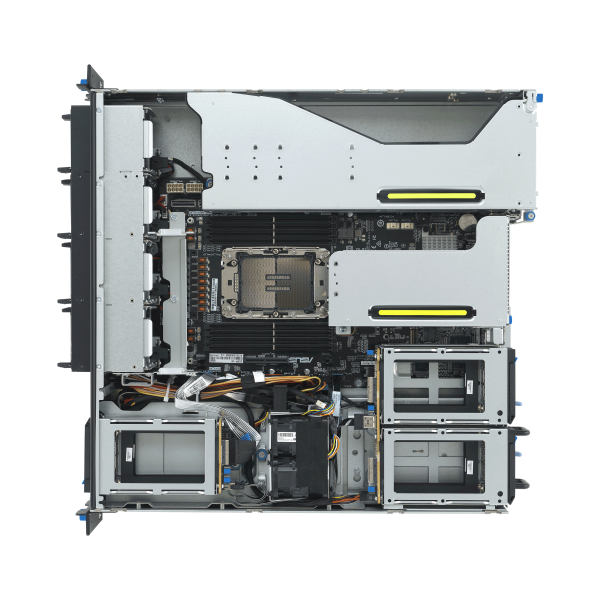

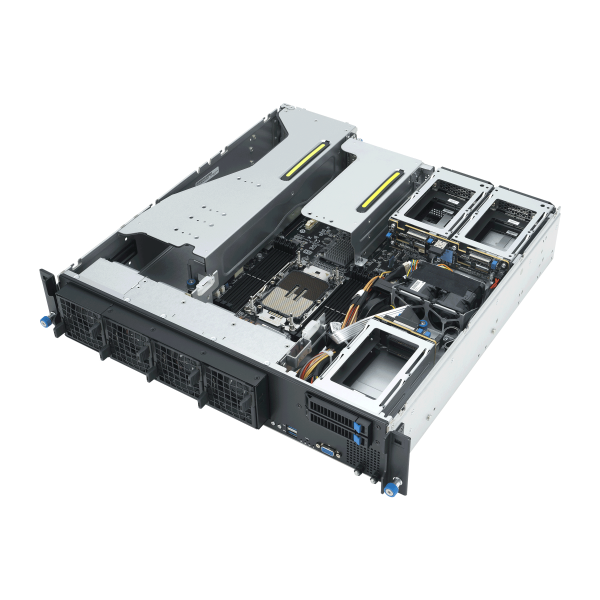

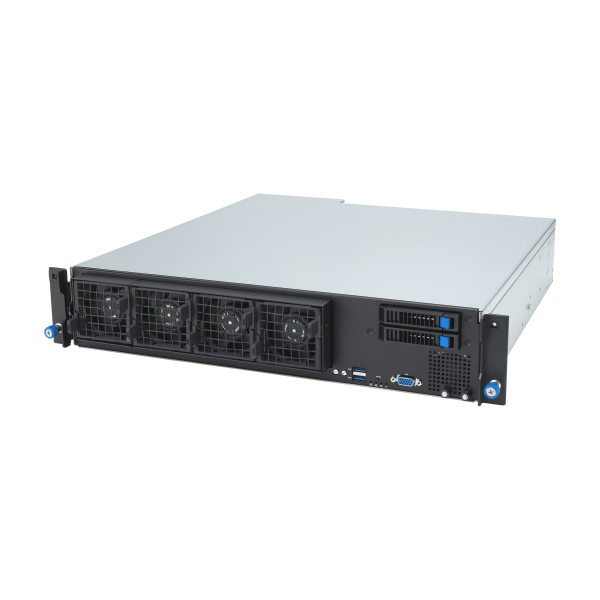

EG520-E11-RS6-R
2U Intel single-socket compact edge server with rear I/O access, one FHHL card, two FHFL cards, designed for 0–55°C environments**
Key Features
- Powered by 5th Gen Intel® Xeon® Scalable processors delivering up to 21%-greater general-purpose performance per watt, significantly improving AI inference and training
- Short-depth chassis and rear access design for space-limited edge environments
- Scalable expansion, with support for one FHHL card, two FHFL cards for GPU, two SATA/NVMe (front) and four SATA (rear).
- Designed for reliable operation in 0–55°C** environments Redundant AC PSU for data centers or server rooms
Specifications
| Processor / System Bus |
- 1x Socket E (LGA 4677)
- Intel®Xeon® Processor Scalable Family(Air cool with STD HSK Up to 350W)
- *Refer to support page for more information
|
| Core Logic |
|
| Memory |
- 8 x DIMM slots
- (8-channel,1 DIMM per channel)
- 4th:DDR5 4800 MHz RDIMM/3DS RDIMM (1DPC)
- 5th:DDR5 5600 MHz RDIMM/3DS RDIMM (1DPC)
- Maximum 2048GB
- * Refer to support page for more information
|
| Expansion Slots |
- Up to 5 slots
- PCIe Slot1~3: 2 x PCIe Gen5 x16 link (FHFL) or 3 x PCIe Gen5 x16/x8/x8 link (FHFL)
- PCIe Slot4~5: 1 x PCIe Gen5 x16 link (FHHL) or 2 x PCIe G5 x8 link (FHHL)
|
| Storage |
- 2x 2.5” Front Hot-swap drive bays(NVME/SATA)+
- 4x 2.5” Rear Hot-swap drive bays(SATA)
- 2x M.2 (22110/2280, Gen4 x4 Link)
|
| Networking |
- 2 x 10GbE LAN port
- 1x Management port
|
| Graphic |
- Up to 2 double-slot GPU cards (PCIe Slot1~3)
- *0–35°C for GPU-equipped SKUs
- Please find the latest GPU support from https://servers.asus.com/support/gpu
|
| Front I/O Ports |
- 2 x USB 3.2 Gen1 ports
- 1 x VGA port
|

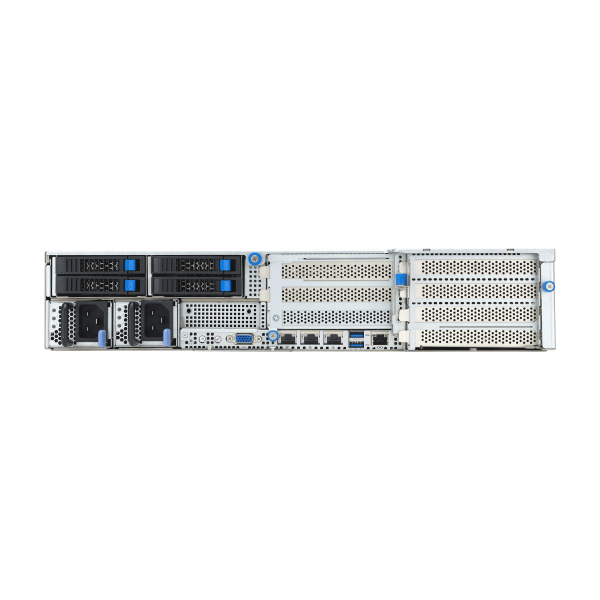

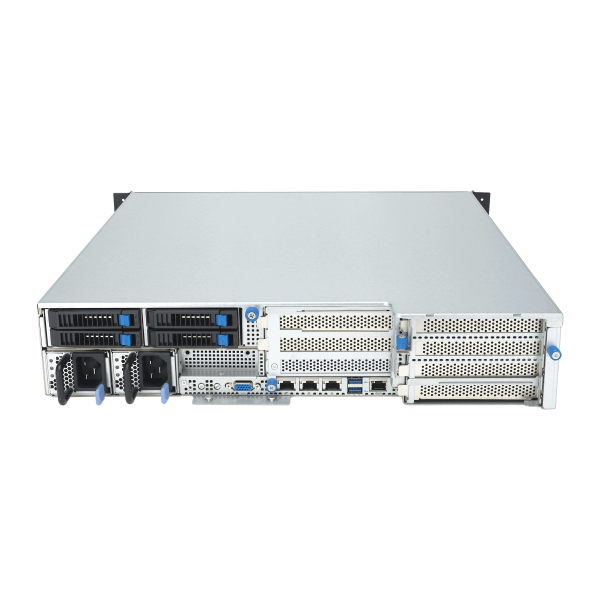

| Rear I/O Ports |
- 1 x VGA port
- 2 x USB 3.2 Gen1 ports
- 2 x RJ-45 10G LAN port
- 1 x RJ-45 Mgmt LAN port
- 1 x RJ-45 Console port
|
| Switch/LED |
- Front Switch/LED:
- 1 x Power Switch w/ LED
- 1 x Location Switch w/ LED
- 1 x Message LED
- 1 x reset button
- Rear Switch/LED:
- 1 x Power Switch (w/ LED)
- 1 x Location Switch (w/ LED)
- 1 x Message LED
- 2 x LAN LED
- 1 x HDD LED
- 1 x reset button
|
| OS Support |
- Please find the latest OS support from https://servers.asus.com/support/os
|
| Management Solution |
- ASUS Control Center Enterprise (Optional)
- On-Board ASMB11-iKVM for KVM-over-IP
|
| Dimensions |
- 430mm x 438.5mm x 87mm(2U)
- 16.93″ x 17.26″ x 3.43″
|
| Form Factor |
|
| Weight |
- Net Weight Kg (CPU, DRAM & HDD not included):
- 20.5kg (approximate)
- Gross Weight Kg (CPU, DRAM & HDD not included, Packing include):
- 22 kg (approximate)
|
| Power Supply |
- 1+1 Redundant
- 1300W 50.5MM SLIM Platinum Power Supply
- 2000W 54.5MM SLIM Titanium* Power Supply (TBD)
- *Titanium Power Supply is planning
|
| Note |
- Certain high TDP CPUs and GPU card may be supported only with specific conditions. Please contact ASUS Technical Support for additional information and Thermal solution about specialized system optimization.
|
| Environment |
- Operation temperature: 0℃ ~ 55℃
- Non operation temperature: -40℃ ~ 70℃
- Non operation humidity: 20% ~ 90% ( Non condensing)
- Note:Operating Temperature based on configurations
|
| FRU Part List |
- 90SB0BV0-M1XBN0 MB (Z13PP-U8)
- 90SC0NM0-M0XBN1 PCIe Riser (RF16LX2-R2PF)
- 90SC0QP0-M0XBN1 PCIe Riser (RF16LX3-R2PF)
- 90SC0QL0-M0XBN1 Rear 4 x 2.5″ SSD BP (BP2X2LE12G-25-R2PF)
- 90SC0QL0-M0XBN1 Front 2 x 2.5″ SSD BP (BP2LE12G-25-R1PE)
- 90SC0NR0-M0XBN1 PDB_1300W PSU (PDB-R2PF/SLM)
- 90SC0PL0-M0XBN1 M.2 Riser (M.2-R1PE)
- 90SKS000-M96AN0 4056 FAN
- 90SKS000-M97AN0 4028 FAN
- 90SKH000-MQLAN0 2.5″_HDD TOOLLESS ASY//MOQ:10
- 90SKP000-M0CAN0 EG520-E11/ACBEL 1300W AC FORWARD/SLIM 50.5mm
- 90SKR000-M0HAN0 EG520-E11/FRICTION RAIL KIT 1.0M
- 90SKR000-M0IAN0 EG520-E11/BALL-BEARING RAIL KIT 1U & 2U/FULL-EXTENDED
|
