1U UP WIO with 10 hot-swap 2.5″ NVMe/SAS/SATA bays and 3 PCIe 5.0 slots

Pretul afisat contine TVA (21%).

SuperServer SYS-112B-WR

1U UP WIO with 10 hot-swap 2.5″ NVMe/SAS/SATA bays and 3 PCIe 5.0 slots

Key Features

  1. WIO systems offer flexible I/O configurations in a cost-effective architecture to deliver truly optimized systems for specific enterprise requirements.
  2. Single Intel® Xeon® 6 Processor
  3. 8 DIMM slots supporting up to 2TB of memory
  4. Tool-less, Top-loading riser design support 3 PCIe 5.0 Expansion (2x FHFL + 1x LP).
  5. Native SATA drives supported, with option for up to 8 PCIe 5.0 NVMe drives or 10 SAS drives.
  6. Trusted Platform Module (TPM) 2.0 onboard.

Specifications

Product SKUs
  • SuperServer SYS-112B-WR

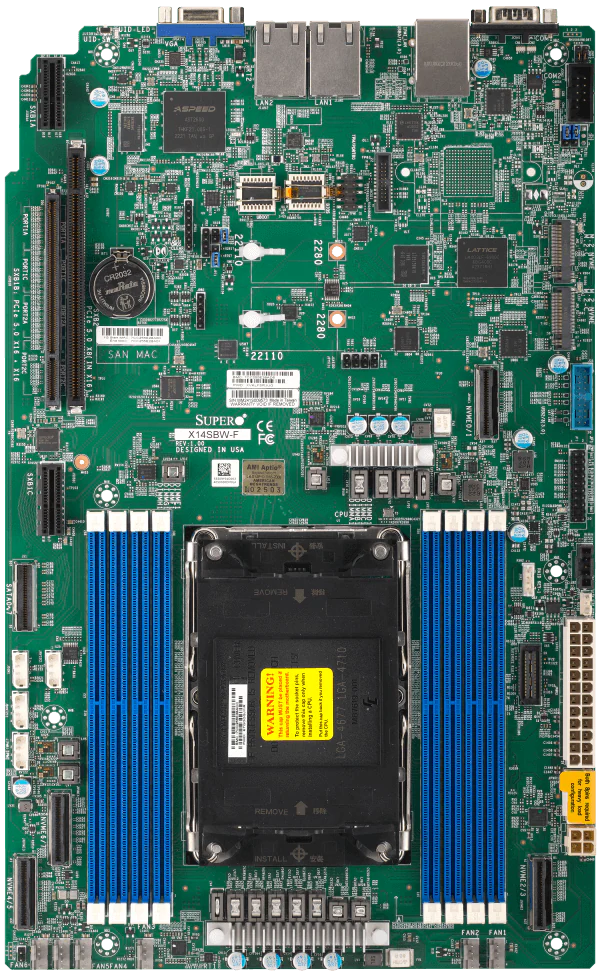

Motherboard
  • Super X14SBW-F
Processor
CPU
  • Single Socket E2 (LGA-4710)
  • Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores
Core Count
  • P-cores: Up to 86C/172T; Up to 336MB Cache
  • E-cores: Up to 144C/144T; Up to 108MB Cache
Note
  • Supports up to 350W TDP CPUs (Air Cooled)
System Memory
Memory
  • Slot Count: 8 DIMM slots/8 Channels
  • Max Memory (1DPC): Up to 2TB 6400MT/s ECC DDR5 RDIMM
Memory Voltage
  • 1.1V
On-Board Devices
SATA
  • SATA (6Gbps)
NVMe
  • NVMe; RAID 0/1/5/10 support(Intel® VROC RAID key required)
Network Connectivity
  • 2 RJ45 1GbE with Intel® I210

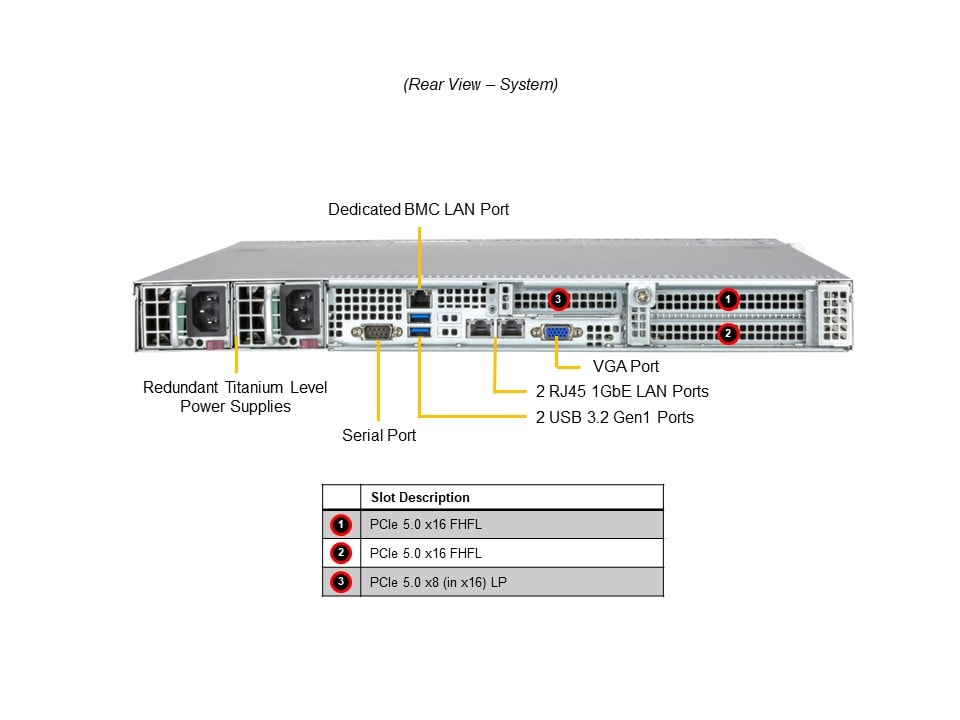

Input / Output
LAN
  • 2 RJ45 1 GbE LAN ports
  • 1 RJ45 1 GbE Dedicated BMC LAN port (IPMI shared on LAN port 1)
USB
  • 2 USB 3.2 Gen1 Type-A ports(rear)
  • 2 USB 3.2 Gen1 Type-A ports(front)
Video
  • 1 VGA port
Serial
  • 1 COM port(Rear)
  • 1 COM port(Header)
TPM
  • 1 TPM header
System BIOS
BIOS Type
  • AMI 64MB SPI Flash EEPROM
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • ACPI/APM Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • 8 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
  • SuperServer SYS-112B-WR
  • Super X14SBW-F
Chassis
Form Factor
  • 1U
Model
  • CSE-116BTS-R000WNP
Dimensions and Weight
Height
  • 1.7″ (43 mm)
Width
  • 17.2″ (437 mm)
Depth
  • 23.5″ (597 mm)
Package
  • 7.75″ (H) x 23.5″ (W) x 31.5″ (D)
Weight
  • Gross Weight: 33.5 lbs (15.2 kg)
  • Net Weight: 21 lbs (9.53 kg)
Available Color
  • Black

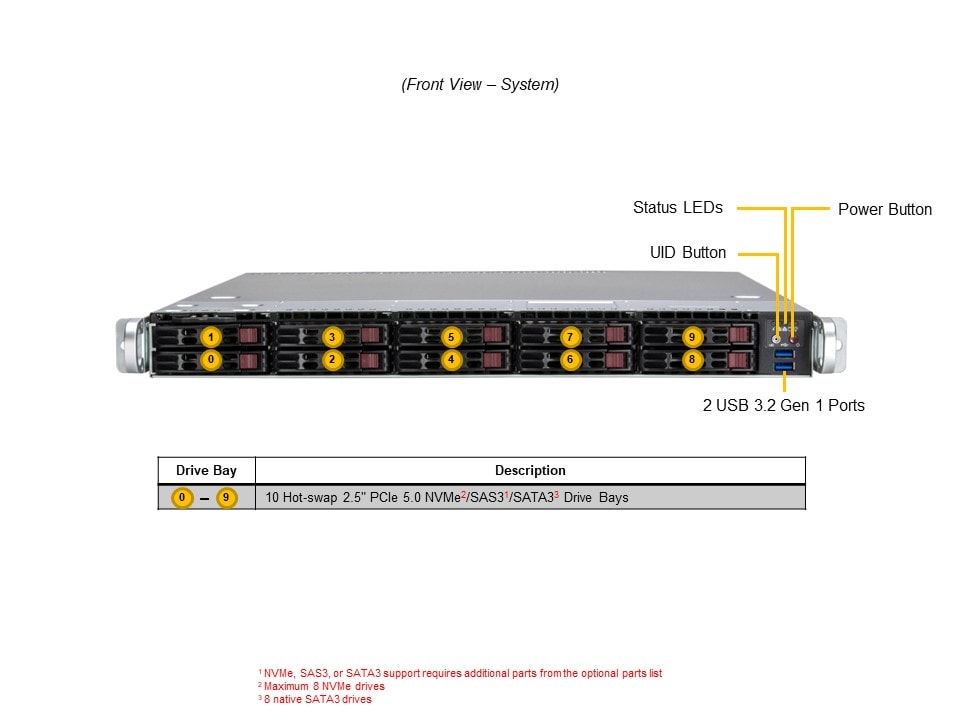

Front Panel
Buttons
  • Power On/Off button
  • Unit Identification (UID) button
LED
  • Fan Fail/System Over Heat LED
  • HDD activity LED
  • Network Activity LEDs
  • Power status LED
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default2 PCIe 5.0 x16 FHFL slots 1 PCIe 5.0 x8 (in x16) LP slot
  • 2 PCIe 5.0 x16 FHFL slots
  • 1 PCIe 5.0 x8 (in x16) LP slot

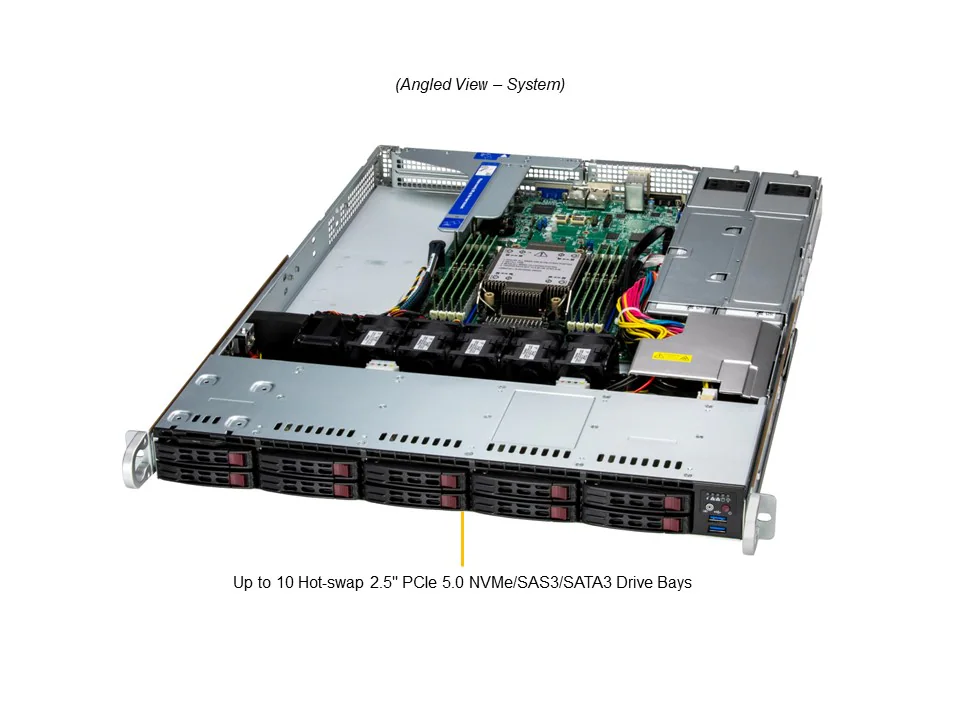

Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 8 bays8 front hot-swap 2.5″ SAS*/SATA drive bays
  • 8 front hot-swap 2.5″ SAS*/SATA drive bays
  • Option A: Total 10 bays2 front hot-swap 2.5″ PCIe 5.0 x4 NVMe* drive bays 8 front hot-swap 2.5″ SAS*/SATA drive bays
  • 2 front hot-swap 2.5″ PCIe 5.0 x4 NVMe* drive bays
  • 8 front hot-swap 2.5″ SAS*/SATA drive bays
  • Option B: Total 10 bays4 front hot-swap 2.5″ PCIe 5.0 x4 NVMe* drive bays 6 front hot-swap 2.5″ SAS*/SATA drive bays
  • 4 front hot-swap 2.5″ PCIe 5.0 x4 NVMe* drive bays
  • 6 front hot-swap 2.5″ SAS*/SATA drive bays
  • Option C: Total 10 bays8 front hot-swap 2.5″ PCIe 5.0 x4 NVMe* drive bays 2 front hot-swap 2.5″ SAS*/SATA drive bays
  • 8 front hot-swap 2.5″ PCIe 5.0 x4 NVMe* drive bays
  • 2 front hot-swap 2.5″ SAS*/SATA drive bays
  • Option D: Total 10 bays10 front hot-swap 2.5″ SAS* drive bays
  • 10 front hot-swap 2.5″ SAS* drive bays
  • (*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2
  • 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 2280/22110; VROC required for RAID)
  • View M.2 Options

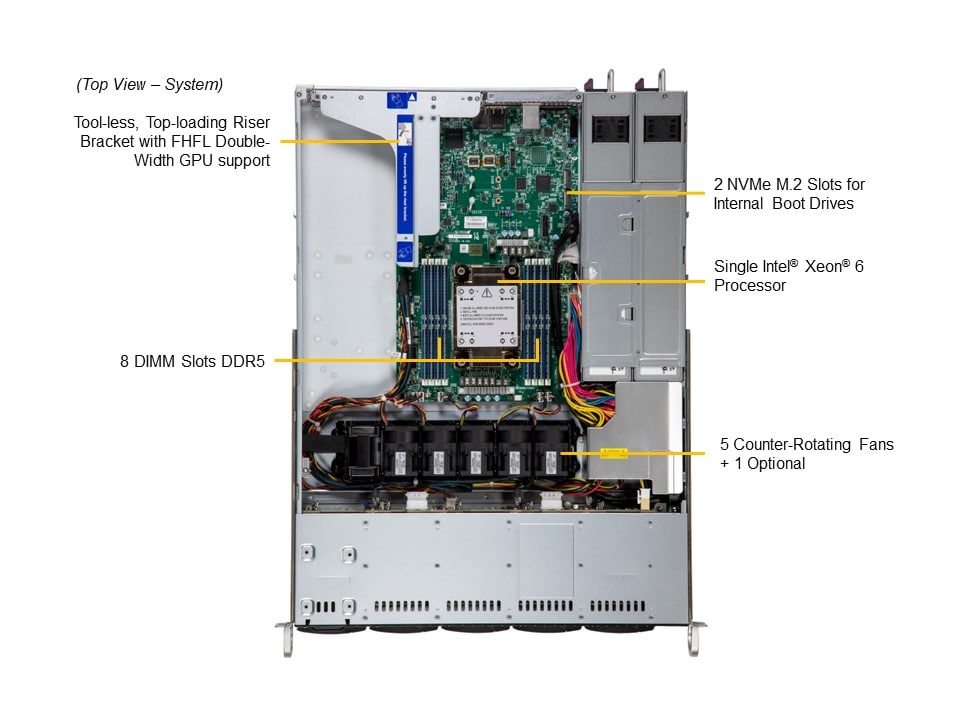

System Cooling
Fans
  • Up to 1 AOC cooling Fan(s) (optional)
  • Up to 5 middle cooling PWM 40x40x56mm Fan(s)
Air Shroud
  • 1 CPU Air Shroud
Power Supply
  • 2x 860W 2x 860W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)54.5 x 40.25 x 322 mm Input800W: 100-127Vac / 50-60Hz 860W: 200-240Vac / 50-60Hz 860W: 240Vdc / 50-60Hz +12VMax: 66.67A / Min: 0A (100Vac-127Vac)Max: 71.67A / Min: 0A (Vdc-240Vdc)Max: 71.67A / Min: 0A (200Vac-240Vac) 5V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger)
Dimension (WxHxL)
  • 54.5 x 40.25 x 322 mm
Input
  • 800W: 100-127Vac / 50-60Hz 860W: 200-240Vac / 50-60Hz 860W: 240Vdc / 50-60Hz
+12V
  • Max: 66.67A / Min: 0A (100Vac-127Vac)Max: 71.67A / Min: 0A (Vdc-240Vdc)Max: 71.67A / Min: 0A (200Vac-240Vac)
5V SB
  • Max: 4A / Min: 0A
Output Type
  • Backplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
  • Operating Relative Humidity: 8% to 80% (non-condensing)
  • Non-operating Relative Humidity: 8% to 90% (non-condensing)
  • 2x 860W 2x 860W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)54.5 x 40.25 x 322 mm Input800W: 100-127Vac / 50-60Hz 860W: 200-240Vac / 50-60Hz 860W: 240Vdc / 50-60Hz +12VMax: 66.67A / Min: 0A (100Vac-127Vac)Max: 71.67A / Min: 0A (Vdc-240Vdc)Max: 71.67A / Min: 0A (200Vac-240Vac) 5V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger)
