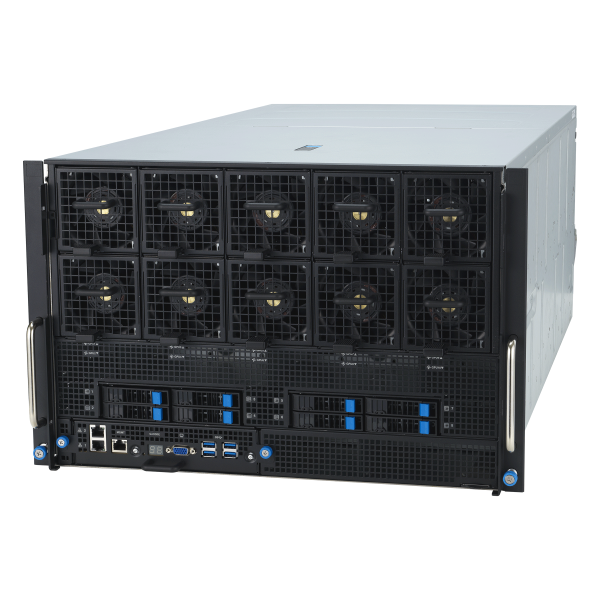

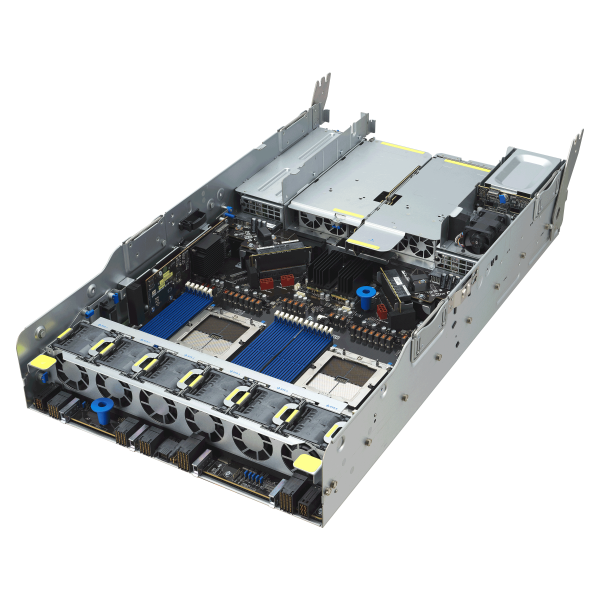

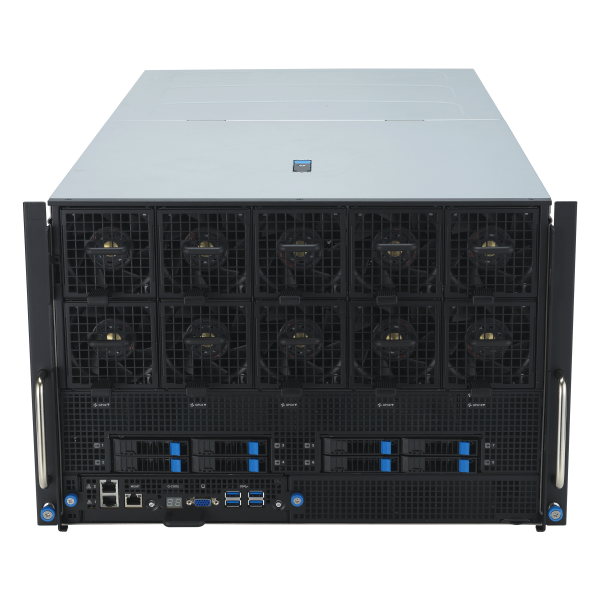

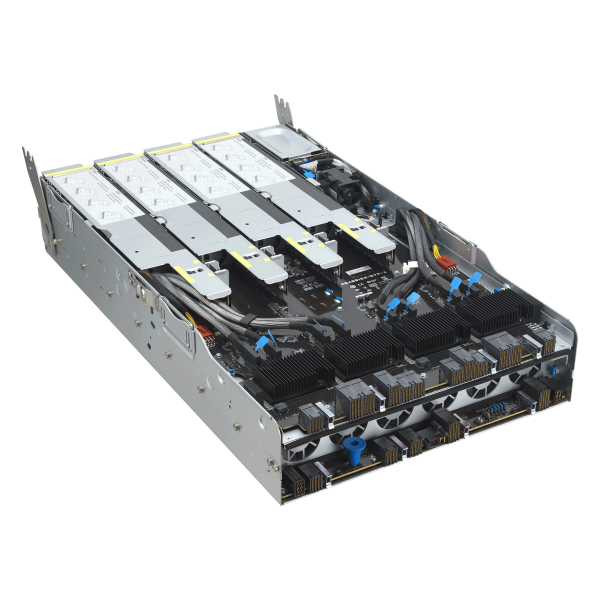

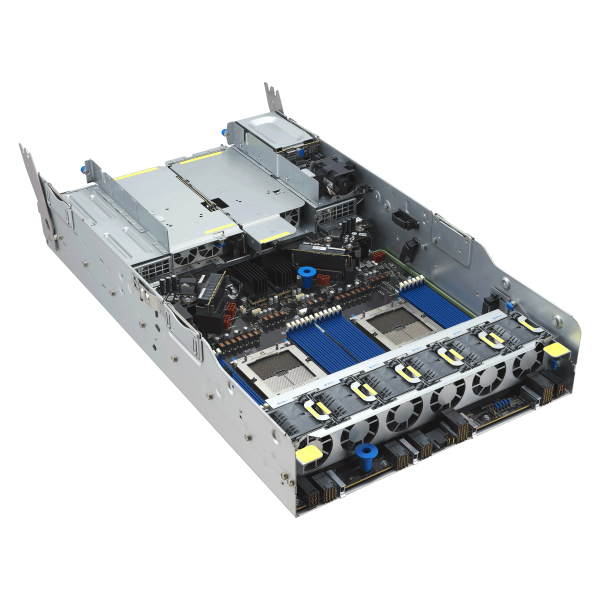

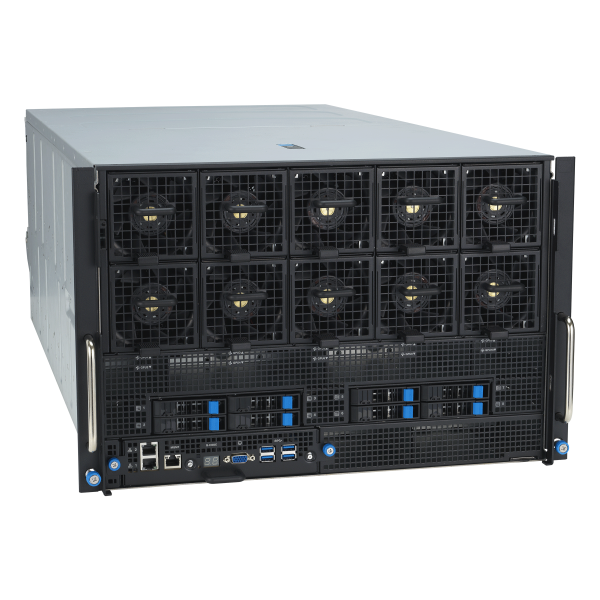

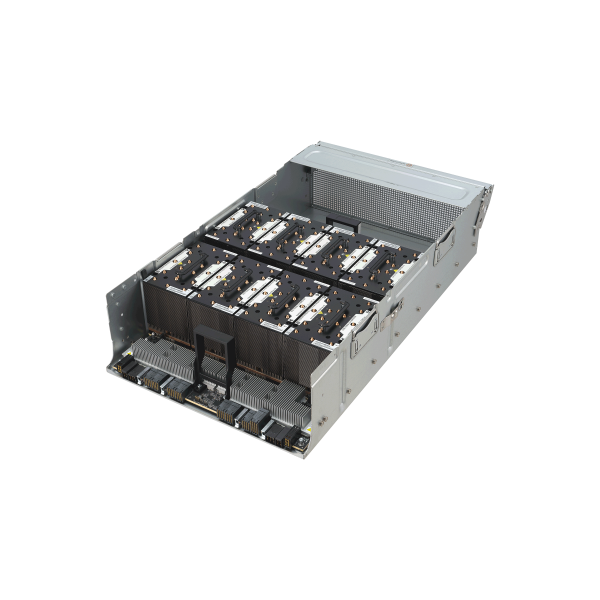

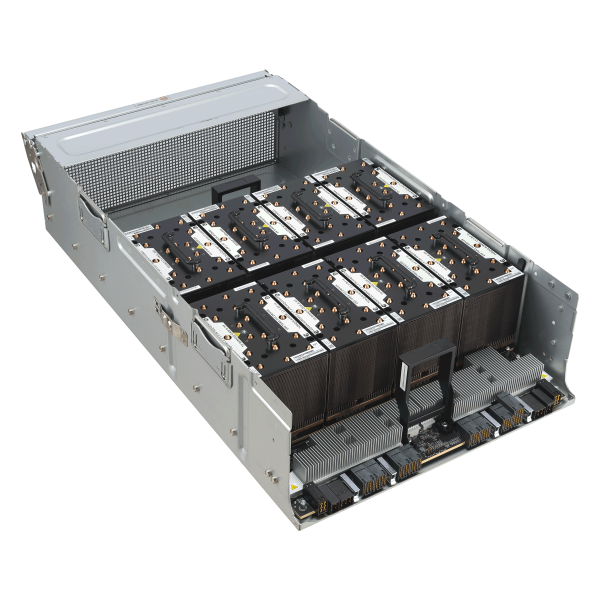

ASUS ESC A8A-E12U
ASUS ESC A8A-E12U - imagine 2
ASUS ESC A8A-E12U - imagine 3
ASUS ESC A8A-E12U - imagine 4
ASUS ESC A8A-E12U - imagine 5
ASUS ESC A8A-E12U - imagine 6
ASUS ESC A8A-E12U - imagine 7
ASUS ESC A8A-E12U - imagine 8
ASUS ESC A8A-E12U - imagine 9
ASUS ESC A8A-E12U - imagine 10
, , , , Configureaza acest server →

ASUS ESC A8A-E12U

Favorite
Compara

7U AMD Instinct™ MI325X eight-GPU server with dual AMD EPYC™ 9005 processors excels in handling large AI models and HPC workloads, with up to 11 PCIe® slots, 24 DIMM slots, 10 NVMe drives and dual 10Gb LAN.

Pretul afisat contine TVA (21%).

ESC A8A-E12U

7U AMD Instinct™ MI325X eight-GPU server with dual AMD EPYC™ 9005 processors excels in handling large AI models and HPC workloads, with up to 11 PCIe® slots, 24 DIMM slots, 10 NVMe drives and dual 10Gb LAN.

Key Features

  • Fueled by dual AMD EPYC™ 9005 processors, featuring the 9575F CPU with high-frequency optimization tailored for AI workload and 400W TDP support. Its high vCPU density and x86 architecture ensure seamless integration with existing infrastructure.
  • Improved performance with the AMD Instinct MI325X eight-GPU platform, featuring GPU Direct Storage to significantly reduce read and write latency.
  • A dedicated one-GPU-to-one-NIC topology that supports up to eight NICs for the highest throughput, delivering 896GB/s bandwidth during compute-intensive workloads.
  • Increased memory bandwidth with 256GB HBM and 6 TB/s bandwidth for large AI models and HPC workloads.
  • Modular design with reduced cable usage to shorten assembly time and improve thermal optimization.

Specifications

Processor / System Bus
  • 2 x AMD EPYC™ 9005/9004 Series Processors  (Up to TDP 400W)
Expansion Slots
  • Up to 11 PCIe slots
  • [89104 PCIe Switch directly]
  • -8 x PCIe Gen5 x16 (LP, HL) – GPU group
  • [89048 PCIe Switch directly]
  • -1 x PCIe Gen5 x16 (FH, HL) – CPU 1 extension
  • -1x PCIe Gen5 x8 (FH, HL) – CPU 1 extension
  • [CPU directly]
  • -1 x PCIe Gen5x16 (FH, HL) (CPU2)
Networking
  • 2 x 10 Gigabit LAN ports (Intel X710-AT2 Controller)
  • 1 x Management Por
Multi-GPU Support
  • Please find the latest GPU support from https://servers.asus.com/support/gpu
Front I/O Ports
  • 4 x USB3.2 Gen1 ports,
  • 1 x VGA port
  • 2 x 10Gb RJ45 LAN module (Intel-x710 Based)
  • 1 x Mgmt LAN
  • 1 x locate button
  • 1 x power button
Rear I/O Ports
  • 1 x locate button
  • 1 x power button
Switch/LED
  • Front :
  • 1 x Power Button/LED
  • 1 x Location Button/LED
  • 1 x Message LED
  • 1 x Q-Code/Port 80 LED
  • Rear :
  • 1 x Location LED
  • 1 x Power Button/LED
OS Support
  • Please find the latest OS support from http://www.asus.com/
Management Solution
  • ASUS Control Center
  • ASUS ASMB11-iKVM (on-board)
Regulatory Compliance
  • BSMI, CB, CE, FCC
Dimensions
  • 885mm x 447mm x 306.65mm
Form Factor
  • 7U
Weight
  • Net Weight: 108 Kg.
  • Gross Weight: 142.4 Kg.
Power Supply
  • 5+1 Redundant 80 PLUS 3000W Titanium PSU
Environment
  • Operation temperature: 10℃ ~ 35℃
  • Non operation temperature: -40℃ ~ 70℃
  • Non operation humidity: 20% ~ 90% (Non condensing)
