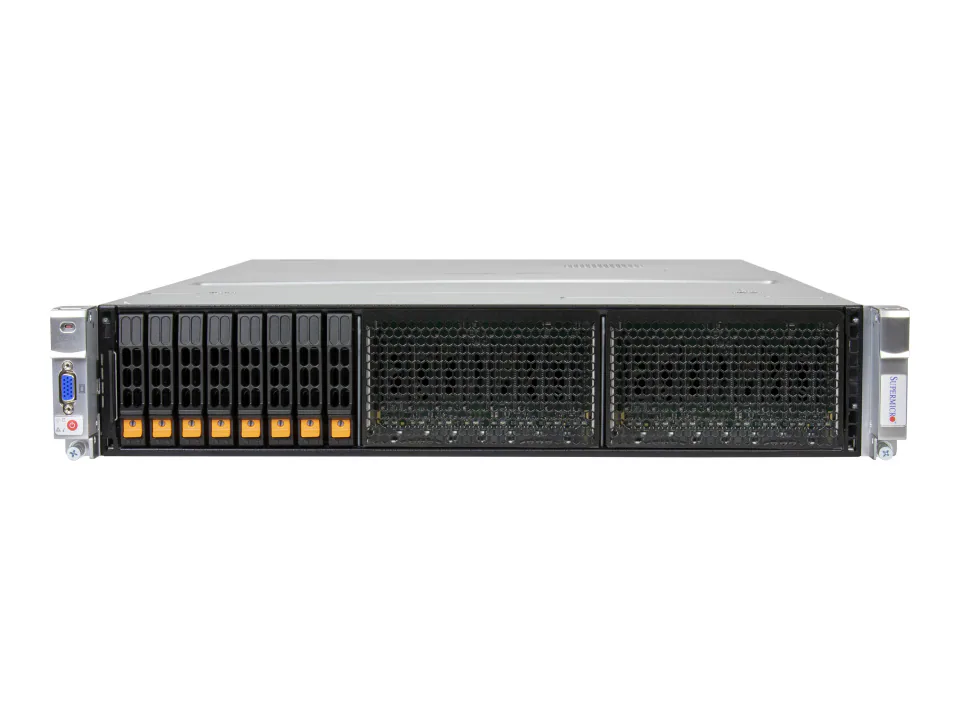

Supermicro SuperServer ARS-222H-NR
Supermicro SuperServer ARS-222H-NR - imagine 2
, , ,

Supermicro SuperServer ARS-222H-NR

Favorite
Compara

2U Hyper with 8 hot-swap 2.5″ NVMe bays, 5 PCIe 6.0 x16 slots, 1 PCIe 6.0 x8 slot, and 1 PCIe 6.0 x8 AIOM slot

Pretul afisat contine TVA (21%).

SuperServer ARS-222H-NR

2U Hyper with 8 hot-swap 2.5″ NVMe bays, 5 PCIe 6.0 x16 slots, 1 PCIe 6.0 x8 slot, and 1 PCIe 6.0 x8 AIOM slot

Key Features

  1. Dual Arm AGI CPU Neoverse V3 with 64, 128, or 136 cores
  2. 24 DDR5-8400 MT/s DIMM slots supporting up to 6TB (12 per CPU, 1DPC)
  3. Up to 5 PCIe 6.0 x16 FHHL + 1 PCIe 5.0 x8 FHHL + 1 PCIe 6.0 x8 AIOM Slots
  4. Flexible networking with OCP 3.0 compatible AIOM
  5. Up to 8 front hot-swap 2.5″ NVMe drive bays
  6. 2 Redundant 2700W Titanium Level power supplies

Specifications

Product SKUs
  • ARS-222H-NR
Motherboard

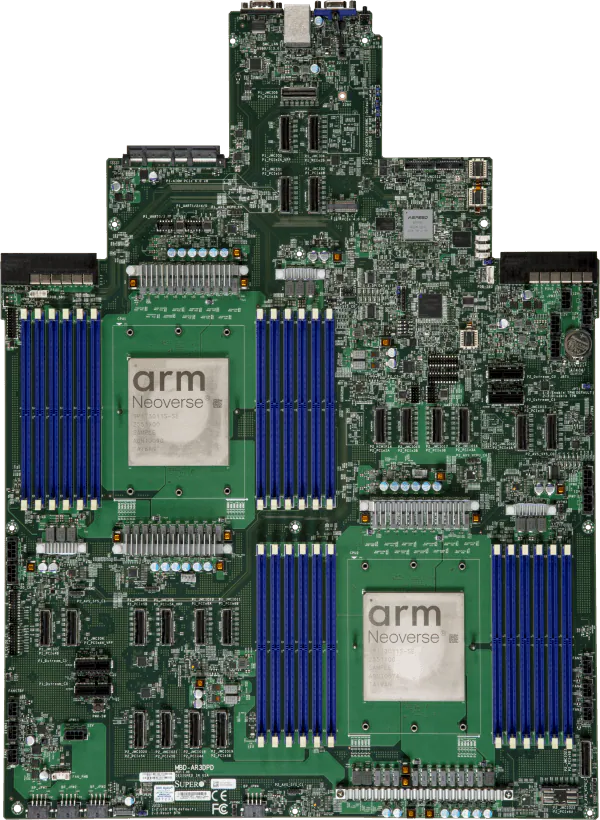

  • Super AR3DPD
Processor
CPU
  • Dual processor(s)
  • Arm AGI CPU Neoverse V3 with 64, 128, or 136 cores
Note
  • Supports up to 350W TDP CPUs (Air Cooled)
System Memory
Memory
  • Slot Count: 24 DIMM slots
  • Max Memory (1DPC): 6TB ECC DDR5 RDIMM
Memory Voltage
  • 1.1V
On-Board Devices
Network Connectivity
  • Via AIOM
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 USB 3.0 ports(rear)
  • 2 USB 2.0 ports(front)
Video
  • 1 VGA port(Rear)
  • 1 VGA port(Front)
Serial
  • 1 COM port(rear)
System BIOS
BIOS Type
  • AMI 1024MB SPI Flash
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
  • ARS-222H-NR
  • Super AR3DPD
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-218HTS-R3K2AWP
Dimensions and Weight
Height
  • 3.5″ (87.9 mm)
Width
  • 17.3″ (438.4 mm)
Depth
  • 33.4″ (849.3 mm)
Package
  • 9.75″ (H) x 26.5″ (W) x 43.5″ (D)
Weight
  • Gross Weight: 71.5 lbs (32.43 kg)
  • Net Weight: 45.5 lbs (20.64 kg)
Available Color
  • Black
Front Panel
Buttons
  • Power On/Off
  • UID
LED
  • HDD activity
  • Network activity
  • Power status
  • System information (overheat/UID)
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default5 PCIe 6.0 x16 FHHL slots 1 PCIe 6.0 x8 FHHL slot 1 PCIe 6.0 x8 AIOM slot (OCP 3.0 compatible)
  • 5 PCIe 6.0 x16 FHHL slots
  • 1 PCIe 6.0 x8 FHHL slot
  • 1 PCIe 6.0 x8 AIOM slot (OCP 3.0 compatible)
M.2
  • 1 M.2 PCIe 4.0 x1 NVMe slot (M-key 22110(default)/2280)
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 8 bays8 front hot-swap 2.5″ NVMe drive bays
  • 8 front hot-swap 2.5″ NVMe drive bays
M.2
  • 1 M.2 PCIe 4.0 x1 NVMe slot (M-key 2280(default)/22110)
System Cooling
Fans
  • Up to 6 Heavy duty counter-rotating 6cm Fan(s)
Air Shroud
  • 2 Air Shrouds
Power Supply
  • 2x 2700W 2x 2700W Redundant (1 + 1) Titanium Level (96%) Hot-plug power supplies Dimension (WxHxL)73.5 x 40 x 203 mm Input2700W: 200-240Vac 2700W: 200-240Vac / 50-60Hz 2700W: 240-240Vdc / 50-60Hz (for CQC only) +12VMax: 225A / Min: 0A (200Vac-240Vac)Max: 225A / Min: 0A (240Vdc-240Vdc) 12V SBMax: 3.5A / Min: 0A Max: 4A / Min: 0A Output TypeBackplanes (gold finger)
Dimension (WxHxL)
  • 73.5 x 40 x 203 mm
Input
  • 2700W: 200-240Vac 2700W: 200-240Vac / 50-60Hz 2700W: 240-240Vdc / 50-60Hz (for CQC only)
+12V
  • Max: 225A / Min: 0A (200Vac-240Vac)Max: 225A / Min: 0A (240Vdc-240Vdc)
12V SB
  • Max: 3.5A / Min: 0A Max: 4A / Min: 0A
Output Type
  • Backplanes (gold finger)
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (Non-Condensing)
  • Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
  • 2x 2700W 2x 2700W Redundant (1 + 1) Titanium Level (96%) Hot-plug power supplies Dimension (WxHxL)73.5 x 40 x 203 mm Input2700W: 200-240Vac 2700W: 200-240Vac / 50-60Hz 2700W: 240-240Vdc / 50-60Hz (for CQC only) +12VMax: 225A / Min: 0A (200Vac-240Vac)Max: 225A / Min: 0A (240Vdc-240Vdc) 12V SBMax: 3.5A / Min: 0A Max: 4A / Min: 0A Output TypeBackplanes (gold finger)
