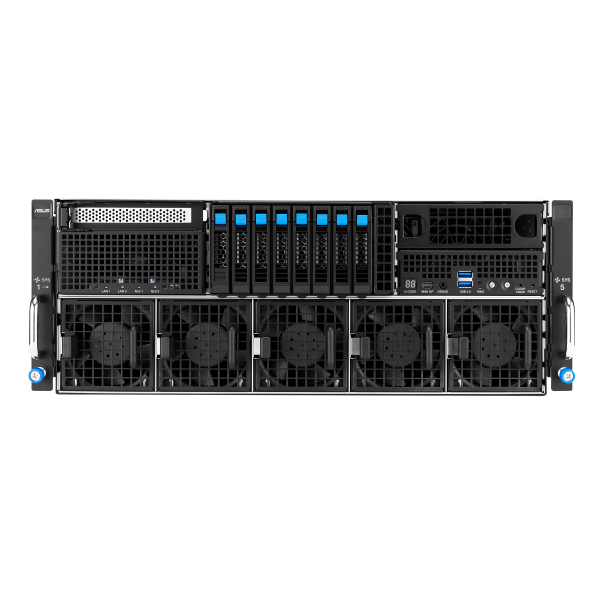

ASUS ESC8000A-E13X
ASUS ESC8000A-E13X - imagine 2
ASUS ESC8000A-E13X - imagine 3
ASUS ESC8000A-E13X - imagine 4
ASUS ESC8000A-E13X - imagine 5
ASUS ESC8000A-E13X - imagine 6
ASUS ESC8000A-E13X - imagine 7
ASUS ESC8000A-E13X - imagine 8
ASUS ESC8000A-E13X - imagine 9
ASUS ESC8000A-E13X - imagine 10
, , , , Configureaza acest server →

ASUS ESC8000A-E13X

Favorite
Compara

AMD EPYC™ 9005 dual-processor 4U NVIDIA RTX PRO™ Server with ConnectX®-8 SuperNICs, supports eight dual-slot NVIDIA RTX PRO™ 6000 Blackwell Server Edition GPUs, eight 400Gb/s QSFP ports for GPU-to-GPU networking, 24 DIMM slots, eight PCIe 6.0 slots and two PCIe 5.0 slots and eight 2.5-in NVMe drives.

Pretul afisat contine TVA (21%).

ESC8000A-E13X

AMD EPYC™ 9005 dual-processor 4U NVIDIA RTX PRO™ Server with ConnectX®-8 SuperNICs, supports eight dual-slot NVIDIA RTX PRO™ 6000 Blackwell Server Edition GPUs, eight 400Gb/s QSFP ports for GPU-to-GPU networking, 24 DIMM slots, eight PCIe 6.0 slots and two PCIe 5.0 slots and eight 2.5-in NVMe drives.

Key Features

  • NVIDIA RTX PRO™ server with ConnectX®-8 SuperNIC Switch Board, supports eight 400Gb/s InfiniBand/Ethernet QSFP ports and PCIe 6.0 connectivity for GPU communication
  • Fully compatible with NVIDIA MGX architecture, enabling fast and large-scale deployment
  • Powered by AMD EPYC 9005 processors with 192 Zen 5c cores, 12-channel, up to 6400MHz DDR5 and support for a maximum TDP of up to 500 watts per socket
  • High-density 4U server for eight dual-slot NVIDIA RTX PRO™ 6000 Blackwell Server Edition GPU cards, supporting up to 600 watts each. This powerful platform empowers enterprises to build AI factories and accelerate a wide spectrum of workloads — from agentic AI and LLM inference to industrial simulation and digital twin applications.
  • ASUS-exclusive toolless design empowers easy maintenance for maximum efficiency

Specifications

Processor / System Bus
  • 2 x Socket SP5 (LGA 6096)
  • AMD EPYC™ 9005 series processors*
  • * Up to 500W cTDP, TDP support varies by configuration
Memory
  • Total Slots:
  • 24 (12 channel per CPU, 12 DIMM per CPU)
  • Capacity:
  • Maximum up to 3TB
  • Memory Type:
  • DDR5 6400/5600 RDIMM
  • Memory Size:
  • 128GB, 96GB, 64GB, 32GB, 16GB RDIMM
  • * Refer to ASUS server AVL for the latest update
Expansion Slots
  • Up to 10 slots
  • Rear:
  • 8 x PCIe x16 for dual-slot GPU cards (Gen6 x16 link, FH/FL)
  • 1 x PCIe x16 for NIC/BlueField-3 cards (Gen5 x16 link, FH/HL)
  • Front:
  • 1 x PCIe x16 (Gen5 x8 link, FH/HL)
Storage
  • 8 x 2.5″ Front Hot-swap Storage Bays
  • Default SKU*: Backplane supports up to 8 x NVMe
  • *MGX compliance
  • 2 x M.2 Socket, supports up to 22110 type (PCIe Gen5 x4 link)
  • (M.2 board supports up to 2 x NVMe)
Networking
  • 8 x 400Gbps ports (QSFP, ConnectX®-8)
  • 2 x 10GbE LAN ports (RJ45, X710-AT2)
  • 1 x Management Port
Multi-GPU Support
  • Up to 8 x NVIDIA RTX PRO™ 6000 Blackwell Server Edition GPU Cards*
  • *Support short GPU brackets only
  • Please find the latest GPU support from https://servers.asus.com/support/gpu
Front I/O Ports
  • 1 x Mini DisplayPort
  • 2 x USB 5Gbps ports
  • 1 x Debug port

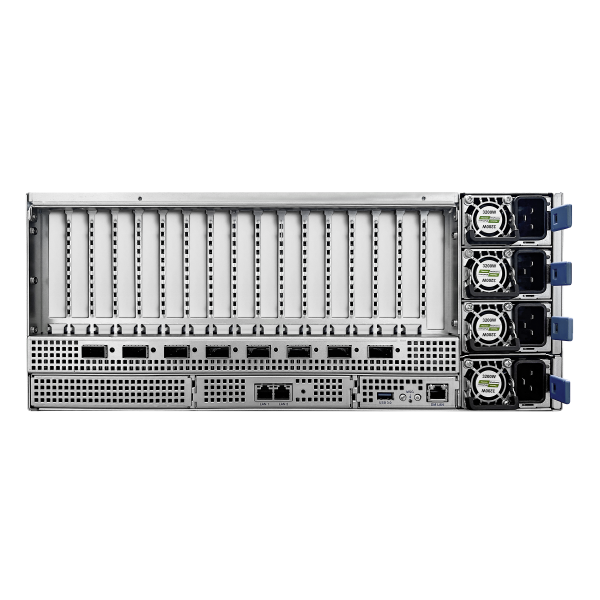

Rear I/O Ports
  • 8 x QSFP ports
  • 1 x USB 5Gbps port
  • 2 x RJ-45 LAN ports
  • 1 x RJ-45 management LAN port
Switch/LED
  • Front :
  • 1 x Power switch/LED
  • 1 x Location switch/LED
  • 1 x Message LED
  • 1 x Clear CMOS switch
  • 1 x Reset Switch
  • 2 x M.2 LEDs
  • 2 x LAN LEDs
  • 1 x Q-code/Port 80 LED
  • Rear :
  • 1 x Power switch/LED
  • 1 x Location switch/LED
  • 1 x Message LED
  • 8 x QSFP LED
OS Support
  • Please find the latest OS support from https://servers.asus.com/support/os
Management Solution
  • ASUS Control Center Enterprise (in-band)
  • ASMB12-iKVM for (out-of-band/BMC AST2600)
Regulatory Compliance
  • BSMI, CB, CE, FCC(Class A), RCM
Dimensions
  • 800mm x 439.5mm x 175mm
  • 31.5†x 17.3†x 6.9â€
Form Factor
  • 4U
Weight
  • Net Weight: 42 Kg
  • Gross Weight: 45 Kg
Power Supply
  • 3+1 redundant 3200W 80 PLUS Titanium power supply
  • 220-240 Vac, 16A (x4) 50/60Hz
Environment
  • Operating temperature: 10°C ~ 35°C
  • Non-operating temperature: -40°C ~ 60°C
  • Non-operating humidity: 20% ~ 95% (Non-condensing)
  • *For operating temperatures above 30°C, please contact your local sales representative
FRU Part List
  • Motherboard: 90SB0D90-M5XBN0
  • 8080 GPU Fan module: 90SKS000-MR0BN0
  • 8080 System Fan module: 90SKS000-MR1BN0
  • 2U Standard CPU heatsink: 90SKS000-M4LAN0
  • HDD TRAY TOOLLESS ASY: 90SKH000-MPPBN0
  • 3200W TITANIUM PSU: 90SKS000-MMCBN0
  • 1M RAIL KIT (not support cable arm): 90SKS000-MR2BN0
  • MGX RAIL KIT (support cable arm): 90SKS000-MR3BN0
  • CABLE ARM: 90SKS000-MR4BN0
  • MINIDP TO VGA DONGLE: 90SKS000-MU3BN0
SKU: esc8000a-e13x Categorii: , , , ,
