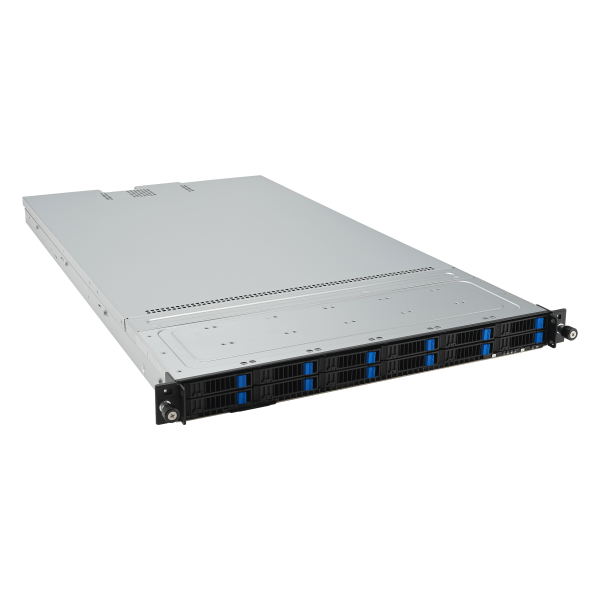

ASUS RS501A-E12-RS12U
ASUS RS501A-E12-RS12U - imagine 2
ASUS RS501A-E12-RS12U - imagine 3
ASUS RS501A-E12-RS12U - imagine 4
ASUS RS501A-E12-RS12U - imagine 5
ASUS RS501A-E12-RS12U - imagine 6
ASUS RS501A-E12-RS12U - imagine 7
ASUS RS501A-E12-RS12U - imagine 8
ASUS RS501A-E12-RS12U - imagine 9
, , , , Configureaza acest server →

ASUS RS501A-E12-RS12U

Favorite
Compara

AMD EPYC™ 9005 single-processor 1U server that supports up to 24 DIMM, 12 NVMe, three PCIe® 5.0 slots, two M.2, OCP 3.0, two single-slot GPUs, and ASUS ASMB11-iKVM

Pretul afisat contine TVA (21%).

RS501A-E12-RS12U

AMD EPYC™ 9005 single-processor 1U server that supports up to 24 DIMM, 12 NVMe, three PCIe® 5.0 slots, two M.2, OCP 3.0, two single-slot GPUs, and ASUS ASMB11-iKVM

Key Features

  • Powerful performance: Powered by AMD EPYC 9005 processors with 192 Zen 5c cores, 12-channel, up to 5200 MHz DDR5 and support for a maximum TDP of up to 360 watts
  • Scale-up storage and expansion design: Up to 12 all-flash NVMe drives on the front panel, four NVMe in middle bay, and three PCIe 5.0 slots for higher bandwidth and system upgrades
  • Flexible networking module design: On-board LAN module, and OCP 3.0 module with PCIe 5.0 slot in rear panel for faster connectivity
  • Advanced air-cooling solution: Features enhanced-volume air-cooling (EVAC) heatsink for processors with higher TDP
  • Enhanced IT-infrastructure management: ASUS ASMB11-iKVM remote control with ASPEED AST2600, ASUS Control Center IT management software and hardware-level Root-of-Trust solution
  • Read for AI and HPC workloads: Up to two single-slot GPUs.

Specifications

Processor / System Bus
  • 1 x Socket SP5 (LGA 6096)
  • 5th Generation AMD EPYC Processors or 4th Generation AMD EPYC Processors
  • AMD EPYC™ 9005/9004 Series Processors (Air cool with EVAC up to 360W)
Memory
  • 24 x DIMM slots
  • with AMD EPYC™ 9005 series processors
  • DDR5 6400/5600 RDIMM/3DS RDIMM
  • Maximum 3,072GB
  • 2DPC (1 of 2) up to 5200 with “6400 RDIMM”, other 4800
  • 2DPC (2 of 2, 1R+1R ) up to 4400, with “6400 RDIMM”, other 4000
  • 2DPC (2 of 2, 2R+2R ) up to 4000, with “6400 RDIMM”, other 3600
  • with AMD EPYC™ 9004 series processors
  • DDR5 4800 RDIMM/ 3DS RDIMM
  • Maximum 3,072GB
  • 2DPC (1 of 2) up to 4800,
  • 2DPC (2 of 2, 1R+1R ) up to 4000
  • 2DPC (2 of 2, 2R+2R ) up to 3600
  • * Refer to support page for more information
Expansion Slots
  • Up to 3 PCIe Gen5 slots + 1 OCP3.0
  • 1 x PCIe x16 slot (Gen5 x16 link, FH, HL)
  • 1 x PCIe x16 slot (Gen5 x16 link, LP, HL)
  • 1 x PCIe x16 slot (Gen5 x8 link, LP, HL)
  • 1 x OCP3.0 socket (Gen5 x16 link)
Storage
  • Storage Controller :
  • CPU Integrated
  • Optional kits Controller :
  • ASUS PIKE II 3008-8i 8-port SAS 12G HBA card
Drive Bays
  • With mid-bay SKU
  • Front bays:
  • 12 x 2.5†Hot-Swap drive bays
  • 12 x SATA/SAS/NVMe
  • Mid-bay:
  • 4 x 2.5†Hot-Swap drive bays support NVMe/SATA
  • *SAS support only from optional SAS HBA/RAID card
  • **Internal Storage Bays is designated as build-to-order only, owing to quality or installation concerns.
  • Without mid-bay SKU
  • Front bays:
  • 12 x 2.5†Hot-Swap drive bays
  • 12 x SATA/SAS/NVMe
  • *SAS support only from optional SAS HBA/RAID card
  • 2 x M.2 connectors
Networking
  • 1 x Dual Port Intel I350-AM2 GbE LAN Controller
  • 1 x Management Port
Graphic
  • Up to 2 single-slot GPU cards
  • With mid-bay SKU
  • Support 1 single-slot GPU card
  • Without mid-bay SKU
  • Support 2 single-slot GPU cards
Multi-GPU Support
  • Please find the latest GPU support fromhttps://servers.asus.com/support/gpu

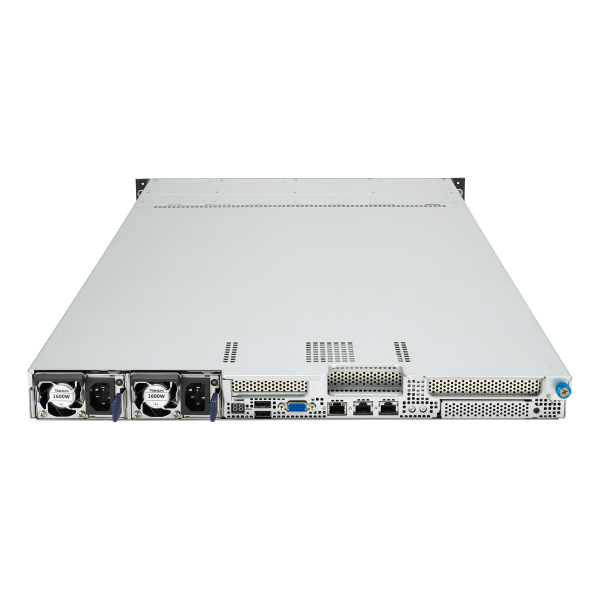

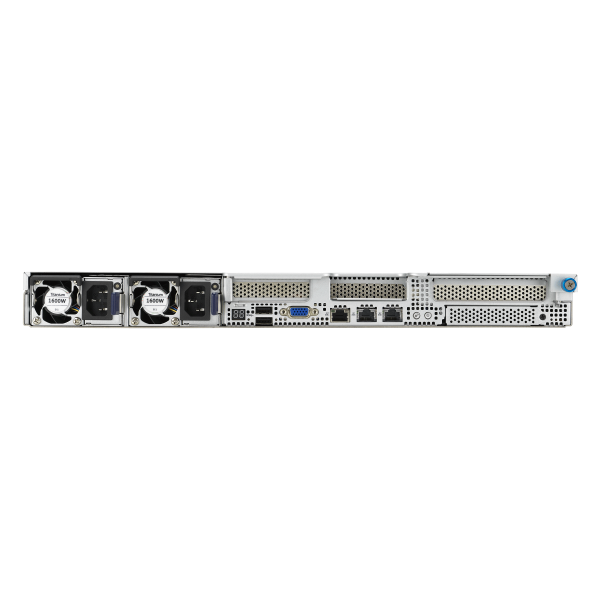

Rear I/O Ports
  • 2 x USB 3.2 Gen1 ports
  • 1 x VGA port
  • 1 x Management port
  • 2 x 1GbE LAN ports
Switch/LED
  • Front:
  • 1 x Power Button/LED
  • 1 x Location Button/LED
  • 1 x Message LED
  • LAN 1-2 LED
  • Rear:
  • 1 x Port80 LED (Q-Code)
  • 1 x Power Button/LED
  • 1 x Location Button/LED
  • 1 x Message LED
OS Support
  • Please find the latest OS support from:
  • https://servers.asus.com/support/os
Management Solution
  • ASUS Control Center
  • ASUS ASMB11-iKVM (on-board)
Regulatory Compliance
  • BSMI, CB, CE, RCM, FCC(Class A), ENERGY STAR®
Dimensions
  • 842.5mm x 449mm x 43.85mm (1U)
  • 33.17″ x 17.68″ x 1.73″
Form Factor
  • 1U
Weight
  • (approximate)
  • Net Weight: 14.16 kg
  • Gross Weight: 19.16 kg
Power Supply
  • 1+1 Redundant 1600W 80 PLUS Titanium
  • Power Supply
  • 1+1 Redundant 1200W 80 PLUS Platinum
  • Power Supply
Environment
  • Operating temperature: 10°C – 35°C
  • Non operating temperature: -40°C – 70°C
  • Non operating humidity: 20% – 90% (Non condensing)
  • Note
  • Operating Temperature based on configurations
Optional Items
  • Rail Kit:
  • Tool-less Friction Rail Kit
  • 1.2m Half Extension Ball bearing Type Rail Kit
  • 1m Half Extension Ball bearing Type Rail Kit
  • 1U Height Full Extension Ball bearing Type Rail Kit
  • *Please consult sales if  cable arm needed.
  • 1U Front Bezel
Note
  • Certain high TDP CPUs may be supported only with specific conditions. Please contact ASUS Technical Support for additional information and Thermal solution about specialized system optimization.
SKU: rs501a-e12-rs12u Categorii: , , , ,
Processor / System Bus
  • 1 x Socket SP5 (LGA 6096)
  • 5th Generation AMD EPYC Processors or 4th Generation AMD EPYC Processors
  • AMD EPYCâ„¢ 9005/9004 Series Processors (Air cool with EVAC up to 360W)
Memory
  • 24 x DIMM slots
  • with AMD EPYCâ„¢ 9005 series processors
  • DDR5 6400/5600 RDIMM/3DS RDIMM
  • Maximum 3,072GB
  • 2DPC (1 of 2) up to 5200 with “6400 RDIMM”, other 4800
  • 2DPC (2 of 2, 1R+1R ) up to 4400, with “6400 RDIMM”, other 4000
  • 2DPC (2 of 2, 2R+2R ) up to 4000, with “6400 RDIMM”, other 3600
  • with AMD EPYCâ„¢ 9004 series processors
  • DDR5 4800 RDIMM/ 3DS RDIMM
  • Maximum 3,072GB
  • 2DPC (1 of 2) up to 4800,
  • 2DPC (2 of 2, 1R+1R ) up to 4000
  • 2DPC (2 of 2, 2R+2R ) up to 3600
  • * Refer to support page for more information
Expansion Slots
  • Up to 3 PCIe Gen5 slots + 1 OCP3.0
  • 1 x PCIe x16 slot (Gen5 x16 link, FH, HL)
  • 1 x PCIe x16 slot (Gen5 x16 link, LP, HL)
  • 1 x PCIe x16 slot (Gen5 x8 link, LP, HL)
  • 1 x OCP3.0 socket (Gen5 x16 link)
Storage
  • Storage Controller :
  • CPU Integrated
  • Optional kits Controller :
  • ASUS PIKE II 3008-8i 8-port SAS 12G HBA card
Drive Bays
  • With mid-bay SKU
  • Front bays:
  • 12 x 2.5†Hot-Swap drive bays
  • 12 x SATA/SAS/NVMe
  • Mid-bay:
  • 4 x 2.5†Hot-Swap drive bays support NVMe/SATA
  • *SAS support only from optional SAS HBA/RAID card
  • **Internal Storage Bays is designated as build-to-order only, owing to quality or installation concerns.
  • Without mid-bay SKU
  • Front bays:
  • 12 x 2.5†Hot-Swap drive bays
  • 12 x SATA/SAS/NVMe
  • *SAS support only from optional SAS HBA/RAID card
  • 2 x M.2 connectors
Networking
  • 1 x Dual Port Intel I350-AM2 GbE LAN Controller
  • 1 x Management Port
Graphic
  • Up to 2 single-slot GPU cards
  • With mid-bay SKU
  • Support 1 single-slot GPU card
  • Without mid-bay SKU
  • Support 2 single-slot GPU cards
Multi-GPU Support
  • Please find the latest GPU support fromhttps://servers.asus.com/support/gpu
Rear I/O Ports
  • 2 x USB 3.2 Gen1 ports
  • 1 x VGA port
  • 1 x Management port
  • 2 x 1GbE LAN ports
Switch/LED
  • Front:
  • 1 x Power Button/LED
  • 1 x Location Button/LED
  • 1 x Message LED
  • LAN 1-2 LED
  • Rear:
  • 1 x Port80 LED (Q-Code)
  • 1 x Power Button/LED
  • 1 x Location Button/LED
  • 1 x Message LED
OS Support
  • Please find the latest OS support from:
  • https://servers.asus.com/support/os
Management Solution
  • ASUS Control Center
  • ASUS ASMB11-iKVM (on-board)
Regulatory Compliance
  • BSMI, CB, CE, RCM, FCC(Class A), ENERGY STAR®
Dimensions
  • 842.5mm x 449mm x 43.85mm (1U)
  • 33.17″ x 17.68″ x 1.73″
Form Factor
  • 1U
Weight
  • (approximate)
  • Net Weight: 14.16 kg
  • Gross Weight: 19.16 kg
Power Supply
  • 1+1 Redundant 1600W 80 PLUS Titanium
  • Power Supply
  • 1+1 Redundant 1200W 80 PLUS Platinum
  • Power Supply
Environment
  • Operating temperature: 10°C – 35°C
  • Non operating temperature: -40°C – 70°C
  • Non operating humidity: 20% – 90% (Non condensing)
  • Note
  • Operating Temperature based on configurations
Optional Items
  • Rail Kit:
  • Tool-less Friction Rail Kit
  • 1.2m Half Extension Ball bearing Type Rail Kit
  • 1m Half Extension Ball bearing Type Rail Kit
  • 1U Height Full Extension Ball bearing Type Rail Kit
  • *Please consult sales if  cable arm needed.
  • 1U Front Bezel
Note
  • Certain high TDP CPUs may be supported only with specific conditions. Please contact ASUS Technical Support for additional information and Thermal solution about specialized system optimization.
