1U Hyper with 8 hot-swap 2.5″ NVMe/SAS/SATA bays and 3 PCIe 5.0 x16 + 1 PCIe 5.0 x16 AIOM slot

Pretul afisat contine TVA (21%).

SuperServer SYS-122H-TN

1U Hyper with 8 hot-swap 2.5″ NVMe/SAS/SATA bays and 3 PCIe 5.0 x16 + 1 PCIe 5.0 x16 AIOM slot

Key Features

  1. Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores
  2. 32 DIMM slots supporting up to 8TB of memory
  3. 3 PCIe 5.0 x16 slots with support for Network/Storage/GPU/Accelerator cards
  4. Flexible networking options with 1 AIOM networking slot (OCP NIC 3.0 compatible)
  5. 8x 2.5″ hot-swap NVMe/SATA/SAS drive bays; Optional 4x 2.5″ hot-swap NVMe/SAS/SATA drive bays; 2x internal M.2 NVMe drive slots; Optional RAID support via storage add-on card

Specifications

Product SKUs
  • SuperServer SYS-122H-TN

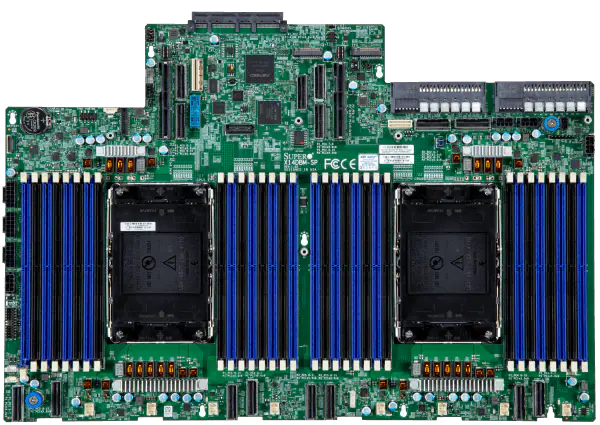

Motherboard
  • Super X14DBM-SP
Processor
CPU
  • Dual Socket E2 (LGA-4710)
  • Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores
Core Count
  • P-cores: Up to 86C/172T; Up to 336MB Cache per CPU
  • E-cores: Up to 144C/144T; Up to 108MB Cache per CPU
Note
  • Supports up to 350W TDP CPUs (Air Cooled)*
  • Supports up to 350W TDP CPUs (Liquid Cooled)​
  • *Air Cooled CPUs with TDP over 250W only supported under specific conditions. Contact a Supermicro representative for details.
GPU
Max GPU Count
  • Up to 1 double-width or 3 single-width GPUs
Supported GPU
  • NVIDIA PCIe: NVIDIA RTX PRO™ 4500 Blackwell Server Edition

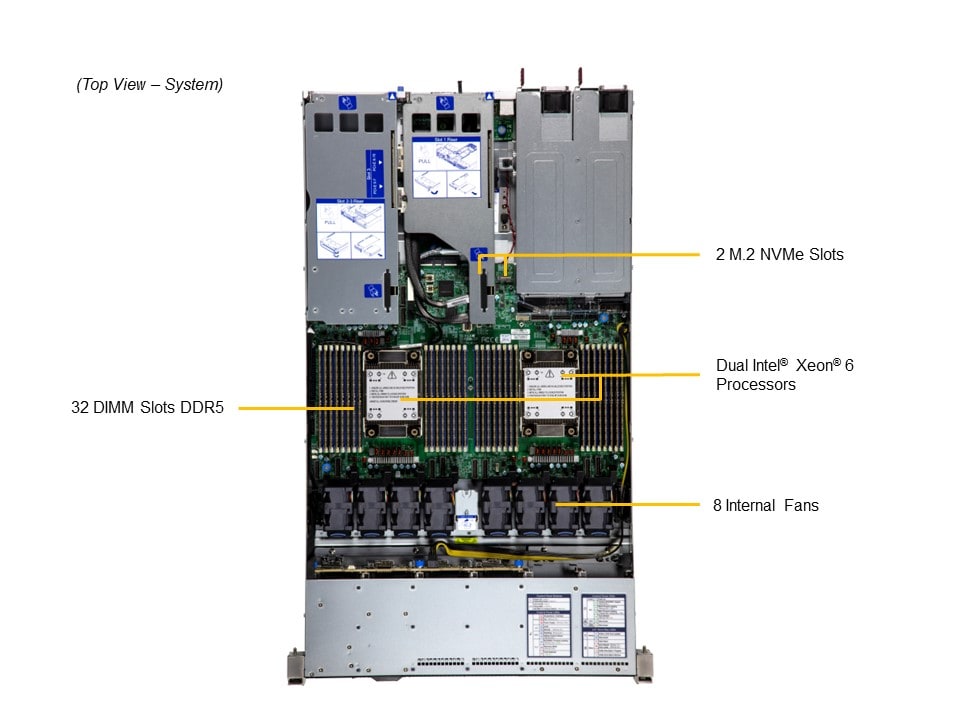

System Memory
Memory
  • Slot Count: 32 DIMM slots
  • Max Memory (1DPC): Up to 4TB 6400MT/s ECC DDR5 RDIMM
  • Max Memory (1DPC): Up to 1TB 8000MT/s ECC DDR5 MRDIMM (P-core only)
  • Max Memory (2DPC): Up to 8TB 5200MT/s ECC DDR5 RDIMM
Memory Voltage
  • 1.1V
On-Board Devices
NVMe
  • NVMe; RAID 0/1/5/10 support(Intel® VROC RAID key required)
Network Connectivity
  • Via AIOM

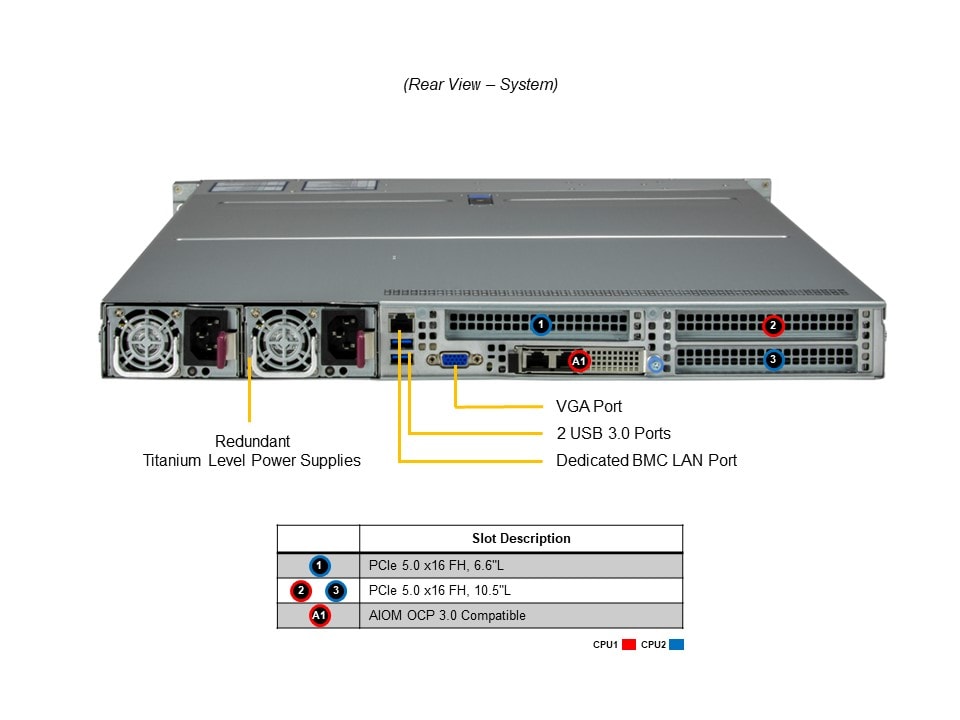

Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 USB 3.0 ports(rear)
  • 1 USB 3.0 port(front)
Video
  • 1 VGA port
System BIOS
BIOS Type
  • AMI 64MB SPI Flash
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
  • SuperServer SYS-122H-TN
  • Super X14DBM-SP
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-HS119-R000NP2
Dimensions and Weight
Height
  • 1.71″ (43.6 mm)
Width
  • 17.3″ (438.4 mm)
Depth
  • 29.27″ (743.38 mm)
Package
  • 7.99″ (H) x 23.81″ (W) x 37.4″ (D)
Weight
  • Gross Weight: 41 lbs (18.6 kg)
  • Net Weight: 18.7 lbs (8.5 kg)
Available Color
  • Silver

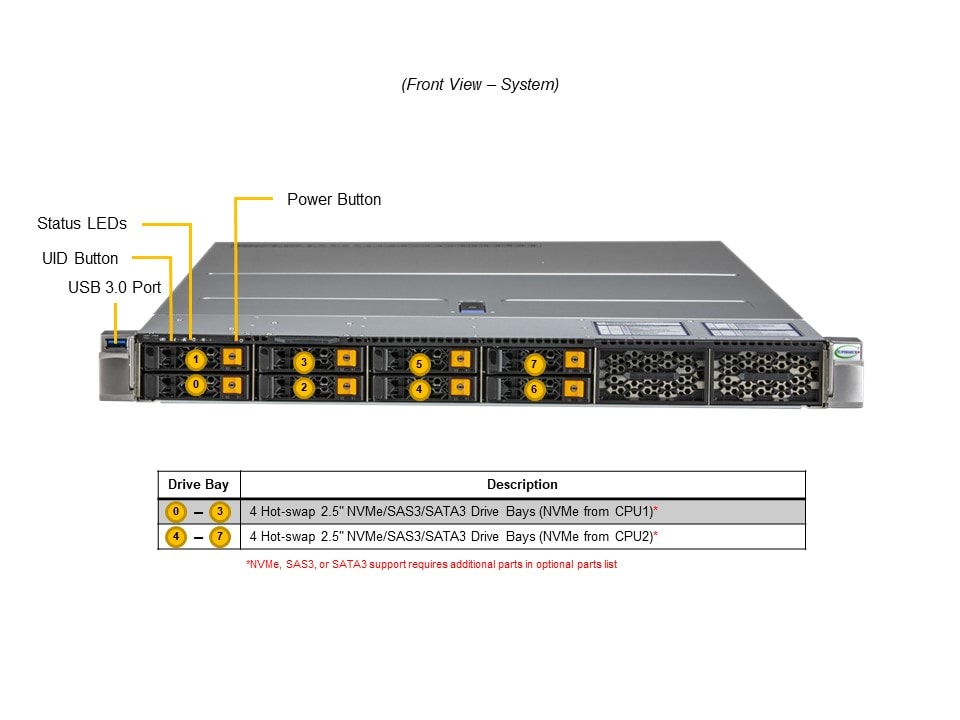

Front Panel
Buttons
  • Power On/Off
  • UID button
LED
  • HDD activity
  • LAN1 activity
  • Power
  • System information
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default1 PCIe 5.0 x16 FHHL slot 2 PCIe 5.0 x16 FH/10.5″L slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
  • 1 PCIe 5.0 x16 FHHL slot
  • 2 PCIe 5.0 x16 FH/10.5″L slots
  • 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)

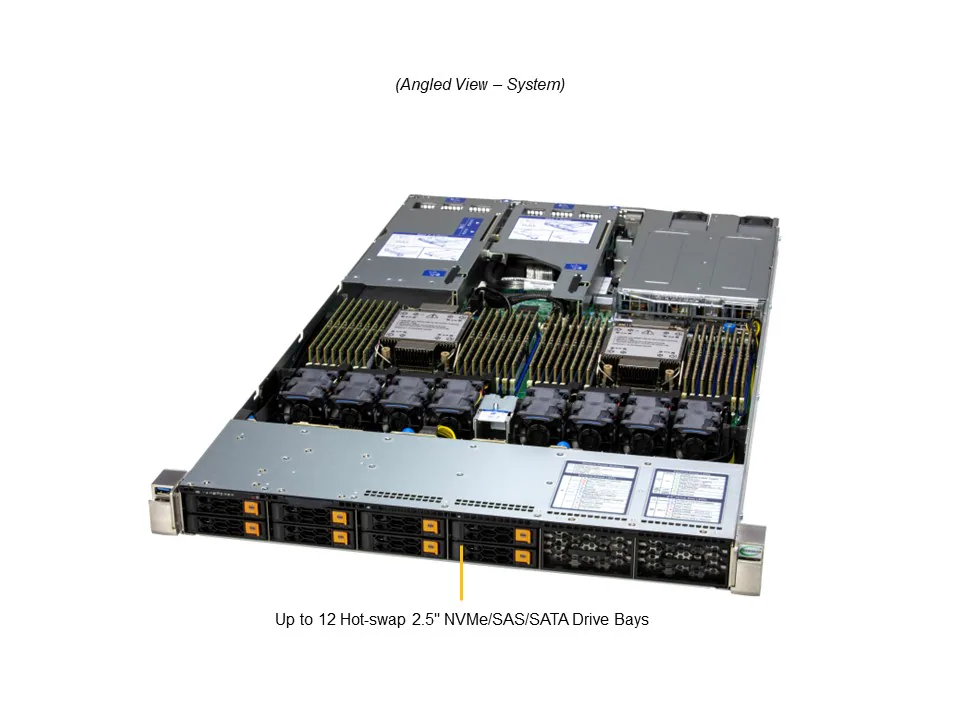

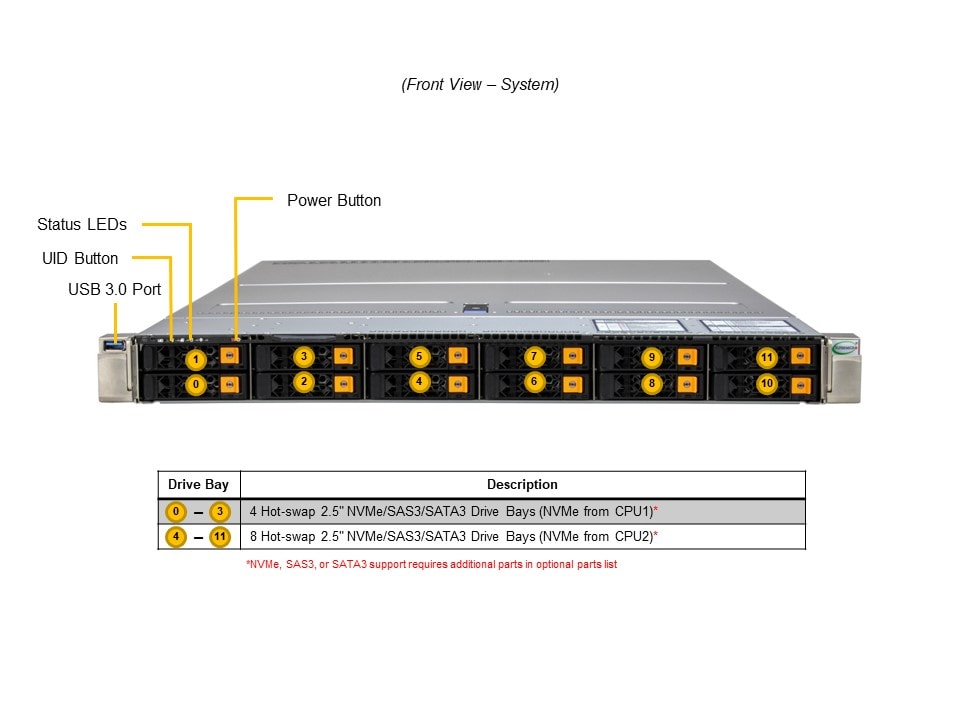

Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 8 bays8 front hot-swap 2.5″ NVMe*/SAS*/SATA* drive bays
  • 8 front hot-swap 2.5″ NVMe*/SAS*/SATA* drive bays
  • Option A: Total 12 bays12 front hot-swap 2.5″ NVMe*/SAS*/SATA* drive bays
  • 12 front hot-swap 2.5″ NVMe*/SAS*/SATA* drive bays
  • (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2
  • 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 2280/22110)
  • View M.2 Options
System Cooling
Fans
  • Up to 8 counter-rotating 40x40x56mm Fan(s)
Air Shroud
  • 2 Air Shrouds
Liquid Cooling
  • Direct to Chip (D2C) Cold Plate (optional)
Power Supply
  • 2x 1200W 2x 2000W 2x 1600W 2x 2600W 2x 1200W 2x 1200W Redundant (1 + 1) Titanium Level (96%) Hot-plug power supplies Dimension (WxHxL)73.5 x 40 x 265 mm Input800W: 100-127Vac 800W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 230-240Vdc / 50-60Hz (for CCC only) +12VMax: 66.7A / Min: 0A (100Vac-127Vac)Max: 83A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (200Vac-240Vac)Max: 100A / Min: 0A (230Vdc-240Vdc) (for CCC only) 12V SBMax: 2.1A / Min: 0A Output TypeBackplanes (gold finger) 2x 2000W 2x 2000W Redundant (1 + 1) Titanium Level (96%) Hot-plug power supplies Dimension (WxHxL)73.5 x 40 x 265 mm Input100-127Vac 200-240Vac 1000W: 100-120Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2000W: 230-240Vdc 2000W: 230-240Vac / 50-60Hz 2000W: 200-240Vac / 50-60Hz (for UL/cUL only) +12VMax: 83.3A / Min: 0A (100Vac-127Vac)Max: 83.3A / Min: 0A (100Vac-120Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 166.7A / Min: 0A (200Vac-240Vac) (for UL/cUL only)Max: 166.7A / Min: 0A (200Vac-240Vac)Max: 166.7A / Min: 0A (230Vac-240Vac) 12V SBMax: 2.1A / Min: 0A Output TypeBackplanes (gold finger) 2x 1600W 2x 1600W Redundant (1 + 1) Titanium Level (96%) Hot-plug power supplies Dimension (WxHxL)73.5 x 40 x 265 mm Input1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1600W: 200-240Vac 1600W: 200-240Vac / 50-60Hz 1600W: 200-240Vdc / 50-60Hz (for CQC only) +12VMax: 83.3A / Min: 0A (100Vac-127Vac)Max: 133.3A / Min: 0A (200Vac-240Vac) 12V SBMax: 3.5A / Min: 0A Max: 3.5A Output TypeBackplanes (gold finger) 2x 2600W 2x 2600W Redundant (1 + 1) Titanium Level (96%) Hot-plug power supplies Dimension (WxHxL)73.5 x 40 x 265 mm Input2600W: 200-240Vac 2600W: 200-240Vdc (For CQC Only)2600W: 200-240Vac / 50-60Hz 2600W: 200-240Vdc / 50-60Hz (for CQC only) +12VMax: 216A / Min: 0A (11.4Vdc-12.6Vdc) (12V output)Max: 216A / Min: 0A (200Vac-240Vac) 12V SBMax: 3.5A Output TypeBackplanes (gold finger)
Dimension (WxHxL)
  • 73.5 x 40 x 265 mm
Input
  • 800W: 100-127Vac 800W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 230-240Vdc / 50-60Hz (for CCC only)
+12V
  • Max: 66.7A / Min: 0A (100Vac-127Vac)Max: 83A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (200Vac-240Vac)Max: 100A / Min: 0A (230Vdc-240Vdc) (for CCC only)
12V SB
  • Max: 2.1A / Min: 0A
Output Type
  • Backplanes (gold finger)
Input
  • 100-127Vac 200-240Vac 1000W: 100-120Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2000W: 230-240Vdc 2000W: 230-240Vac / 50-60Hz 2000W: 200-240Vac / 50-60Hz (for UL/cUL only)
+12V
  • Max: 83.3A / Min: 0A (100Vac-127Vac)Max: 83.3A / Min: 0A (100Vac-120Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 166.7A / Min: 0A (200Vac-240Vac) (for UL/cUL only)Max: 166.7A / Min: 0A (200Vac-240Vac)Max: 166.7A / Min: 0A (230Vac-240Vac)
Input
  • 1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1600W: 200-240Vac 1600W: 200-240Vac / 50-60Hz 1600W: 200-240Vdc / 50-60Hz (for CQC only)
+12V
  • Max: 83.3A / Min: 0A (100Vac-127Vac)Max: 133.3A / Min: 0A (200Vac-240Vac)
12V SB
  • Max: 3.5A / Min: 0A Max: 3.5A
Input
  • 2600W: 200-240Vac 2600W: 200-240Vdc (For CQC Only)2600W: 200-240Vac / 50-60Hz 2600W: 200-240Vdc / 50-60Hz (for CQC only)
+12V
  • Max: 216A / Min: 0A (11.4Vdc-12.6Vdc) (12V output)Max: 216A / Min: 0A (200Vac-240Vac)
12V SB
  • Max: 3.5A
Operating Environment
Environmental Spec.
  • Name: A2
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -30°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 80% (max 21° DP; non-condensing)
  • Non-operating Relative Humidity: 8% to 90% (max 38° DP; non-condensing)
Environmental / Recycling
Recycle
  • Return Server-End of Life Product
  • 2x 1200W 2x 2000W 2x 1600W 2x 2600W 2x 1200W 2x 1200W Redundant (1 + 1) Titanium Level (96%) Hot-plug power supplies Dimension (WxHxL)73.5 x 40 x 265 mm Input800W: 100-127Vac 800W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 230-240Vdc / 50-60Hz (for CCC only) +12VMax: 66.7A / Min: 0A (100Vac-127Vac)Max: 83A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (200Vac-240Vac)Max: 100A / Min: 0A (230Vdc-240Vdc) (for CCC only) 12V SBMax: 2.1A / Min: 0A Output TypeBackplanes (gold finger) 2x 2000W 2x 2000W Redundant (1 + 1) Titanium Level (96%) Hot-plug power supplies Dimension (WxHxL)73.5 x 40 x 265 mm Input100-127Vac 200-240Vac 1000W: 100-120Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2000W: 230-240Vdc 2000W: 230-240Vac / 50-60Hz 2000W: 200-240Vac / 50-60Hz (for UL/cUL only) +12VMax: 83.3A / Min: 0A (100Vac-127Vac)Max: 83.3A / Min: 0A (100Vac-120Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 166.7A / Min: 0A (200Vac-240Vac) (for UL/cUL only)Max: 166.7A / Min: 0A (200Vac-240Vac)Max: 166.7A / Min: 0A (230Vac-240Vac) 12V SBMax: 2.1A / Min: 0A Output TypeBackplanes (gold finger) 2x 1600W 2x 1600W Redundant (1 + 1) Titanium Level (96%) Hot-plug power supplies Dimension (WxHxL)73.5 x 40 x 265 mm Input1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1600W: 200-240Vac 1600W: 200-240Vac / 50-60Hz 1600W: 200-240Vdc / 50-60Hz (for CQC only) +12VMax: 83.3A / Min: 0A (100Vac-127Vac)Max: 133.3A / Min: 0A (200Vac-240Vac) 12V SBMax: 3.5A / Min: 0A Max: 3.5A Output TypeBackplanes (gold finger) 2x 2600W 2x 2600W Redundant (1 + 1) Titanium Level (96%) Hot-plug power supplies Dimension (WxHxL)73.5 x 40 x 265 mm Input2600W: 200-240Vac 2600W: 200-240Vdc (For CQC Only)2600W: 200-240Vac / 50-60Hz 2600W: 200-240Vdc / 50-60Hz (for CQC only) +12VMax: 216A / Min: 0A (11.4Vdc-12.6Vdc) (12V output)Max: 216A / Min: 0A (200Vac-240Vac) 12V SBMax: 3.5A Output TypeBackplanes (gold finger)
