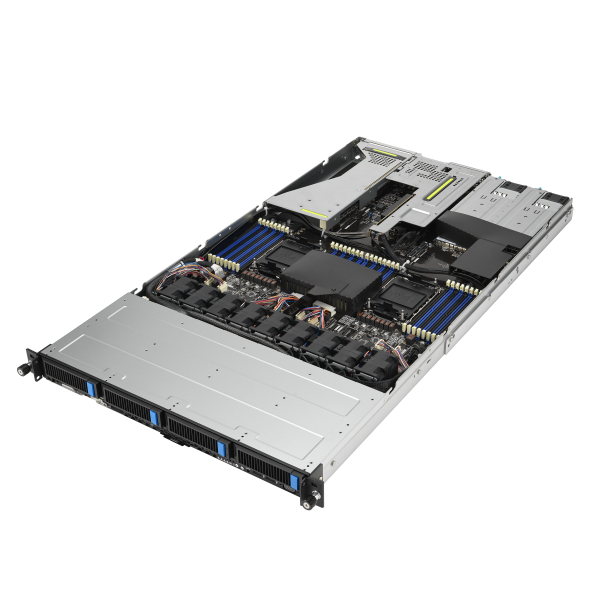

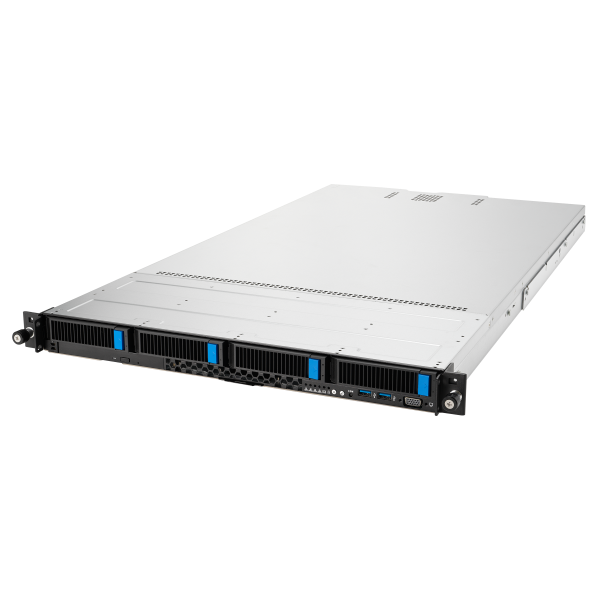

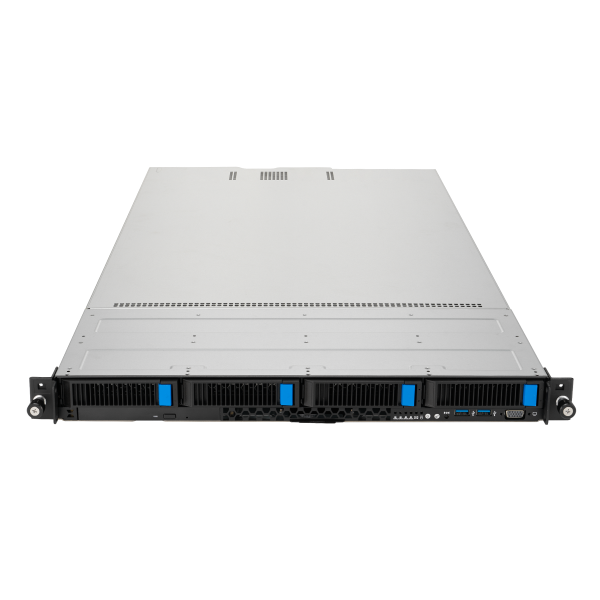

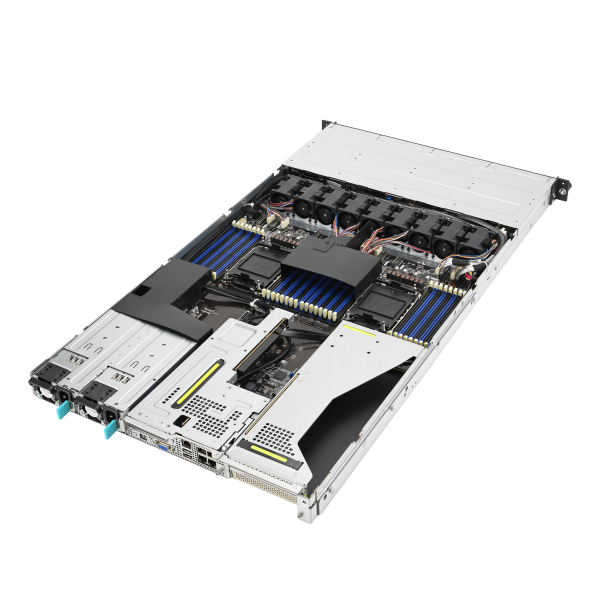

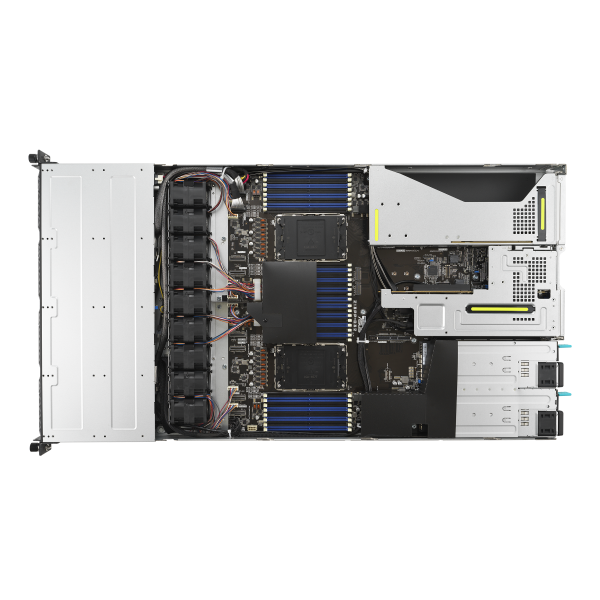

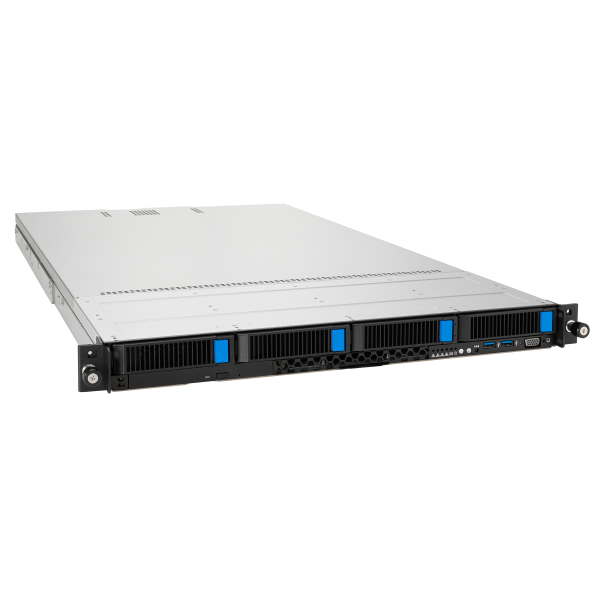

RS700-E11-RS4U
1U dual-socket server powered by 5th Gen Intel Xeon Scalable processors that supports 32 DIMMs, 4 PCIe 5.0 slots, 4 NVMe, 1 dual-slot GPU, OCP 3.0, ASUS ASMB11-iKVM
Key Features
- Powerful performance: Powered by 5th Gen Intel® Xeon® Scalable processors unleash up to 21%-greater general-purpose performance per watt, significantly improving AI inference and training
- Scale-up storage and expansion design: Up to 4 all-flash NVMe drives on the front panel, and 4 PCIe 5.0 slots for higher bandwidth and system upgrade
- Flexible networking module design: Optional two 10 Gbps or four 1 Gbps on-board LAN module, and OCP 3.0 module with PCIe 5.0 slot in rear panel for faster connectivity
- Advanced air cooling solution: Features enhanced volume air cooling (EVAC) heatsink for processors with higher TDP
- Enhanced IT-infrastructure management: ASUS ASMB11-iKVM remote control with ASPEED AST2600, ASUS Control Center IT management software and hardware-level Root-of-Trust solution
- Ready for AI and HPC workloads: Supports 1 dual-slot GPU, including Intel Data Center GPU Flex series and NVIDIA A100
Specifications
| Processor / System Bus |
- Intel®Xeon® Processor Scalable Family
|
| Generation |
|
| Core Logic |
|
| Memory |
- Total slot:
- 32 (8-channel per CPU, 16 DIMM per CPU)
- Capacity:
- Maximum up to 4TB
- Memory type:
- 4th: 4800 MHz (1DPC)/ 4400 MHz (2DPC)
- 5th: 5600/4800 MHz (1DPC)/4400(2DPC)
- Memory size:
- 64GB, 32GB, 16GB RDIMM
- 256GB, 128GB RDIMM 3DS
- * Refer to www.asus.com/support for more information
|
| Expansion Slots |
- Configuration #1 (Non-GPU support)
- Up to 3 x PCIe Gen5 slots + 1 x internal RAID slot
- 1 x PCIe Gen5 x16 (FHFL)
- 1 x PCIe Gen5 x16 or 1 x OCP3.0 (FHFL)
- 1 x PCIe Gen5 x16 (LP)
- 1 x PCIe Gen4 x8 (LP, internal)
- Configuration #2 (GPU support)
- Up to 3 x PCIe Gen5 slots + 1 x internal RAID slot
- 1 x PCIe Gen5 x16 (FHFL)
- 1 x PCIe Gen5 x16 (FHFL)
- 1 x PCIe Gen5 x16 (LP)
- 1 x PCIe Gen4 x8 (LP, internal)
|
| Storage |
- 4 x 3.5″ hot-swap bay
- 4 x NVMe/SATA/SAS*
- (HBA//RAID card is required to support SAS hard drives)
|
| Drive Bays |
- 4 x 3.5″ hot-swap bay
- 2 x M.2 slot
|
| System Fan |
|
| Networking |
- Configuration #1 (Non-GPU support)
- 1 x Mgmt LAN
- 4 x1Gbe(Intel I350-AM4) RJ45 port (optional) or 2 x 10Gbe(Intel X710-AT2) RJ45 port (optional)
- Configuration #2 (GPU support)
- 1 x Mgmt LAN
- 2 x 10Gbe(Intel X710-AT2) RJ45 port (optional)
|
| Graphic |
|

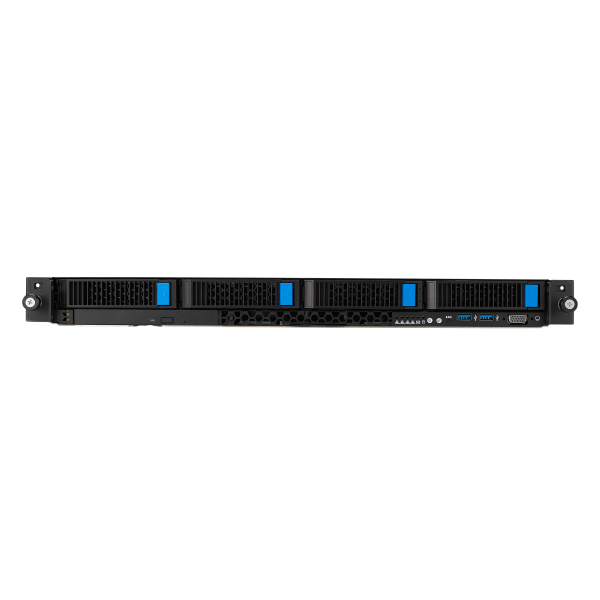

| Front I/O Ports |
|

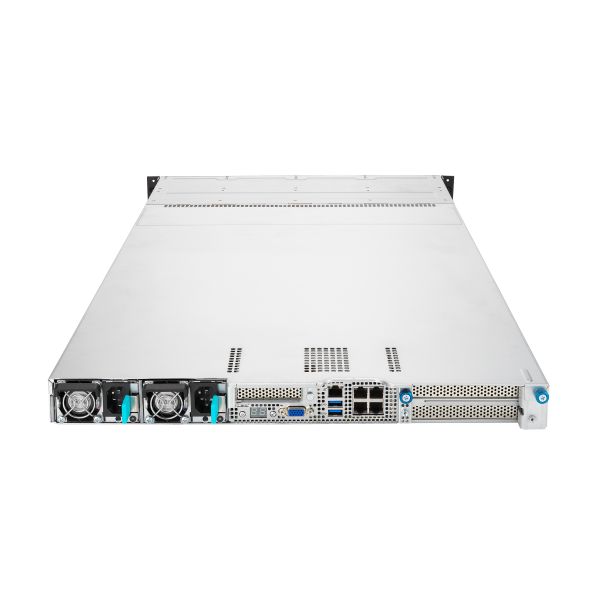

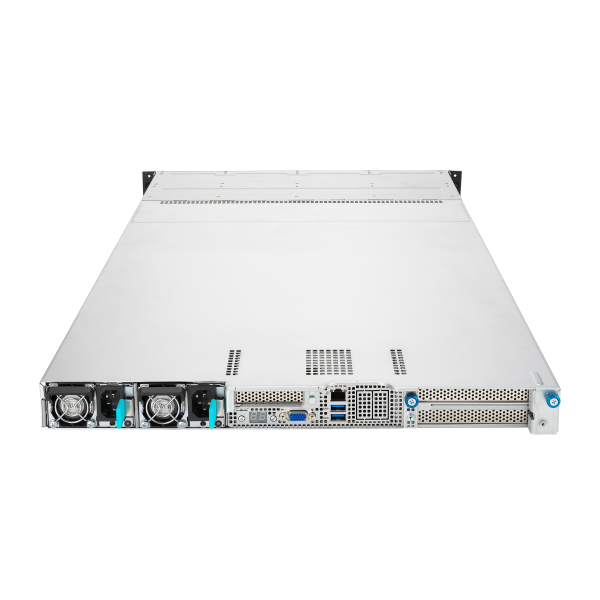

| Rear I/O Ports |
- 2 x USB 3.2 Gen1 ports
- 1 x VGA port
- 1 x RJ-45 Management LAN port
- 2 x 10G or 4 x 1G RJ-45 GbE LAN port (optional)
|
| Switch/LED |
- Front Switch/LED:
- 1 x Power Switch (w/ LED)
- 1 x Location Switch (w/ LED)
|
| Dimensions |
|
| Form Factor |
|
| Weight |
|
| Power Supply |
- Configuration #1 (Non-GPU support)
- 1+1 Redundant AC:
- 1600W 80 PLUS Titanium Power Supply
- 2000W/1200W 80 PLUS Platinum Power Supply
- Configuration #2 (GPU support)
- 1+1 Redundant AC:
- 1600W 80 PLUS Titanium Power Supply
- 2000W 80 PLUS Platinum Power Supply
|
| CPU Heatsink/ Cooler |
- Configuration #1 (Non-GPU support)
- 1U Standard Heatsink
- Configuration #2 (GPU support)
- 1U EVAC Heatsink
|
| FRU Part List |
- Board/Card/Module
- Motherboard: 90SB09M0-M0XBN1
- RS4U Backplane: 90SC0K90-M0XBN1
- RS12U Backplane: 90SC0GZ0-M1XBN1
- Rear Bay Backplane: 90SC0K60-M1XBN1
- 2 Ports 10G LAN Module: 90SC0JD0-M0XBN1
- 4 Ports 1G LAN Module: 90SC0JE0-M0XBN1
- Riser Card (for Low Profile Slot): 90SC0H10-M1XBN1
- Riser Card: 90SC0KB0-M1XBN1
- Cable Kit
- COM Port Cable: 90SK0000-MHUBN0
- 8P to 8P+8P GPU Power Cable: 90SK0000-MT9AN0
- 8P to 8P GPU Power Cable: 90SK0000-MSIAN0
- RS12U 12NVMe Cable Kit: 90SKS000-M3FAN0
- RS12U 12SATA/SAS Cable Kit: 90SKS000-M3GAN0
- RS4U 4NVMe Cable Kit: 90SKS000-M3HAN0
- RS4U 4SATA/SAS Cable Kit: 90SKS000-M3IAN0
- 3108/3008 PIKE Card Cable Kit: 90SKS000-M7GAN0
- 9560-16i RAID Card Cable Kit: 90SKS000-M99AN0
- Others
- CPU Carrier Kit (Each 2pcs of E1A/E1B/E1C): 90SKS000-M4EAN0
- Fan module (Fan size: 40*40*56mm / Includes fan cable, holder, bracket): 90SKS000-M47AN0
- Fan (Fan size: 40*40*56mm): 90SKS000-MDEAN0
- 1U Front Bezel: 90SK0000-MPHAN0
- HDD Tray
- 3.5†Tool-less HDD Tray: 90SKH000-MPRBN0
- 2.5†Narrow HDD Tray: 90SKH000-MNGBN0
- Heatsink
- 1U Standard CPU heatsink: 90SKS000-M4TAN0
- 1U EVAC CPU heatsink: 90SKS000-M4UAN0
- Power Supply
- 800W Titanium PSU: 90SKP000-M4QAN0
- 1200W Platinum PSU: 90SKP000-M4SAN0
- 1600W Titanium PSU: 90SKP000-M4RAN0
- 1600W Titanium PSU: 90SKP000-M28AN0
- 2000W Platinum PSU: 90SKP000-M4FAN0
- Rail Kit/Cable Arm
- Rail Kit – Friction: 90SKR000-M0EAN0
- Rail Kit – Full-Extension: 90SKR000-M0AAN0
- Rail Kit – Half-Extension for 1M Rack: 90SKR000-M04AN0
- Rail Kit – Half-Extension for 1.2M Rack: 90SKR000-M0FAN0
- Cable Arm for Half-extension, 1U Type Slide Rail Kit only (for 1.2M Rack): 90SKR000-M06BN0
- Cable Arm for Full-extension, 1U Type Slide Rail Kit only: 90SKS000-M23AN0
|
