ASUS RS700A-E12-RS12U

Favorite
Compara

AMD EPYC™ 9004 dual-processor 1U server that supports up to 24 DIMM, 12 NVMe, three PCIe® 5.0 slots, two M.2, OCP 3.0, one dual-slot GPU, and ASUS ASMB11-iKVM

Pretul afisat contine TVA (21%).

RS700A-E12-RS12U

AMD EPYC™ 9004 dual-processor 1U server that supports up to 24 DIMM, 12 NVMe, three PCIe® 5.0 slots, two M.2, OCP 3.0, one dual-slot GPU, and ASUS ASMB11-iKVM

Key Features

  • Powerful performance: Powered by AMD EPYC 9004 processors with 128 Zen 4c cores, 12-channel, up to 4800 MHz DDR5 and support for a maximum TDP of up to 400 watts per socket
  • Scale-up storage and expansion design: A total of 12 bays in combination of Tri-Mode NVMe/SATA/SAS drives on the front panel and three PCIe 5.0 slots for higher bandwidth and system upgrade
  • Flexible networking module design: Optional two 10 Gbps or four 1 Gbps on-board LAN module, and OCP 3.0 module with PCIe 5.0 slot in rear panel for faster connectivity
  • Advanced air cooling solution: Features enhanced volume air cooling (EVAC) heatsink for processors with up to a maximum 400W TDP
  • Enhanced IT-infrastructure management: ASUS ASMB11-iKVM remote control with ASPEED AST2600, ASUS Control Center IT management software and hardware-level Root-of-Trust solution
  • Read for AI and HPC workloads: Up to one dual-slot GPU, including NVIDIA A100 and A40, AMD Instinct and Xilinx*

Specifications

Processor / System Bus
  • 2 x Socket SP5 (LGA 6096)
  • AMD EPYC™ 9004 Series (up to 400W)
  • 4th Generation AMD EPYC Processors with AMD 3D V-Cache technology
  • *Please consult sales for more details
Generation
  • E12
Memory
  • Total Slots :
  • 24 (12-channel per CPU, 1 DIMM per CPU)
  • Capacity :
  • Maximum up to 3072GB per socket
  • Memory Type :
  • DDR5 4800/4400 RDIMM/ 3DS RDIMM
  • Memory Size :
  • 128GB, 64GB, 32GB RDIMM
  • 128GB, 64GB, 32GB 3DS RDIMM
  • * Refer to www.asus.com/support for more information
Expansion Slots
  • Configuration #1 (Non-GPU support)
  • Up to 3 x PCIe Gen5 slots + 1 x internal RAID slot
  • 1 x PCIe Gen5 x16 (FHFL)
  • 1 x PCIe Gen5 x16 or 1 x OCP3.0 (FHFL)
  • 1 x PCIe Gen5 x16 (LP)
  • 1 x PCIe Gen4 x8 (LP, internal)
  • Configuration #2 (GPU support)
  • Up to 3 x PCIe Gen5 slots + 1 x internal RAID slot
  • 1 x PCIe Gen5 x16 (FHFL)
  • 1 x PCIe Gen5 x16 (FHFL)
  • 1 x PCIe Gen5 x16 (LP)
  • 1 x PCIe Gen4 x8 (LP, internal)
Storage
  • SATA Controller :
  • 12 x SATA 6Gb/s ports
  • 2 x M.2 connectors (SATA 6Gb/s & PCI-E Gen4 x4 link)
  • SAS Controller :
  • Braodcom HBA CARD 9500-16i (Optional)
  • Broadcom MegaRAID 9540-8i (Optional)
  • Broadcom MegaRAID 9560-16i (Optional)
  • NVMe Controller :
  • SupremeRAID™ from Graid SR1001 (support up to 4 NVMe) (Optional)
  • SupremeRAID™ from Graid SR1000 (support up to 12 NVMe) (Optional)
  • SupremeRAID™ from Graid SR1010 (support up to 12 NVMe) (Optional)
Drive Bays
  • 12 x 2.5″ Hot-Swap drive bays
  • Support up to 12 x NVMe/SATA/SAS*
  • *RAID card is required to support SAS hard drives
System Fan
  • 8
Networking
  • Configuration #1 (Non-GPU support)
  • 1 x Mgmt LAN
  • 4 x1Gbe(Intel I350-AM4) RJ45 port (optional) or 2 x 10Gbe(Intel X710-AT2) RJ45 port (optional)
  • Configuration #2 (GPU support)
  • 1 x Mgmt LAN
  • 2 x 10Gbe(Intel X710-AT2) RJ45 port (optional)
Graphic
  • Aspeed AST2600 64MB
Multi-GPU Support
  • Please find the latest GPU support from https://servers.asus.com/support/gpu

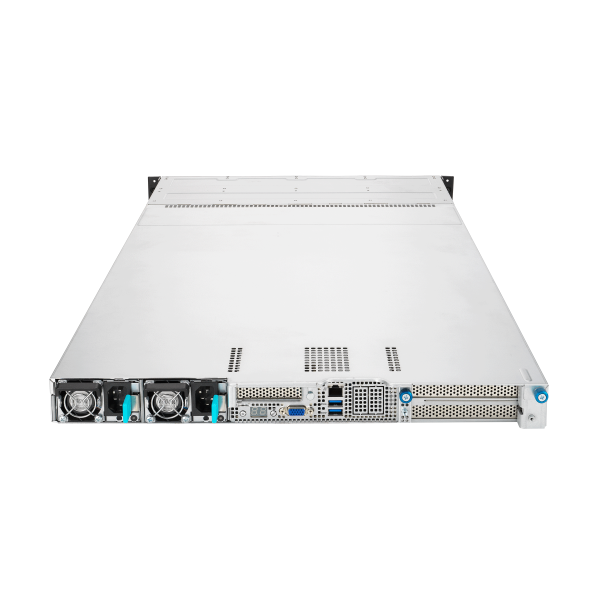

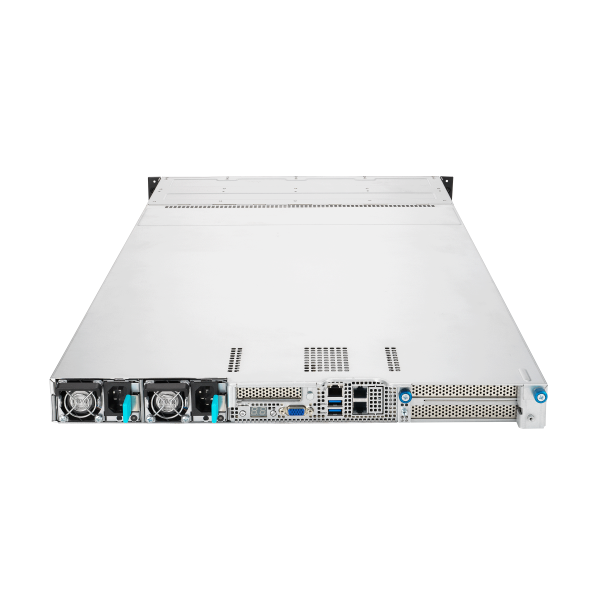

Rear I/O Ports
  • 2 x USB 3.2 Gen1 ports
  • 1 x VGA port
  • 1 x RJ-45 Mgmt LAN port
  • 2 x 10G or 4 x 1G RJ-45 GbE LAN port (Optional)
  • 1 x OCP3.0 port (Optional)
  • *GPU SKU do not support OCP3.0.

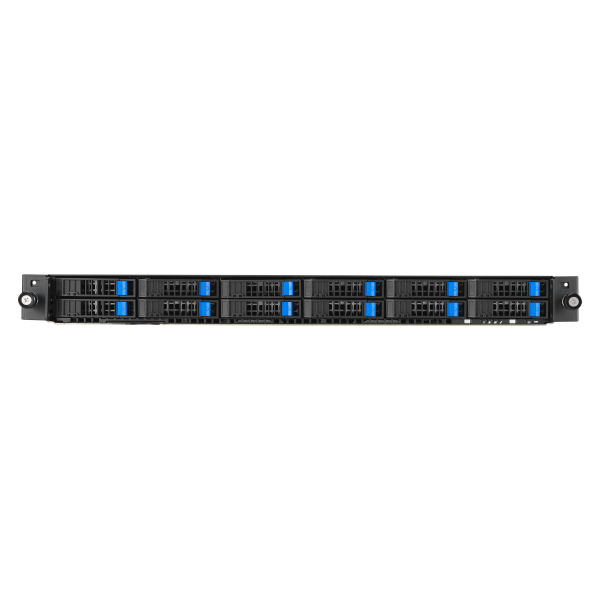

Switch/LED
  • Front Switch/LED:
  • 1 x Power Switch (w/ LED)
  • 1 x Reset Switch
  • 1 x Location Switch (w/ LED)
  • 1 x HDD Access LED
  • 1 x Message LED
  • LAN 1-4 LED (on NIC module)
  • Rear Switch/LED:
  • 1 x Port 80 LED (Q-Code)
  • 1 x Power Switch w/ LED
  • 1 x Location Switch w/LED
  • 1 x Message LED
OS Support
  • Please find the latest OS support from https://servers.asus.com/support/os
Management Solution
  • On-Board ASMB11-iKVM for KVM-over-IP
  • ASUS Control Center Enterprise (Optional)
Regulatory Compliance
  • BSMI, CE, CB, C-Tick, FCC(Class A)
Dimensions
  • 842.5mm x 449mm x 43.85mm (33.17″ x 17.68″ x 1.73″)
Form Factor
  • 1U
Weight
  • Net Weight : 14.94KG
  • Gross Weight : 19.94KG
Power Supply
  • Configuration #1 (Non-GPU support)
  • 1+1 Redundant AC:
  • 2600W/1600W 80 PLUS Titanium Power Supply
  • 2000W/1600W 80 PLUS Platinum Power Supply
  • Configuration #2 (GPU support)
  • 1+1 Redundant AC:
  • 2600W 80 PLUS Titanium Power Supply
  • 2000W 80 PLUS Platinum Power Supply
Environment
  • Operation temperature: 10℃ ~ 35℃
  • Non operation temperature: -40℃ ~ 60℃
  • Non operation humidity: 20% ~ 90% (Non condensing)
Optional Items
  • Rail Kit:
  • Tool-less Friction Rail Kit
  • 1.2m Half Extension Ball bearing Type Rail Kit
  • 1m Half Extension Ball bearing Type Rail Kit
  • 1U Height Full Extension Ball bearing Type Rail Kit
  • *Please consult sales if  cable arm needed.
  • 1U Front Bezel
Note
  • Configuration #2 (GPU support)
  • External Fan
CPU Heatsink/ Cooler
  • 2
Fan
  • 1 (For supporting GPU SKU, it will have external fan)
SKU: rs700a-e12-rs12u Categorii: , , , ,
