ASUS RS720-E11-RS12U

Favorite

Compara

2U dual-socket server powered by 5th Gen Intel Xeon Scalable processors that supports 32 DIMMs, 9 PCIe 5.0 slots, 14 NVMe, OCP 3.0, ASUS ASMB11-iKVM, and up to 4 dual-slot GPUs

Pretul afisat contine TVA (21%).

RS720-E11-RS12U

2U dual-socket server powered by 5th Gen Intel Xeon Scalable processors that supports 32 DIMMs, 9 PCIe 5.0 slots, 14 NVMe, OCP 3.0, ASUS ASMB11-iKVM, and up to 4 dual-slot GPUs

Key Features

Powerful performance: Powered by 5th Gen Intel® Xeon® Scalable processors unleash up to 21%-greater general-purpose performance per watt, significantly improving AI inference and training

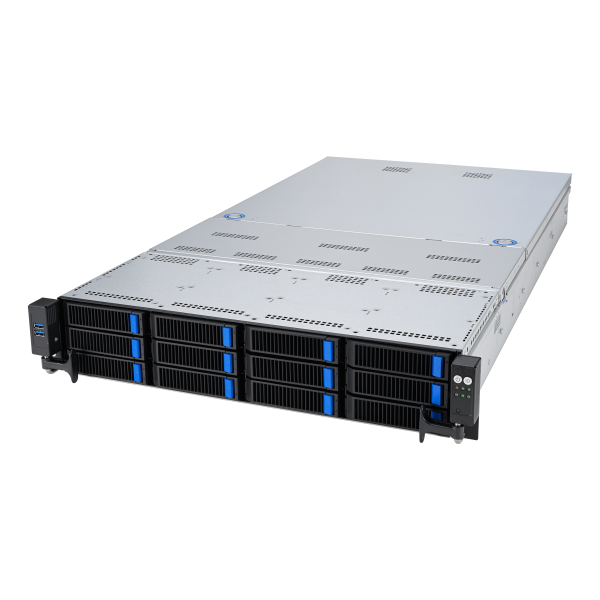

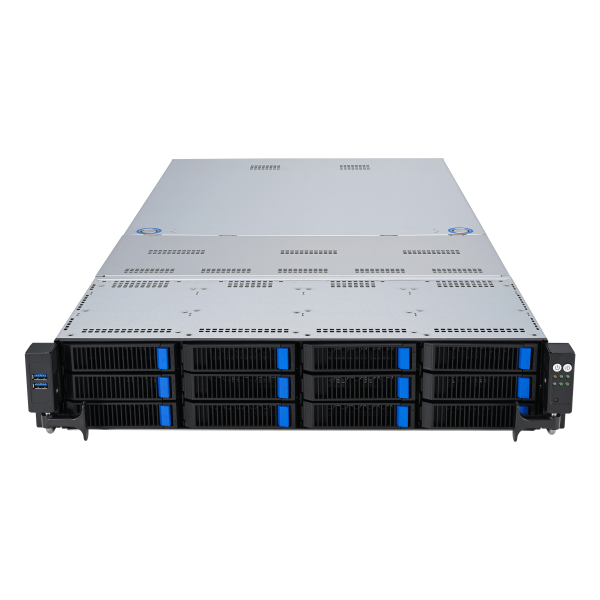

Scale-up storage and expansion design: Up to 12 all-flash NVMe drives on the front panel, two NVMe in the real panel (optional), and 9 PCIe 5.0 slots for higher bandwidth and system upgrade
Flexible networking module design: Optional two 10 Gbps or four 1 Gbps on-board LAN module, and OCP 3.0 module with PCIe 5.0 slot in rear panel for faster connectivity
Advanced air cooling solution: Features enhanced volume air cooling (EVAC) heatsink for processors with higher TDP
Enhanced IT-infrastructure management: ASUS ASMB11-iKVM remote control with ASPEED AST2600, ASUS Control Center IT management software and hardware-level Root-of-Trust solution

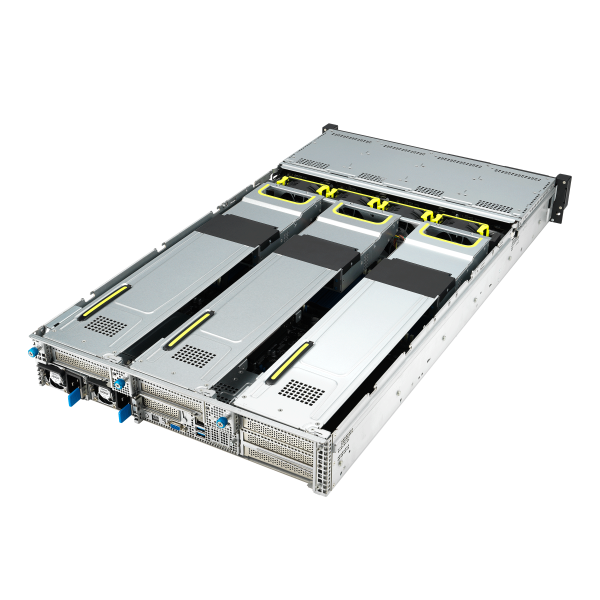

Ready for AI and HPC workloads: GPU SKU supports up to four dual-slot GPUs, including Intel Data Center GPU Flex series and NVIDIA A100

Specifications

Processor / System Bus	Intel®Xeon® Processor Scalable Family
Generation	4th/5th
Core Logic	Intel® C741 Chipset
Memory	Total slot: 32 (8-channel per CPU, 16 DIMM per CPU) Capacity: Maximum up to 4TB Memory type: 4th: 4800 MHz (1DPC)/ 4400 MHz (2DPC) 5th: 5600/4800 MHz (1DPC)/4400(2DPC) Memory size: 64GB, 32GB, 16GB RDIMM 256GB, 128GB RDIMM 3DS * Refer to www.asus.com/support for more information
Expansion Slots	Up to 9 slots (with OCP) • 6 x PCIe Gen5 x8 link or 3 x PCIe Gen5 x16 link (FHFL) • 1 x PCIe Gen5 x16 link (FHFL) • 1 x PCIe Gen5 x16 (LP) • 1 x OCP 3.0 Up to 9 slots (without OCP)  • 8 x PCIe Gen5 x8 link or 4 x PCIe Gen5 x16 link (FHFL) • 1 x PCIe Gen5 x16 (LP)
Storage	Configuration #1 (Non-GPU support) Front Bays: 12 x 3.5”/2.5″ hot-swap drive bays 8 x NVMe/SAS/SATA + 4 NVMe/SATA Rear Bays (Optional): 2 x 2.5″ hot-swap drive bays 2 x NVMe/SATA Configuration #2 (GPU support) 12 x 3.5”/2.5″ hot-swap drive bays 8 x NVMe/SAS/SATA + 4 NVMe/SATA *HBA/RAID card is required to support SAS hard drives
Drive Bays	12 x 3.5”/2.5″ hot-swap bay 2 x M.2 slot
System Fan	4
Networking	Configuration #1 (Non-GPU support) 1 x Mgmt LAN 4 x1Gbe(Intel I350-AM4) RJ45 port (optional) or 2 x 10Gbe(Intel X710-AT2) RJ45 port (optional) Configuration #2 (GPU support) 1 x Mgmt LAN 2 x 10Gbe(Intel X710-AT2) RJ45 port (optional)
Graphic	Aspeed AST2600 64MB
Front I/O Ports	2 x USB 3.2 Gen1 ports

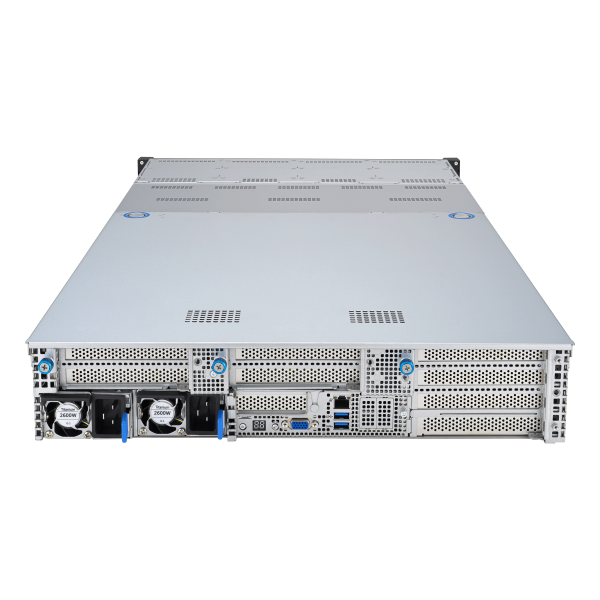

Rear I/O Ports	2 x USB 3.2 Gen1 ports 1 x VGA port 1 x RJ-45 Management LAN port 2 x 10G or 4 x 1G RJ-45 GbE LAN port (optional)
Switch/LED	Front Switch/LED: 1 x Power Switch (w/ LED) 1 x Location Switch (w/ LED)
Dimensions	840mm x 447mm x 88mm
Form Factor	2U
Weight	26.855kg
Power Supply	Configuration #1 (Non-GPU support) 1+1 Redundant AC: 2600W/1600W 80 PLUS Titanium Power Supply 2000W/1600W 80 PLUS Platinum Power Supply Configuration #2 (GPU support) 1+1 Redundant AC: 2600W 80 PLUS Titanium Power Supply 2000W 80 PLUS Platinum Power Supply
CPU Heatsink/ Cooler	Configuration #1 (Non-GPU support) 2U Standard Heatsink Configuration #2 (GPU support) 1U Standard Heatsink 1U EVAC Heatsink
FRU Part List	Board/Card/Module Motherboard: 90SB09M0-M0XBN1 RS12U Backplane: 90SC0IC0-M0XBN2 RS24U Backplane: 90SC0JU0-M1XBN1 2 Ports 10G LAN Module: 90SC0JD0-M0XBN1 4 Ports 1G LAN Module: 90SC0JE0-M0XBN1 Riser Card (for Low Profile Slot): 90SC0H10-M0XBN2 Riser Card (for 5-6 & 7-8 Slot): 90SC0IB0-M0XBN2 RS12U Riser Card (for 1-4 Slot): 90SC0IA0-M0XBN1 Cable Kit RS12U 12NVMe Cable Kit: 90SKS000-M3QAN0 RS12U 12SATA/SAS Cable Kit: 90SKS000-M3RAN0 RS24U 24NVMe Cable Kit: 90SKS000-M74AN0 9560-16i RAID Card Cable Kit: 90SKS000-M3EAN0 3008/3108 PIKE Card Cable Kit: 90SKS000-M7FAN0 2X4P to 2X6P GPU Power Cable Kit: 90SKS000-M28BN0 Others CPU Carrier Kit (Each 2pcs of E1A/E1B/E1C): 90SKS000-M4EAN0 Fan (Fan size: 808038mm): 90SK0000-MJDBN0 2U Front Bezel: 90SK0000-MPIAN0 HDD Tray 3.5” Tool-less HDD Tray: 90SKH000-MPRBN0 2.5” Tool-less HDD Tray: 90SKH000-MPPBN0 Heatsink 2U Standard CPU heatsink: 90SKS000-MJTAN0 1U EVAC CPU heatsink: 90SKS000-M4UAN0 Power Supply 1600W Titanium PSU: 90SKP000-M4RAN0 2600W Titanium PSU: 90SKP000-M4PAN0 1600W Platinum PSU: 90SKP000-M28AN0 2000W Platinum PSU: 90SKP000-M4FAN0 Rail Kit/Cable Arm Rail Kit – Full-Extension for 1.5M Rack: 90SKR000-M07AN0 Rail Kit – Friction: 90SKR000-M0EAN0 Cable Arm: 90SKS000-M23AN0

SKU: rs720-e11-rs12u Categorii: ASUS, BRAND, Rack Servers, Server&Storage, Servers

Processor / System Bus	Intel®Xeon® Processor Scalable Family
Generation	4th/5th
Core Logic	Intel® C741 Chipset
Memory	Total slot: 32 (8-channel per CPU, 16 DIMM per CPU) Capacity: Maximum up to 4TB Memory type: 4th: 4800 MHz (1DPC)/ 4400 MHz (2DPC) 5th: 5600/4800 MHz (1DPC)/4400(2DPC) Memory size: 64GB, 32GB, 16GB RDIMM 256GB, 128GB RDIMM 3DS * Refer to www.asus.com/support for more information
Expansion Slots	Up to 9 slots (with OCP) • 6 x PCIe Gen5 x8 link or 3 x PCIe Gen5 x16 link (FHFL) • 1 x PCIe Gen5 x16 link (FHFL) • 1 x PCIe Gen5 x16 (LP) • 1 x OCP 3.0 Up to 9 slots (without OCP)  • 8 x PCIe Gen5 x8 link or 4 x PCIe Gen5 x16 link (FHFL) • 1 x PCIe Gen5 x16 (LP)
Storage	Configuration #1 (Non-GPU support) Front Bays: 12 x 3.5”/2.5″ hot-swap drive bays 8 x NVMe/SAS/SATA + 4 NVMe/SATA Rear Bays (Optional): 2 x 2.5″ hot-swap drive bays 2 x NVMe/SATA Configuration #2 (GPU support) 12 x 3.5”/2.5″ hot-swap drive bays 8 x NVMe/SAS/SATA + 4 NVMe/SATA *HBA/RAID card is required to support SAS hard drives
Drive Bays	12 x 3.5”/2.5″ hot-swap bay 2 x M.2 slot
System Fan	4
Networking	Configuration #1 (Non-GPU support) 1 x Mgmt LAN 4 x1Gbe(Intel I350-AM4) RJ45 port (optional) or 2 x 10Gbe(Intel X710-AT2) RJ45 port (optional) Configuration #2 (GPU support) 1 x Mgmt LAN 2 x 10Gbe(Intel X710-AT2) RJ45 port (optional)
Graphic	Aspeed AST2600 64MB
Front I/O Ports	2 x USB 3.2 Gen1 ports
Rear I/O Ports	2 x USB 3.2 Gen1 ports 1 x VGA port 1 x RJ-45 Management LAN port 2 x 10G or 4 x 1G RJ-45 GbE LAN port (optional)
Switch/LED	Front Switch/LED: 1 x Power Switch (w/ LED) 1 x Location Switch (w/ LED)
Dimensions	840mm x 447mm x 88mm
Form Factor	2U
Weight	26.855kg
Power Supply	Configuration #1 (Non-GPU support) 1+1 Redundant AC: 2600W/1600W 80 PLUS Titanium Power Supply 2000W/1600W 80 PLUS Platinum Power Supply Configuration #2 (GPU support) 1+1 Redundant AC: 2600W 80 PLUS Titanium Power Supply 2000W 80 PLUS Platinum Power Supply
CPU Heatsink/ Cooler	Configuration #1 (Non-GPU support) 2U Standard Heatsink Configuration #2 (GPU support) 1U Standard Heatsink 1U EVAC Heatsink
FRU Part List	Board/Card/Module Motherboard: 90SB09M0-M0XBN1 RS12U Backplane: 90SC0IC0-M0XBN2 RS24U Backplane: 90SC0JU0-M1XBN1 2 Ports 10G LAN Module: 90SC0JD0-M0XBN1 4 Ports 1G LAN Module: 90SC0JE0-M0XBN1 Riser Card (for Low Profile Slot): 90SC0H10-M0XBN2 Riser Card (for 5-6 & 7-8 Slot): 90SC0IB0-M0XBN2 RS12U Riser Card (for 1-4 Slot): 90SC0IA0-M0XBN1 Cable Kit RS12U 12NVMe Cable Kit: 90SKS000-M3QAN0 RS12U 12SATA/SAS Cable Kit: 90SKS000-M3RAN0 RS24U 24NVMe Cable Kit: 90SKS000-M74AN0 9560-16i RAID Card Cable Kit: 90SKS000-M3EAN0 3008/3108 PIKE Card Cable Kit: 90SKS000-M7FAN0 2X4P to 2X6P GPU Power Cable Kit: 90SKS000-M28BN0 Others CPU Carrier Kit (Each 2pcs of E1A/E1B/E1C): 90SKS000-M4EAN0 Fan (Fan size: 808038mm): 90SK0000-MJDBN0 2U Front Bezel: 90SK0000-MPIAN0 HDD Tray 3.5” Tool-less HDD Tray: 90SKH000-MPRBN0 2.5” Tool-less HDD Tray: 90SKH000-MPPBN0 Heatsink 2U Standard CPU heatsink: 90SKS000-MJTAN0 1U EVAC CPU heatsink: 90SKS000-M4UAN0 Power Supply 1600W Titanium PSU: 90SKP000-M4RAN0 2600W Titanium PSU: 90SKP000-M4PAN0 1600W Platinum PSU: 90SKP000-M28AN0 2000W Platinum PSU: 90SKP000-M4FAN0 Rail Kit/Cable Arm Rail Kit – Full-Extension for 1.5M Rack: 90SKR000-M07AN0 Rail Kit – Friction: 90SKR000-M0EAN0 Cable Arm: 90SKS000-M23AN0
