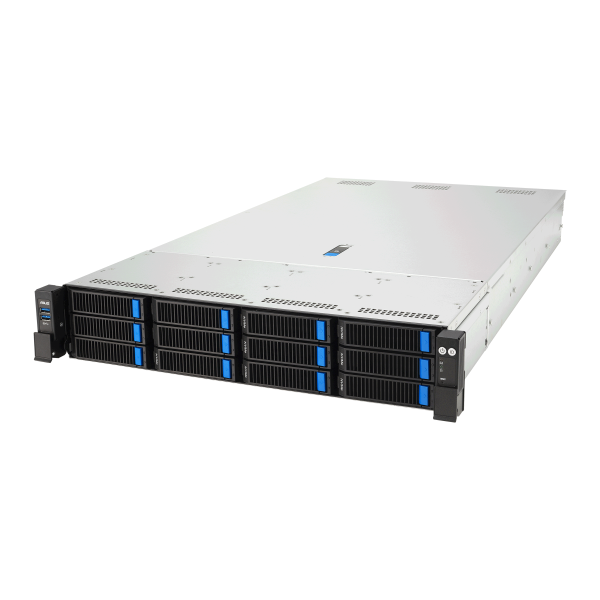

ASUS RS720-E12-RS12U

Favorite

Compara

2U dual-socket server powered by Intel® Xeon® 6 Scalable processors that supports up to 32 DIMMs, 12 NVMe, 10 PCIe slots and dual M.2, and ASUS ASMB12-iKVM.

Pretul afisat contine TVA (21%).

RS720-E12-RS12U

2U dual-socket server powered by Intel® Xeon® 6 Scalable processors that supports up to 32 DIMMs, 12 NVMe, 10 PCIe slots and dual M.2, and ASUS ASMB12-iKVM.

Key Features

Extensive computing performance: Powered by Intel® Xeon®6 Scalable processors, with 32 DDR5 RDIMM up to 6400MHz 1DPC, delivering exceptional performance and maximum efficiency across the widest range of workloads.
Modular and scalable architecture: Built with DC-MHS architecture, provide seamless integration and optimization, making them ideal for modern data centers and diverse IT environments.
Large Storage Capacity: Supports up to 12 NVMe drives, providing extensive storage space to meet demanding data requirements for large-scale applications and workloads.
Optimized air cooling solution: Features hot-swap fan bar design for improved maintenance and optimized airflow, combined with a two-sided PSU placement to separate heat, ensuring efficient thermal management up to TDP 350W.
Tool-less, easy-maintenance design: Features tool-less access, including a top-cover handle and optimized fan bar for improved cable management and easy maintenance.

Specifications

Processor / System Bus	Intel®Xeon® Processor Scalable Family
Generation	E12
Memory	Total slot: 32 (8-channel per CPU, 16 DIMM per CPU) Capacity: Maximum up to 4TB Memory type: 6th: 6400MHz (1DPC) Memory size: 128GB, 96GB, 64GB, 32GB, 16GB RDIMM * Refer to www.asus.com/support for more informatio
Expansion Slots	Total 10 expansion slots 6 x PCIE Gen5 x8 or 3 x PCIE Gen5 x16 (FHFL) 2 x PCIE Gen5 x16 (FHHL) 2 x OCP3.0 Gen5 x16 (SFF)
Storage	12 x 2.5″/3.5” hot-swap drive bays Support 12x NVMe/SATA/SAS *HBA/ RAID card is required to support SAS or SATA hard drive 2 x M.2 Gen5 x2 (2280/2260)(VROC required for RAID)
System Fan	6
Networking	1 x Management Port
Graphic	Aspeed AST2600 64MB
Multi-GPU Support	Please find the latest GPU support from https://servers.asus.com/support/gpu
Front I/O Ports	2 x USB 3.2 Gen1 ports
Rear I/O Ports	2 x USB 3.2 Gen1 ports 1 x Mini-DP port 1 x RJ-45 Management LAN port 1 x Debug port
Switch/LED	Front Switch/LED: 1 x Power Switch w/ LED 1 x Reset Switch 1 x Location Switch w/ LED 1 x HDD Access LED 1 x Message LED Rear Switch/LED: 1 x Power Switch w/ LED 1 x Location Switch w/LED 1 x Message LED
OS Support	Please find the latest OS support from https://servers.asus.com/support/os
Management Solution	On-Board ASMB12-iKVM for KVM-over-IP ASUS Control Center Enterprise (Classic C)(Optional)
Regulatory Compliance	BSMI, CE, CB, RCM, FCC(Class A), ISED
Dimensions	87.3 (W) x 484.65(H) x 822.16 (D) mm 19.08 (W) x 3.44 (H) x 32.37 (D) inches
Form Factor	2U
Weight	Net Weight : 17.82KG Gross Weight : 21.34KG
Power Supply	1+1 Redundant 80 PLUS 3200W Titanium PSU 1+1 Redundant 2700W Rating: 100-120V~/220-240V~, 16A (x2), 50/60Hz 100-127V~/220-240V~, 12A/16A (x2), 50-60Hz
Environment	Operation temperature: 10℃ ~ 35℃ Non operation temperature: -40℃ ~ 60℃ Non operation humidity: 20% ~ 90% (Non condensing)
Optional Items	Security: Dual BMC Module (default) TPM Module (MUST bundle with ASUS server while placing order if required.) Accessory: 2U Front Bezel 1.5U Height Full Extension Ball bearing Type Rail Kit Cable arm (Please consult sales if required.)
Note	SATA/SAS support only from HBA/RAID Card Onboard VROC key header
CPU Heatsink/ Cooler	2U Standard Heatsink*2
FRU Part List	Motherboard:90SB0D50-M0XBN2 FPB-R2PG: 90SC0SQ0-M0XBN1 BP12LE32G-35-R2PG: 90SC0SR0-M0XBN1 RS720-E12/FAN MODULE/WITHOUT FAN: 90SKS000-MPXAN0 3.5″ HDD TRAY TOOLLESS: 90SKH000-MPRBN0 PSU CRPS 3200W TITANIUM//DELTA : 90SKS000-MMCBN0 2700W RPSU//DELTA: 90SKS000-MM2BN0 1.5U FULL EXTENSION SLIDE RAIL//R1P-A SLIDE RAIL: 90SKR000-M07AN0 R2P-B CABLE ARM: 90SKS000-M23AN0 RS720-E12-RS12U RAID CARD CABLE (SATA) 9560/9670: 90SKS000-MVYBN0 RS720-E12-RS12U RAID CARD CABLE SATA 9540: 90SKS000-MVZBN0 RS720-E12-RS12U  RAID CARD 9560 CABLE (NVME): 90SKS000-MW0BN0 RS720-E12-RS12U  RAID CARD 9670 CABLE (NVME):90SKS000-MW1BN0 RS720-E12-RS12U PIKE CARD : 90SKS000-MW6BN0

SKU: rs720-e12-rs12u Categorii: ASUS, BRAND, Rack Servers, Server&Storage, Servers

Processor / System Bus	Intel®Xeon® Processor Scalable Family
Generation	E12
Memory	Total slot: 32 (8-channel per CPU, 16 DIMM per CPU) Capacity: Maximum up to 4TB Memory type: 6th: 6400MHz (1DPC) Memory size: 128GB, 96GB, 64GB, 32GB, 16GB RDIMM * Refer to www.asus.com/support for more informatio
Expansion Slots	Total 10 expansion slots 6 x PCIE Gen5 x8 or 3 x PCIE Gen5 x16 (FHFL) 2 x PCIE Gen5 x16 (FHHL) 2 x OCP3.0 Gen5 x16 (SFF)
Storage	12 x 2.5″/3.5” hot-swap drive bays Support 12x NVMe/SATA/SAS *HBA/ RAID card is required to support SAS or SATA hard drive 2 x M.2 Gen5 x2 (2280/2260)(VROC required for RAID)
System Fan	6
Networking	1 x Management Port
Graphic	Aspeed AST2600 64MB
Multi-GPU Support	Please find the latest GPU support from https://servers.asus.com/support/gpu
Front I/O Ports	2 x USB 3.2 Gen1 ports
Rear I/O Ports	2 x USB 3.2 Gen1 ports 1 x Mini-DP port 1 x RJ-45 Management LAN port 1 x Debug port
Switch/LED	Front Switch/LED: 1 x Power Switch w/ LED 1 x Reset Switch 1 x Location Switch w/ LED 1 x HDD Access LED 1 x Message LED Rear Switch/LED: 1 x Power Switch w/ LED 1 x Location Switch w/LED 1 x Message LED
OS Support	Please find the latest OS support from https://servers.asus.com/support/os
Management Solution	On-Board ASMB12-iKVM for KVM-over-IP ASUS Control Center Enterprise (Classic C)(Optional)
Regulatory Compliance	BSMI, CE, CB, RCM, FCC(Class A), ISED
Dimensions	87.3 (W) x 484.65(H) x 822.16 (D) mm 19.08 (W) x 3.44 (H) x 32.37 (D) inches
Form Factor	2U
Weight	Net Weight : 17.82KG Gross Weight : 21.34KG
Power Supply	1+1 Redundant 80 PLUS 3200W Titanium PSU 1+1 Redundant 2700W Rating: 100-120V~/220-240V~, 16A (x2), 50/60Hz 100-127V~/220-240V~, 12A/16A (x2), 50-60Hz
Environment	Operation temperature: 10℃ ~ 35℃ Non operation temperature: -40℃ ~ 60℃ Non operation humidity: 20% ~ 90% (Non condensing)
Optional Items	Security: Dual BMC Module (default) TPM Module (MUST bundle with ASUS server while placing order if required.) Accessory: 2U Front Bezel 1.5U Height Full Extension Ball bearing Type Rail Kit Cable arm (Please consult sales if required.)
Note	SATA/SAS support only from HBA/RAID Card Onboard VROC key header
CPU Heatsink/ Cooler	2U Standard Heatsink*2
FRU Part List	Motherboard:90SB0D50-M0XBN2 FPB-R2PG: 90SC0SQ0-M0XBN1 BP12LE32G-35-R2PG: 90SC0SR0-M0XBN1 RS720-E12/FAN MODULE/WITHOUT FAN: 90SKS000-MPXAN0 3.5″ HDD TRAY TOOLLESS: 90SKH000-MPRBN0 PSU CRPS 3200W TITANIUM//DELTA : 90SKS000-MMCBN0 2700W RPSU//DELTA: 90SKS000-MM2BN0 1.5U FULL EXTENSION SLIDE RAIL//R1P-A SLIDE RAIL: 90SKR000-M07AN0 R2P-B CABLE ARM: 90SKS000-M23AN0 RS720-E12-RS12U RAID CARD CABLE (SATA) 9560/9670: 90SKS000-MVYBN0 RS720-E12-RS12U RAID CARD CABLE SATA 9540: 90SKS000-MVZBN0 RS720-E12-RS12U  RAID CARD 9560 CABLE (NVME): 90SKS000-MW0BN0 RS720-E12-RS12U  RAID CARD 9670 CABLE (NVME):90SKS000-MW1BN0 RS720-E12-RS12U PIKE CARD : 90SKS000-MW6BN0
